Custom projection / decal support

[james7132]

What problem does this solve or what need does it fill?

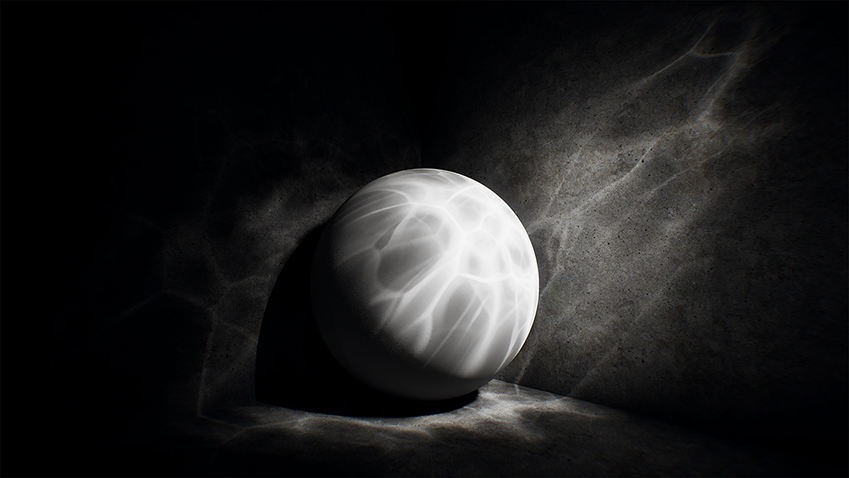

It's common in many game engines to require projecting a custom texture over a scene. Common use cases are bullet decals, light cookies, and custom shadows. A visual example from Unity's documentation:

What solution would you like?

A Projector component that is able to alter the light intensity and color of a given light (light cookies), or alternatively project texture alterations (decals).

What alternative(s) have you considered?

Bake the decals into textures?

Additional context

This originally came from a Discord comment, replicated below:

[1:29 PM] james7132: How hard would it be to repurpose the shadow mapping code to allow for custom projections? i.e. non photorealistic shadows or decals?
[1:54 PM] cart: Hmm currently it would require a new set of extract/prepare/queue steps (but you could reuse the types). But if this is something we want to be extensible we could make that happen. We have options:

1. move the projection calculation to the extract step. This would enable you to write a new extract system that calculates the projection differently for you new light type, but extract into the same render type so it will get picked up in the Prepare and Queue steps
2. add a hook to the "app light type" that lets people configure a projection there
3. create a new extract and prepare system for the new type and adapt the existing prepare step to stop assuming its the only light prepare step

[cchance27]

Just wanted to check if anyones actively working on this yet, or knows of any mods that are?

[lain-dono]

Quick sketch of decal material.

#import bevy_pbr::{
    mesh_view_bindings::{view, depth_prepass_texture},
    mesh_functions::get_model_matrix,
    forward_io::VertexOutput,
    view_transformations::{uv_to_ndc, frag_coord_to_uv, position_ndc_to_world},
}

@group(1) @binding(0) var texture: texture_2d<f32>;
@group(1) @binding(1) var texture_sampler: sampler;

@fragment
fn fragment(
#ifdef MULTISAMPLED
    @builtin(sample_index) sample_index: u32,
#endif
    input: VertexOutput,
) -> @location(0) vec4<f32> {

#ifdef MULTISAMPLED
    let ndc_depth = textureLoad(depth_prepass_texture, vec2<i32>(input.position.xy), i32(sample_index));
#else // MULTISAMPLED
    let ndc_depth = textureLoad(depth_prepass_texture, vec2<i32>(input.position.xy), 0);
#endif // MULTISAMPLED

    let ndc_position = vec3(uv_to_ndc(frag_coord_to_uv(input.position.xy)), ndc_depth);
    let world_position = position_ndc_to_world(ndc_position);
    let local_position = inverse(get_model_matrix(input.instance_index)) * vec4(world_position, 1.0);

    let color = textureSample(texture, texture_sampler, local_position.xz + 0.5);

    let x = local_position.x;
    let y = local_position.y;
    let z = local_position.z;

    if (x < -0.5 || x > 0.5 || (y < -0.5 || y > 0.5) || (z < -0.5 || z > 0.5)) {
        discard;
    } else {
        return color;
    }
}

fn inverse(m: mat4x4<f32>) -> mat4x4<f32> {
    let a00 = m[0][0]; let a01 = m[0][1]; let a02 = m[0][2]; let a03 = m[0][3];
    let a10 = m[1][0]; let a11 = m[1][1]; let a12 = m[1][2]; let a13 = m[1][3];
    let a20 = m[2][0]; let a21 = m[2][1]; let a22 = m[2][2]; let a23 = m[2][3];
    let a30 = m[3][0]; let a31 = m[3][1]; let a32 = m[3][2]; let a33 = m[3][3];

    let b00 = a00 * a11 - a01 * a10;
    let b01 = a00 * a12 - a02 * a10;
    let b02 = a00 * a13 - a03 * a10;
    let b03 = a01 * a12 - a02 * a11;
    let b04 = a01 * a13 - a03 * a11;
    let b05 = a02 * a13 - a03 * a12;
    let b06 = a20 * a31 - a21 * a30;
    let b07 = a20 * a32 - a22 * a30;
    let b08 = a20 * a33 - a23 * a30;
    let b09 = a21 * a32 - a22 * a31;
    let b10 = a21 * a33 - a23 * a31;
    let b11 = a22 * a33 - a23 * a32;

    let det = b00 * b11 - b01 * b10 + b02 * b09 + b03 * b08 - b04 * b07 + b05 * b06;

    return mat4x4(
        vec4(
            a11 * b11 - a12 * b10 + a13 * b09,
            a02 * b10 - a01 * b11 - a03 * b09,
            a31 * b05 - a32 * b04 + a33 * b03,
            a22 * b04 - a21 * b05 - a23 * b03,
        ) / det,
        vec4(
            a12 * b08 - a10 * b11 - a13 * b07,
            a00 * b11 - a02 * b08 + a03 * b07,
            a32 * b02 - a30 * b05 - a33 * b01,
            a20 * b05 - a22 * b02 + a23 * b01,
        ) / det,
        vec4(
            a10 * b10 - a11 * b08 + a13 * b06,
            a01 * b08 - a00 * b10 - a03 * b06,
            a30 * b04 - a31 * b02 + a33 * b00,
            a21 * b02 - a20 * b04 - a23 * b00,
        ) / det,
        vec4(
            a11 * b07 - a10 * b09 - a12 * b06,
            a00 * b09 - a01 * b07 + a02 * b06,
            a31 * b01 - a30 * b03 - a32 * b00,
            a20 * b03 - a21 * b01 + a22 * b00,
        ) / det,
    );
}

[lain-dono]

Optimized version. Don't forget to add bevy::core_pipeline::prepass::DepthPrepass to the Camera.

This version requires a Mesh with 14 vertices and a PrimitiveTopology::TriangleStrip.

It is possible to make a version that doesn't require Mesh, however I don't think it is necessary.

Lighting is not hard to add. It is enough to see how PBR shaders are designed.

#import bevy_pbr::{
    mesh_view_bindings::{view, depth_prepass_texture},
    mesh_bindings,
    mesh_functions,
    view_transformations::{uv_to_ndc, frag_coord_to_uv, position_ndc_to_world, position_world_to_clip},
}
#import bevy_render::maths::mat2x4_f32_to_mat3x3_unpack

@group(1) @binding(0) var texture: texture_2d<f32>;
@group(1) @binding(1) var texture_sampler: sampler;

struct VertexOutput {
    @builtin(position) position: vec4<f32>,
    @location(0) @interpolate(flat) instance_index: u32,
}

@vertex
fn vertex(
    @builtin(instance_index) instance_index: u32,
    @builtin(vertex_index) vertex_index: u32,
) -> VertexOutput {
    let model = mesh_functions::get_model_matrix(instance_index);
    let world_position = mesh_functions::mesh_position_local_to_world(model, generate_cube_strip(vertex_index));
    var out: VertexOutput;
    out.instance_index = instance_index;
    out.position = position_world_to_clip(world_position.xyz);
    return out;
}

@fragment
fn fragment(
#ifdef MULTISAMPLED
    @builtin(sample_index) sample_index: u32,
#endif
    @builtin(position) position: vec4<f32>,
    @location(0) @interpolate(flat) instance_index: u32,
) -> @location(0) vec4<f32> {
#ifdef MULTISAMPLED
    let ndc_depth = textureLoad(depth_prepass_texture, vec2<i32>(position.xy), i32(sample_index));
#else // MULTISAMPLED
    let ndc_depth = textureLoad(depth_prepass_texture, vec2<i32>(position.xy), 0);
#endif // MULTISAMPLED

    let world_to_local = get_inverse_model_matrix(instance_index);

    let ndc_position = vec3(uv_to_ndc(frag_coord_to_uv(position.xy)), ndc_depth);
    let world_position = position_ndc_to_world(ndc_position);
    let local_position = world_to_local * vec4(world_position, 1.0);

    let color = textureSample(texture, texture_sampler, local_position.xz + 0.5);

    let x = local_position.x;
    let y = local_position.y;
    let z = local_position.z;

    if (ndc_depth <= -0.0 || abs(x) > 0.5 || abs(y) > 0.5 || abs(z) > 0.5) {
        discard;
    } else {
        return color;
    }
}

fn generate_cube_strip(vertex_index: u32) -> vec4<f32> {
    let mask = 1u << vertex_index;
    return vec4(
        f32((0x287Au & mask) != 0u) - 0.5,
        f32((0x02AFu & mask) != 0u) - 0.5,
        f32((0x31E3u & mask) != 0u) - 0.5,
        1.0,
    );
}

fn get_inverse_model_matrix(instance_index: u32) -> mat4x4<f32> {
    let affine = mesh_bindings::mesh[instance_index].model;
    let mx = transpose(mat2x4_f32_to_mat3x3_unpack(
        mesh_bindings::mesh[instance_index].inverse_transpose_model_a,
        mesh_bindings::mesh[instance_index].inverse_transpose_model_b,
    ));
    let tx = vec3(affine.x[3], affine.y[3], affine.z[3]);
    return mat4x4(vec4(mx.x, 0.0), vec4(mx.y, 0.0), vec4(mx.z, 0.0), vec4(-(mx * tx), 1.0));
}

pub struct DecalPlugin;

impl Plugin for DecalPlugin {
    fn build(&self, app: &mut App) {
        app.add_plugins(MaterialPlugin::<DecalMaterial> {
            prepass_enabled: false,
            ..default()
        });
    }
}

#[derive(Asset, TypePath, AsBindGroup, Debug, Clone)]
pub struct DecalMaterial {
    #[texture(0)]
    #[sampler(1)]
    pub texture: Handle<Image>,
}

impl Material for DecalMaterial {
    fn vertex_shader() -> ShaderRef {
        "shaders/decal.wgsl".into()
    }

    fn fragment_shader() -> ShaderRef {
        "shaders/decal.wgsl".into()
    }

    fn alpha_mode(&self) -> AlphaMode {
        AlphaMode::Blend
    }
}

#[derive(Bundle, Debug, Default)]
pub struct DecalBundle {
    pub mesh: Handle<Mesh>,
    pub material: Handle<DecalMaterial>,

    pub visibility: Visibility,
    pub inherited_visibility: InheritedVisibility,
    pub view_visibility: ViewVisibility,
    pub transform: Transform,
    pub global_transform: GlobalTransform,
}

pub fn create_decal_mesh() -> Mesh {
    let mesh = Mesh::new(bevy::render::mesh::PrimitiveTopology::TriangleStrip)
        .with_inserted_attribute(Mesh::ATTRIBUTE_POSITION, vec![[0.0, 0.0, 0.0]; 14]);
}

[alice-i-cecile]

A new third-party implementation for Bevy 0.13: https://github.com/naasblod/bevy_contact_projective_decals

[JMS55]

Rough plan based on some conversations in discord: https://discord.com/channels/691052431525675048/743663924229963868/1301985754414841918

• ForwardDecal - Upstream bevy_contact_projective_decals. This will reuse most of the transparent rendering infra in bevy. Won't write to prepass/gbuffer texture, so mainly used for forward without TAA, or forward with TAA and only static decals. Easiest one to implement. Can be used with deferred rendering, the same way transparencies run in a forward pass after deferred.
• DeferredDecal - Write decal info to the gbuffer before shading. Not much more work.
• ClusteredDecal - A third variant that acts like a clustered light, where during the shading pass of the main geometry, you find which decals apply to the current surface, and fetch their textures via bindless, and then mix it with the current shader. Very similar to light cookies. A lot more work.
