ffmpeg_pipeline

A flexible pipeline for video/audio acquisition, encoding, decoding, and output using FFmpeg on ROS 2

Overview

ffmpeg_pipeline is a collection of ROS 2 packages designed to efficiently and flexibly integrate the powerful and stable multimedia capabilities of FFmpeg into robotic systems. Using ffmpeg_pipeline, the following types of applications can be constructed solely through configuration files, without writing custom ROS 2 nodes:

• Read an H.264 stream from a USB camera on a robot and transmit it to the operator’s PC via a ROS 2 topic, without CPU-intensive and time-consuming re-encoding by the camera driver or image_transport. The operator PC decodes and displays the video with low latency using hardware acceleration.
• Read an audio stream from a microphone on the operator's PC, compress it using the high-quality Opus codec, and transmit it to the robot via a ROS 2 topic. The robot decodes it with low-latency settings and plays it through a speaker.
• Apply desired resolution/sample rate/format conversions to various input sources supported by FFmpeg (e.g., video/audio files, network cameras, desktop screens), compress them using the desired codec, and distribute them using the desired protocol.

To enable such flexible audio/video processing pipelines, ffmpeg_pipeline implements FFmpeg components—such as input, output, encoder, decoder, scaler, and resampler—as ros2_control hardware and controller plugins. This architecture provides users with the following benefits:

• Access to almost all FFmpeg functionalities using standard ROS 2 launch and parameter frameworks.
• Flexible composition of input/output and pre/post-processing (encoding/decoding/conversion) by combining desired hardware and controller plugins.
• Controllers are chainable, allowing complex pipelines with multiple processing stages to be built from modular, single-function controllers.
• Data is exchanged between hardware and controllers via pointers on hardware_interface, enabling efficient processing with minimal overhead.
• Transmitting processed data through ROS 2 topics enables seamless system integration across multiple processes or machines.

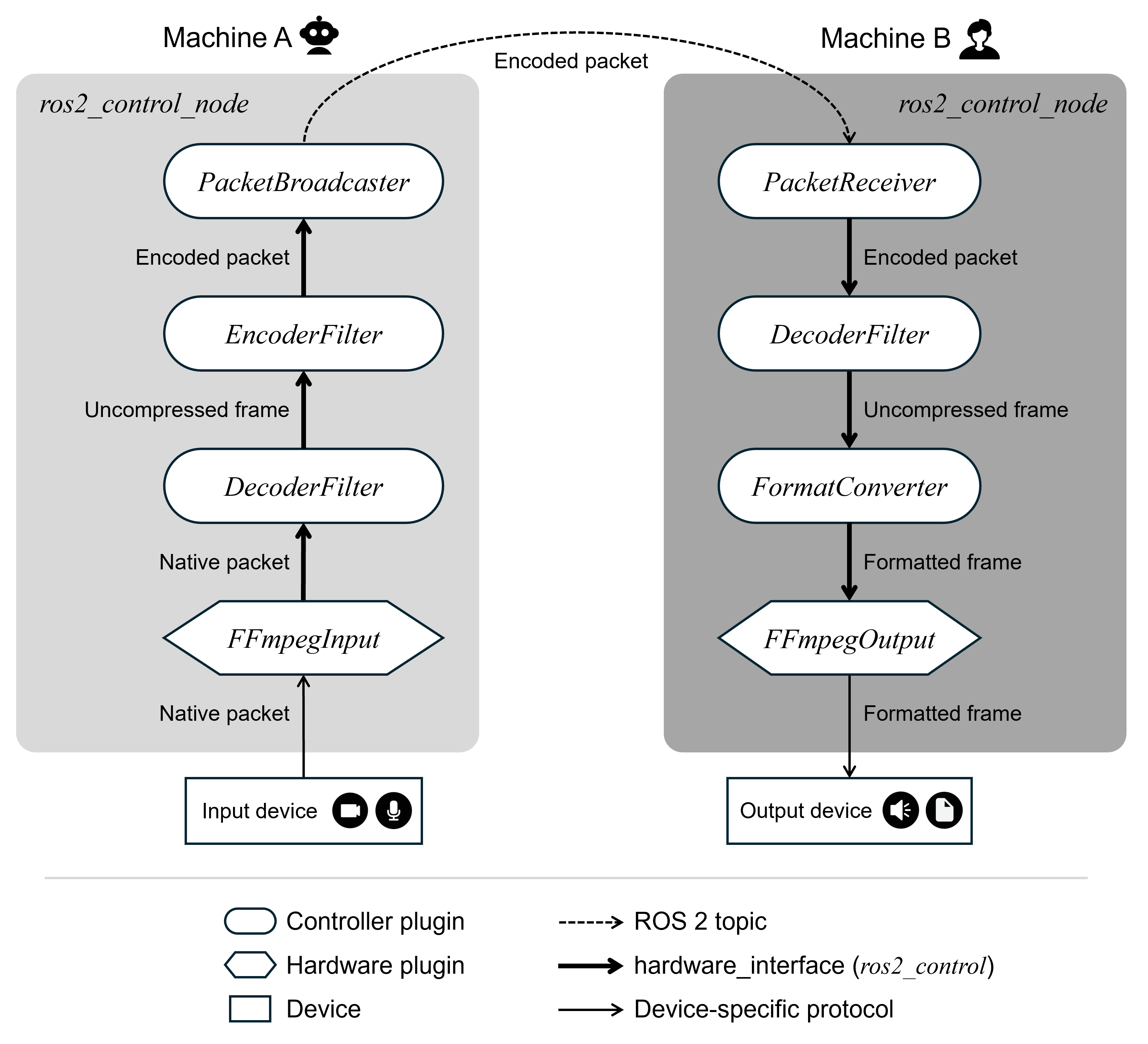

Fig. example of distributed audio/video pipeline using ffmpeg_pipeline

Packages

This repository contains the following packages:

• ffmpeg_controllers: Chainable ros2_control-compatible controllers for encoding, decoding, and filtering audio/video streams.
• ffmpeg_cpp: C++17 wrapper for the FFmpeg C library.
• ffmpeg_hardware: ros2_control-compatible hardware drivers backed by FFmpeg input/output.
• ffmpeg_image_transport: image_transport plugins using FFmpeg for image encoding and decoding.
• ffmpeg_pipeline: A metapackage that groups related packages for building FFmpeg-based pipelines.
• ffmpeg_pipeline_examples: Practical examples of various pipeline configurations.
• ffmpeg_pipeline_msgs: Message definitions for transferring audio and video data.

Verified Environments

ROS 2 Jazzy on Ubuntu 24.04 LTS

Installation

mkdir -p ~/ros2_ws/src
cd ~/ros2_ws/src
git clone <this repository URL>
rosdep install --from-paths . --ignore-src --rosdistro jazzy -y
cd ~/ros2_ws
colcon build
source install/setup.bash

Hardware Plugins

See ffmpeg_hardware for details.

Input Hardware

• FFmpegInput: Reads audio/video packets from various devices supported by libavformat and libavdevice (e.g., V4L2 or network cameras, PulseAudio inputs, local files, screen capture, etc.).

Output Hardware

• FFmpegOutput: Writes audio/video packets and frames to various devices supported by libavformat and libavdevice (e.g., PulseAudio outputs, local files, etc.).

• DumpInfoOutput: Dumps packet and frame information from controllers for debugging and visualization.

Controller Plugins

See ffmpeg_controllers for details.

Filter Controllers

Filters retrieve data from hardware or other controllers and export processed results via their own state interfaces.

• EncoderFilter: Compresses frames into various formats using libavcodec (e.g., H.264, MJPEG, Opus, and over 100 other codecs).

• ParserFilter: Parses packets using libavcodec to extract codec parameters for downstream controllers.

• DecoderFilter: Decompresses packets in various formats using libavcodec.

• VideoConverterFilter: Converts resolutions and pixel formats using libswscale.

• AudioConverterFilter: Converts sample rates, channel layouts, and formats using libswresample.

• AudioFifoFilter: Adjusts the number of samples per audio frame using libavutil.

Broadcaster Controllers

Broadcasters retrieve data from hardware or other controllers and publish it as ROS 2 messages.

• PacketBroadcaster: Publishes compressed audio/video packets.

• FrameBroadcaster: Publishes uncompressed audio/video frames.

• ImageBroadcaster: Publishes video frames as sensor_msgs::msg::Image.

• CompressedImageBroadcaster: Publishes video packets as sensor_msgs::msg::CompressedImage.

Receiver Controllers

Receivers subscribe to ROS 2 messages and export them via their own state interfaces.

• PacketReceiver: Subscribes to compressed packets and injects them into the pipeline.

• FrameReceiver: Subscribes to uncompressed frames and injects them into the pipeline.

image_transport Plugins

See ffmpeg_image_transport for details.

• ffmpeg_sub: Subscribes to sensor_msgs::msg::CompressedImage on the ~/image/ffmpeg topic and decompresses messages using libavcodec.

• ffmpeg_pub: Compresses images using libavcodec and publishes them to the ~/image/ffmpeg topic as a sensor_msgs::msg::CompressedImage.

Running Examples

Below are some example pipelines you can launch. For additional examples, see ffmpeg_pipeline_examples.

Streaming H.264 Camera Video

ros2 launch ffmpeg_pipeline_examples h264_camera_pipeline.launch.py

flowchart LR
   A@{ shape: rect, label: "V4L2 camera" } -- "H.264 packet" --> B@{ shape: hex, label: "FFmpegInput (format:=#quot;v4l2#quot;)" }
   subgraph ros2_control_node
   B == "H.264 packet" ==> C@{ shape: stadium, label: "PacketBroadcaster" }
   end
   C -. "CompressedImage (format=#quot;h264#quot;)" .-> D@{ shape: stadium, label: "ffmpeg_sub (hw_type_name=#quot;cuda#quot;)" }
   subgraph image_view
   D
   end

Loading

Audio Capture with PulseAudio

ros2 launch ffmpeg_pipeline_examples pulse_audio_capture_pipeline.launch.py

flowchart LR
   A@{ shape: rect, label: "PulseAudio input" } -- "PCM packet" --> B@{ shape: hex, label: "FFmpegInput (format:=#quot;pulse#quot;)" }
   subgraph ros2_control_node
   B == "PCM packet" ==> C@{ shape: stadium, label: "DecoderFilter" }
   B ==> C2@{ shape: stadium, label: "PacketBroadcaster" }
   C == "PCM frame" ==> D@{ shape: stadium, label: "EncoderFilter (encoder_name:=#quot;libopus#quot;)" }
   C ==> D2@{ shape: stadium, label: "FrameBroadcaster" }
   D == "Opus packet" ==> E@{ shape: stadium, label: "PacketBroadcaster" }
   end
   C2 -. "Packet (codec=#quot;pcm_s16#quot;)" .-> F:::hidden
   D2 -. "Frame (format=#quot;pcm_s16#quot;)" .-> G:::hidden
   E -. "Packet (codec=#quot;opus#quot;)" .-> H:::hidden
   classDef hidden display: none;

Loading

Audio Play with PulseAudio

ros2 launch ffmpeg_pipeline_examples pulse_audio_play_pipeline.launch.py

flowchart LR
   A:::hidden -. "Packet (codec=#quot;opus#quot;)" .-> B@{ shape: stadium, label: "PacketReceiver" }
   subgraph ros2_control_node
   B == "Opus packet" ==> C@{ shape: stadium, label: "DecoderFilter (decoder_name:=#quot;libopus#quot;)" }
   C == "PCM frame" ==> D@{ shape: hex, label: "FFmpegOutput (format:=#quot;pulse#quot;)" }
   end
   D -- "PCM frame" --> H@{ shape: rect, label: "PulseAudio output" }
   classDef hidden display: none;

Loading

End-to-End Audio Streaming with PulseAudio

ros2 launch ffmpeg_pipeline_examples pulse_audio_capture_pipeline.launch.py namespace:=capture
ros2 launch ffmpeg_pipeline_examples pulse_audio_play_pipeline.launch.py namespace:=play input_topic:=/capture/packet_broadcaster/packet
