Fixes socket.io#1910 by calling transport.close() on ping timeout

[apeace]

There have been a few of us struggling with socketio/socket.io#1910. @nkzawa was kind enough to replicate our results and reproduce the issue, as well as point me in the right direction to find the bug.

With this addition, I can no longer reproduce using the steps in that issue. I have not done any further testing beyond that. Note that I tried both with and without transports: ['polling'] as I described in the issue, and I couldn't reproduce any longer.

Interestingly, with this fix, I am still seeing a delay of about 10-15 seconds after receiving the disconnect event, before the socket is actually closed. I'm not sure why that would be the case. But I verified, without this change, even after waiting > 60 seconds, the socket never closes. So I think this fixes the issue.

I ran make test and all tests were passing except one--but it is also failing on engine.io#master.

Let me know if there is anything else I can do. I'm planning to test this change immediately in my production environment (about ~200 clients), so I'll report my results here.

[nkzawa]

👍

The delay after the disconnect event should be the close timeout of websocket.

[whifflevcq]

Thanks @apeace and @nkzawa . You used transport polling or websocket?
In client, I use socket-client-java. When client send handshake socket, 3 TCP connection established. 3th connection will create socket connection. The remaining connections will be killed after 120s(Idle timeout). My problem is that the connection was not killed. I think transport.close() just solve 3th connection as I said above. But I'll test. Tomorrow will be about 1000 clients, hope everything will be fine.

[apeace]

After about 20 hours in production, I'm glad to report that this patch seems to be working. We're still hovering around ~200 open sockets for ~200 clients. Typically by this point we'd have > 1000 sockets for ~200 clients.

[whifflevcq]

I also recently tested over 1000 client user socket-client-java 1h ago. Normal would be about 6k TCP EST connection. And now ~ 1200 TCP EST connection. Seem the issue was solved. I will continue to monitor and feedback!

[whifflevcq]

After about 30h. With ~700 client, have ~4000 TCP EST connection.Seem like to still memory leak. However this is a good sign. Because ago with about 1000 clients, after 12 hours, have ~ 30.000 TCP connection.

[nkzawa]

@whifflevcq thank you for your feedback. So it's still not perfect, but anyway I believe closing all tcp sockets on client disconnection would solve the issue.

[apeace]

I can confirm what @whifflevcq said. There do still seem to be some sockets left open.

After almost four days of running with this change, I'm seeing ~280 sockets open, with ~200 clients. After restarting the server (all sockets closed, then clients reconnect), I'm back to ~200 sockets open.

So this fix is a drastic improvement, but there does still seem to be another leak of socket file descriptors.

[c8439]

@apeace Transport.close () how to configure, the effect is good

[c8439]

@whifflevcq Hello, you that effect is good, what is modified

[whifflevcq]

@c8439 In socket.io/node_modules/engine.io/lib/socket.js. Fix setPingTimeOut
Socket.prototype.setPingTimeout = function () {
var self = this;
clearTimeout(self.pingTimeoutTimer);
self.pingTimeoutTimer = setTimeout(function () {
self.onClose('ping timeout');
self.transport.close(); // Fix this...
}, self.server.pingInterval + self.server.pingTimeout);
};

[c8439]

@whifflevcq My server is this, https://github.com/mrniko/netty-socketio;

[whifflevcq]

@c8439 you should tag this issue in netty-socketio and thanks to mrniko help

[nicofff]

After almost a day of usage this PR is looking good.
I am seeing a slight difference between open sockets and connected clients, but it's remaining constant so far. I'm thinking it might have to do with counting sockets that are closing as active.
Just updated my log collection script to account for this.

[karol-papala]

I had the same issue over last couple of weeks. My app is handling 2.5k users on 3.5k connected sockets online. I have up to 25k sessions per day.

I've noticed that during the night when number of users drops to 100, number of opened connections on the server doesn't decrease, stays the same.

Of course it was a big issue for my app - I had to increase ulimit -n on the server and restart my node.js app every couple of days.

This fix solves the problem. After implementing opened connections are killed when sockets disconnect.

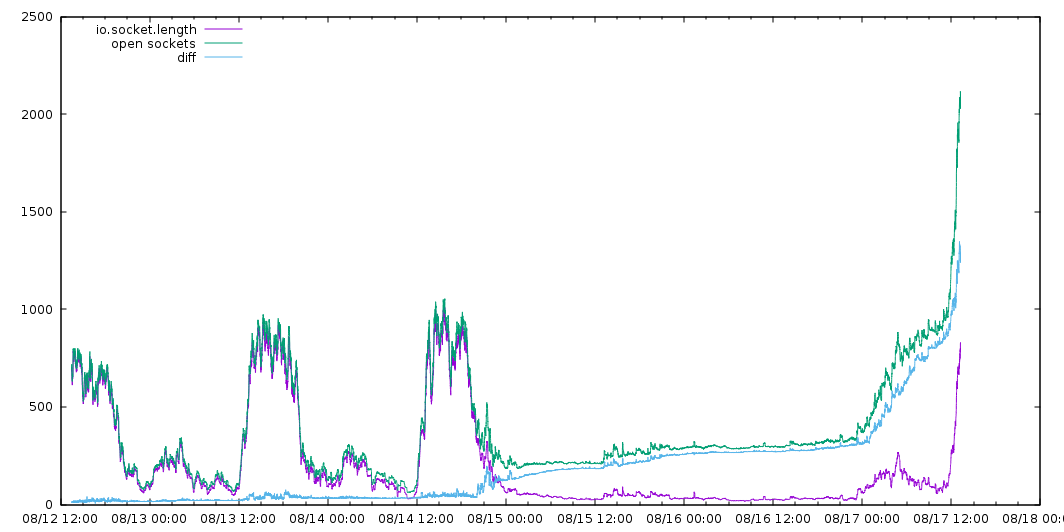

Check out the graph. I started counting opened connection in the middle of the week, later on I implemented the fix, restarted server, there's weekend and after weekend you can see significant improvement.

Thanks a lot for this fix!

BTW: My app is using polling as a default transport method. My clients do not use websockets.

[3rd-Eden]

Move the self.transport.close(); under the onClose so no test regression is introduced, it should stop the tests from failing and will make people press the merge button.

[apeace]

@3rd-Eden moving the line like you suggested didn't fix the failing test case for me. The same test case is failing on the master branch, it seems unrelated:

  1) server extraHeaders should arrive from client to server via WebSockets:
     Uncaught Error: expected undefined to equal 'my-secret-access-token'

Though maybe if we fix that one, we can get this PR merged :P

Thanks to everyone for your help! Glad this problem is fixed in production for all of you :)

[nicofff]

We ran this fix with the transports set to ["websockets"] for a few days, and then switched back the the default ["polling","websockets"].

It does appear that this PR does help a lot with the issue when using websockets, but there is still another issue related to the polling transport.

[karol-papala]

I forgot to mention that fix was applied to application running on polling method. I don't use websockets at all, so in my case it works for polling.

[nkzawa]

I looked through the source code and found a few suspicious points.

Transports are not explicitly closed on error. Usually, transports will close themselves when an error occurs, but it's not always true.
https://github.com/socketio/engine.io/blob/master/lib/socket.js#L95
https://github.com/socketio/engine.io/blob/master/lib/socket.js#L117

WebSocket connections are not closed when upgrade timeout since transport.readyState will never change to open (which should be a bug).
https://github.com/socketio/engine.io/blob/master/lib/socket.js#L169

Regarding polling transports, http server automatically closes sockets when they time out, so maybe we don't need to worry them.
https://nodejs.org/api/http.html#http_server_settimeout_msecs_callback

[danpe]

👍

[nicofff]

Still seeing problems if the polling transport is enabled (either alone or in conjunction with websockets), even after applying this PR and @nkzawa's.

[nkzawa]

@nicofff I wonder why the PR doesn't solve your case. Do you have any particular settings for http server like timeout and keepAlive?

[nicofff]

We're using https, no options other than cert and key.

[rikukissa]

Any updates on this one? We're still experiencing a lot of connections not being closed when using polling transport with websocket transport. We're also using HTTPS.

[rauchg]

This PR has been merged and included in a release already. What version are you running?

[rikukissa]

The most recent one (1.6.4). Everything seems to be working fine now after we stopped using socket.io's https config property and started proxying all connections through nginx.

[rauchg]

@rikukissa so is this specifically related to SSL handling?

[rikukissa]

It seems so, but I really can't say for sure. Lets consider this as solved and I'll get back to you if we figure out what caused this in a first place.

[rauchg]

@rikukissa thanks a lot!!
