Add DirectLineClientTests to FunctionalTest project using ARM

[ceciliaavila]

Proposed Changes

Add new DirectLineClientTests to FunctionalTests project to test sending a message to an echo bot deployed in Azure with ARM Templates and check its response.

Steps to configure the Pipeline:

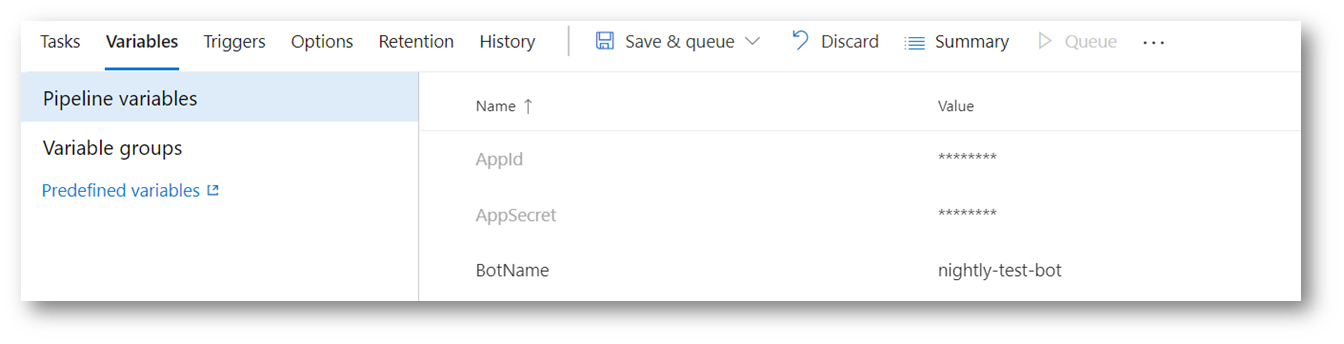

1- Define three environment variables: AppId, AppSecret and BotName and mark the first two as Secrets.

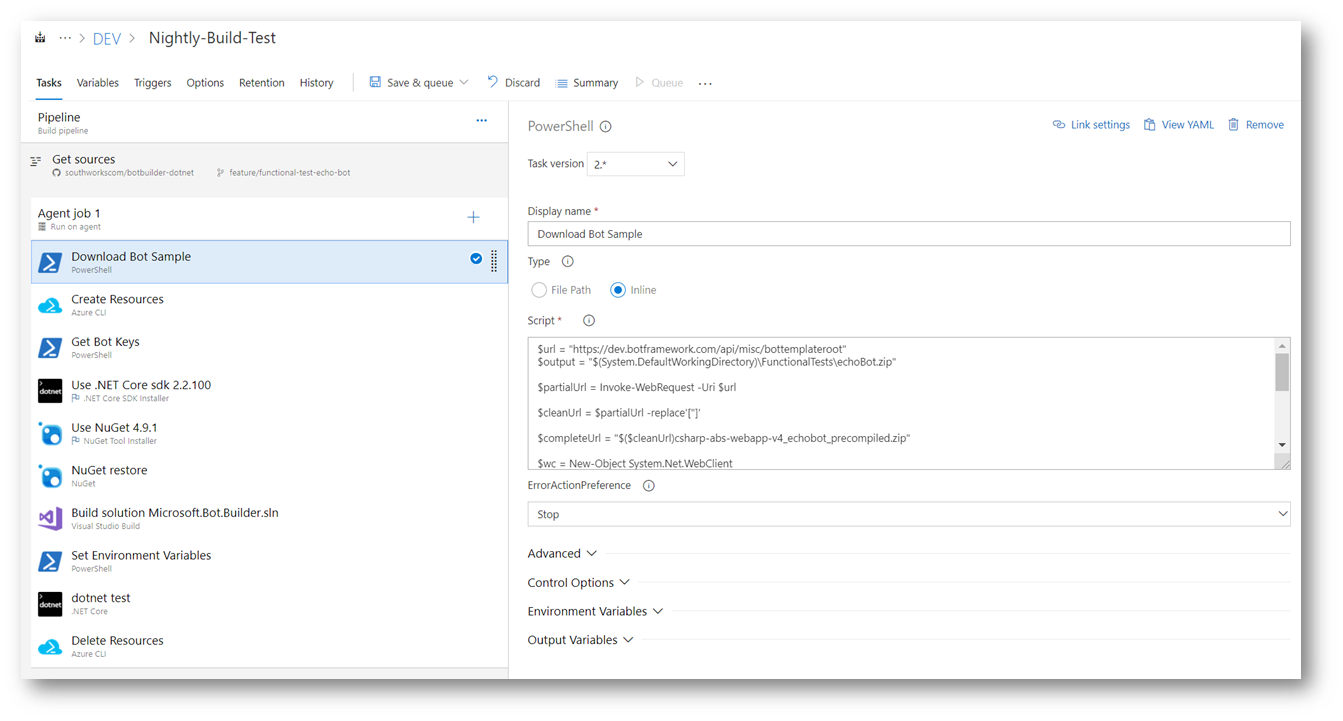

2- Add a PowerShell Script Task to download the .zip that contains the latest version of the EchoBot Sample.

The script is:

$url = "https://dev.botframework.com/api/misc/bottemplateroot"
$output = "$(System.DefaultWorkingDirectory)\FunctionalTests\echoBot.zip"

$partialUrl = Invoke-WebRequest -Uri $url

$cleanUrl = $partialUrl -replace'["]'

$completeUrl = "$($cleanUrl)csharp-abs-webapp-v4_echobot_precompiled.zip"

$wc = New-Object System.Net.WebClient
$wc.DownloadFile($completeUrl, $output)

Expand-Archive $output -DestinationPath $(System.DefaultWorkingDirectory)\FunctionalTests\echoBot\

$slnPath = Get-ChildItem -Path $(System.DefaultWorkingDirectory)\FunctionalTests\echoBot\ -Filter EchoBot.sln -Recurse -Force -ErrorAction SilentlyContinue| select FullName

$folder = Split-Path $slnPath.FullName

Compress-Archive -Path $folder\* -DestinationPath $(System.DefaultWorkingDirectory)\FunctionalTests\SampleEchoBot.zip

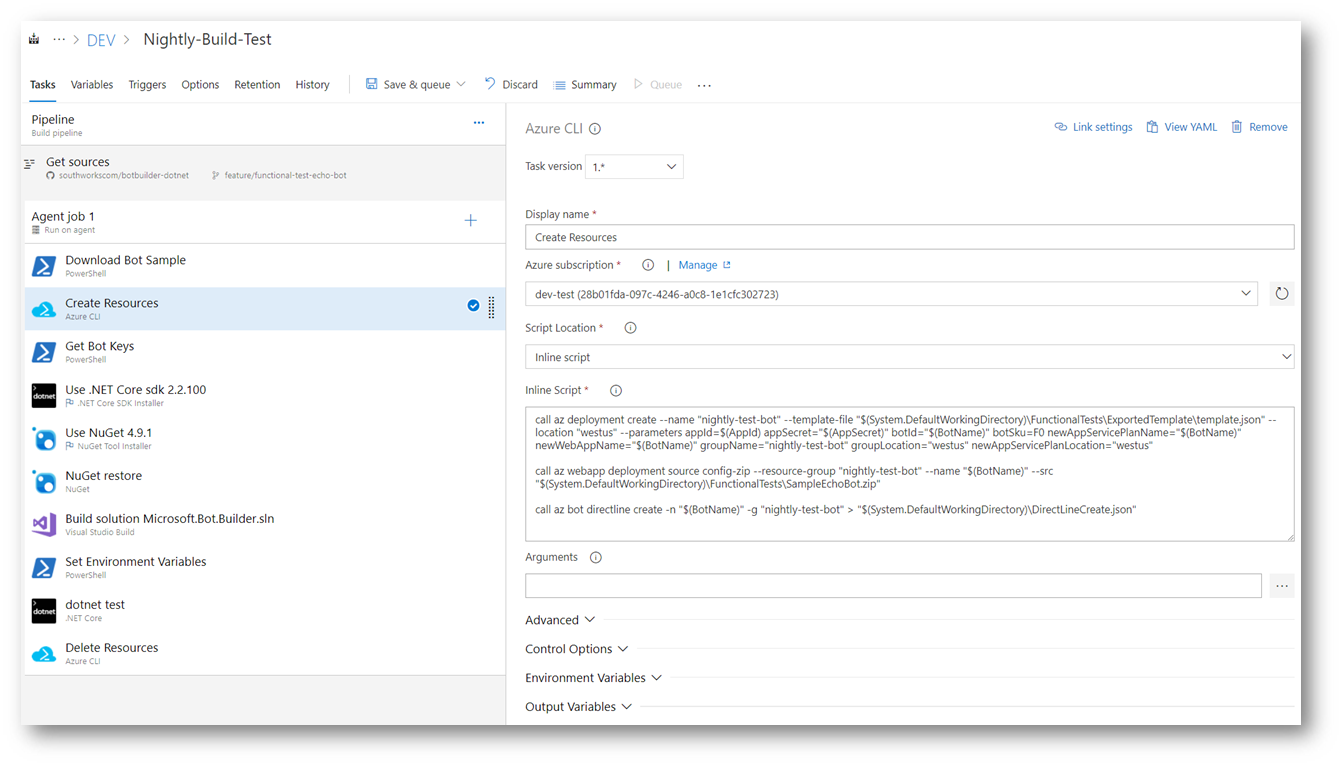

3- Configure one Azure CLI Task to:

• Run az deployment create command to create the resources in Azure.
• Run az webapp deployment command to deploy the EchoBot sample.
• Run az bot direcline create command to connect the bot to the DirectLine channel

The output goes into a json file from where we will recover the channel key later.

The script is:

call az deployment create --name "nightly-test-bot" --template-file "$(System.DefaultWorkingDirectory)\FunctionalTests\ExportedTemplate\template.json" --location "westus" --parameters appId=$(AppId) appSecret="$(AppSecret)" botId="$(BotName)" botSku=F0 newAppServicePlanName="$(BotName)" newWebAppName="$(BotName)" groupName="nightly-test-bot" groupLocation="westus" newAppServicePlanLocation="westus"

call az webapp deployment source config-zip --resource-group "nightly-test-bot" --name "$(BotName)" --src "$(System.DefaultWorkingDirectory)\FunctionalTests\SampleEchoBot.zip"

call az bot directline create -n "$(BotName)" -g "nightly-test-bot" > "$(System.DefaultWorkingDirectory)\DirectLineCreate.json"

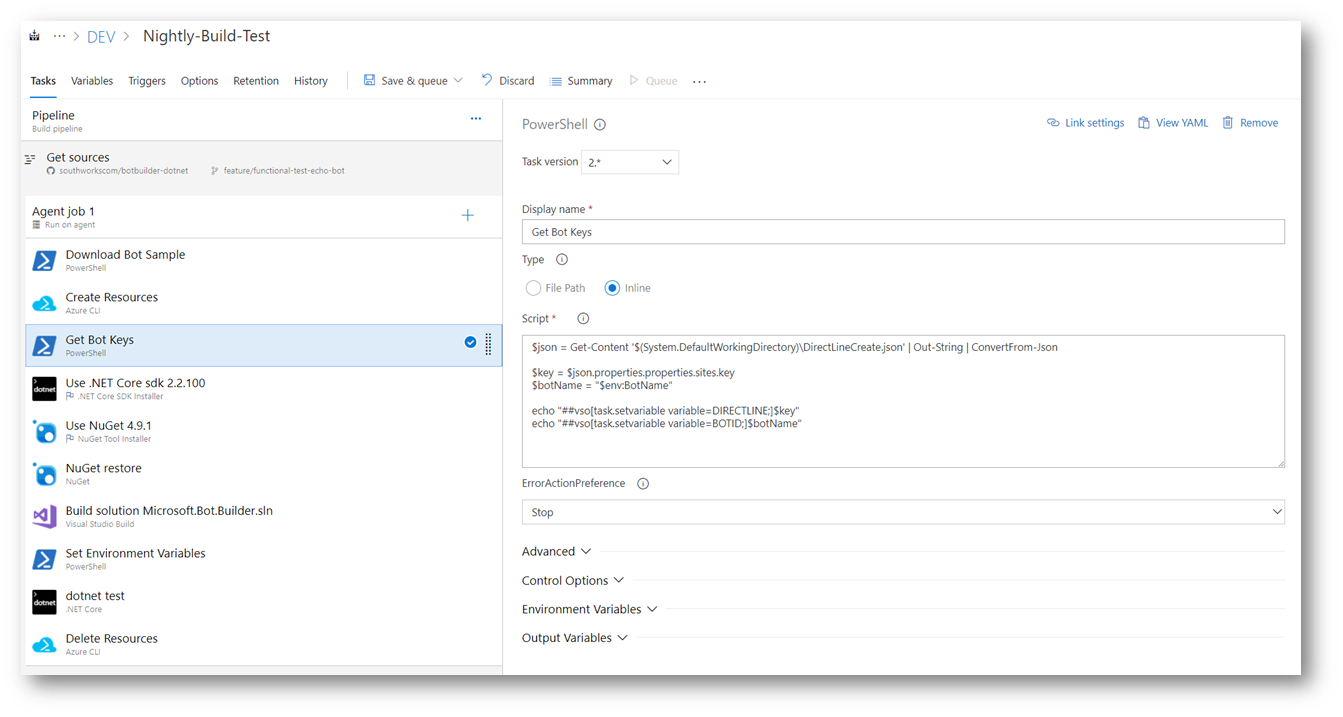

4- Add a new PowerShell Script Task to read the json file generated in the previous step and get the secret key to connect to the bot. It also sets an environment variable with this value.

The script is:

$json = Get-Content '$(System.DefaultWorkingDirectory)\DirectLineCreate.json' | Out-String | ConvertFrom-Json

$key = $json.properties.properties.sites.key
$botName = $(BotName)

echo "##vso[task.setvariable variable=DIRECTLINE;]$key"
echo "##vso[task.setvariable variable=BOTID;]$botName"

5- After the Tests run, add a new Azure CLI Task to delete the resource group we've created in the first step.

The script is:

call az group delete -n "nightly-test-bot" --yes

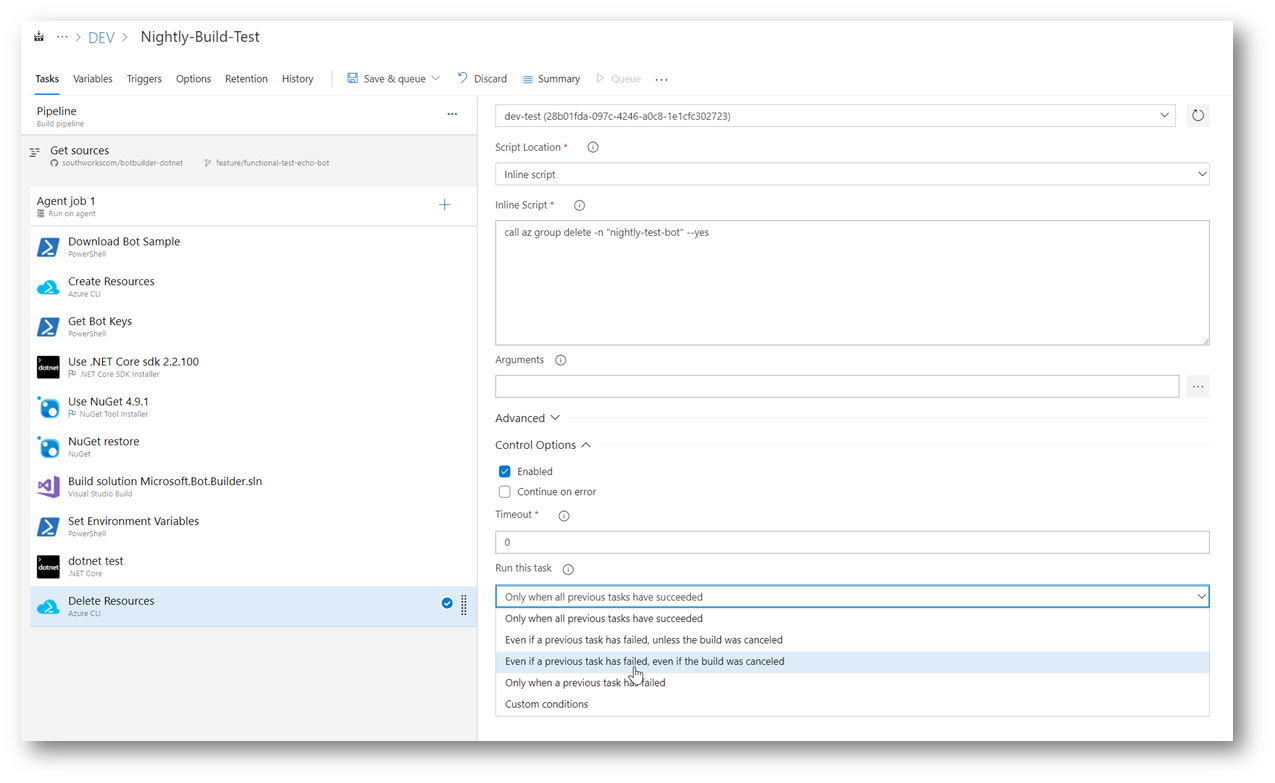

We strongly recommend setting this task to run Even if a previous task has failed, even if the build was canceled. With this setting, we will assure that the resources will be deleted from Azure even if the build fails at any step.

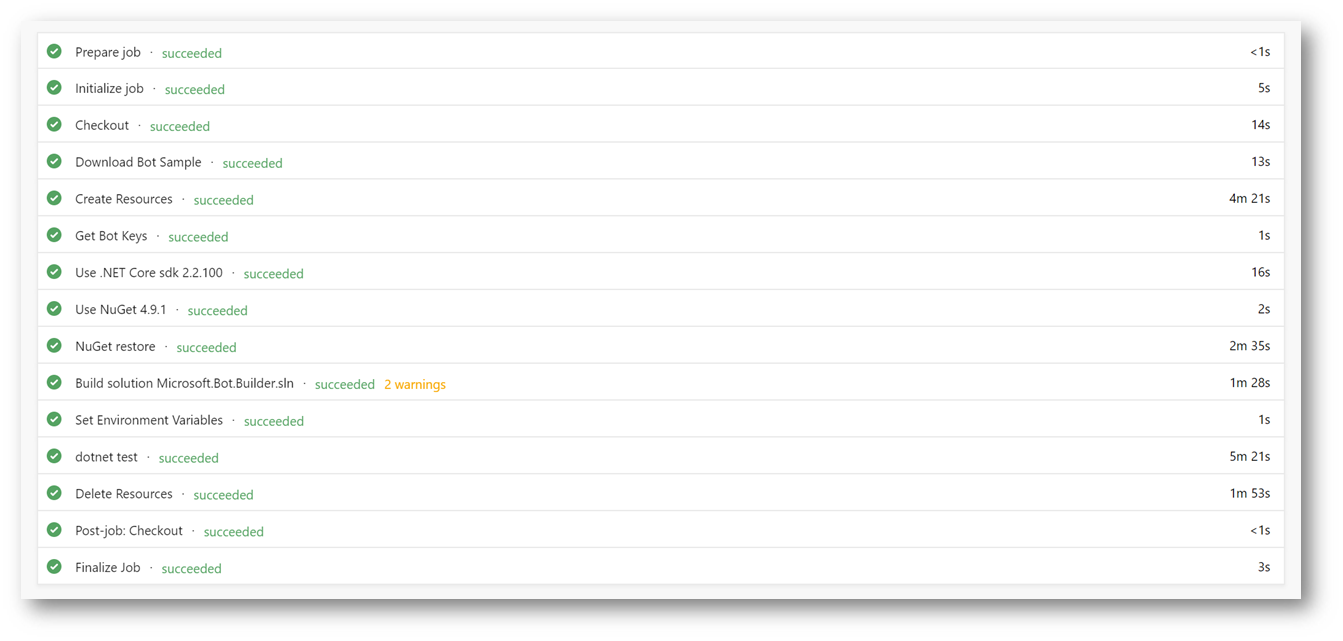

After running these steps, the Bot is deployed, tested and deleted.

[cleemullins]

No issues found in Microsoft.Bot.Builder.dll
No issues found in Microsoft.Bot.Builder.AI.Luis.dll
No issues found in Microsoft.Bot.Builder.AI.QnA.dll
No issues found in Microsoft.Bot.Builder.ApplicationInsights.dll
No issues found in Microsoft.Bot.Builder.Azure.dll
No issues found in Microsoft.Bot.Builder.Dialogs.dll
No issues found in Microsoft.Bot.Builder.TemplateManager.dll
No issues found in Microsoft.Bot.Configuration.dll
No issues found in Microsoft.Bot.Connector.dll
No issues found in Microsoft.Bot.Schema.dll

[cleemullins]

No issues found in Microsoft.Bot.Builder.dll
No issues found in Microsoft.Bot.Builder.AI.Luis.dll
No issues found in Microsoft.Bot.Builder.AI.QnA.dll
No issues found in Microsoft.Bot.Builder.ApplicationInsights.dll
No issues found in Microsoft.Bot.Builder.Azure.dll
No issues found in Microsoft.Bot.Builder.Dialogs.dll
No issues found in Microsoft.Bot.Builder.TemplateManager.dll
No issues found in Microsoft.Bot.Configuration.dll
No issues found in Microsoft.Bot.Connector.dll
No issues found in Microsoft.Bot.Schema.dll

[cleemullins]

No issues found in Microsoft.Bot.Builder.dll
No issues found in Microsoft.Bot.Builder.AI.Luis.dll
No issues found in Microsoft.Bot.Builder.AI.QnA.dll
No issues found in Microsoft.Bot.Builder.ApplicationInsights.dll
No issues found in Microsoft.Bot.Builder.Azure.dll
No issues found in Microsoft.Bot.Builder.Dialogs.dll
No issues found in Microsoft.Bot.Builder.TemplateManager.dll
No issues found in Microsoft.Bot.Configuration.dll
No issues found in Microsoft.Bot.Connector.dll
No issues found in Microsoft.Bot.Schema.dll

[fuselabs]

No issues found in Microsoft.Bot.Builder.dll
No issues found in Microsoft.Bot.Builder.AI.Luis.dll
No issues found in Microsoft.Bot.Builder.AI.QnA.dll
No issues found in Microsoft.Bot.Builder.ApplicationInsights.dll
No issues found in Microsoft.Bot.Builder.Azure.dll
No issues found in Microsoft.Bot.Builder.Dialogs.dll
No issues found in Microsoft.Bot.Builder.TemplateManager.dll
No issues found in Microsoft.Bot.Configuration.dll
No issues found in Microsoft.Bot.Connector.dll
No issues found in Microsoft.Bot.Schema.dll

[ceciliaavila]

Replaced by PR #1807
