Extend the span attributes & improve the span name. #215

jinjagit · 2021-03-17T15:59:15Z

commit msg:

"First attempt at abstracting some of the verbosity of Tracer.set_attributes to a module def, rather than repeating similar code in each definition we wish to observe.

Currently only setting tracer spans in 2 resolver defs, and only for votes (1 of 2 defs) and create_vote (1 of 3 defs).
Not sure we need to also observe the related core api defs, as the data returned is very similar, and the resolver defs 'wrap' the related core api defs."

UPDATE: This PR now focuses on extending the span attributes & improving the span name. The refactoring mentioned in this description, is not included.

First attempt at abstracting some of the verbosity of Tracer.set_attributes to a module def, rather than repeating similar code in each def we wish to observe. Currently only setting tracer spans in 2 resolver defs, and only for votes (1 of 2 defs) and create_vote (1 of 3 defs). Not sure we need to also observe the related core api defs, as the data returned is very similar, and the resolver defs 'wrap' the related core api defs.

jinjagit · 2021-03-17T16:06:48Z

It'd be great to get some feedback on this idea / approach. Some questions that cross my mind:

Should such a generic approach have its own module (here, I created LV/tracers module), or better to add defs to application.ex, for example?
Better to unpack the vars field into constituent key-value pairs? We can still filter by key or value on Honeycomb without doing this.
Should we ignore (not observe) sensitive vars (e.g. emails)? Or do we consider Honeycomb (and communication with it) secure?
Any way to abstract to a higher level the Tracer.with_span "span_name" do ... end block that I am using to wrap whatever code we wish to observe? Conceptually, this seems a bit tricky, since the block wraps the content in specific defs we wish to pull def-specific (and request_specific) data from.

jinjagit · 2021-03-17T16:16:34Z

I'm also starting to think that we should also be observing the :ok or :error result from the resolver defs that include these.

oliverbarnes · 2021-03-17T18:43:34Z

It's hard to tell what the PR is about from the title, and it's the second time we have this one. Would you please make it more descriptive? See how I edited this one (last update, towards the bottom): #211

jinjagit · 2021-03-17T18:52:19Z

It's hard to tell what the PR is about from the title, and it's the second time we have this one. Would you please make it more descriptive? See how I edited this one (last update, towards the bottom): #211

Yes, sorry. I didn't check the title, and assumed it reflected the commit, forgetting there are 2 commits here. Changed now.

oliverbarnes · 2021-03-17T18:57:20Z

much better 👏 thanks :)

davefrey · 2021-03-18T09:54:49Z

As a noob reading this PR: I like extracting the tracer details so the functions read better 👍.

But I'm also trusting some magic in how the attributes are passed and assigned. How do we know this works? Is it reasonable to have a spec that asserts the trace behavior?

This is partly a refactor (extraction) and partly extension (more info captured if I read correctly: the whole of binding vars rather than just org id). I don't think it's worth redoing here but often it's nice to isolate the two efforts.

It's really nice to learn by reading PRs here.

davefrey · 2021-03-18T09:58:27Z

To elaborate a bit: my reviewer brain reading refactors wants to know there is spec coverage that stays green; reading new functionality I expect new specs too. I don't know Elixir testing well but there should be a way to assert behavior like "when voting expect the tracer service to have been called with ..."

jinjagit · 2021-03-18T11:06:47Z

But I'm also trusting some magic in how the attributes are passed and assigned. How do we know this works? Is it reasonable to have a spec that asserts the trace behavior?

Good point. There's no specs yet. I think it should be possible to include tests, and I could probably model them on some I have seen in OpenTelemetry repos. I am still wondering if this is even the right approach, but since it does seem to be yielding useful traces (at least better than none), maybe it is time to start developing some.

This is partly a refactor (extraction) and partly extension ... I don't think it's worth redoing here but often it's nice to isolate the two efforts.

True. I should really have separated the 2 different types of change. I think, at the moment, the new observability related code is so minimal that this doesn't really present a problem in terms of understanding or separating (should we wish to, say, remove 1 type of change and leave the other). Point taken, though.

Thanks for the feedback 👍

jinjagit · 2021-03-18T11:28:05Z

I've just noticed that when we include the related core api def(s), rather than just the resolver def(s),in the trace (by also wrapping in a tracer span), we can get this nice waterfall view on Honeycomb:

I removed the related core-api traces in this PR, but now I can see how including them, and more importantly wrapping tracer spans around things like db queries / writes / etc. within the core api actions, could give us more granular info.

[Also added to #201]

jinjagit · 2021-03-18T12:12:25Z

lib/liquid_voting/tracers.ex

+  # Sets general attributes to send in Tracer.with_span block.
+  def set_attributes(env, vars) do
+    Tracer.set_attributes([
+      {:action, env.function},


I think it might be more useful to name this explicitly as :function. We could then develop this to include the module name + function name, and then name the field something like :mod/func.

oliverbarnes · 2021-03-19T11:25:01Z

Though I see the tracer code verbosity, I don't really see much value in abstracting it away if we still need the original Tracer.with_span "resolvers/voting" blocks wrapping it. And abstracting that in itself isn't worth the trouble. In the end I think it's too early for extracting and trying to refactor the tracing. So I'd remove the refactor part and keep the extension part that Dave pointed out, and adapt the PR title and description (with an Update section tacked on to the bottom of it).

I'll review the PR again once the above changes are applied.

I think the same might apply to specs: we should at least wait until we have a stable set of traces to spec them out. If we are to spec them out at all, that is. I'm not so sure it's worth doing it. It's not functionality per se, and nor is it user facing. We're the ones using it, and we can easily assert that it's working on Honeycomb itself - manual testing might be enough. It's a debate though: I've myself spec'd out logs in the past, but changed my stance later. We can discuss it down the line.

As for the questions and comments:

Should we ignore (not observe) sensitive vars (e.g. emails)? Or do we consider Honeycomb (and communication with it) secure?

Good point you brought up. We should anonymize them, so they're kept private while also allowing us to drill down traces based on them. We shouldn't be able to see it, and it's also mandatory to be compliant with GDPR. I'm creating a new issue for this.

I'm also starting to think that we should also be observing the :ok or :error result from the resolver defs that include these.

👍 yes, we should also trace both success and failure scenarios. And all different variations on them, when present

oliverbarnes

Changes requested in my last comment

This is more similar to how traces for Ecto and Phoenix are, and will be, named. It also means this information is more clearly presented on Honeycomb, as it is listed first in trace rows, and in large text, top-right of page when inspecting a particilar trace.

jinjagit · 2021-03-19T12:51:50Z

I removed the refactoring to a separate module (of Tracer.set_attributes)

I also added the module name + __ENV__.function to the span name, and removed the span attribute {:action, __ENV__.function}

This is now similar to how traces for Ecto and Phoenix are, and will be, named.

It also means this information is more clearly presented on Honeycomb, as it is listed first in trace rows, and in large text, top-right of page when inspecting a particular trace.

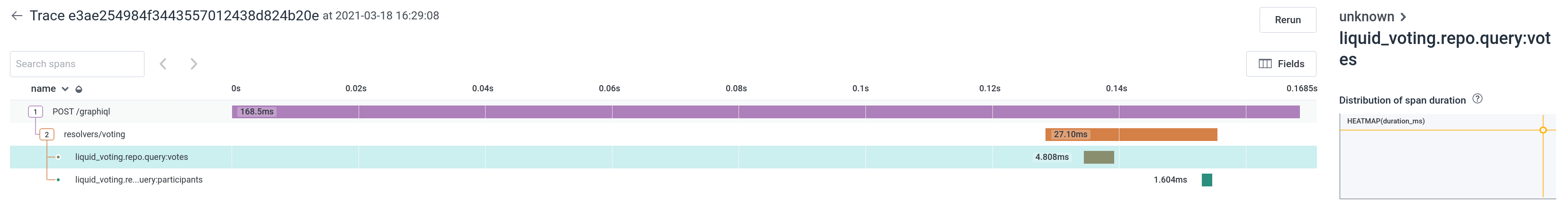

Example Ecto trace:

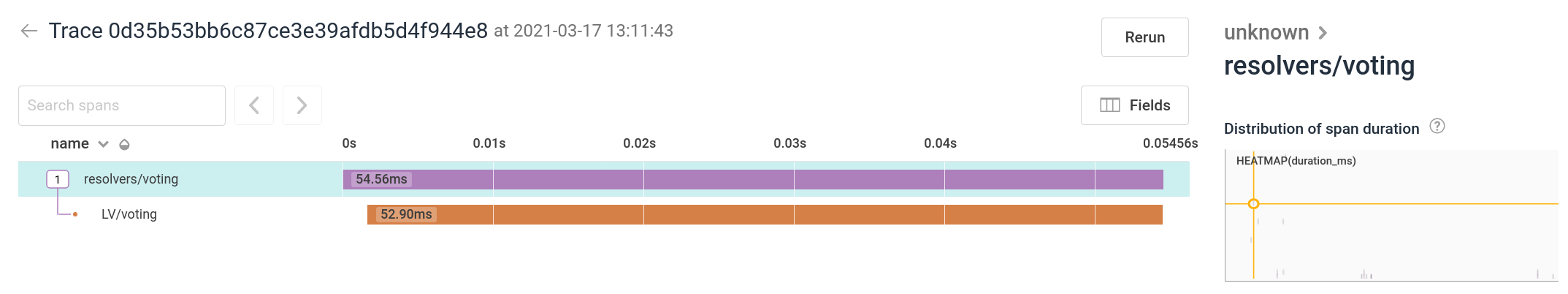

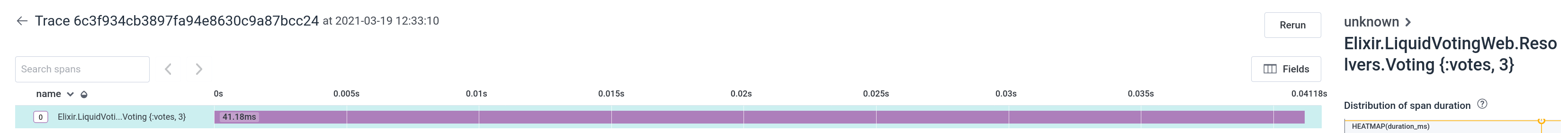

Example of the trace developed here:

jinjagit · 2021-03-19T12:53:23Z

Should I extend the attributes to include :ok or :error details in this PR, or a subsequent PR?

oliverbarnes · 2021-03-19T14:55:44Z

I removed the refactoring to a separate module (of Tracer.set_attributes)

Great, thanks. Can you also update the PR title, please

I also added the module name + __ENV__.function to the span name, and removed the span attribute {:action, __ENV__.function}

This is now similar to how traces for Ecto and Phoenix are, and will be, named.

Makes sense

It also means this information is more clearly presented on Honeycomb, as it is listed first in trace rows, and in large text, top-right of page when inspecting a particular trace.

Example Ecto trace:

Example of the trace developed here:

👌 very nice

oliverbarnes · 2021-03-19T14:59:21Z

config/config.exs

+    otel_batch_processor: %{
+      exporter:
+        {OpenTelemetry.Honeycomb.Exporter,
+         write_key: "520527fcecf7c6b38bd1775da111ead3", dataset: "api-telemetry"}


This needs to be in a environment variable. We'll need to regenerate our Honeycomb api key as well, now that's it's been exposed :)

All good, btw. Happens to all of us, and it's good when it happens early on so we can get it ingrained in our heads ;)

My mistake. This doesn't need to be in config.ex at all. Just used for local testing. My fault for rushing.

No prob, happens

oliverbarnes · 2021-03-19T15:00:27Z

lib/liquid_voting/voting.ex


  """
  def list_votes(organization_id) do
-    Tracer.with_span "LV/voting" do


Why is the span being removed here?

This relates to my general q: Should we be adding traces to the related core functions. E.g. resolver votes/3 calls list_votes. I am not sure a. if list_votes trace gives us useful information over the resolver trace? b. if it is outside the scope of focusing on Absinthe layer?

I guess if we add it on each layer, we'll see where most processing goes etc. But difference might be negligible, and then we can remove later. I'd stick with it for now

oliverbarnes · 2021-03-19T15:01:09Z

lib/liquid_voting_web/resolvers/voting.ex

-        {:action, "votes"},
        {:request_id, Logger.metadata()[:request_id]},
-        {:organization_id, organization_id}
+        {:vars, binding()}


which vars are being sent, here?

All the args passed into the function and their values.

For example for create_vote, we get:

[args: %{participant_email: "rrr@somedomain.com", proposal_url: "https://other_one", yes: true}, email: "rrr@somedomain.com", organization_id: "b7a9cae5-6e3a-48b1-8730-8b5c8d6c9b5a"]

I was going with the principle that as much info. as possible is preferable.

Ok, I was worried we'd be getting more internal stuff.

But vars[:args][:participant_email] is the same as vars [:email], and we also need to access this atomically in order to anonymise it. I know it's verbose, but I think it's better to access each one of these atomically.

This will also make it more explicit on what we're trying to track

lib/liquid_voting_web/resolvers/voting.ex

oliverbarnes · 2021-03-19T15:03:58Z

Should I extend the attributes to include :ok or :error details in this PR, or a subsequent PR?

Subsequent PR would be better

jinjagit · 2021-03-19T15:21:36Z

Great, thanks. Can you also update the PR title, please

Done. I previously forgot to click 'save' after editing the title.

Only specifies trace attributes for args used by function, not those that are ignored, using '_'. Include related funcs (list_votes & create_vote) at core layer, as well as existing resolver layer trace spans.

jinjagit · 2021-03-19T16:52:10Z

I have (re) included the related 'core' functions. We are currently only developing traces in 2 action paths:

lib/liquid_voting_web/resolvers/voting.ex/votes, which calls lib/liquid_voting/voting.ex/list_votes
lib/liquid_voting_web/resolvers/voting.ex/create_vote, which calls lib/liquid_voting/voting.ex/create_vote

We are not yet exhaustively tracing all forms of a function (only one of 3 forms of resolvers/voting.ex/create_vote, for example).

jinjagit · 2021-03-19T16:57:37Z

The 'vars' attribute is now set atomically - each arg and related value is accessed atomically.
They are still grouped in one tracer attribute, since the attributes fields are listed alphabetically (and thus would be scattered throughout the fields if in individual fields), and it also seems logical to group the vars in one field.

Only specifies args used by function, not those that are ignored, using _.

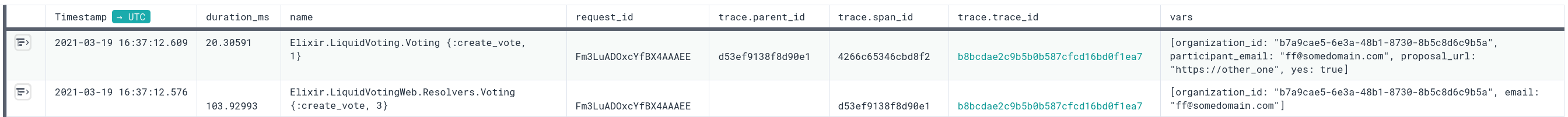

Example raw data for single 'create vote' action:

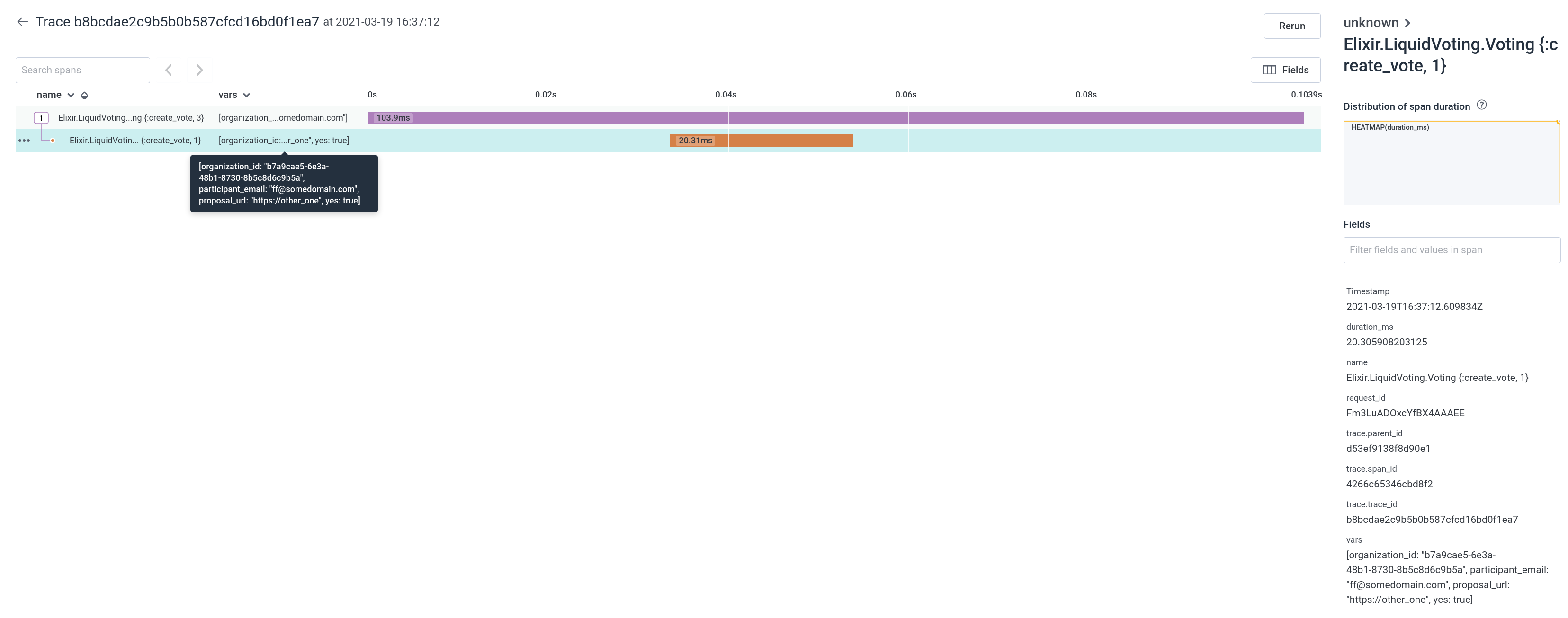

Example traces of single 'create vote' action - with optional addition of 'vars' field to traces table view & mouse-over of that field:

We can still filter / search traces by any part of the 'vars' field.

oliverbarnes

Looking good! Just a couple of more changes

oliverbarnes · 2021-03-19T17:15:07Z

lib/liquid_voting/voting.ex

+    Tracer.with_span "#{__MODULE__} #{inspect(__ENV__.function)}" do
+      Tracer.set_attributes([
+        {:request_id, Logger.metadata()[:request_id]},
+        {:vars,


vars is too vague here, I think. How about params? That's more informative about the vars being the ones submitted in the request.

oliverbarnes · 2021-03-19T17:16:53Z

lib/liquid_voting/voting.ex

-              {:ok, _delegation} -> vote
-              {:error, changeset} -> Repo.rollback(changeset)
+      Repo.transaction(fn ->
+        # TODO: refactor case statements into small functions.


I think refactoring is always in our minds, we don't need to add a TODO. These tend to be there forever and just add noise

Yes, this is an old TODO. Will remove.

jinjagit added 2 commits March 17, 2021 15:55

Linting - mix format.

9ff4097

jinjagit requested a review from oliverbarnes March 17, 2021 16:17

jinjagit changed the title ~~Add opentelemetry~~ Set general tracer span attributes in separate module. Mar 17, 2021

jinjagit commented Mar 18, 2021

View reviewed changes

oliverbarnes requested changes Mar 19, 2021

View reviewed changes

oliverbarnes mentioned this pull request Mar 19, 2021

Anonymizing emails in traces #218

Open

jinjagit added 3 commits March 19, 2021 12:31

Undo refactoring of Tracer.set_attributes to module.

efad8f8

Linting.

03d2bc5

jinjagit requested a review from oliverbarnes March 19, 2021 12:57

oliverbarnes requested changes Mar 19, 2021

View reviewed changes

Remove exporter config from config.exs.

7763008

jinjagit changed the title ~~Set general tracer span attributes in separate module.~~ Extend the span attributes & improve the span name. Mar 19, 2021

jinjagit requested a review from oliverbarnes March 19, 2021 15:26

Specify trace attributes atomically & include related core funcs

3f68ea7

Only specifies trace attributes for args used by function, not those that are ignored, using '_'. Include related funcs (list_votes & create_vote) at core layer, as well as existing resolver layer trace spans.

jinjagit self-assigned this Mar 19, 2021

jinjagit requested review from oliverbarnes and removed request for oliverbarnes March 19, 2021 17:05

oliverbarnes requested changes Mar 19, 2021

View reviewed changes

jinjagit added 2 commits March 19, 2021 17:25

Change 'vars' to 'params'

03f516c

Remove TODO comment.

a1dade1

jinjagit requested a review from oliverbarnes March 19, 2021 17:29

oliverbarnes approved these changes Mar 19, 2021

View reviewed changes

oliverbarnes merged commit 2eb243a into master Mar 19, 2021

oliverbarnes deleted the add-opentelemetry branch March 19, 2021 17:39
