gguf : enforce that tensor names are unique

[ngxson]

Resolve #6836

For now, only adding duplicated tensor is prevented:

• ggml.c uses gguf_find_tensor to check for duplicated tensor. This is a linear search so may not be a suitable implementation when loading the gguf (but acceptable when writing gguf, since writing is not happen very often). What do you think about this point @slaren ?
• GGUFWriter from gguf-py uses a set to keep track of tensor names when writing a gguf. We can use the same logic for GGUFReader

[github-actions]

📈 llama.cpp server for bench-server-baseline on Standard_NC4as_T4_v3 for phi-2-q4_0: 211 iterations 🚀

Expand details for performance related PR only

• Concurrent users: 8, duration: 10m
• HTTP request : avg=22836.94ms p(95)=42547.38ms fails=, finish reason: stop=99 truncated=112
• Prompt processing (pp): avg=261.91tk/s p(95)=737.96tk/s
• Token generation (tg): avg=19.17tk/s p(95)=27.0tk/s
• ggml-org/models/phi-2/ggml-model-q4_0.gguf parallel=8 ctx-size=16384 ngl=33 batch-size=2048 ubatch-size=256 pp=1024 pp+tg=2048 branch=xsn/duplicated_tensor_name commit=b1df2f212e4ab03b6cffbf66a1c26a718bc6677c

More

---
config:
    xyChart:
        titleFontSize: 12
        width: 900
        height: 600
    themeVariables:
        xyChart:
            titleColor: "#000000"
---

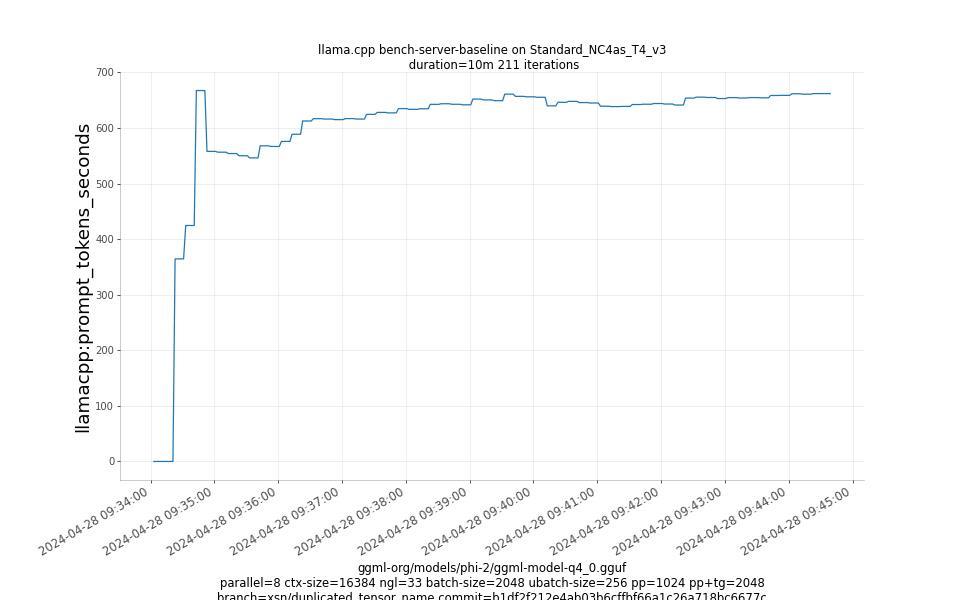

xychart-beta
    title "llama.cpp bench-server-baseline on Standard_NC4as_T4_v3
 duration=10m 211 iterations"
    y-axis "llamacpp:prompt_tokens_seconds"
    x-axis "llamacpp:prompt_tokens_seconds" 1714296843 --> 1714297479
    line [0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 364.4, 364.4, 364.4, 364.4, 364.4, 424.47, 424.47, 424.47, 424.47, 424.47, 667.24, 667.24, 667.24, 667.24, 667.24, 557.81, 557.81, 557.81, 557.81, 557.81, 556.36, 556.36, 556.36, 556.36, 556.36, 553.92, 553.92, 553.92, 553.92, 553.92, 549.94, 549.94, 549.94, 549.94, 549.94, 546.06, 546.06, 546.06, 546.06, 546.06, 567.79, 567.79, 567.79, 567.79, 567.79, 566.64, 566.64, 566.64, 566.64, 566.64, 575.76, 575.76, 575.76, 575.76, 575.76, 588.64, 588.64, 588.64, 588.64, 588.64, 612.48, 612.48, 612.48, 612.48, 612.48, 616.62, 616.62, 616.62, 616.62, 616.62, 615.96, 615.96, 615.96, 615.96, 615.96, 614.95, 614.95, 614.95, 614.95, 614.95, 616.78, 616.78, 616.78, 616.78, 616.78, 615.96, 615.96, 615.96, 615.96, 615.96, 624.39, 624.39, 624.39, 624.39, 624.39, 627.91, 627.91, 627.91, 627.91, 627.91, 627.02, 627.02, 627.02, 627.02, 627.02, 634.76, 634.76, 634.76, 634.76, 634.76, 633.43, 633.43, 633.43, 633.43, 633.43, 634.43, 634.43, 634.43, 634.43, 634.43, 642.42, 642.42, 642.42, 642.42, 642.42, 643.49, 643.49, 643.49, 643.49, 643.49, 642.56, 642.56, 642.56, 642.56, 642.56, 641.56, 641.56, 641.56, 641.56, 641.56, 651.86, 651.86, 651.86, 651.86, 651.86, 650.35, 650.35, 650.35, 650.35, 650.35, 648.97, 648.97, 648.97, 648.97, 648.97, 660.84, 660.84, 660.84, 660.84, 660.84, 656.79, 656.79, 656.79, 656.79, 656.79, 655.96, 655.96, 655.96, 655.96, 655.96, 655.17, 655.17, 655.17, 655.17, 655.17, 639.67, 639.67, 639.67, 639.67, 639.67, 646.12, 646.12, 646.12, 646.12, 646.12, 647.77, 647.77, 647.77, 647.77, 647.77, 645.59, 645.59, 645.59, 645.59, 645.59, 644.81, 644.81, 644.81, 644.81, 644.81, 639.09, 639.09, 639.09, 639.09, 639.09, 638.39, 638.39, 638.39, 638.39, 638.39, 638.7, 638.7, 638.7, 638.7, 638.7, 642.12, 642.12, 642.12, 642.12, 642.12, 642.67, 642.67, 642.67, 642.67, 642.67, 643.88, 643.88, 643.88, 643.88, 643.88, 642.99, 642.99, 642.99, 642.99, 642.99, 641.2, 641.2, 641.2, 641.2, 641.2, 653.68, 653.68, 653.68, 653.68, 653.68, 655.38, 655.38, 655.38, 655.38, 655.38, 654.79, 654.79, 654.79, 654.79, 654.79, 652.86, 652.86, 652.86, 652.86, 652.86, 654.55, 654.55, 654.55, 654.55, 654.55, 653.82, 653.82, 653.82, 653.82, 653.82, 654.61, 654.61, 654.61, 654.61, 654.61, 654.16, 654.16, 654.16, 654.16, 654.16, 658.4, 658.4, 658.4, 658.4, 658.4, 658.6, 658.6, 658.6, 658.6, 658.6, 661.45, 661.45, 661.45, 661.45, 661.45, 660.71, 660.71, 660.71, 660.71, 660.71, 661.76, 661.76, 661.76, 661.76, 661.76, 661.76, 661.76, 661.76, 661.76]


Loading

More

---
config:
    xyChart:
        titleFontSize: 12
        width: 900
        height: 600
    themeVariables:
        xyChart:
            titleColor: "#000000"
---
xychart-beta
    title "llama.cpp bench-server-baseline on Standard_NC4as_T4_v3
 duration=10m 211 iterations"
    y-axis "llamacpp:predicted_tokens_seconds"
    x-axis "llamacpp:predicted_tokens_seconds" 1714296843 --> 1714297479
    line [0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 30.94, 30.94, 30.94, 30.94, 30.94, 28.33, 28.33, 28.33, 28.33, 28.33, 28.33, 28.33, 28.33, 28.33, 28.33, 25.56, 25.56, 25.56, 25.56, 25.56, 21.68, 21.68, 21.68, 21.68, 21.68, 19.48, 19.48, 19.48, 19.48, 19.48, 16.98, 16.98, 16.98, 16.98, 16.98, 17.14, 17.14, 17.14, 17.14, 17.14, 17.19, 17.19, 17.19, 17.19, 17.19, 17.93, 17.93, 17.93, 17.93, 17.93, 18.42, 18.42, 18.42, 18.42, 18.42, 18.44, 18.44, 18.44, 18.44, 18.44, 18.58, 18.58, 18.58, 18.58, 18.58, 18.58, 18.58, 18.58, 18.58, 18.58, 18.57, 18.57, 18.57, 18.57, 18.57, 18.7, 18.7, 18.7, 18.7, 18.7, 18.8, 18.8, 18.8, 18.8, 18.8, 19.14, 19.14, 19.14, 19.14, 19.14, 19.28, 19.28, 19.28, 19.28, 19.28, 19.4, 19.4, 19.4, 19.4, 19.4, 19.45, 19.45, 19.45, 19.45, 19.45, 19.46, 19.46, 19.46, 19.46, 19.46, 19.48, 19.48, 19.48, 19.48, 19.48, 19.53, 19.53, 19.53, 19.53, 19.53, 19.54, 19.54, 19.54, 19.54, 19.54, 19.54, 19.54, 19.54, 19.54, 19.54, 19.51, 19.51, 19.51, 19.51, 19.51, 19.54, 19.54, 19.54, 19.54, 19.54, 19.52, 19.52, 19.52, 19.52, 19.52, 19.51, 19.51, 19.51, 19.51, 19.51, 19.43, 19.43, 19.43, 19.43, 19.43, 19.3, 19.3, 19.3, 19.3, 19.3, 19.15, 19.15, 19.15, 19.15, 19.15, 19.05, 19.05, 19.05, 19.05, 19.05, 18.89, 18.89, 18.89, 18.89, 18.89, 18.81, 18.81, 18.81, 18.81, 18.81, 18.69, 18.69, 18.69, 18.69, 18.69, 18.52, 18.52, 18.52, 18.52, 18.52, 18.52, 18.52, 18.52, 18.52, 18.52, 18.26, 18.26, 18.26, 18.26, 18.26, 17.98, 17.98, 17.98, 17.98, 17.98, 17.66, 17.66, 17.66, 17.66, 17.66, 17.55, 17.55, 17.55, 17.55, 17.55, 17.53, 17.53, 17.53, 17.53, 17.53, 17.54, 17.54, 17.54, 17.54, 17.54, 17.58, 17.58, 17.58, 17.58, 17.58, 17.65, 17.65, 17.65, 17.65, 17.65, 17.69, 17.69, 17.69, 17.69, 17.69, 17.68, 17.68, 17.68, 17.68, 17.68, 17.67, 17.67, 17.67, 17.67, 17.67, 17.6, 17.6, 17.6, 17.6, 17.6, 17.49, 17.49, 17.49, 17.49, 17.49, 17.45, 17.45, 17.45, 17.45, 17.45, 17.46, 17.46, 17.46, 17.46, 17.46, 17.51, 17.51, 17.51, 17.51, 17.51, 17.53, 17.53, 17.53, 17.53, 17.53, 17.57, 17.57, 17.57, 17.57, 17.57, 17.62, 17.62, 17.62, 17.62, 17.62, 17.68, 17.68, 17.68, 17.68, 17.68, 17.74, 17.74, 17.74, 17.74, 17.74, 17.79, 17.79, 17.79, 17.79]


Loading

Details

More

---
config:
    xyChart:
        titleFontSize: 12
        width: 900
        height: 600
    themeVariables:
        xyChart:
            titleColor: "#000000"
---

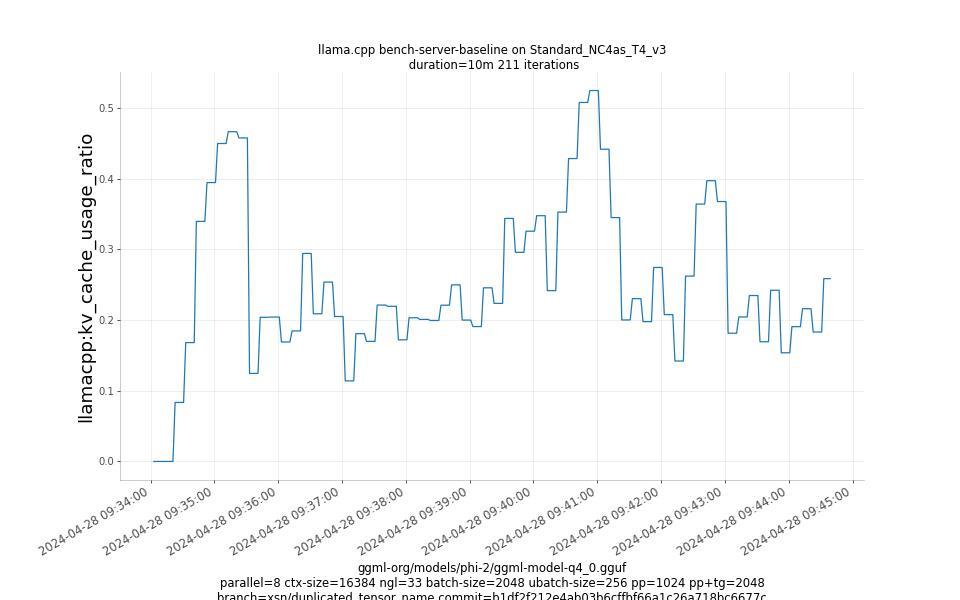

xychart-beta
    title "llama.cpp bench-server-baseline on Standard_NC4as_T4_v3
 duration=10m 211 iterations"
    y-axis "llamacpp:kv_cache_usage_ratio"
    x-axis "llamacpp:kv_cache_usage_ratio" 1714296843 --> 1714297479
    line [0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.08, 0.08, 0.08, 0.08, 0.08, 0.17, 0.17, 0.17, 0.17, 0.17, 0.34, 0.34, 0.34, 0.34, 0.34, 0.39, 0.39, 0.39, 0.39, 0.39, 0.45, 0.45, 0.45, 0.45, 0.45, 0.47, 0.47, 0.47, 0.47, 0.47, 0.46, 0.46, 0.46, 0.46, 0.46, 0.12, 0.12, 0.12, 0.12, 0.12, 0.2, 0.2, 0.2, 0.2, 0.2, 0.2, 0.2, 0.2, 0.2, 0.2, 0.17, 0.17, 0.17, 0.17, 0.17, 0.18, 0.18, 0.18, 0.18, 0.18, 0.29, 0.29, 0.29, 0.29, 0.29, 0.21, 0.21, 0.21, 0.21, 0.21, 0.25, 0.25, 0.25, 0.25, 0.25, 0.21, 0.21, 0.21, 0.21, 0.21, 0.11, 0.11, 0.11, 0.11, 0.11, 0.18, 0.18, 0.18, 0.18, 0.18, 0.17, 0.17, 0.17, 0.17, 0.17, 0.22, 0.22, 0.22, 0.22, 0.22, 0.22, 0.22, 0.22, 0.22, 0.22, 0.17, 0.17, 0.17, 0.17, 0.17, 0.2, 0.2, 0.2, 0.2, 0.2, 0.2, 0.2, 0.2, 0.2, 0.2, 0.2, 0.2, 0.2, 0.2, 0.2, 0.22, 0.22, 0.22, 0.22, 0.22, 0.25, 0.25, 0.25, 0.25, 0.25, 0.2, 0.2, 0.2, 0.2, 0.2, 0.19, 0.19, 0.19, 0.19, 0.19, 0.25, 0.25, 0.25, 0.25, 0.25, 0.22, 0.22, 0.22, 0.22, 0.22, 0.34, 0.34, 0.34, 0.34, 0.34, 0.3, 0.3, 0.3, 0.3, 0.3, 0.33, 0.33, 0.33, 0.33, 0.33, 0.35, 0.35, 0.35, 0.35, 0.35, 0.24, 0.24, 0.24, 0.24, 0.24, 0.35, 0.35, 0.35, 0.35, 0.35, 0.43, 0.43, 0.43, 0.43, 0.43, 0.51, 0.51, 0.51, 0.51, 0.51, 0.52, 0.52, 0.52, 0.52, 0.52, 0.44, 0.44, 0.44, 0.44, 0.44, 0.35, 0.35, 0.35, 0.35, 0.35, 0.2, 0.2, 0.2, 0.2, 0.2, 0.23, 0.23, 0.23, 0.23, 0.23, 0.2, 0.2, 0.2, 0.2, 0.2, 0.27, 0.27, 0.27, 0.27, 0.27, 0.21, 0.21, 0.21, 0.21, 0.21, 0.14, 0.14, 0.14, 0.14, 0.14, 0.26, 0.26, 0.26, 0.26, 0.26, 0.36, 0.36, 0.36, 0.36, 0.36, 0.4, 0.4, 0.4, 0.4, 0.4, 0.37, 0.37, 0.37, 0.37, 0.37, 0.18, 0.18, 0.18, 0.18, 0.18, 0.2, 0.2, 0.2, 0.2, 0.2, 0.23, 0.23, 0.23, 0.23, 0.23, 0.17, 0.17, 0.17, 0.17, 0.17, 0.24, 0.24, 0.24, 0.24, 0.24, 0.15, 0.15, 0.15, 0.15, 0.15, 0.19, 0.19, 0.19, 0.19, 0.19, 0.22, 0.22, 0.22, 0.22, 0.22, 0.18, 0.18, 0.18, 0.18, 0.18, 0.26, 0.26, 0.26, 0.26]


Loading

More

---
config:
    xyChart:
        titleFontSize: 12
        width: 900
        height: 600
    themeVariables:
        xyChart:
            titleColor: "#000000"
---
xychart-beta
    title "llama.cpp bench-server-baseline on Standard_NC4as_T4_v3
 duration=10m 211 iterations"
    y-axis "llamacpp:requests_processing"
    x-axis "llamacpp:requests_processing" 1714296843 --> 1714297479
    line [0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 6.0, 6.0, 6.0, 6.0, 6.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 6.0, 6.0, 6.0, 6.0, 6.0, 8.0, 8.0, 8.0, 8.0, 8.0, 7.0, 7.0, 7.0, 7.0, 7.0, 7.0, 7.0, 7.0, 7.0, 7.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 7.0, 7.0, 7.0, 7.0, 7.0, 8.0, 8.0, 8.0, 8.0, 8.0, 6.0, 6.0, 6.0, 6.0, 6.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 6.0, 6.0, 6.0, 6.0, 6.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 7.0, 7.0, 7.0, 7.0, 7.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 7.0, 7.0, 7.0, 7.0, 7.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 6.0, 6.0, 6.0, 6.0, 6.0, 7.0, 7.0, 7.0, 7.0, 7.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 6.0, 6.0, 6.0, 6.0, 6.0, 7.0, 7.0, 7.0, 7.0, 7.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 3.0, 3.0, 3.0, 3.0]


Loading

[slaren]

A linear search is definitely not optimal, but we don't really have a good alternative at the moment, since we don't have implementations of the data structures that would be necessary to prevent this in ggml. Currently the models are small enough that it is not likely to cause a significant performance issues, and fixing the immediate issue is more important. So I think it is ok to use gguf_find_tensor.

[ngxson]

@slaren FYI, here is the model that I used for testing: https://huggingface.co/ngxson/test_gguf_models/blob/main/stories260K_duplicated_tensors.gguf

I edited it with hex editor to have 2 times blk.0.attn_norm.weight

[slaren]

Looks good, I verified that this prevents both loading existing models with duplicated tensors, and creating models with duplicated tensors. The GPT-2 arch conversion in convert-hf-to-gguf.py will need to be updated to avoid duplicating output.weight.

[ngxson]

@slaren Thanks for the confirmation. I'm not very familiar with convert-hf-to-gguf.py, so unfortunately I have no clue how to do that. Without that fix, do you think this PR is still ok to be merged?

[slaren]

Yes, that's a different issue, I was just pointing that's the reason why some models have duplicated tensors. Merge at will.
