NanoProcessor

NanoProcessor directory contains a single-core, multi-cycle processor implemented in Verilog hardware description language. It was tested using Tang Nano 9K development board based on Gowin GW1NR-LV9 FPGA integrated circuit. As the memory (SRAM) module, the current version of NanoProcessor uses platform-specific Gowin SPX9 IP Core documented in documentation/UG285E.pdf (source, accessed 17.03.2023), page 18, chapter 3.2. Therefore, to run the project on a different FPGA, the memory module should be replaced.

Tang Nano 9K FPGA development board:

---

Implementation

Logic diagram

Below is a simplified logic diagram showing the circuit wthout going into implementation details of commonly used digital devices, e.g. a finite state machine, multiplexer, register, etc. Gray names point to Verilog files containing implementations of individual blocks.

---

Input/output devices

NanoProcessor uses 9-bit instruction and data words. ADDR register is used to address input/output devices and is 9 bits long. In NanoProcessor's circuit, there are 3 input/output devices available:

• static random access memory (SRAM) containing 128 9-bit words
• 9-bit GPIO mode register for selecting the working mode of corresponding GPIO register pins, i.e. 0 on i-th position sets i-th pin of GPIO register to input mode and 1 sets it to output mode
• 9-bit GPIO register

I/O devices are addressed with combination of two highest bits of ADDR register:

• 00 - SRAM; 7 lowest bits of ADDR are used to address individual words in SRAM
• 01 - GPIO mode register; 7 lowest bits of ADDR are unused
• 10 - GPIO register; 7 lowest bits of ADDR are unused
• 11 - unused

---

General-purpose registers

NanoProcessor has 8 general-purpose registers having 3-bit codes and being accessible by the programmer. The first 7 are parallel-in to parallel-out registers. The last is the program counter which can be operand of instructions (described in the next paragraph) just like the 7 'normal' registers.

General-purpose registers:

mnemonic name	code (decimal)	code (binary)
R0	0	000
R1	1	001
R2	2	010
R3	3	011
R4	4	100
R5	5	101
R6	6	110
R7 (PC)	7	111

---

Instructions

IR is instruction register storing instruction words interpreted by the control unit. The processor can perform 8 instructions, each of which has 3 bits long code.

The control unit is a finite state machine synchronized with processor's input clock signal. By default, in every clock tick (also known as clock cycle) all control unit's output signals have value 0. To implement an instruction, we set some of the outputs to value 1. This causes various blocks of the processor to pass, block or transform data which eventually gets to the place desired by the designer.

The table below shows how exactly each NanoProcessor's instruction is implemented. Column T0 lists all control unit's output signals having value 1 during 0th clock tick of the currently performed instruction. Column T1 lists signals during 1st clock tick, etc. An exception from the rule is alu_op signal which is 2 bits long so its values are listed as 2-bit combinations.

Done signal set by the control unit is a sign that execution of the current instruction will be finished on the next clock edge. _out signals tell the bus multiplexer to pass the word from the specified input to its output. Similarly, _in signals tell various blocks of the processor to load on the next clock edge the word passed by the bus multiplexer. incr_PC tells the program counter to increment by one on the next clock edge. Write_D is the input value of Write register which tells the input/output device selected by ADDR to read the word from DOUT. zero_G indicates if the value of G register is equal to 0.

All instructions begin with the same ticks T0, T1, T2. It is because regardless of which instruction will be performed, the processor must firstly load it. The following operations are done during the first 3 ticks:

• On the clock edge between T0 and T1 the value of program counter (R7 a.k.a. PC) is loaded into ADDR register.
• Gowin SPX9 SRAM implementation has one clock cycle delay while reading data. Therefore, during T1 the processor waits for SRAM. On the clock edge between T1 and T2 SRAM sends the read word to its outputs and the program counter is incremented.
• On the clock edge between T2 and T3 the word from SRAM is loaded into instruction register (IR) and starting from T3, it is interpreted as instruction word by the control unit which executes the instruction.

Some operations reading SRAM must have delay ticks like T1 mentioned above. Examples of such delay ticks are T4 of mvi and T4 of ld. Execution of different operations can take varying number of ticks, e.g. mv takes only 4 ticks, while add takes 6 ticks.

Implementation of all instructions currently supported by NanoProcessor:

mnemonic name	code (decimal)	code (binary)	T0	T1	T2	T3	T4	T5
mv	0	000	R_out[7], ADDR_in	incr_PC	IR_in	R_out[y], R_in[x], Done
mvi	1	001	R_out[7], ADDR_in	incr_PC	IR_in	R_out[7], ADDR_in, incr_PC	(waiting for SRAM)	DIN_out, R_in[x], Done
add	2	010	R_out[7], ADDR_in	incr_PC	IR_in	R_out[x], A_in	R_out[y], G_in, alu_op = 00	G_out, R_in[x], Done
sub	3	011	R_out[7], ADDR_in	incr_PC	IR_in	R_out[x], A_in	R_out[y], G_in, alu_op = 01	G_out, R_in[x], Done
ld	4	100	R_out[7], ADDR_in	incr_PC	IR_in	R_out[y], ADDR_in	(waiting for SRAM)	DIN_out, R_in[x], Done
st	5	101	R_out[7], ADDR_in	incr_PC	IR_in	R_out[y], ADDR_in	R_out[x], DOUT_in, Write_D, Done
mvnz	6	110	R_out[7], ADDR_in	incr_PC	IR_in	Done, if ~zero_G: R_out[y], R_in[x]
and	7	111	R_out[7], ADDR_in	incr_PC	IR_in	R_out[x], A_in	R_out[y], G_in, alu_op = 10	G_out, R_in[x], Done

The listed instructions can be divided into 2 groups:

1. Register instructions

   A register instruction has 2 operands being register codes.

   • mv Rx Ry

     Copies Ry to Rx.

   • add Rx Ry

     Adds Ry to Rx and stores the result in Rx.

   • sub Rx Ry

     Subtracts Ry from Rx and stores the result in Rx.

   • ld Rx Ry

     Stores in Rx the value read from I/O device addressed by Ry.

   • st Rx Ry

     Writes the value of Rx to I/O device addressed by Ry. Note that the address must be in Ry, not Rx.

   • mvnz Rx Ry

     An arithmetic or logic instruction (add, sub or and) must immediately precede mvnz. Supposing that this condition is satisfied, mvnz Rx Ry works just like mv Rx Ry if the result of the previous instruction was not equal to 0 or it does nothing if the result was equal to 0. If the requirement is not met, mvnz behavior is undefined.

   • and Rx Ry

     Performs bitwise AND on Rx and Ry and stores the result in Rx.

2. Immediate instructions

   An immediate instruction is followed by 2 register codes as well. The first operand is a standard register code. Unlike register instruction, in this case the second register code is ignored by the control unit so it can be any 3-bit number. The real second operand of an immediate instruction is the word immediately following it.

   • mvi Rx
     data (an arbitrary 9-bit number)

     Copies data value to Rx register.

---

Running

Requirements

First of all, you need an FPGA to run NanoProcessor. The most reliable method is to use Tang Nano 9K FPGA development board because it has already been tested and seems to work. Unfortunately, NanoProcessor uses Gowin SPX9 IP Core as SRAM module so the project without any modifications can only be run using proprietary Gowin EDA, also known as Gowin FPGA Designer.

---

Steps for Windows operating system

1. Download and install Gowin EDA from the producer's page. NanoProcessor was tested on Gowin EDA 1.9.8.03 Education (build 56847).

2. To open the project, open file NanoProcessor.gprj in Gowin EDA.

3. In file src/pins.cst assign physical FPGA pin numbers to ports of NanoProcessor top-level module: input clock and input/output gpio.

   According to documentation/Tang_Nano_9K_3672_Schematic.pdf (source, accessed 17.03.2023), page 2, Tang Nano 9K on-board crystal oscillator generating 27 MHz squarewave is connected to pin 52 of GW1NR-LV9 FPGA.

   Tang Nano 9K goldpin numbers are shown on the board so they can be easily used to assign gpio in pins.cst.


4. Write the program to be performed by NanoProcessor starting from line 45 (defparam spx9_inst_0.INIT_RAM_00) of file src/SRAM.v. Obviously, manually writing a program in binary code is slow, so you can use NanoAssembler.

5. Save pins.cst and SRAM.v and run Synthesize and Place & Route operations.

6. Connect Tang Nano 9K to your computer via USB.

7. Open Tools > Programmer and make sure the only record is

   .	Enable	Series	Device	Operation	FS File
   1	✓	GW1NR	GW1NR-9C	SRAM Program	path to NanoProcessor/impl/pnr/NanoProcessor.fs

   Operation can differ from SRAM Program when you want to write the FPGA configuration to embedded or external flash memory. Nevertheless, running from flash has not been tested yet.

8. Click Edit > Program/Configure to write the configuration to the FPGA.

NanoAssembler

NanoAssembler is a Python script translating a text file written in NanoAssembly language to NanoProcessor machine (binary) code.

---

Syntax

Tokens

A program in NanoAssembly is parsed from top to bottom and from left to right. It consists of several components called tokens in terms of syntax analysis (parsing) performed by NanoAssembler script. 2 consecutive tokens in a program are separated with any number of whitespace characters. Below is the list of recognized tokens:

1. Literal

   It is a decimal number (e.g. 5) or a binary number with prefix 0b (e.g. 0b101).

2. Newline

   It is an end of line sequence. NanoAssembler recognizes 3 popular newline sequences: LF (\n), CR (\r), CRLF (\r\n).

3. Comment

   Starts with ; character and causes the parser to ignore all characters until it meets a newline token. Currently, only single-line comments are supported.

4. Register instruction mnemonic name

   It is a name from the list: mv, add, sub, ld, st, mvnz, and. This token is case-sensitive so it must be written in lowercase.

5. Immediate instruction mnemonic name

   It can only be name mvi. Again, this token must be written in lowercase.

6. Register mnemonic name

   It is a name from the list: R0, R1, R2, R3, R4, R5, R6, PC. This time, it must be written in uppercase.

7. Label declaration

   It is an arbitrary word followed by : character (e.g. some_label:). NanoAssembler calculates the address of the first literal or instruction following the label declaration. The calculated address is substituted for all references to that label. Label redeclarations cause NanoAssembler to print warnings.

8. Label reference

   It is an arbitrary word preceded by : character (e.g. :some_label). A label can be referenced in the entire program, even before its declaration. A reference to undeclared label produces an error and stops NanoAssembler.

Unrecognized tokens, which are of none of the types listed above, cause NanoAssebler to print an error and stop.

---

Instructions

A single instruction definition consists of multiple properly ordered tokens.
A register instruction is defined by writing:

• mnemonic name of the instruction,
• mnemonic name of the first register operand,
• mnemonic name of the second register operand,
• exactly 1 newline.

Similarly, an immediate instruction is defined by writing:

• mnemonic name of the instruction,
• mnemonic name of the first register operand,
• exactly 1 newline,
• (optional) 1 or more label declarations and/or newlines,
• exactly 1 literal or label reference.
• exactly 1 newline.

No tokens other than comments can be located between the listed tokens. Otherwise, NanoAssembler produces an unexpected token error and stops.

---

Usage

Running

To run NanoAssembler, only Python (at least 3.11.0) is required. The script has optional source file encoding detection feature. To use it, chardet Python module must be available. Below is the script's usage description:

usage: NanoAssembler [-h] [-e SOURCE_ENCODING] [-o TARGET] source

Translate a file written in NanoAssembly language to NanoProcessor machine (binary) code.

positional arguments:
  source              Path to a text file written in NanoAssembly language.

options:
  -h                  Show this help message and exit.
  -e SOURCE_ENCODING  Specify encoding of the source file. See 'codecs' Python module for the list of supported encodings
                      (https://docs.python.org/3/library/codecs.html#standard-encodings). If source encoding is not specified, NanoAssembler attempts to
                      determine it using 'chardet' Python module as long as the user has it installed. Do not use automatic encoding detection for big files
                      that cannot entirely fit in Python script's memory. Such a program probably would not fit in NanoProcessor's memory anyway.
  -o TARGET           Overwrite initial memory content in specified SRAM module Verilog file (SRAM.v). If this argument is not used, the machine code is
                      written to stdout.

---

Basic examples

The examples below assume that file program.nas contains the following code:

mvi R0 R1 ; comment
label0: label1:
5

:label0
:label1

1. Assembling to stdout with source encoding detection

   Command:

   python NanoAssembler.py program.nas


   Output:

   Detected source encoding 'ascii'.
   001000000
   000000101
   000000001
   000000001


2. Assembling to SRAM.v file

   Command:

   python NanoAssembler.py program.nas -e utf_8 -o ../NanoProcessor/src/SRAM.v


   The script does not print anything to stdout but its output is written to SRAM.v file:

   defparam spx9_inst_0.INIT_RAM_00 = 288'h000000000000000000000000000000000000000000000000000000000000000008040A40;
   defparam spx9_inst_0.INIT_RAM_01 = 288'h000000000000000000000000000000000000000000000000000000000000000000000000;
   defparam spx9_inst_0.INIT_RAM_02 = 288'h000000000000000000000000000000000000000000000000000000000000000000000000;
   defparam spx9_inst_0.INIT_RAM_03 = 288'h000000000000000000000000000000000000000000000000000000000000000000000000;


   After that, Gowin EDA can be used to write the new NanoProcessor configuration to the FPGA (see NanoProcessor > Running > Steps for Windows operating system > step 4).

---

Complex examples

NanoAssembly code for examples shown below is located in examples directory.

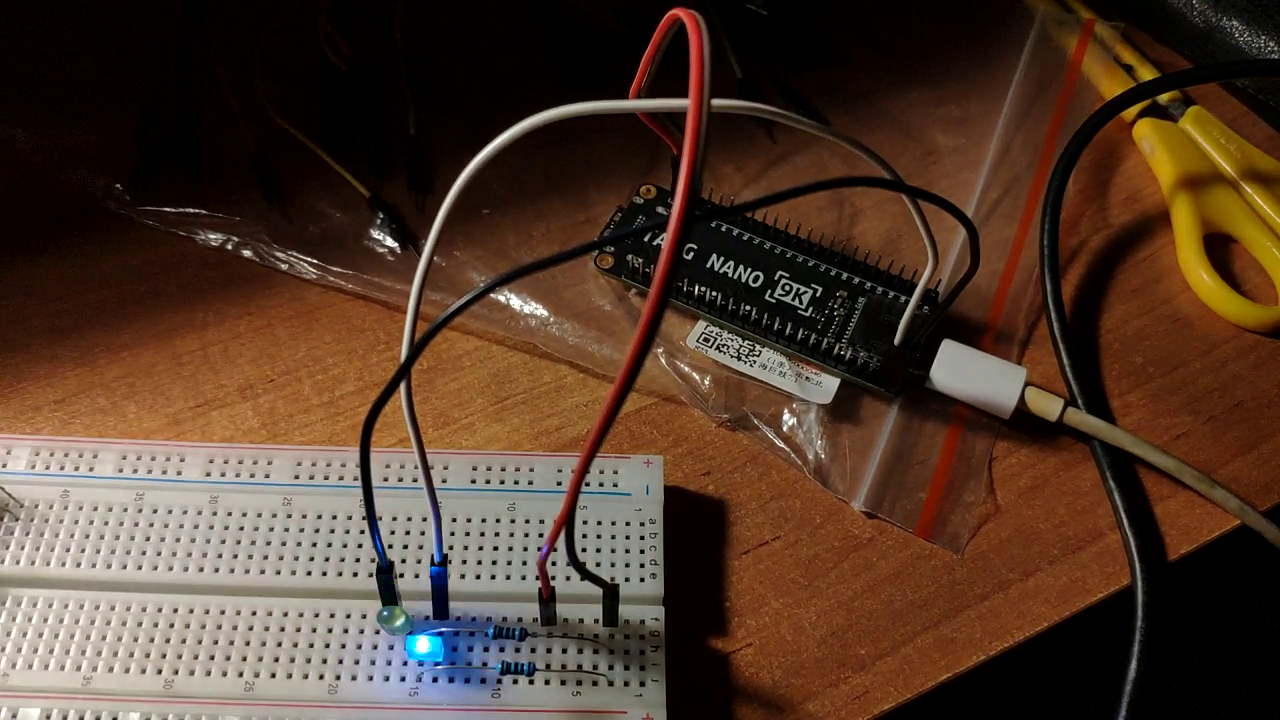

1. 2 leds

To build this example, use NanoAssembler

python NanoAssembler.py examples/2_leds.nas -e utf_8 -o ../NanoProcessor/src/SRAM.v

This example presents an infinite loop with delay and how to use NanoProcessor's GPIO in output mode.

(Click the image to watch the presentation on YouTube.)

GPIO signals can be seen with such a logic analyzer:

One period of the squarewaves driving LEDs takes 194.2 milliseconds.

2. Button

In this example, a button acts as SPST (Single Pole Single Throw) switch. When the button is pressed, it shorts GPIO pin 0 (FPGA pin 38) to ground and GPIO register's 0th bit is cleared (has value 0). Due to GW1NR-LV9 FPGA's default pull-up resistor mode, when the button is released, GPIO pin 0 is charged up to high logic level electric potential and GPIO register's 0th bit is set (has value 1).

When the button is 0 (pressed), the LED is 1.

3. 8-segment display

This example presents how NanoProcessor displays a single character on a 4-digit 8-segment LED display module based on two 75HC595 shift registers connected in series. For details on the module, see Display example in my PineA64GPIO repository.

DIO carries the data word written into the shift register. SCLK is the clock signal (with period equal to 3 microseconds) that causes the shift register to change its state. RCLK is ticked once every a complete data word to make the shift register's latch pass the word to its output pins.
