PineA64GPIO

Description

This repository contains GPIO library for Pine A64/A64+ single board computers based on Allwinner A64 CPU. Currently, it only supports programmed input-output without interrupts. It was tested on Pine A64+ running Armbian 22.11.1 Jammy with Linux 5.15.80-sunxi64 kernel.

Hardware

The image below shows the position of connectors on Pine A64/A64+ board.

Source (accessed 13.02.2023): wiki link, PINE A64 Connector Layout @courtesy of norm24 (PNG link)

Allwinner A64 user manual (PDF link, accessed 13.02.2023) on page 376 states that the CPU has 7 GPIO ports, each containing a number of configurable 1-bit input/output lines.

  • Port B (PB): 10 i/o
  • Port C (PC): 17 i/o
  • Port D (PD): 25 i/o
  • Port E (PE): 18 i/o
  • Port F (PF): 7 i/o
  • Port G (PG): 14 i/o
  • Port H (PH): 12 i/o

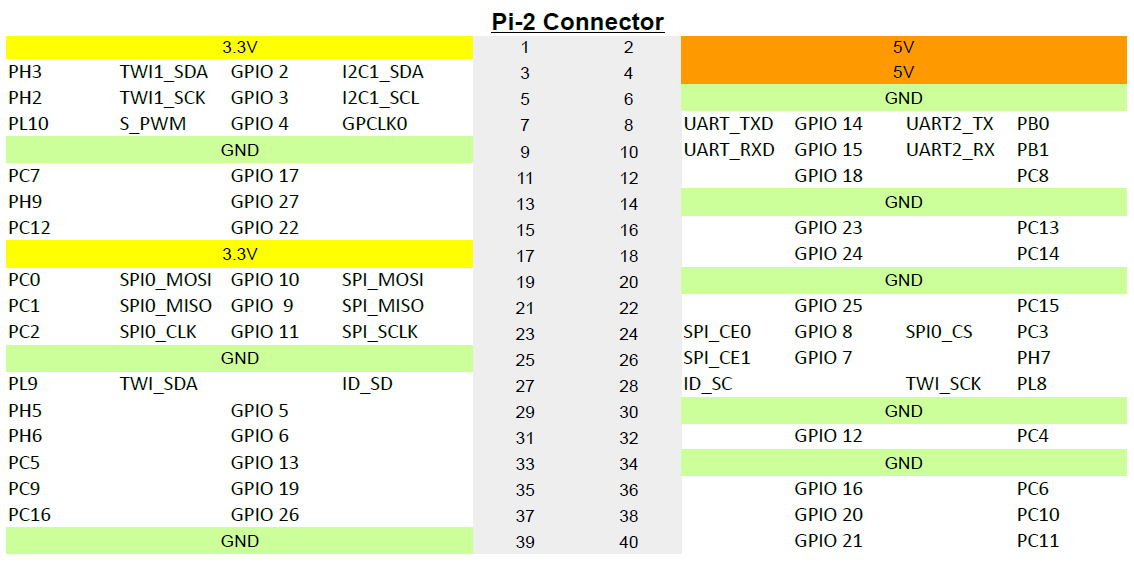

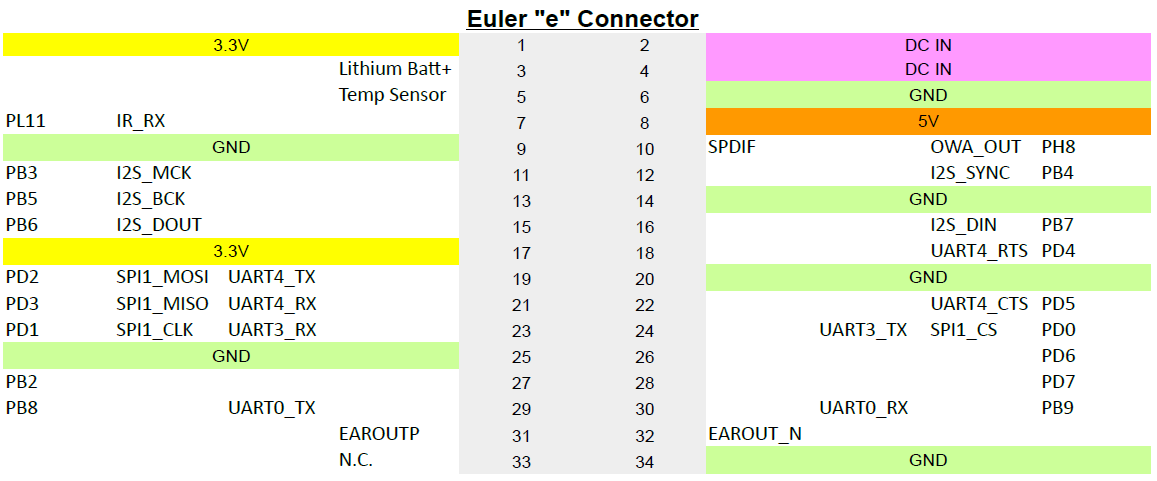

According to file 'PINE A64 Pi-2/Eular/Ext Bus/Wifi Bus Connector Pin Assignment (Updated 15/Feb/2016)' (PDF link, accessed 13.02.2023) from Pine A64 wiki, the listed above i/o lines are available through four goldpin connectors located on the board. The following tables show goldpin indexes and their corresponding i/o lines, e.g. i/o line PC6 can be accessed through 36-th goldpin of Pi-2 Connector.

Building

GPIO library only uses Linux system calls and C standard library functions without any external dependencies. To build it, firstly clone this repository to a Pine A64/A64+ board running Linux. Make sure you have gcc (GNU Compiler Collection) and ar (Archiver) available. Then you have two options:

  1. If make (GNU Make) is available, build the library using the following command:
    make libgpio


or

  1. Permit execution of build.sh Bash script and run it:
    chmod 755 build.sh
    ./build.sh


Either way, compiled static library archive libgpio.a is placed in ./build directory.

To delete ./build, use:

  1. make clean


or

  1. rm -r ./build


Usage

Programming

  1. In your code, create gpio_context_t struct instance and initialize it with int gpio_init(gpio_context_t *ctx).

  2. Using the tables in PDF link, select a GPIO pin and check which i/o line symbol corresponds to the pin.

    E.g. pin 38 of Pi-2 Connector and i/o line PC10.

  3. Set the i/o line's function with void gpio_set_function(gpio_context_t *ctx, uint8_t gpio, uint8_t function).

    gpio parameter contains GPIO port index in 3 more significant bits
    and i/o line index in 5 less significant bits.

    port index port symbol number of i/o lines
    0 PB 10
    1 PC 17
    2 PD 25
    3 PE 18
    4 PF 7
    5 PG 14
    6 PH 12

    E.g. for i/o line PC10, gpio = 001 01010

    According to Allwinner A64 user manual, i/o line's basic function options are represented by the following bit sequences:

    • 000: Input
    • 001: Output
    • 111: IO Disable

    Various GPIO i/o lines can have different special functions (e.g. for hardware SPI protocol, UART, etc.) but three basic ones listed above should remain the same for all i/o lines.

    Pass the selected option in 3 least significant bits of function parameter.

    Example gpio_set_function call for setting PC10 i/o line as output.
    gpio_set_function(&ctx, 0b00101010, 0b001)

  4. (Optional, do it only with input i/o line function) Set the i/o line's internal pull-up/down resistor with void gpio_set_pull_up_down(gpio_context_t *ctx, uint8_t gpio, uint8_t pull_up_down).

    For gpio parameter look up to paragraph 3.

    According to Allwinner A64 user manual, i/o line's pull-up/down resistor options are represented by the following bit sequences:

    • 00: Pull-up/down disable
    • 01: Pull-up
    • 10: Pull-down
    • 11: Reserved

    Pass the selected option in 2 least significant bits of pull_up_down parameter.

    Example gpio_set_pull_up_down call for enabling PD6 i/o line's pull-up resistor.
    gpio_set_pull_up_down(&ctx, 0b01000110, 0b01)

    • Only with output i/o line function

      Set i/o line's value with void gpio_set_value(gpio_context_t *ctx, uint8_t gpio, uint8_t value).

      Example gpio_set_value call for writing bit value 0 to PC10 i/o line.
      gpio_set_value(&ctx, 0b00101010, 0b0)

    • Only with input i/o line function

      Get i/o line's value with uint8_t gpio_get_value(gpio_context_t *ctx, uint8_t gpio).

      Example gpio_get_value call for reading bit value from PE6 i/o line.
      gpio_get_value(&ctx, 0b01000110)

      The read bit value is placed in the least significant bit of 8-bit variable returned by gpio_get_value.

  5. Release resources used by gpio_context_t struct instance with int gpio_cleanup(gpio_context_t *ctx).

Running

  1. Compile your program with gcc without linking

    gcc program.c -c -o program.o

  2. Link your program's object file program.o against compiled GPIO static library archive libgpio.a. After -L parameter, pass the name of the directory where you have libgpio.a.

    gcc program.o -L[directory] -l:libgpio.a -o program

  3. Run the executable.

    sudo ./program


    It must be run with root's permissions because GPIO library operates on low-level registers accessible by CPU's address space. Otherwise mmap fails and gpio_context_t struct instance can not be initialized.

Usage examples

Code for examples shown below is located in examples directory.

1. Button

To build this example, use make

make button

In this example, a button acts as SPST (Single Pole Single Throw) switch. When the button is pressed, it shorts GPIO pin 38 (i/o line PC10) to ground and gpio_get_value returns 0. Due to enabled pull-up resistor mode, when the button is released, the i/o line PC10 is charged up to high logic level electric potential and gpio_get_value returns 1.

(Click the image to watch the presentation on YouTube.)

2. Display

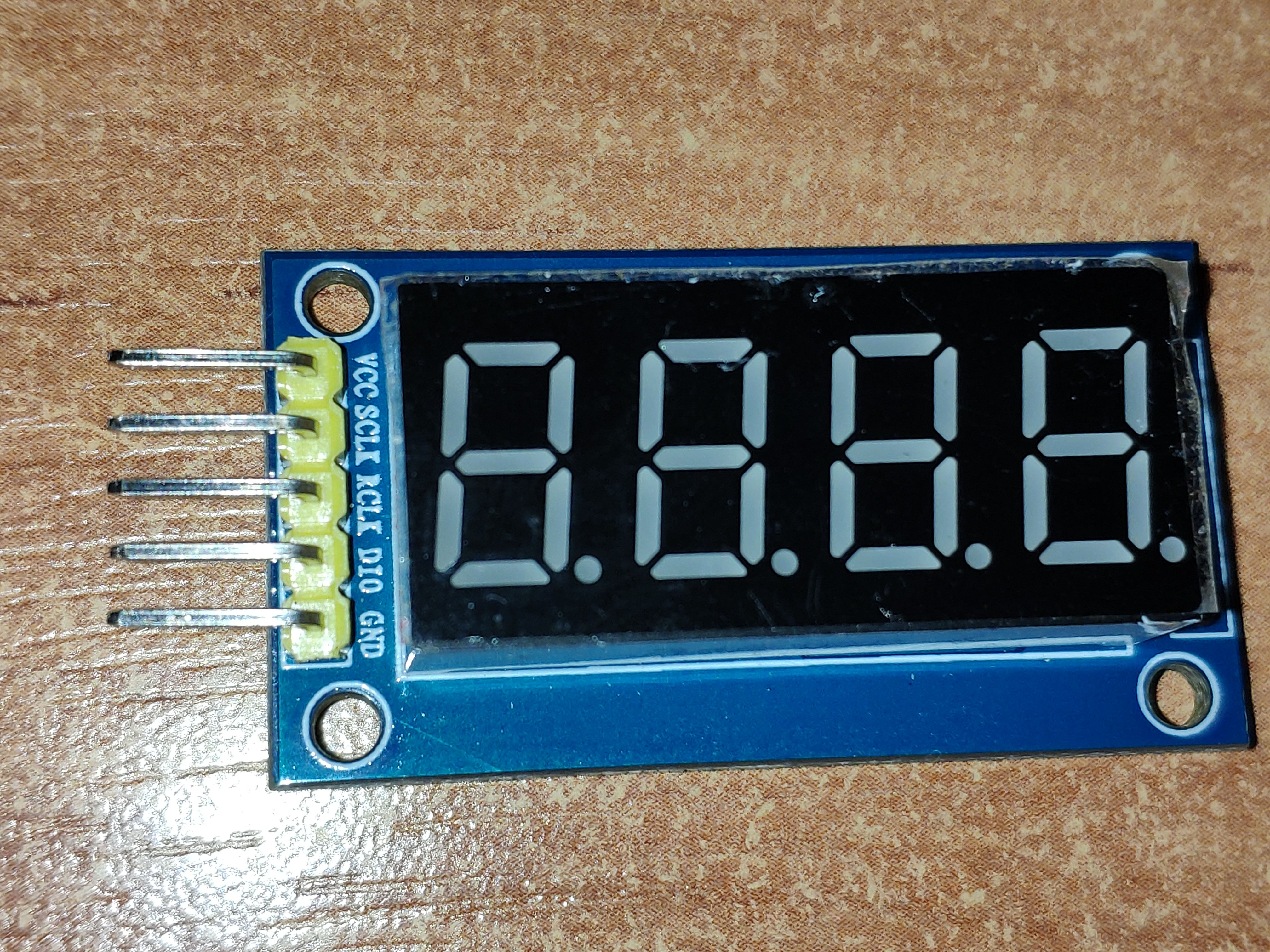

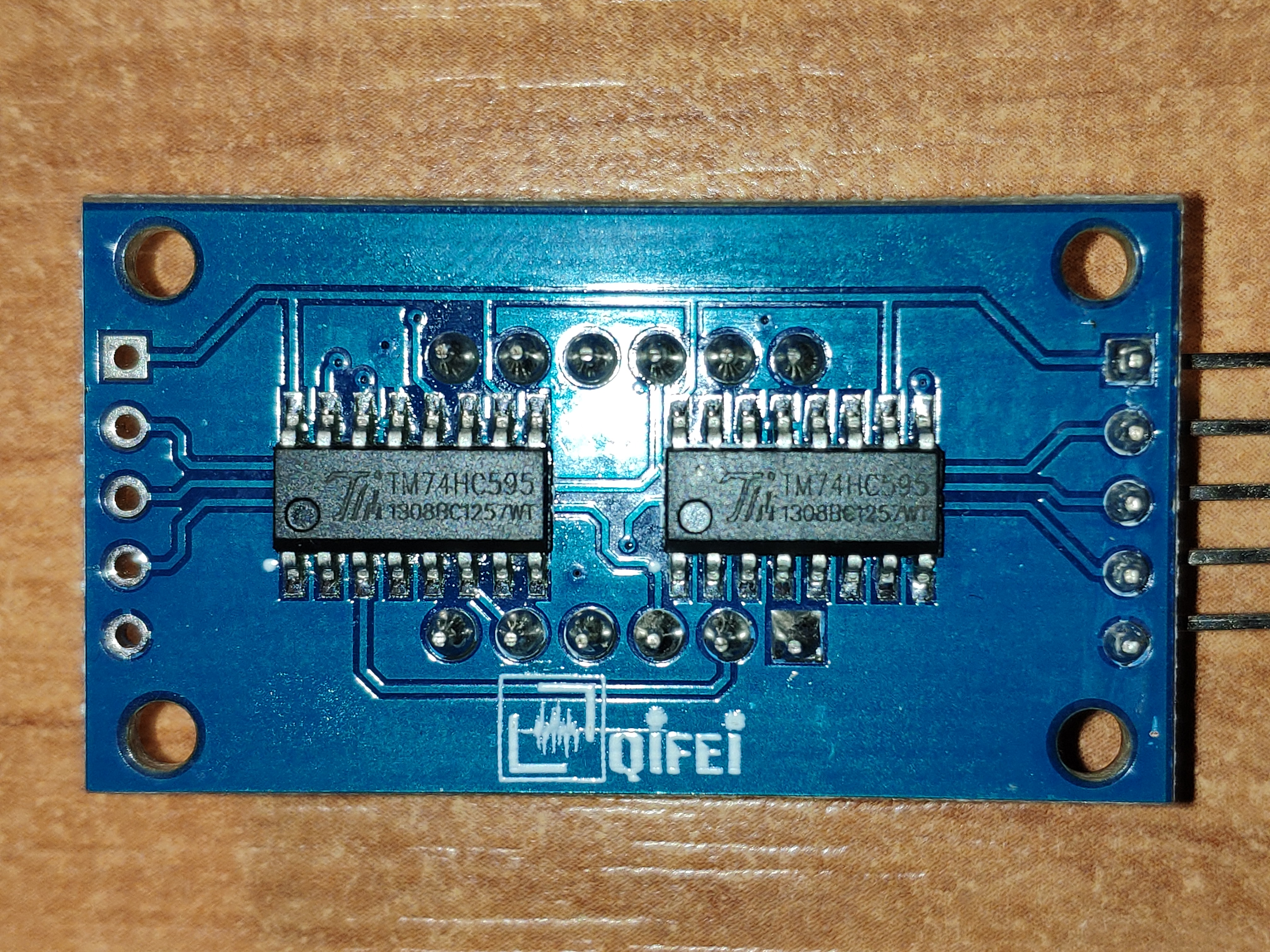

This example uses SegDisp library dependent on GPIO library. SegDisp library can be used to drive a 4-digit 8-segment LED display module based on two 75HC595 shift registers connected in series (images below).

To build SegDisp, use

make libsegdisp

or (the same as for GPIO library in Building paragraph)

chmod 755 build.sh
./build.sh

Either way, compiled static library archive libsegdisp.a is placed in ./build directory.

To build and run a program using SegDisp, use

gcc program.c -c -o program.o
gcc program.o -L[directory containing libsegdisp.a] -l:libsegdisp.a -o program
sudo ./program

You can also build display example with make

make display

This example presents how SegDisp library drives a display module. For details on data format accepted by the module, see segdisp_display_digit function definition in segdisp.c file.

The counter can be slowed down but refresh rate must be preserved to avoid flickering.

base parameter value passed to segdisp_display_number determines the numeral system in which the counter value is expressed.

About

General purpose programmed input-output library for Pine A64 single board computer
