244 changes: 177 additions & 67 deletions _partials/_prometheus-integrate.md
View file
Open in desktop
Original file line number Diff line number Diff line change
Expand Up @@ -2,119 +2,229 @@ import IntegrationPrereqs from "versionContent/_partials/_integration-prereqs.md

[Prometheus][prometheus] is an open-source monitoring system with a dimensional data model, flexible query language, and a modern alerting approach.

This page shows you how to export your $SERVICE_SHORT telemetry to Prometheus:
This page shows you how to export your $SERVICE_SHORT metrics to Prometheus:

- For $CLOUD_LONG, using a dedicated Prometheus exporter in $CONSOLE.
- For $SELF_LONG, using [PostgreSQL Exporter][postgresql-exporter].
- For $CLOUD_LONG, using a dedicated Prometheus exporter in $CONSOLE or [PostgreSQL Exporter][postgresql-exporter].
- For $SELF_LONG, using [PostgreSQL Exporter][postgresql-exporter].

## Prerequisites
## Export metrics to Prometheus

To export your data, do the following:

<Tabs label="Export metrics to Prometheus">

<Tab title="Tiger Cloud">

You can export different metrics from your $SERVICE_LONG using the Prometheus exporter in $CONSOLE or PostgreSQL Exporter.

The Prometheus exporter exposes the metrics related to the $SERVICE_LONG like CPU, memory, and storage. PostgreSQL Exporter exposes metrics that you define, excluding the system metrics available with the $CONSOLE exporter.

### Prerequisites

To follow the steps on this page:

- [Download and run Prometheus][install-prometheus].
- For $CLOUD_LONG:

Create a target [$SERVICE_LONG][create-service] with the time-series and analytics capability enabled.
- For $SELF_LONG:
- Create a target [$SELF_LONG][enable-timescaledb] instance. You need your [connection details][connection-info].
- [Install PostgreSQL Exporter][install-exporter].
To reduce latency and potential data transfer costs, install Prometheus and PostgreSQL Exporter on a machine in the same AWS region as your $SERVICE_LONG.
- Create a target [$SERVICE_LONG][create-service] with the time-series and analytics capability enabled. You need your [connection details][connection-info].
- [Download and run Prometheus][install-prometheus] in the same AWS region as your $SERVICE_LONG or database.
- To use PostgreSQL Exporter: [install PostgreSQL Exporter][install-exporter] in the same AWS region as your $SERVICE_SHORT.

## Export $SERVICE_LONG telemetry to Prometheus
<Tabs>

To export your data, do the following:
<Tab title="Using Tiger Cloud Console exporter">

<Tabs label="Export metrics to Prometheus">
<Availability products={['cloud']} price_plans={['enterprise']} />

<Tab title="Tiger Cloud">
You create a Prometheus exporter in $CONSOLE, attach it to your $SERVICE_SHORT, then configure Prometheus to scrape metrics using the exposed URL.

<Procedure>

To export metrics from a $SERVICE_LONG, you create a dedicated Prometheus exporter in $CONSOLE, attach it to your $SERVICE_SHORT, then configure Prometheus to scrape metrics using the exposed URL. The Prometheus exporter exposes the metrics related to the $SERVICE_LONG like CPU, memory, and storage. To scrape other metrics, use PostgreSQL Exporter as described for $SELF_LONG. The Prometheus exporter is available for [Scale and Enterprise][pricing-plan-features] pricing plans.

1. **Create a Prometheus exporter**

1. In [$CONSOLE][open-console], click `Exporters` > `+ New exporter`.
1. In [$CONSOLE][open-console], click `Exporters` > `+ New exporter`.

1. Select `Metrics` for data type and `Prometheus` for provider.
1. Select `Metrics` for data type and `Prometheus` for provider.

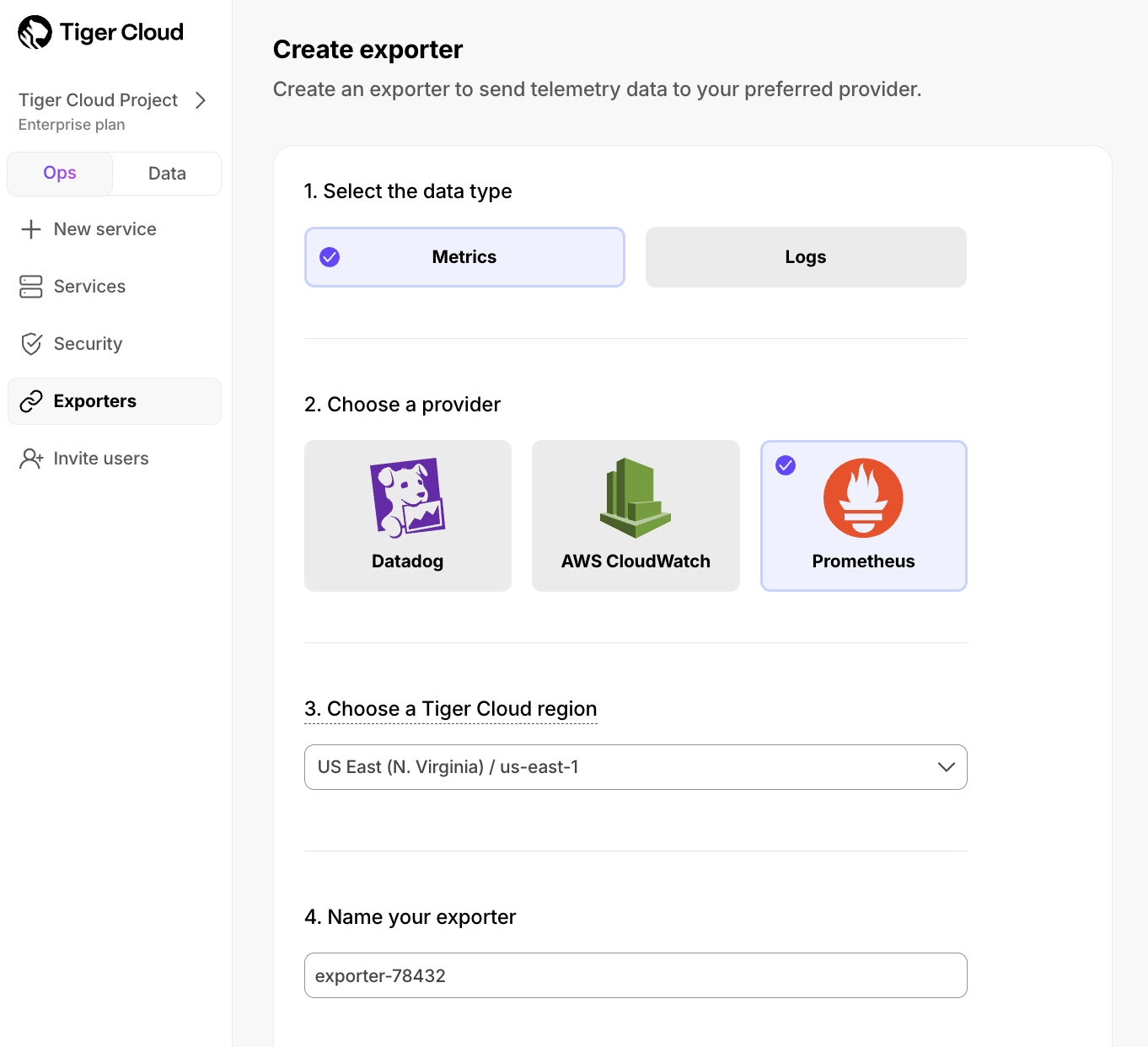

![Create a Prometheus exporter in Tiger Cloud](https://assets.timescale.com/docs/images/tiger-cloud-console/tiger-cloud-create-prometheus-exporter.png)

1. Choose the region for the exporter. Only $SERVICE_SHORTs in the same project and region can be attached to this exporter.
1. Name your exporter.
1. Choose the region for the exporter. Only $SERVICE_SHORTs in the same project and region can be attached to this exporter.

1. Name your exporter.

1. Change the auto-generated Prometheus credentials, if needed. See [official documentation][prometheus-authentication] on basic authentication in Prometheus.
1. Change the auto-generated Prometheus credentials, if needed. See [official documentation][prometheus-authentication] on basic authentication in Prometheus.

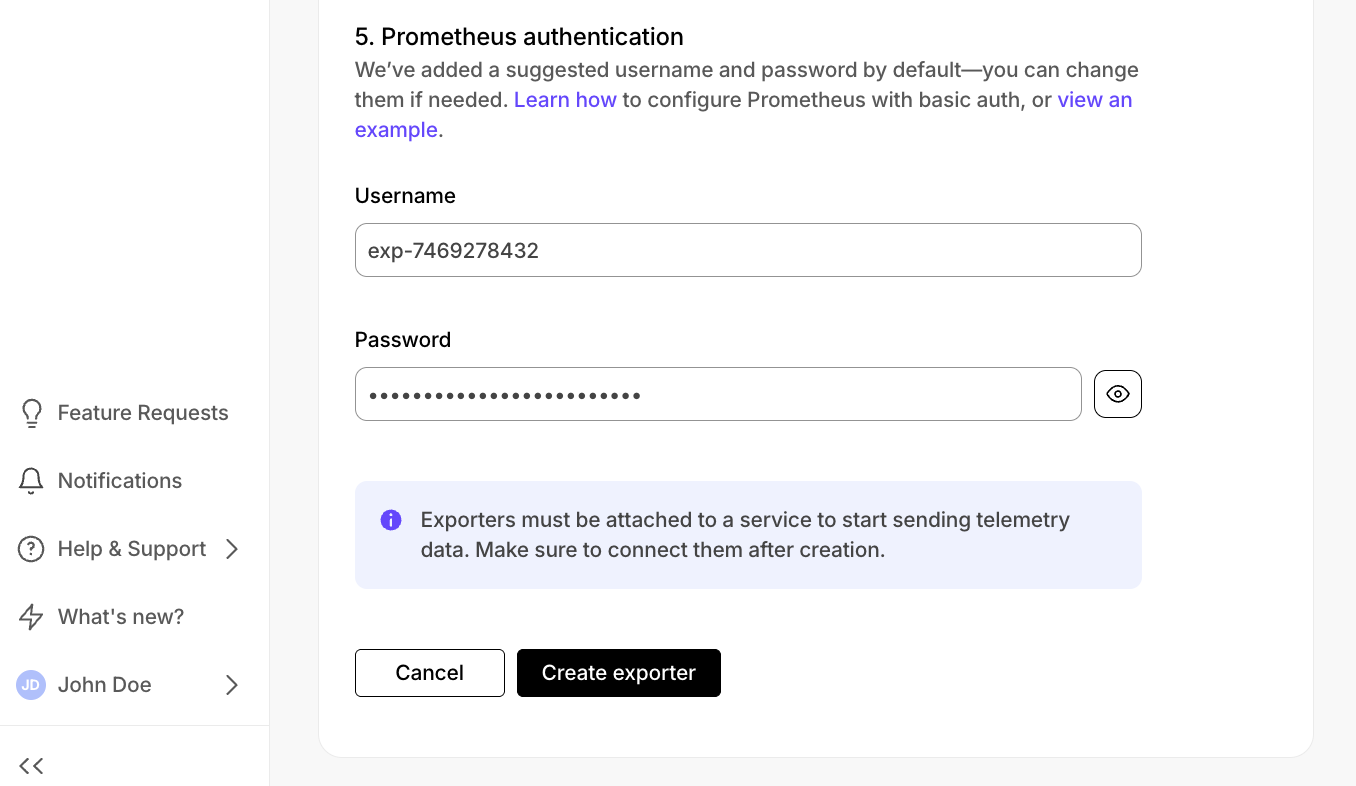

![Prometheus exporter credentials](https://assets.timescale.com/docs/images/tiger-cloud-console/prometheus-exporter-basic-authentication.png)

1. **Attach the exporter to a $SERVICE_SHORT**

1. Select a $SERVICE_SHORT, then click `Operations` > `Exporters`.
1. Select a $SERVICE_SHORT, then click `Operations` > `Exporters`.

1. Select the exporter in the drop-down, then click `Attach exporter`.
1. Select the exporter in the drop-down, then click `Attach exporter`.

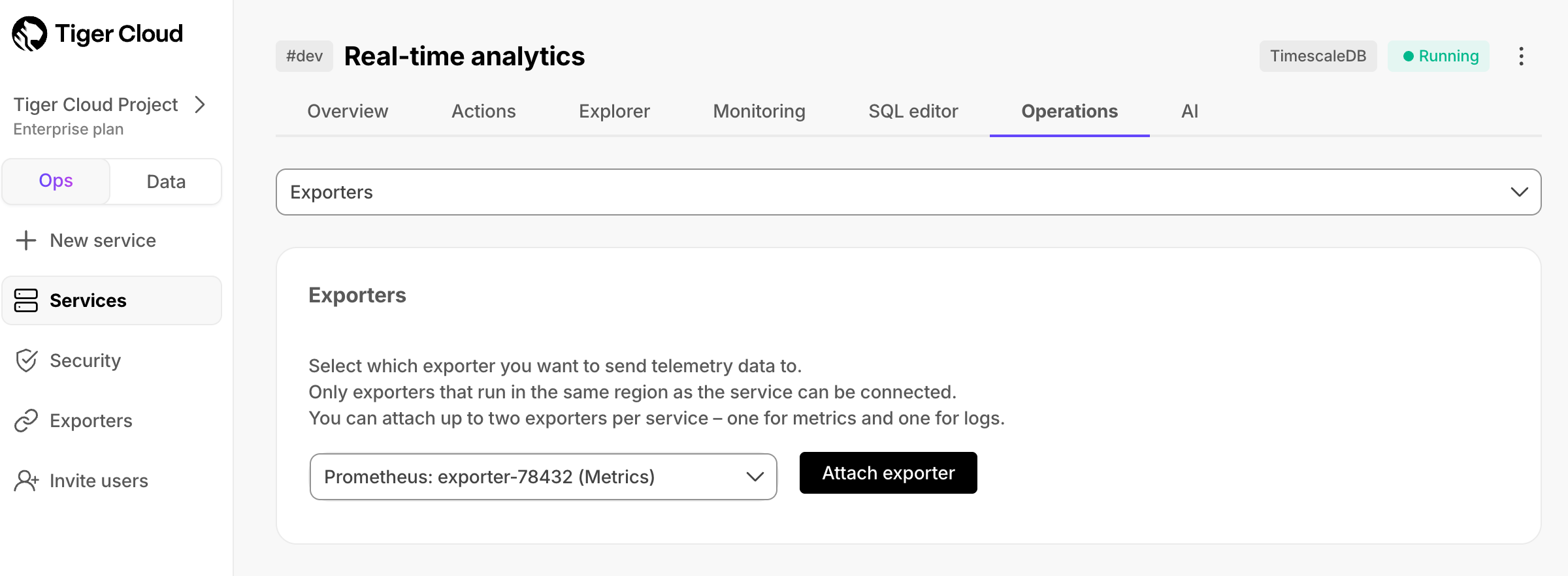

![Attach a Prometheus exporter to a Tiger Cloud service](https://assets.timescale.com/docs/images/tiger-cloud-console/attach-prometheus-exporter-tiger-cloud.png)

The exporter is now attached to your $SERVICE_SHORT. To unattach it, click the trash icon in the exporter list.
The exporter is now attached to your $SERVICE_SHORT. To unattach it, click the trash icon in the exporter list.

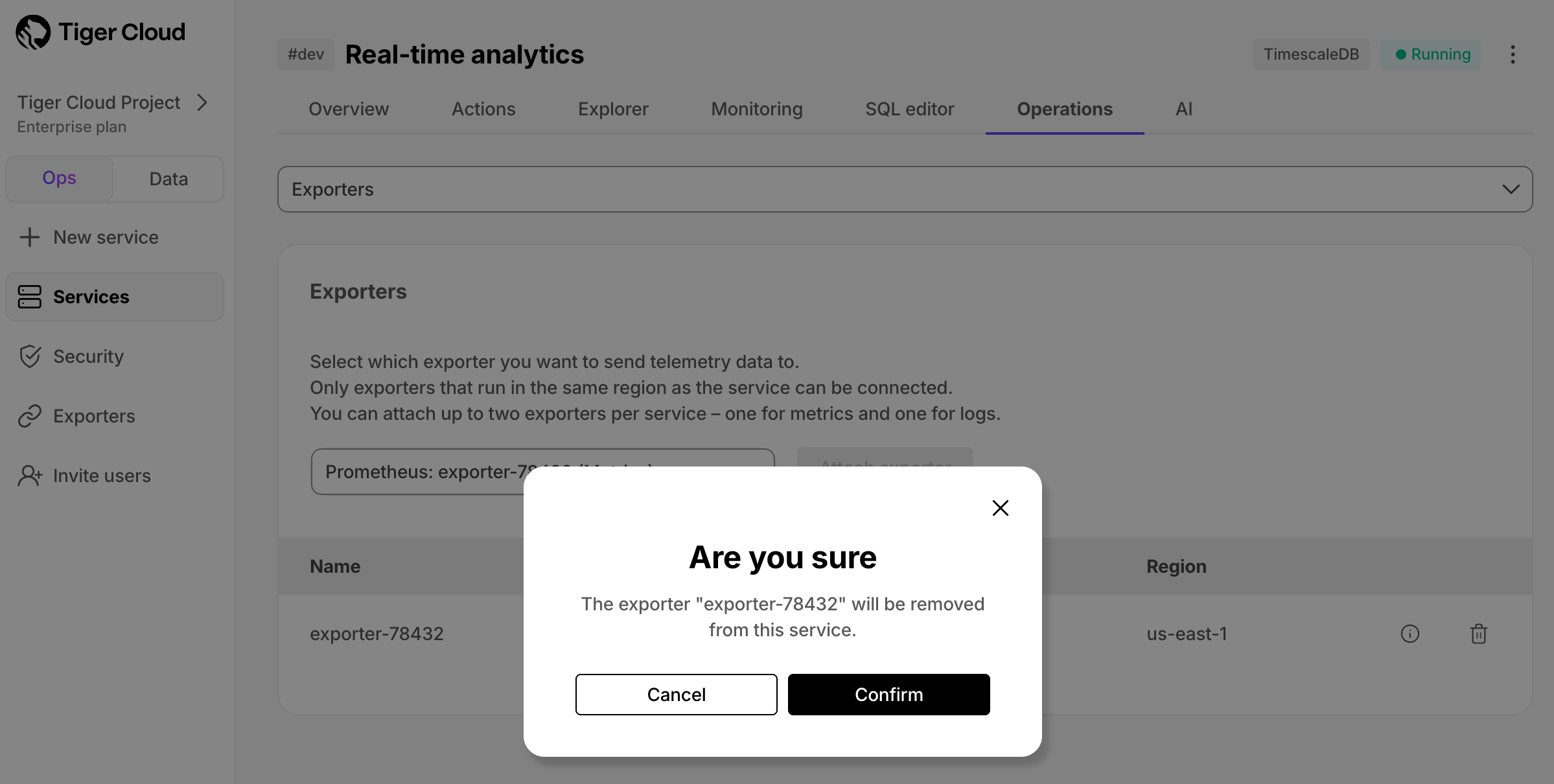

![Unattach a Prometheus exporter from a Tiger Cloud service](https://assets.timescale.com/docs/images/tiger-cloud-console/unattach-prometheus-exporter-tiger-cloud-service.png)

1. **Configure the Prometheus scrape target**

1. Select your service, then click `Operations` > `Exporters` and click the information icon next to the exporter. You see the exporter details.
1. Select your service, then click `Operations` > `Exporters` and click the information icon next to the exporter. You see the exporter details.

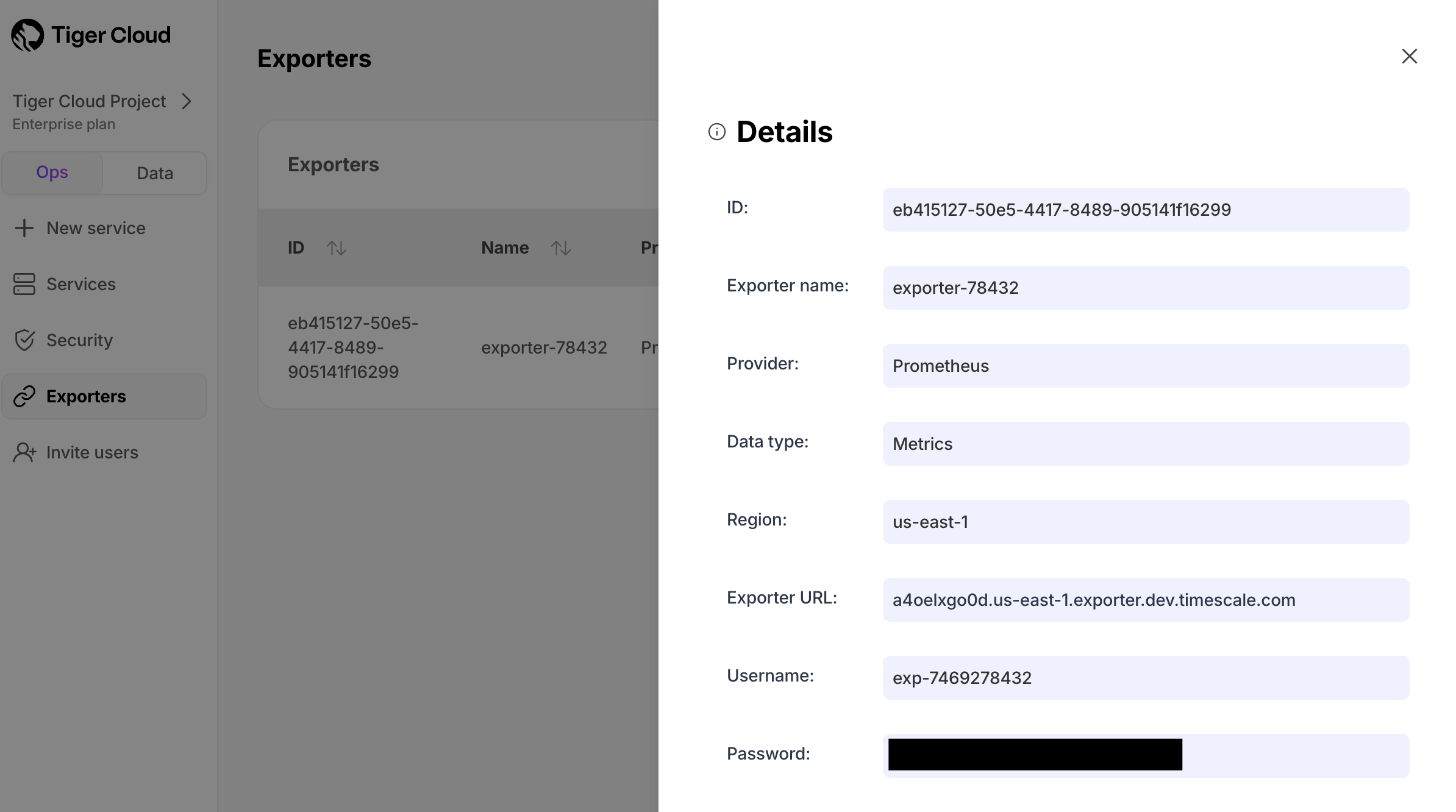

![Prometheus exporter details in Tiger Cloud](https://assets.timescale.com/docs/images/tiger-cloud-console/prometheus-exporter-details-tiger-cloud.png)

1. Copy the exporter URL.
1. Copy the exporter URL.

1. In your Prometheus installation, update `prometheus.yml` to point to the exporter URL as a scrape target:
1. In your Prometheus installation, update `prometheus.yml` to point to the exporter URL as a scrape target:
Copy link
Contributor

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

@rahilsondhi have we already changed the Console to provide the snippet to be used in Prometheus? I would point the user to copy from there which will already have all the correct parameters set up


```yml
scrape_configs:
- job_name: "timescaledb-exporter"
scheme: https
static_configs:
- targets: ["my-exporter-url"]
basic_auth:
username: "user"
password: "pass"
```

See the [Prometheus documentation][scrape-targets] for details on configuring scrape targets.

You can now monitor your $SERVICE_SHORT metrics. Use the following metrics to check the service is running correctly:

* `timescale.cloud.system.cpu.usage.millicores`
* `timescale.cloud.system.cpu.total.millicores`
* `timescale.cloud.system.memory.usage.bytes`
* `timescale.cloud.system.memory.total.bytes`
* `timescale.cloud.system.disk.usage.bytes`
* `timescale.cloud.system.disk.total.bytes`

Additionally, use the following tags to filter your results.

|Tag|Example variable| Description |
|-|-|----------------------------|
|`host`|`us-east-1.timescale.cloud`| |
|`project-id`|| |
|`service-id`|| |
|`region`|`us-east-1`| AWS region |
|`role`|`replica` or `primary`| For $SERVICE_SHORT with replicas |
```yml
scrape_configs:
- job_name: "timescaledb-exporter"
scheme: https
static_configs:
- targets: ["my-exporter-url"]
basic_auth:
username: "user"
password: "pass"
```

See the [Prometheus documentation][scrape-targets] for details on configuring scrape targets.

You can now monitor your $SERVICE_SHORT metrics. Use the following metrics to check the service is running correctly:

* `timescale.cloud.system.cpu.usage.millicores`
* `timescale.cloud.system.cpu.total.millicores`
* `timescale.cloud.system.memory.usage.bytes`
* `timescale.cloud.system.memory.total.bytes`
* `timescale.cloud.system.disk.usage.bytes`
* `timescale.cloud.system.disk.total.bytes`

Additionally, use the following labels to filter your results.

| Label |Example variable| Description |
|--------------|-|-----------------------------------|
| `host` |`us-east-1.timescale.cloud`| |
| `project-id` || |
| `service-id` || |
| `region` |`us-east-1`| AWS region |
| `role` |`replica` or `primary`| For $SERVICE_SHORTs with replicas |

</Procedure>

</Tab>

<Tab title="Using PostgreSQL Exporter">

You import your $SERVICE_LONG metrics into PostgreSQL Exporter, then configure Prometheus to scrape metrics from it.

<Procedure>

1. **Create a user to access your $SERVICE_LONG metrics**

1. Connect to your $SERVICE_SHORT using your [connection details][connection-info].

1. Create a user named `monitoring` with a secure password:

```sql
CREATE USER monitoring WITH PASSWORD '<password>';
```

1. Grant the `pg_read_all_stats` permission to the `monitoring` user:

```sql
GRANT pg_read_all_stats to monitoring;
```

1. **Import your $SERVICE_SHORT metrics to PostgreSQL Exporter**

1. Connect PostgreSQL Exporter to your $SERVICE_SHORT:

Use your [connection details][connection-info] to import your $SERVICE_SHORT metrics. You connect as
the `monitoring` user:

- Local installation:
```shell
export DATA_SOURCE_NAME="postgres://monitoring:<password>@<host>.tsdb.cloud.timescale.com:<port>/tsdb?sslmode=require"
./postgres_exporter
```
- Docker:
```shell
docker run -d \
-e DATA_SOURCE_NAME="postgres://monitoring:<password>@<host>.tsdb.cloud.timescale.com:<port>/tsdb?sslmode=require" \
-p 9187:9187 \
prometheuscommunity/postgres-exporter
```

1. Configure at least the following labels for your $SERVICE_SHORT in PostgreSQL Exporter:

- `project_id`
- `service_id`
- `region`

Having the same labels configured in PostgreSQL Exporter as in the $CLOUD_LONG Prometheus exporter helps you correlate metrics from both sources.

1. Check the metrics for your $SERVICE_SHORT in the Prometheus format:

- Browser:

Navigate to `http://<exporter-host>:9187/metrics`.

- Command line:
```shell
curl http://<exporter-host>:9187/metrics
```

1. **Configure Prometheus to scrape metrics**

1. In your Prometheus installation, update `prometheus.yml` to point to your PostgreSQL Exporter instance as a scrape
target. In the following example, you replace `<exporter-host>` with the hostname or IP address of the PostgreSQL
Exporter.

```yaml
global:
scrape_interval: 15s

scrape_configs:
Copy link
Contributor

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

In scrape configs, if you are using Tiger Cloud, I would highly recommend they add service id and project id as labels as it was explained in the original version of the documentation. That allows them to correlate metrics from Tiger Cloud Prometheus exporter and from the PostgreSQL exporter.

Copy link
Contributor Author

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Thanks, added the labels in the scrape config (also added region since we are telling them to configure service id, project id, and region labels in the postgresql exporter step).

- job_name: 'postgresql'
static_configs:
- targets: ['<exporter-host>:9187']
labels:
service_id: '<your-service-id>'
project_id: '<your-project-id>'
region: '<your-region>'
```

If `prometheus.yml` has not been created during installation, create it manually. If you are using Docker, you can
find the IPAddress in `Inspect` > `Networks` for the container running PostgreSQL Exporter.

1. Restart Prometheus.

1. Check the Prometheus UI at `http://<prometheus-host>:9090/targets` and `http://<prometheus-host>:9090/tsdb-status`.

You see the PostgreSQL Exporter target and the metrics scraped from it.

</Procedure>


</Tab>

</Tabs>

</Tab>

<Tab title="Self-hosted TimescaleDB">

<Procedure>
You export metrics from $SELF_LONG to PostgreSQL Exporter, then configure Prometheus to scrape metrics from it.

To export metrics from $SELF_LONG, you import telemetry data about your database to PostgreSQL Exporter, then configure Prometheus to scrape metrics from it. PostgreSQL Exporter exposes metrics that you define, excluding the system metrics.
## Prerequisites

To follow the steps on this page:

- Create a target [self-hosted $TIMESCALE_DB][enable-timescaledb] instance. You need your [connection details][connection-info].
- [Install PostgreSQL Exporter][install-exporter] in the same AWS region as your database.
- [Download and run Prometheus][install-prometheus] in the same AWS region as your $SERVICE_LONG or database.

<Procedure>

1. **Create a user to access telemetry data about your database**
1. **Create a user to access your database metrics**

1. Connect to your database in [`psql`][psql] using your [connection details][connection-info].

Expand All @@ -130,11 +240,11 @@ To export metrics from $SELF_LONG, you import telemetry data about your database
GRANT pg_read_all_stats to monitoring;
```

1. **Import telemetry data about your database to PostgreSQL Exporter**
1. **Import your database metrics to PostgreSQL Exporter**

1. Connect PostgreSQL Exporter to your database:

Use your [connection details][connection-info] to import telemetry data about your database. You connect as
Use your [connection details][connection-info] to import your database metrics. You connect as
the `monitoring` user:

- Local installation:
Expand All @@ -150,7 +260,7 @@ To export metrics from $SELF_LONG, you import telemetry data about your database
prometheuscommunity/postgres-exporter
```

1. Check the metrics for your database in the Prometheus format:
1. Check your database metrics in the Prometheus format:

- Browser:

Expand Down
