replace parse() with parse_safe() in geom_text() #2867

slowkow · 2018-08-28T16:19:50Z

The built in parse() function silently drops items:

length(parse(text = c("alpha", "", "gamma")))

We expect the length to be 3, but instead it is 2.

So, we add a new function parse_safe() that keeps all items.

This addresses issue #2864

The built in `parse()` function silently drops items: length(parse(text = c("alpha", "", "gamma"))) We expect the length to be 3, but instead it is 2. So, we add a new function `parse_safe()` that keeps all items. This addresses issue tidyverse#2864

slowkow · 2018-08-28T16:22:47Z

Details

Here is the code I used to generate the images.

dev.off()
library(ggplot2)
library(patchwork)

d1 <- data.frame(
  x = c(1, 2, 3),
  y = c(1, 0, 1),
  label = c("alpha", " ", "gamma"),
  stringsAsFactors = FALSE
)
p <- ggplot(d1, aes(x = x, y = y, label = label)) + geom_point(size = 5, color = "red")
p1 <- p + geom_text() + labs(title = "stringsAsFactors = FALSE\nparse = FALSE")
p2 <- p + geom_text(parse = TRUE) + labs(title = "stringsAsFactors = FALSE\nparse = TRUE")
p1 + p2
ggsave(filename = "pullXXX/d1-text.png", plot = p1 + p2, width = 6, height = 3)

p1 <- p + geom_label() + labs(title = "stringsAsFactors = FALSE\nparse = FALSE")
p2 <- p + geom_label(parse = TRUE) + labs(title = "stringsAsFactors = FALSE\nparse = TRUE")
p1 + p2
ggsave(filename = "pullXXX/d1-label.png", plot = p1 + p2, width = 6, height = 3)

d2 <- data.frame(
  x = c(1, 2, 3),
  y = c(1, 0, 1),
  label = c("alpha", " ", "gamma"),
  stringsAsFactors = TRUE
)
p <- ggplot(d2, aes(x = x, y = y, label = label)) + geom_point(size = 5, color = "red")
p1 <- p + geom_text() + labs(title = "stringsAsFactors = TRUE\nparse = FALSE")
p2 <- p + geom_text(parse = TRUE) + labs(title = "stringsAsFactors = TRUE\nparse = TRUE")
p1 + p2
ggsave(filename = "pullXXX/d2-text.png", plot = p1 + p2, width = 6, height = 3)

p1 <- p + geom_label() + labs(title = "stringsAsFactors = TRUE\nparse = FALSE")
p2 <- p + geom_label(parse = TRUE) + labs(title = "stringsAsFactors = TRUE\nparse = TRUE")
p1 + p2
ggsave(filename = "pullXXX/d2-label.png", plot = p1 + p2, width = 6, height = 3)

clauswilke · 2018-08-29T16:12:43Z

Several comments:

This still parses twice. It must be possible to parse only once, even if the result should be an expression object and not a list.
Please set keep.source = FALSE in parse(): parse(text = text, keep.source = FALSE) Otherwise regression tests won't work.
Please add a few regression tests, including testing with character vectors, factors, data with NAs, and data containing empty strings. They will generally look like this (in the testthat suite): expect_equal(parse_safe(c("A", "B", "C")), expression(A, B, C))

clauswilke · 2018-08-29T16:47:04Z

Does this version of Hadley's original function do what you need? [Though I still don't understand why a list of expressions won't work. It does in my testing with textGrob() (see here.)]

parse_hadley <- function(text) {
  text <- as.character(text)
  out <- vector("list", length(text))
  for (i in seq_along(text)) {
    expr <- parse(text = text[[i]])
    out[[i]] <- if (length(expr) == 0) "" else expr[[1]]
  }
  do.call(expression, out)
}

hadley · 2018-08-29T17:00:06Z

I think vector("expression", length(text)) is slightly preferential than the final do.call() (partly because the semantics are so complex when the inputs are expressions)

slowkow · 2018-08-29T17:23:33Z

Claus: This pull request was created before our nice discussion in #2864. It needs to be updated.

Regarding each of your comments:

I will change the parse_safe() function to use this code from the discussion in issue Unexpected order of text labels when parse=TRUE #2864:

parse_hadley2 <- function(text) {
  out <- vector("expression", length(text))
  for (i in seq_along(text)) {
    expr <- parse(text = text[[i]], keep.source = FALSE)
    out[[i]] <- if (length(expr) == 0) NA else expr[[1]]
  }
  out
}

Will do!
I agree that tests are crucial, will do!

I still don't understand why a list of expressions won't work

Your code appears to work when you test it with c("a", "", "b"):

But it fails when you test it with c("alpha", "", "gamma"):

It should look like this:

clauswilke · 2018-08-29T18:51:06Z

I've figured out why lists of expressions don't work here but seem to work in other parts of ggplot2. We're actually converting them back to expression objects, e.g. here:

ggplot2/R/guides-axis.r

Lines 35 to 41 in 71cb174


           if (is.list(labels)) {

             if (any(sapply(labels, is.language))) {

               labels <- do.call(expression, labels)

             } else {

               labels <- unlist(labels)

             }

           }

It's good to keep that in mind, as I think the ggplot2 code is a bit inconsistent in this regard. For example, my original code was inspired by this line:

ggplot2/R/sf.R

Line 481 in 34c01cc


           graticule$degree_label <- lapply(graticule$degree_label, function(x) parse(text = x)[[1]])

Also, functions in the scales package return lists of expressions rather than expression objects:

> scales::math_format()(1:5)
[[1]]
10^`1`

[[2]]
10^`2`

[[3]]
10^`3`

[[4]]
10^`4`

[[5]]
10^`5`

In summary: I agree with your latest approach to parse_safe(), which returns an expression object. I'm wondering to what extent other parts of the code should use this function also, e.g. the code in sf I linked to above.

Use Hadley's code to parse the expressions once instead of twice. Use `parse(..., keep.source = FALSE)`, as Claus recommended. Add an example to demonstrate why `parse_safe()` is needed.

slowkow · 2018-08-30T13:08:59Z

I agree that there might be other places, in addition to geom-text.r and geom-label.r that could benefit from the new parse_safe() function.

It would be nice to demonstrate that they suffer from the same problem before I modify them. Please share if you have any examples that demonstrate the issue!

clauswilke · 2018-08-30T13:52:14Z

Kamil, here you go. I assume it's caused by this line:

ggplot2/R/sf.R

Line 481 in 34c01cc


           graticule$degree_label <- lapply(graticule$degree_label, function(x) parse(text = x)[[1]])

Reprex:

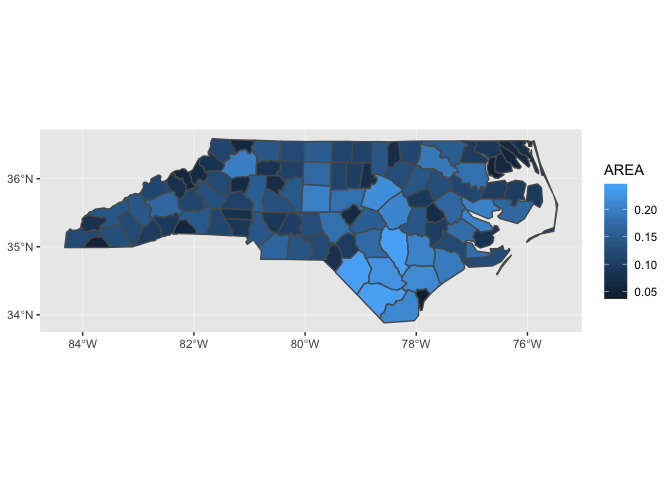

library(ggplot2)
nc <- sf::st_read(system.file("shape/nc.shp", package = "sf"), quiet = TRUE)

# works
ggplot(nc) +
  geom_sf(aes(fill = AREA)) +
  scale_y_continuous(
    breaks = c(34, 35, 36),
    labels = c("34*degree*N", "35*degree*N", "36*degree*N")
  )

# breaks
ggplot(nc) +
  geom_sf(aes(fill = AREA)) +
  scale_y_continuous(
    breaks = c(34, 35, 36),
    labels = c("34*degree*N", "", "36*degree*N")
  )
#> Error in parse(text = x)[[1]]: subscript out of bounds

Created on 2018-08-30 by the reprex package (v0.2.0).

This patch fixes an example that triggers an error: library(ggplot2) nc <- sf::st_read(system.file("shape/nc.shp", package = "sf"), quiet = TRUE) ggplot(nc) + geom_sf(aes(fill = AREA)) + scale_y_continuous( breaks = c(34, 35, 36), labels = c("34*degree*N", "", "36*degree*N") ) #> Error in parse(text = x)[[1]]: subscript out of bounds See tidyverse#2867 for more details.

slowkow · 2018-08-30T18:20:44Z

Thanks, Claus. My commit a52e7fd fixes the geom_sf() issue.

slowkow · 2018-08-30T18:22:58Z

Here is another example of this issue (the alpha should be on the first facet):

library(ggplot2)
mtcars$cyl2 <- factor(mtcars$cyl, labels = c("alpha", "beta", "gamma"))
mtcars$cyl2 <- as.character(mtcars$cyl2)
mtcars$cyl2[mtcars$cyl2 == "beta"] <- ""
p <- ggplot(mtcars, aes(wt, mpg)) + geom_point()
p + facet_grid(. ~ cyl2, labeller = label_parsed)

Here's the relevant code:

ggplot2/R/labeller.r

Lines 152 to 169 in 510b4b4


           #' @rdname labellers

           #' @export

           label_parsed <- function(labels, multi_line = TRUE) {

             labels <- label_value(labels, multi_line = multi_line)

             if (multi_line) {

               # Using unname() and c() to return a cleaner and easily testable

               # object structure

               lapply(unname(labels), lapply, function(values) {

                 c(parse(text = as.character(values)))

               })

             } else {

               lapply(labels, function(values) {

                 values <- paste0("list(", values, ")")

                 lapply(values, function(expr) c(parse(text = expr)))

               })

             }

           }

           class(label_parsed) <- c("function", "labeller")

It turns out I'm wrong. The example works just fine! The "beta" data points are displayed before the "alpha" data points, so it is ok.

To see that everything is ok, compare this figure to the previous one:

p + facet_grid(. ~ cyl, labeller = label_parsed)

This patch fixes an example that triggers an error: library(ggplot2) nc <- sf::st_read(system.file("shape/nc.shp", package = "sf"), quiet = TRUE) ggplot(nc) + geom_sf(aes(fill = AREA)) + scale_y_continuous( breaks = c(34, 35, 36), labels = c("34*degree*N", "", "36*degree*N") ) #> Error in parse(text = x)[[1]]: subscript out of bounds See tidyverse#2867 for more details.

slowkow · 2018-08-30T20:17:35Z

As far as I can tell, there is only one more location where we might be interested to use parse_safe():

ggplot2/R/aes.r

Lines 317 to 320 in 510b4b4


           # automatically detected aes

           vars <- intersect(ggplot_global$all_aesthetics, vars)

           names(vars) <- vars

           aes <- lapply(vars, function(x) parse(text = x)[[1]])

I would leave this as is, because:

This is in the deprecated aes_auto() function.
I don't understand this code.

What do you think? Is there anything missing in this pull request?

hadley · 2018-08-30T20:32:39Z

No need to touch deprecated functions.

But I do think it's worth using the same code in label_parsed(). Unfortunately I can't tell exactly what the code is trying to do there 😞

hadley

A few comments on the organisation

hadley · 2018-08-30T20:33:39Z

R/utilities.r

@@ -430,3 +430,24 @@ is_column_vec <- function(x) {
  dims <- dim(x)
  length(dims) == 2L && dims[[2]] == 1L
 }
+
+#' Parse a vector of expressions without silently dropping any items.


Since this is not exported, I don't think it needs to be documented. A comment mentioning that parse(text = text) has subtle problems with link to issue should be adequate.

I have a feeling future developers will appreciate the hints in the documentation. I know I was definitely surprised by the default behavior of parse() dropping things. Totally unexpected for me.

Regarding the link, is #2864 sufficient or do you prefer to put a full url like https://github.com/tidyverse/ggplot2/issues/2864?

I think Hadley meant you can write # instead of #' at the beginning of the line. Writing issue #2864 is sufficient to refer to the issue. That's how we do it in the NEWS.md file also.

Here, I'd actually prefer the full url since that is clickable in RStudio. I'd suggest something like:

# Parse takes n lines and returns m _expressions_ # See https://github.com/tidyverse/ggplot2/issues/2864 for discussion

hadley · 2018-08-30T20:34:50Z

tests/testthat/test-parse.r

@@ -0,0 +1,52 @@
+context("Parsing expressions")
+
+expect_equal(


These need to live a couple of test_that() blocks in test-utilities.R - see detail in http://style.tidyverse.org/tests.html#organisation (ggplot2 doesn't fully follow this organisation but should move towards it)

Got it! I'll move the tests into test-utilities.R

hadley · 2018-08-30T20:35:26Z

tests/testthat/test-parse.r

+  expression(alpha, NA, gamma, NA)
+)
+
+expect_equal(


I think you should put all "multi" expressions into one test

hadley · 2018-08-30T20:35:40Z

tests/testthat/test-parse.r

+  expression(alpha, NA, integral(f(x) * dx, a, b))
+)
+
+expect_equal(


This doesn't test anything new?

You're right, some of the tests are probably redundant. I'll try to reduce redundancy.

hadley · 2018-08-30T20:35:57Z

tests/testthat/test-parse.r

+  expression(NA, 1, NA, 2)
+)
+
+expect_equal(


I don't think this tests anything new either.

R/geom-label.R

clauswilke · 2018-08-30T20:55:03Z

I don't understand the code in label_parsed() either, but isn't parse_safe() meant as drop-in replacement for parse() and hence should just work? Have you tried leaving everything else untouched and just writing parse_safe() instead of parse()?

clauswilke · 2018-08-30T20:58:06Z

R/sf.R

@@ -553,11 +549,18 @@ CoordSf <- ggproto("CoordSf", CoordCartesian,
    graticule <- panel_params$graticule
    east <- graticule[graticule$type == "E" & !is.na(graticule$degree_label), ]

+    labs <- east$degree_label
+
+    # parse labels into expressions if required


You're actually fixing another problem here at the same time, which is good. (The problem is that we may have to parse only labels along one axis.) However, this distributes the autoparsing to two separate locations. Maybe you could document this a little better by stating that labels created by sf::st_graticule() contain degree symbols and need to be parsed to look right?

Kamil, I've been pondering this some more. It's bugging me that we're breaking the parsing into two different places because I have a PR pending where we're labeling based on cardinal directions (N, S, E, W) rather than plot side and it can shuffle which labels appear where, and that will break with your current code. Is there any reason why we can't just do something like the following (using parse_safe() instead of parse(), though):

graticule <- data.frame( degree_label = c("abcd", "b", "10 * degree * E"), stringsAsFactors = FALSE ) parse_ids <- grepl("degree", graticule$degree_label) if (any(parse_ids)) { graticule$degree_label <- ifelse( parse_ids, parse(text = graticule$degree_label), as.expression(graticule$degree_label) ) } graticule$degree_label #> expression("abcd", "b", 10 * degree * E)

This will keep strings as strings but stick everything into an expression object so we don't have to worry about which label is of which type.

I broke the parsing into two different places to avoid having an expression() column in the graticule dataframe.

Here is an example that shows the problem I ran into:

graticule <- data.frame( type = c("E", "E", "E"), degree_label = c(NA, "10 * degree * E", "15 * degree * E"), stringsAsFactors = FALSE ) # This works if degree_label is not an 'expression' east <- graticule[graticule$type == "E" & !is.na(graticule$degree_label), ] parse_ids <- grepl("degree", graticule$degree_label) if (any(parse_ids)) { graticule$degree_label <- ifelse( parse_ids, parse(text = graticule$degree_label), as.expression(graticule$degree_label) ) } graticule #> Warning in format.data.frame(x, digits = digits, na.encode = FALSE): #> corrupt data frame: columns will be truncated or padded with NAs #> type degree_label #> 1 E expression(NA_character_, 10 * degree * E, 15 * degree * E) #> 2 E <NA> #> 3 E <NA> graticule$degree_label #> expression(NA_character_, 10 * degree * E, 15 * degree * E) is.na(graticule$degree_label) #> Warning in is.na(graticule$degree_label): is.na() applied to non-(list or #> vector) of type 'expression' #> [1] FALSE FALSE FALSE

Apologies, I should know better than to paste any code without proper reprex. I had tried the code except the final assignment to a data frame, which I assumed would just work.

The following should actually work. (It's basically what the code does currently, but with being a bit smarter about which labels to parse.)

graticule <- data.frame( type = c("E", "E", "E", "E"), degree_label = c(NA, "abcd", "10 * degree * E", "15 * degree * E"), stringsAsFactors = FALSE ) parse_ids <- grepl("degree", graticule$degree_label) if (any(parse_ids)) { graticule$degree_label <- ifelse( parse_ids, lapply(graticule$degree_label, function(x) parse(text = x)[[1]]), lapply(graticule$degree_label, function(x) as.expression(x)[[1]]) ) } graticule$degree_label #> [[1]] #> [1] NA #> #> [[2]] #> [1] "abcd" #> #> [[3]] #> 10 * degree * E #> #> [[4]] #> 15 * degree * E

Created on 2018-09-01 by the reprex package (v0.2.0).

And to show that this creates a proper data frame:

graticule <- data.frame( type = c("E", "E", "E", "E"), degree_label = c(NA, "abcd", "10 * degree * E", "15 * degree * E"), stringsAsFactors = FALSE ) parse_ids <- grepl("degree", graticule$degree_label) if (any(parse_ids)) { graticule$degree_label <- ifelse( parse_ids, lapply(graticule$degree_label, function(x) parse(text = x)[[1]]), lapply(graticule$degree_label, function(x) as.expression(x)[[1]]) ) } graticule #> type degree_label #> 1 E NA #> 2 E abcd #> 3 E 10 * degree * E #> 4 E 15 * degree * E

Created on 2018-09-01 by the reprex package (v0.2.0).

Thanks! I'm starting to understand the motivation for wrapping expressions in lists here and also in label_parsed().

Putting the conditional inside the mapping than the other way round is probably more elegant.

graticule <- data.frame( type = c("E", "E", "E", "E"), degree_label = c(NA, "abcd", "10 * degree * E", "15 * degree * E"), stringsAsFactors = FALSE ) parse_ids <- grepl("degree", graticule$degree_label) if (any(parse_ids)) { graticule$degree_label <- Map( function(b, l) { if (b) { parse(text = l)[[1]] } else { as.expression(l)[[1]] } }, parse_ids, graticule$degree_label ) } graticule #> type degree_label #> 1 E NA #> 2 E abcd #> 3 E 10 * degree * E #> 4 E 15 * degree * E

Created on 2018-09-02 by the reprex package (v0.2.0).

add URL to GitHub issue tidyverse#2864

slowkow · 2018-09-03T16:06:14Z

Thanks for your patience on this pull request! I hope we're getting closer to the end.

What are your comments?

I adjusted the comments for parse_safe() as you suggested.
I moved the tests to tests/testthat/test-utilities.r
I removed the unnecessary instances of text = in geom_text() and geom_label()
I changed geom_sf() back to parsing only once instead of parsing once for east and once for north.
I still vote to leave label_parsed() as-is, with more discussion below.

Regarding `label_parsed()`

I have not been able to find an example where label_parsed() requires the new parse_safe() function. That's the main reason I don't want to change it.

To give you an idea of how label_parsed() would change with the new parse_safe(), here is an example:

# with parse_safe()
label_parsed(c("", "alpha", "gamma"))
#
# [[1]]
# [[1]][[1]]
# expression(NA)
#
#
# [[2]]
# [[2]][[1]]
# expression(alpha)
#
#
# [[3]]
# [[3]][[1]]
# expression(gamma)

# with parse()
label_parsed(c("", "alpha", "gamma"))
#
# [[1]]
# [[1]][[1]]
# expression()
#
#
# [[2]]
# [[2]][[1]]
# expression(alpha)
#
#
# [[3]]
# [[3]][[1]]
# expression(gamma)

If you think it's better to have expression(NA) instead of expression(), then we should replace parse() with parse_safe(). (I think it doesn't matter.) Otherwise, I think it's ok to let it be.

clauswilke · 2018-09-03T22:12:10Z

R/sf.R

+        parse_ids, graticule$degree_label
+      )
+    }
+


Would you mind moving this code block into the fixup_graticule_labels() function?

clauswilke · 2018-09-03T22:16:09Z

This all looks good to me. I have one last, minor comment. Could you please move the label parsing code into the function fixup_graticule_labels()? The reason is that with the changes you're making to CoordSf(), I'll be able to properly fix the problem that we currently have where we're guessing whether labels should be parsed or not, rather than making this configurable. For the fix I envision, I'll need this code block in that function.

clauswilke · 2018-09-03T22:18:07Z

R/utilities.r

@@ -430,3 +430,21 @@ is_column_vec <- function(x) {
  dims <- dim(x)
  length(dims) == 2L && dims[[2]] == 1L
 }
+
+# Parse takes takes n strings and returns n expressions


I noticed "takes takes". Since I asked for one more substantive change, maybe you could fix this also.

slowkow · 2018-09-04T00:42:31Z

Moved parsing code into fixup_graticule_labels()
Fixed typo.

Hadley, do you still prefer that label_parsed() use parse_safe()? Or shall we leave it as-is?

I think this might be the last issue to agree upon in this pull request.

hadley · 2018-09-04T12:51:11Z

R/utilities.r

@@ -430,3 +430,21 @@ is_column_vec <- function(x) {
  dims <- dim(x)
  length(dims) == 2L && dims[[2]] == 1L
 }
+
+# Parse takes n strings and returns n expressions.


This should be: "Parse takes a vector of n lines and returns m expressions."

hadley · 2018-09-04T12:52:18Z

I would like to understand what label_parsed() does and ensure that it uses the same logic as here. But I think that would be better done in another PR.

hadley · 2018-09-04T12:53:04Z

NEWS.md

@@ -59,6 +59,11 @@
 *   `position_nudge()` is now more robust and nudges only in the direction
    requested. This enables, for example, the horizontal nudging of boxplots
    (@clauswilke, #2733).
+
+*   `geom_text(..., parse = TRUE)` now correctly renders the expected number of
+    items instead of silently dropping items that are not valid expressions.


Not valid isn't quite the right turn of phrase - they are valid; they're just empty. We also fixed handling of multiple expressions in a single string.

Got it, will try to make the comment more accurate.

R/utilities.r

hadley · 2018-09-04T12:55:01Z

R/sf.R

+          if (parse_id) {
+            parse(text = label)[[1]]
+          } else {
+            as.expression(label)[[1]]


Why are we turning label into an expression object and then immediately extracting it out of the expression object?

Because we need the symbol itself, not expression(symbol). This is directly copied from the current code.

One problem with this code chunk as a whole, is that when I read it I can't easily tell what type of object graticule$degree_label is supposed to be. It's obviously a list, and some of the components are expressions (not expression objects), but what are the others supposed to be?

You could fix that with a comment, but it would be even better to use functions where it's obvious what the output type is.

If we need a symbol, and we have a character vector of length one, then the function to use is as.symbol()

Sorry, I was confused. This can definitely be simplified.
as.expression(label)[[1]] came from an earlier version of the code where I stuck everything into an expression object and thus needed as.expression(label). But now everything goes into a list, and strings can go directly since they are self-quoting.

Ok, so my gut feeling was right and the code I suggest below is a bit clearer.

Yes, correct. See also my other comment, below.

hadley · 2018-09-04T12:56:37Z

R/sf.R

+    # Convert the string 'degree' to the degree symbol
+    parse_ids <- grepl("\\bdegree\\b", graticule$degree_label)
+    if (any(parse_ids)) {
+      graticule$degree_label <- Map(


I'd rather not use Map() here - I suspect you could more simply right as something like:

labels <- as.list(graticule$degree_label) labels[parse_ids] <- lapply(labels[parse_ids], parse_safe)

Yes, this is much simpler. For some reason I always forget that we can assign to a subset of elements in a list. However, it still needs the part where only the first element of the expression object is extracted, so we get the element itself not inside an expression() statement:

labels <- as.list(graticule$degree_label) labels[parse_ids] <- lapply(labels[parse_ids], function(x) parse_safe(x)[[1]])

Oh but parse_safe is already vectorised so you can skip the lapply

If you apply the character vector that hasn’t been coerced to a list

Not sure. It may be best to work with a full reprex. The following works:

parse_safe <- function(text) { out <- vector("expression", length(text)) for (i in seq_along(text)) { expr <- parse(text = text[[i]]) out[[i]] <- if (length(expr) == 0) NA else expr[[1]] } out } graticule <- data.frame( type = c("E", "E", "E", "E"), degree_label = c(NA, "abcd", "10 * degree * E", "15 * degree * E"), stringsAsFactors = FALSE ) needs_parsing <- grepl("degree", graticule$degree_label) labels <- as.list(graticule$degree_label) labels[needs_parsing] <- lapply(labels[needs_parsing], function(x) parse_safe(x)[[1]]) graticule$degree_label <- labels graticule #> type degree_label #> 1 E NA #> 2 E abcd #> 3 E 10 * degree * E #> 4 E 15 * degree * E

Do you see a way to make it simpler?

Yes, you're correct, it can be made simpler.

parse_safe <- function(text) { out <- vector("expression", length(text)) for (i in seq_along(text)) { expr <- parse(text = text[[i]]) out[[i]] <- if (length(expr) == 0) NA else expr[[1]] } out } graticule <- data.frame( type = c("E", "E", "E", "E"), degree_label = c(NA, "abcd", "10 * degree * E", "15 * degree * E"), stringsAsFactors = FALSE ) needs_parsing <- grepl("degree", graticule$degree_label) labels <- as.list(graticule$degree_label) labels[needs_parsing] <- parse_safe(graticule$degree_label[needs_parsing]) graticule$degree_label <- labels graticule #> type degree_label #> 1 E NA #> 2 E abcd #> 3 E 10 * degree * E #> 4 E 15 * degree * E

Created on 2018-09-04 by the reprex package (v0.2.0).

Yeah that’s exactly what I was imagining.

hadley · 2018-09-04T12:56:55Z

R/sf.R

-    if (any(grepl("degree", graticule$degree_label)))
-      graticule$degree_label <- lapply(graticule$degree_label, function(x) parse(text = x)[[1]])
+    # Convert the string 'degree' to the degree symbol
+    parse_ids <- grepl("\\bdegree\\b", graticule$degree_label)


I think this would be more informative if called needs_parsing or similar

`parse_safe()` takes a character vector, not a factor

slowkow · 2018-09-04T16:11:53Z

Hadley, I think the labeller functions have some issues that go beyond the scope of this pull request... it's difficult to write up my findings because I am running into unexpected behavior as I try to make examples. I agree with you that we ought to discuss this issue separately.

clauswilke · 2018-09-04T16:28:33Z

Thanks Kamil!

slowkow · 2018-09-04T17:22:03Z

Claus and Hadley, thanks for helping me with this pull request! 🐄

Claus, I am curious to know how you made such a nice merge. I'm still learning how to use GitHub's collaboration features, and pull requests make me think twice before I do anything.

I'm impressed that you've squashed everything into one big commit with a nice summary of all the commit messages.

Also, I just noticed that there is a checkbox on the right that says [ ] Allow edits from maintainers. Maybe I should have checked that box! It might have been faster to let you directly edit my copy of the files. Sorry about that. I hope you're aware of this feature, too :)

clauswilke · 2018-09-04T17:37:43Z

Squash-merge is the default on github. I just need to click a button. :-) GitHub then opens a window where you can edit the commit message, and that's where I inserted "Closes issue #2864".

lock · 2019-03-03T17:48:59Z

This old issue has been automatically locked. If you believe you have found a related problem, please file a new issue (with reprex) and link to this issue. https://reprex.tidyverse.org/

use parse_safe() in geom_text()

34c01cc

The built in `parse()` function silently drops items: length(parse(text = c("alpha", "", "gamma"))) We expect the length to be 3, but instead it is 2. So, we add a new function `parse_safe()` that keeps all items. This addresses issue tidyverse#2864

slowkow added 3 commits August 30, 2018 08:38

update parse_safe()

fe7216a

Use Hadley's code to parse the expressions once instead of twice. Use `parse(..., keep.source = FALSE)`, as Claus recommended. Add an example to demonstrate why `parse_safe()` is needed.

add tests for parse_safe()

aa9bfc3

add note about parse(text = NULL)

5dd869e

slowkow force-pushed the slowkow-parse branch from a52e7fd to 252e7b2 Compare August 30, 2018 20:15

hadley reviewed Aug 30, 2018

View reviewed changes

clauswilke reviewed Aug 30, 2018

View reviewed changes

slowkow added 5 commits September 2, 2018 22:03

move parse_safe() tests to test-utilities.r

4b6b02f

change parse_safe(text = x) to parse_safe(x)

aa00e13

modify comment for parse_safe()

5a21915

add URL to GitHub issue tidyverse#2864

fix parsing degree labels in geom_sf()

f65ea71

add news item about parse_safe()

f5a853f

Merge branch 'master' into slowkow-parse

82d6e34

clauswilke reviewed Sep 3, 2018

View reviewed changes

slowkow added 2 commits September 3, 2018 20:11

fix typo

2a089c0

move parse() into fixup_graticule_labels()

66c9234

hadley reviewed Sep 4, 2018

View reviewed changes

slowkow added 6 commits September 4, 2018 09:00

change description of parse_safe()

8c798ee

modify news item about parse_safe()

2b8b459

add stopifnot() to parse_safe()

637a88e

simplify parsing code in sf.R

95025cb

improve news item about parse_safe()

54d87c7

do not test parse_safe(factor(...))

0615062

`parse_safe()` takes a character vector, not a factor

hadley approved these changes Sep 4, 2018

View reviewed changes

clauswilke merged commit 3f93180 into tidyverse:master Sep 4, 2018

slowkow deleted the slowkow-parse branch September 4, 2018 17:19

slowkow mentioned this pull request Sep 4, 2018

Wrong order of labels/text if parse=TRUE slowkow/ggrepel#114

Closed

lock bot locked and limited conversation to collaborators Mar 3, 2019

replace parse() with parse_safe() in geom_text() #2867

replace parse() with parse_safe() in geom_text() #2867

Conversation

slowkow commented Aug 28, 2018

slowkow commented Aug 28, 2018 • edited Loading

Details

clauswilke commented Aug 29, 2018

clauswilke commented Aug 29, 2018 • edited Loading

hadley commented Aug 29, 2018

slowkow commented Aug 29, 2018

clauswilke commented Aug 29, 2018 • edited Loading

slowkow commented Aug 30, 2018

clauswilke commented Aug 30, 2018

slowkow commented Aug 30, 2018

slowkow commented Aug 30, 2018 • edited Loading

slowkow commented Aug 30, 2018

hadley commented Aug 30, 2018

hadley left a comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

clauswilke commented Aug 30, 2018

Choose a reason for hiding this comment

Choose a reason for hiding this comment

slowkow Sep 1, 2018 • edited Loading

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

slowkow commented Sep 3, 2018

Regarding label_parsed()

Choose a reason for hiding this comment

clauswilke commented Sep 3, 2018

Choose a reason for hiding this comment

slowkow commented Sep 4, 2018

Choose a reason for hiding this comment

hadley commented Sep 4, 2018

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

clauswilke Sep 4, 2018 • edited Loading

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

slowkow commented Sep 4, 2018

clauswilke commented Sep 4, 2018

slowkow commented Sep 4, 2018

clauswilke commented Sep 4, 2018

lock bot commented Mar 3, 2019

slowkow commented Aug 28, 2018 •

edited

Loading

clauswilke commented Aug 29, 2018 •

edited

Loading

clauswilke commented Aug 29, 2018 •

edited

Loading

slowkow commented Aug 30, 2018 •

edited

Loading

slowkow Sep 1, 2018 •

edited

Loading

Regarding `label_parsed()`

clauswilke Sep 4, 2018 •

edited

Loading
