geom_rect rectangle disappears when used together with coord_sf in R #3909

Closed
@whiteheadedduck

Description

@whiteheadedduck

I am plotting a map with ggplot2 and would like to have a rectangle surrounding it. I have tried to create the rectangle using geom_rect function, but whenever I include coord_sf function in the code chunk, the rectangle disappears. Below are the maps I got with the following codes. Classes of zone_map and ecoregion_polygon objects are "sf" and both are read in using st_read function.

ggplot() +
  geom_sf(data = zone_map, color = "black", fill = gray62_transparent) +
  geom_sf(data = ecoregion_polygon, color = "black", fill = burlywood1_transparent) +
  geom_rect(aes(xmin = 20, xmax = 50, ymin = 33, ymax = 47), color = "black", fill = NA)

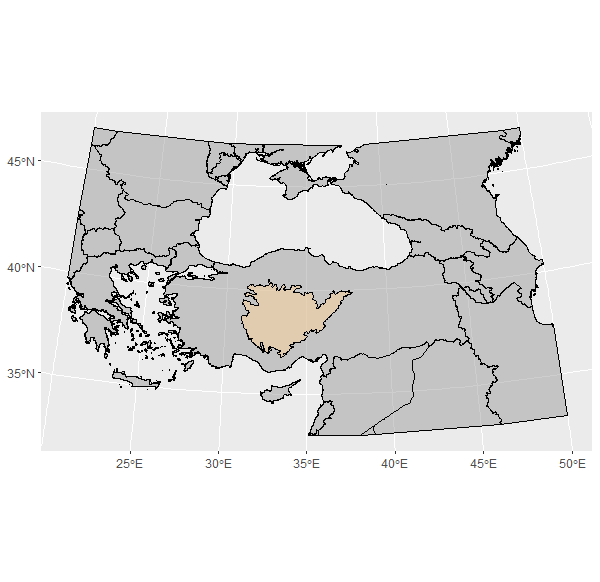

enter image description here

ggplot() +
  geom_sf(data = zone_map, color = "black", fill = gray62_transparent) +
  geom_sf(data = ecoregion_polygon, color = "black", fill = burlywood1_transparent) +
  geom_rect(aes(xmin = 20, xmax = 50, ymin = 33, ymax = 47), color = "black", fill = NA) +
  coord_sf(crs = "+proj=laea +lat_0=38 +lon_0=35")

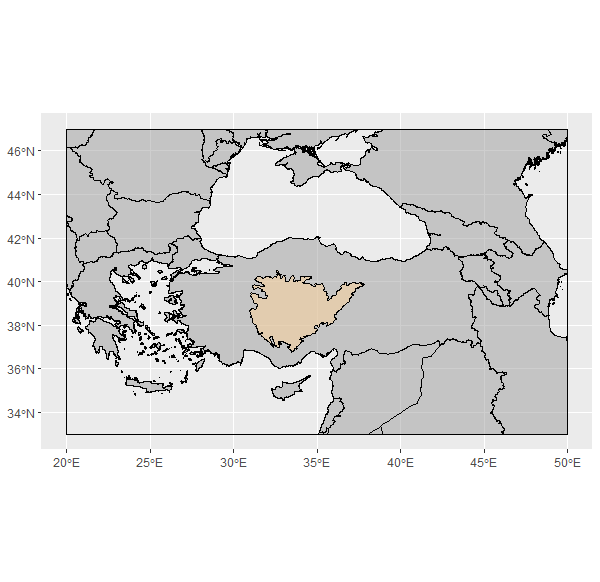

enter image description here

As you see in the second map, the geom_rect rectangle disappears upon addition of coord_sf line. How can I solve this issue? I have tried to create another polygon using st_polygon function, but I obtained the same results. I also tried setting both objects' crs as the azimuthal "+proj=laea +lat_0=38 +lon_0=35" projection, which I want to plot my map in, and I got the same results. Below are the st_crs outputs of zone_map and ecoregion_polygon objects.
