Description
For a monotonic transformation that reverses the tonicity of the numbers (low-high -> high-low), secondary axes aren't rendering correctly.

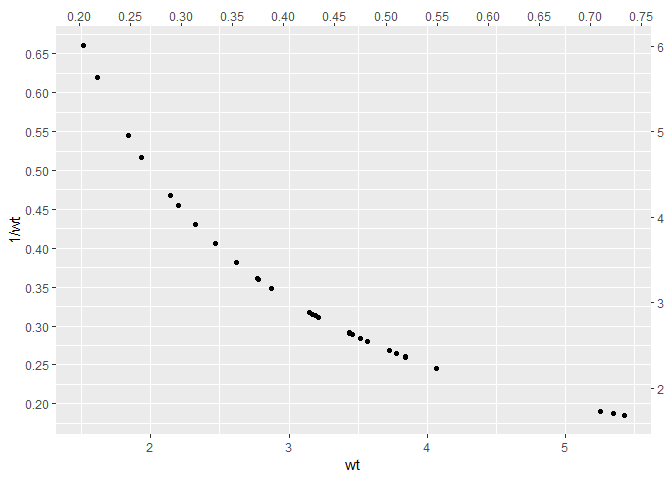

You can see this with a reciprocal transform. The left-most break on top should be close to 1/min(mtcars$wt) or ~0.65. The right-most break should be close to 1/max(mtcars$wt) or ~0.20. For the right-hand transformed axis, the bottom-most break should be close to 1/0.20 or 5 (not 2), and the top-most break should be close to 1/0.65 or ~1.5 (not 5).
Note that these swaps have reversed the intended direction, but still aren't a 1:1 swap of positions.

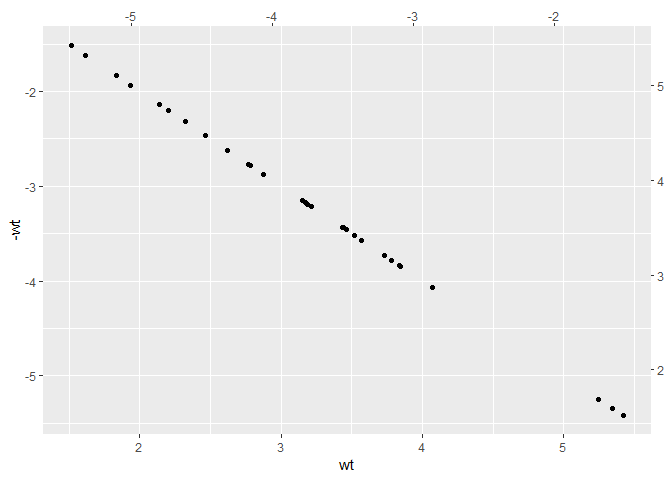

This is even more obvious with a simple negative transform. Here on the y-axes, -5 maps to (closely, but not exactly) +2, and -2 maps to (closely, but not exactly) +5. And on the x-axes, +2 maps to ~-5. and +5 maps to ~-2.
This issue was noticed in a temperature transformation on a StackOverflow question:
https://stackoverflow.com/questions/54610847/ggplot2-secondary-axis-not-mapping-to-transformation
In both these figures, the values on the left-top axes and bottom-right axes should mirror each other around the diagonal.
library(ggplot2)
#> Warning: package 'ggplot2' was built under R version 3.5.2
ggplot(mtcars, aes(wt, 1/wt)) +
geom_point() +
scale_x_continuous(
sec.axis = sec_axis(trans = ~1/., breaks = seq(0, 1, by = 0.05))
) +
scale_y_continuous(
breaks = seq(0, 1, by = 0.05),
sec.axis = sec_axis(trans = ~1/.)
)
ggplot(mtcars, aes(wt, -wt)) +
geom_point() +
scale_x_continuous(
sec.axis = sec_axis(trans = ~-.)
) +
scale_y_continuous(
sec.axis = sec_axis(trans = ~-.)
)
