Description
This is a fairly easy (I think) feature to add that would help me implement lazy reading of huge raster files (a stars proxy object), such that they can be downsampled appropriately. To do this, I would need access to the trained scales (for the fill and alpha aesthetics at draw time. Right now there is no way to access the trained scales except limited information about them in the panel_params and coordinates objects. I think that a reference to the ScalesList object could be included as an element of the layout object without any consequences? The Geom has access to the layout at draw time.
It is a completely valid point that this would be pushing ggplot2 where it perhaps should not go, coercing it to do things that it was not meant to do. I would argue that it is necessary if spatial rasters are ever going to be plotted in ggplot by those of us who don't have an intimate knowledge of downsampling (and maybe they shouldn't be). There is a brief discussion on the implementation of this at paleolimbot/ggspatial#17 . A reprex is included below.
library(ggplot2)
library(grid)
# in real life, this would be a reference to a large (scary) raster file
big_scary_raster <- tibble::tibble(raster = list(matrix(1:9, nrow = 3)))StatMatrixList <- ggproto(
"StatMatrixList",
Stat,
required_aes = "raster",
default_aes = ggplot2::aes(fill = stat(z)),
compute_layer = function(self, data, params, layout) {
data$raster <- lapply(data$raster, function(x) {
df <- reshape2::melt(x)
names(df) <- c("x", "y", "z")
df
})
tidyr::unnest(data, .data$raster)
}
)

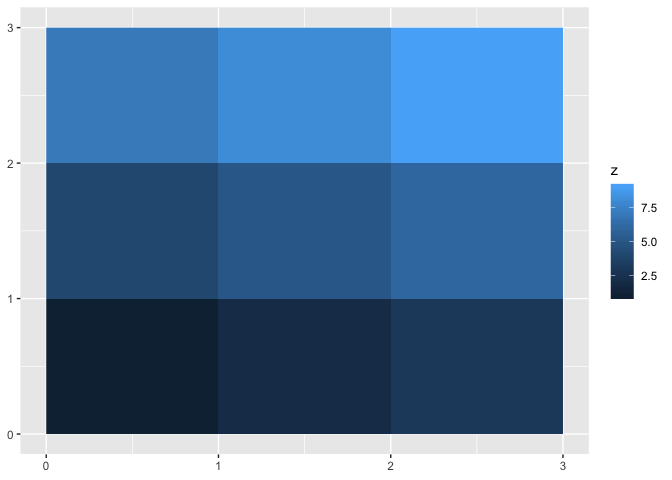

ggplot(big_scary_raster, aes(raster = raster)) +
geom_raster(stat = StatMatrixList, hjust = 0, vjust = 0)
StatLazyMatrixList <- ggproto(
"StatLazyMatrixList",
StatMatrixList,
compute_layer = function(self, data, params, layout) {
# only return limits in the stat (these are usually cached in the raster file,
# so the raster doesn't need to be loaded). Scales get trained based on the
# result of this function.
data$limits <- lapply(data$raster, function(raster) {
tibble::tibble(
x = c(0, ncol(raster)),
y = c(0, nrow(raster)),
z = range(raster)
)
})
tidyr::unnest(data, .data$limits, .drop = FALSE)
}
)
GeomLazyRaster <- ggproto(
"GeomLazyRaster",
Geom,
required_aesthetics = "raster",
default_aes = ggplot2::aes(alpha = "__default_alpha__", fill = "__default_fill__"),
handle_na = function(data, params) {
data
},
draw_panel = function(data, panel_params, coordinates) {
# this is a super crazy hack
# but there is no other way to get scale objects from the draw function at build time (?)
scales <- NULL
for(i in 1:20) {
env <- parent.frame(i)
if("plot" %in% names(env) && "scales" %in% names(env$plot) && inherits(env$plot$scales, "ScalesList")) {
scales <- env$plot$scales
break
}
}
if(is.null(scales)) stop("@paleolimbot's hack to get the ScalesList from Geom$draw_panel() has failed :'(")
fill_scale <- scales$get_scales("fill")
alpha_scale <- scales$get_scales("alpha")
if(all(data$alpha == "__default_alpha__")) {
# default
alpha <- function(x) 1
} else if(length(unique(data$alpha)) == 1) {
# set (or mapped but constant)
alpha <- function(x) unique(data$alpha)
} else if(!is.null(alpha_scale)) {
# mapped
alpha <- alpha_scale$map
} else {
stop("Don't know how to compute 'alpha'")
}
if(all(data$fill == "__default_fill__")) {
# default
fill <- function(x) 1
} else if(length(unique(data$fill)) == 1) {
# set (or mapped but constant)
fill <- function(x) unique(data$fill)
} else if(!is.null(fill_scale)) {
# mapped
fill <- fill_scale$map
} else {
stop("Don't know how to compute 'fill'")
}
gTree(
raster = data$raster[[1]],
fill = fill,
alpha = alpha,
coordinates = coordinates,
panel_params = panel_params,
cl = "lazy_raster_grob"
)
}
)
geom_lazy_raster <- function(mapping = NULL, data = NULL, stat = StatLazyMatrixList,
..., inherit.aes = TRUE, show.legend = NA) {
layer(
geom = GeomLazyRaster,
stat = stat,
data = data,
mapping = mapping,
position = "identity",
params = list(...),
inherit.aes = inherit.aes,
show.legend = show.legend
)
}
makeContext.lazy_raster_grob <- function(x) {
# here it's possible to determine height and width in inches
# getting DPI from the graphics device may not be possible,
# but can always fall back on a user-specified minimum
# projection + resampling would happen here
# apply the aesthetics
colors <- x$fill(x$raster)
alpha <- x$alpha(x$raster)
colors <- paste0(colors, as.character.hexmode(scales::rescale(alpha, from = c(0, 1), to = c(0, 255))))
dim(colors) <- dim(x$raster)
# map the coordinates
corners <- data.frame(x = c(0, ncol(x$raster)), y = c(0, nrow(x$raster)))
corners_trans <- x$coordinates$transform(corners, x$panel_params)
x_rng <- range(corners_trans$x, na.rm = TRUE)
y_rng <- range(corners_trans$y, na.rm = TRUE)
setChildren(x, gList(rasterGrob(
# there is an axis irregularity between what we think of as rows
# and what grid thinks of as rows
aperm(colors, c(2, 1))[nrow(colors):1,],
x = x_rng[1], y = y_rng[1],
height = diff(y_rng), width = diff(x_rng),
default.units = "native",
interpolate = FALSE,
hjust = 0,
vjust = 0
)))
}
ggplot(big_scary_raster, aes(raster = raster)) +
geom_lazy_raster()
Created on 2019-02-03 by the reprex package (v0.2.1)
