Add LiblineaR engine to logistic_reg()

[juliasilge]

This PR adds the LiblineaR engine to logistic_reg().

We are currently having some real uncertainty about what is going on with the cost argument to LiblineaR::LiblineaR(). The docs say:

cost of constraints violation (default: 1). Rules the trade-off between regularization and correct classification on data. It can be seen as the inverse of a regularization constant.

However, for both lasso and ridge regression, treating 1 / cost like a regularization penalty gives very different results than glmnet. It seems like LIBLINEAR is using a different optimizer or maybe solving a different thing altogether??? 😮

Here is ridge (similar for lasso):

library(tidyverse)
library(parsnip)
data(two_class_dat, package = "modeldata")
data_grid <- crossing(A = seq(0.4, 4, length = 200), B = seq(.14, 3.9, length = 200))

liblinear_pred <-
  logistic_reg(penalty = 0.01, mixture = 0) %>%
  set_engine("LiblineaR") %>%
  set_mode("classification") %>%
  fit(Class ~ ., two_class_dat) %>%
  predict(data_grid, type = "prob") %>%
  bind_cols(data_grid) %>%
  mutate(engine = "LiblineaR")

glmnet_pred <-
  logistic_reg(penalty = 0.01, mixture = 0) %>%
  set_engine("glmnet") %>%
  set_mode("classification") %>%
  fit(Class ~ ., two_class_dat) %>%
  predict(data_grid, type = "prob") %>%
  bind_cols(data_grid) %>%
  mutate(engine = "glmnet")

glm_pred <-
  logistic_reg() %>%
  set_engine("glm") %>%
  set_mode("classification") %>%
  fit(Class ~ ., two_class_dat) %>%
  predict(data_grid, type = "prob") %>%
  bind_cols(data_grid) %>%
  mutate(engine = "glm")

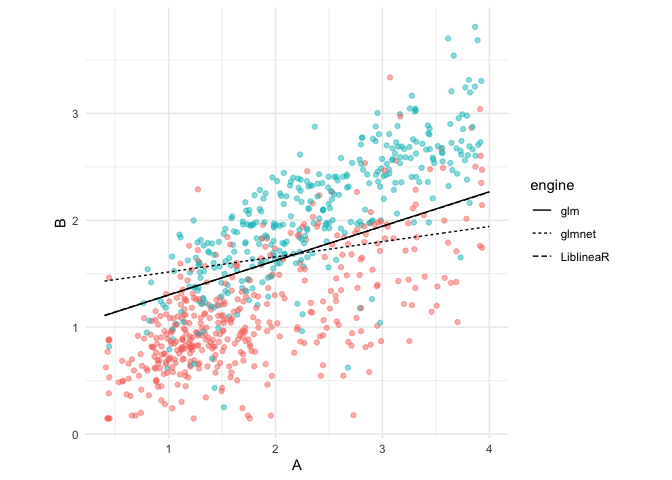

bind_rows(liblinear_pred, glmnet_pred, glm_pred) %>%
  ggplot(aes(x = A, y = B)) +
  geom_point(data = two_class_dat, aes(col = Class), alpha = .5, show.legend = FALSE) +
  geom_contour(aes( z = .pred_Class1, lty = engine), breaks = 0.5, col = "black") +
  coord_equal() +
  theme_minimal()

^{Created on 2021-02-11 by the reprex package (v1.0.0)}

You have to really bump up the regularization to get LiblineaR to do anything different than glm().

[juliasilge]

Closes #419

[juliasilge]

We did some digging and ended up finding that

• glmnet is not working correctly for ridge regression (mixture = 0, see Add error for ridge regression with glmnet #431)
• LiblineaR regularizes the intercept (it's the same engine as scikit-learn)

We believe these are the sources of any differences between glmnet and LiblineaR.

library(tidyverse)
library(parsnip)
data(two_class_dat, package = "modeldata")
data_grid <- crossing(A = seq(0.4, 4, length = 200), B = seq(.14, 3.9, length = 200))

liblinear_pred <-
  logistic_reg(penalty = 0.01, mixture = 1) %>%
  set_engine("LiblineaR") %>%
  set_mode("classification") %>%
  fit(Class ~ ., two_class_dat) %>%
  predict(data_grid, type = "prob") %>%
  bind_cols(data_grid) %>%
  mutate(engine = "LiblineaR")

glmnet_pred <-
  logistic_reg(penalty = 0.01, mixture = 1) %>%
  set_engine("glmnet") %>%
  set_mode("classification") %>%
  fit(Class ~ ., two_class_dat) %>%
  predict(data_grid, type = "prob") %>%
  bind_cols(data_grid) %>%
  mutate(engine = "glmnet")

glm_pred <-
  logistic_reg() %>%
  set_engine("glm") %>%
  set_mode("classification") %>%
  fit(Class ~ ., two_class_dat) %>%
  predict(data_grid, type = "prob") %>%
  bind_cols(data_grid) %>%
  mutate(engine = "glm")


bind_rows(liblinear_pred, glmnet_pred, glm_pred) %>%
  ggplot(aes(x = A, y = B)) +
  geom_point(data = two_class_dat, aes(col = Class), alpha = .5, show.legend = FALSE) +
  geom_contour(aes( z = .pred_Class1, lty = engine), breaks = 0.5, col = "black") +
  coord_equal() +
  theme_minimal()

^{Created on 2021-02-16 by the reprex package (v1.0.0)}
