HowToAddUML

Go to http://www.plantuml.com/plantuml and type in the text for you diagram.

Hit submit and check out the diagram.

Once you are happy, so with something like

start
:kernel.execute(range);
if (?) then (first call for this instance)
    : Convert Kernel.run() to OpenCL;
    note
       We also convert all
       methods reachable from
       kernel.run()
    end note
    if (?) then (Conversion was successful)
       : Compile OpenCL;
       : Map compiled OpenCL to this Kernel;
    else (Conversion unsuccessful)
    endif
else (not first call)
endif
if (?) then (OpenCL mapped for this instance)
   : Bind args (send to GPU);
   : Execute kernel;
else (false)
   : Execute using a Java Thread Pool;
endif
stop

Paste the resulting URL into the wiki page but append %20as.png at the end of the URL

http://www.plantuml.com:80/plantuml/img/BLAHBLAH%20as.png

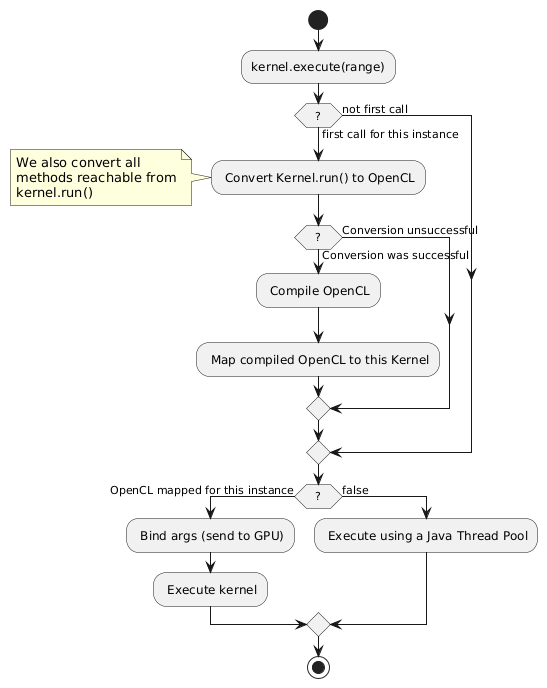

To get this!
