Rev 3.0

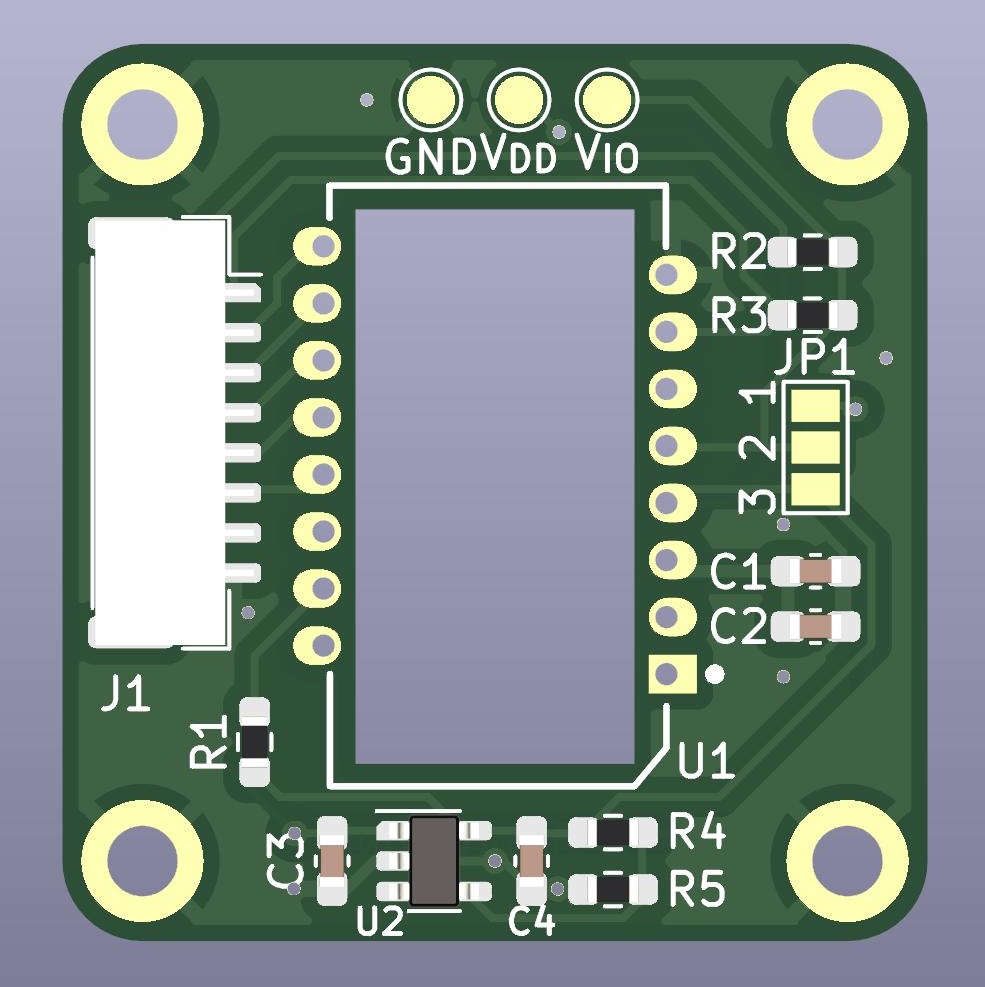

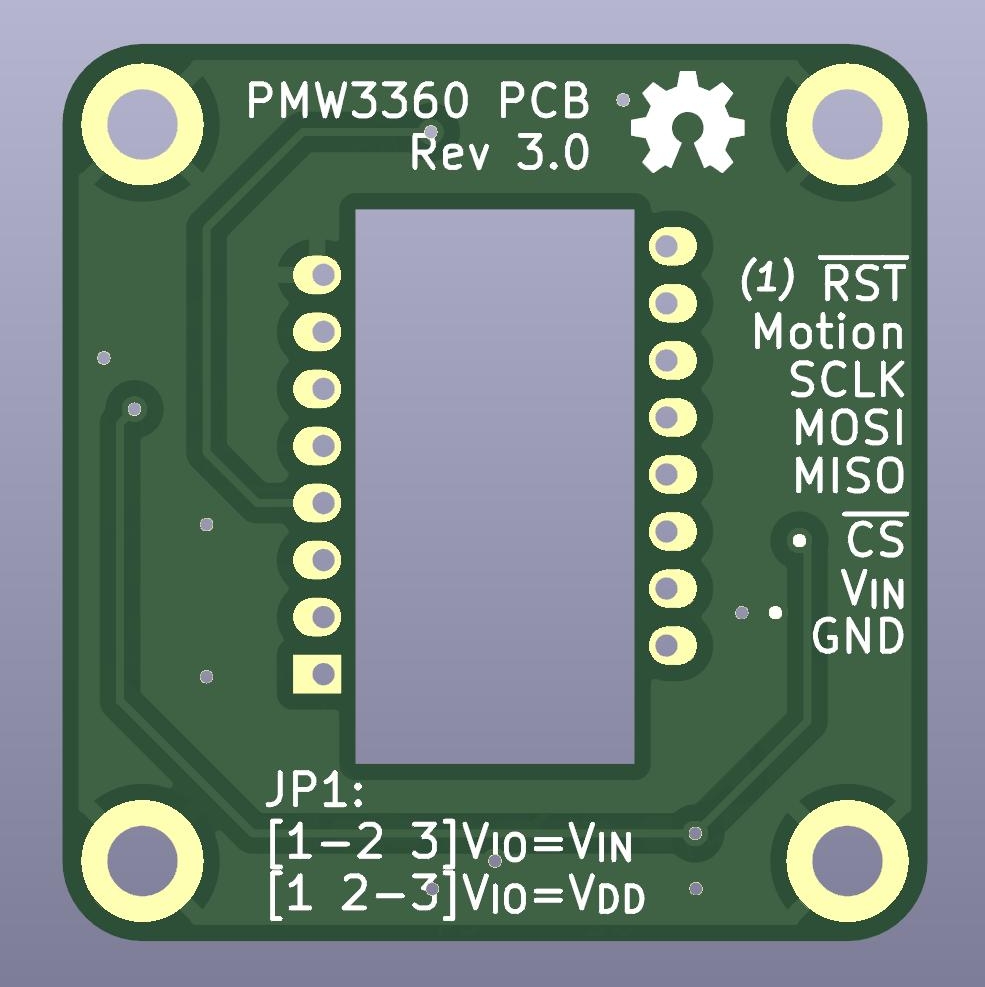

| Front | Back | |
|---|---|---|
 |
 |
 |
Changed
- Replace 2.54mm pin header to JST GH 1.25 8Pin connector
SM08B-GHS-TB(LF)(SN). - Mounting hole change to M2 (∅2.2mm).
- Resize the board to 27 x 28 mm.
- Reference designator changed.
Added
- Add additional nRESET pull up resistor (R3). nRESET pin of PMW3360 has a built in weak pull up circuit.
Rev 3.0 is designed to be used with ErgoSNM Rev 2.0, if you want 2.54mm pin header instead of JST GH 1.25 connector, please refer to Rev 2.1.

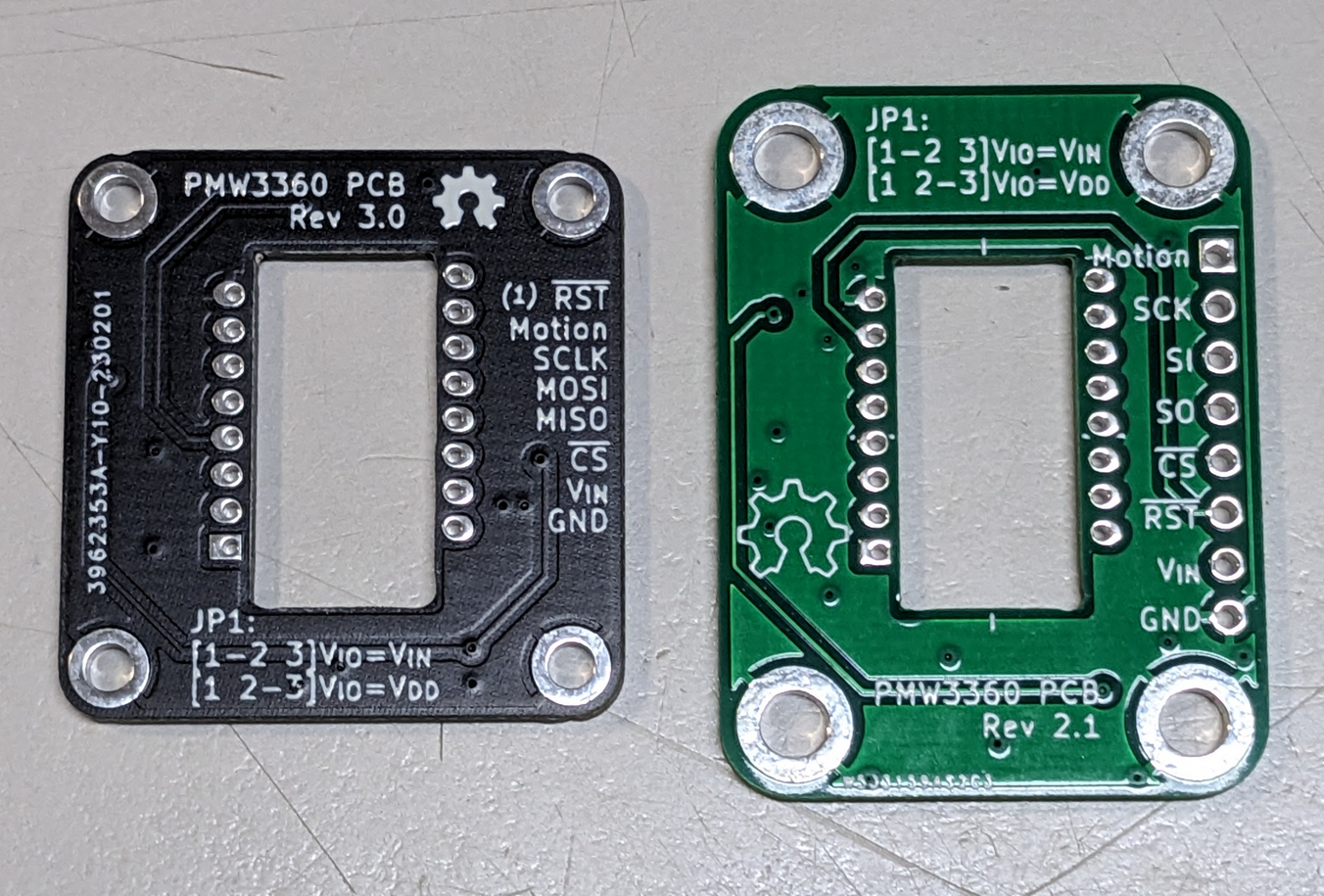

Compare, left is Rev 3.0, right is Rev 2.1:
Rev 3.0tested.
