docs: new example for marker clustering (visgl#86)

shuuji3 · Nov 13, 2023 · be85be0 · be85be0
1 parent 1dc1584
commit be85be0
Show file tree

Hide file tree

Showing 10 changed files with 723 additions and 3 deletions.
diff --git a/examples/change-map-styles/src/control-panel.tsx b/examples/change-map-styles/src/control-panel.tsx
@@ -41,13 +41,13 @@ function ControlPanel({

       <div className="links">
         <a
-          href="https://codesandbox.io/s/github/visgl/react-google-maps/tree/main/examples/change-map-id"
+          href="https://codesandbox.io/s/github/visgl/react-google-maps/tree/main/examples/change-map-styles"
           target="_new">
           Try on CodeSandbox ↗
         </a>

         <a
-          href="https://github.com/visgl/react-google-maps/tree/main/examples/change-map-id"
+          href="https://github.com/visgl/react-google-maps/tree/main/examples/change-map-styles"
           target="_new">
           View Code ↗
         </a>

diff --git a/examples/directions/index.html b/examples/directions/index.html
@@ -5,7 +5,7 @@
     <meta
       name="viewport"
       content="width=device-width, initial-scale=1.0, user-scalable=no" />
-    <title>Example:</title>
+    <title>Example: Directions</title>

     <style>
       body {

diff --git a/examples/marker-clustering/README.md b/examples/marker-clustering/README.md
@@ -0,0 +1,37 @@
+# Marker Clustering Example
+

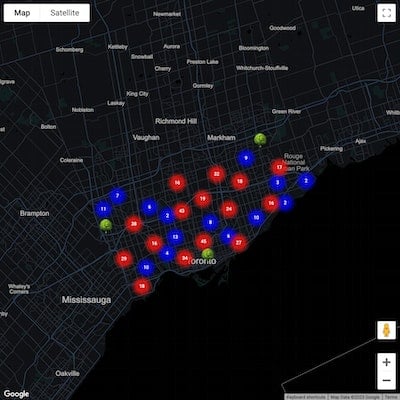

+![image](https://raw.githubusercontent.com/visgl/react-google-maps/main/website/static/images/examples/marker-clustering.jpg)
+
+This is an example of how to use the [MarkerClusterer](https://github.com/googlemaps/js-markerclusterer) library from Google to cluster markers on a map.
+
+## Google Maps API key
+
+This example does not come with an API key. Running the examples locally requires a valid API key for the Google Maps Platform.
+See [the official documentation][get-api-key] on how to create and configure your own key.
+
+The API key has to be provided via the environment variable `GOOGLE_MAPS_API_KEY`. This can be done by creating a
+file named `.env` in the example directory with the following content:
+
+```shell title=".env"
+GOOGLE_MAPS_API_KEY="<YOUR API KEY HERE>"
+```
+
+If you are on the CodeSandbox playground you can also choose to [provide the API key like this](https://codesandbox.io/docs/learn/environment/secrets)
+
+## Development
+
+Go into the example-directory and run
+
+```shell
+npm install
+```
+
+To start the example with the local library run
+
+```shell
+npm run start-local
+```
+
+The regular `npm start` task is only used for the standalone versions of the example (CodeSandbox for example)
+
+[get-api-key]: https://developers.google.com/maps/documentation/javascript/get-api-key
diff --git a/examples/marker-clustering/index.html b/examples/marker-clustering/index.html
@@ -0,0 +1,34 @@
+<!doctype html>
+<html lang="en">
+  <head>
+    <meta charset="utf-8" />
+    <meta
+      name="viewport"
+      content="width=device-width, initial-scale=1.0, user-scalable=no" />
+    <title>Example: Marker Clustering</title>
+
+    <style>
+      body {
+        font-size: 16px;
+        margin: 0;
+        font-family: sans-serif;
+      }
+      #app {
+        width: 100vw;
+        height: 100vh;
+      }
+      .tree {
+        font-size: 2rem;
+      }
+    </style>
+  </head>
+  <body>
+    <div id="app"></div>
+    <script type="module">
+      import '@vis.gl/react-google-maps/examples.css';
+      import {renderToDom} from './src/app';
+
+      renderToDom(document.querySelector('#app'));
+    </script>
+  </body>
+</html>
diff --git a/examples/marker-clustering/package.json b/examples/marker-clustering/package.json
@@ -0,0 +1,14 @@
+{
+  "dependencies": {
+    "@googlemaps/markerclusterer": "^2.5.1",
+    "@vis.gl/react-google-maps": "*",
+    "react": "^18.2.0",
+    "react-dom": "^18.2.0",
+    "vite": "^4.3.9"
+  },
+  "scripts": {
+    "start": "vite",
+    "start-local": "vite --config ../vite.config.local.js",
+    "build": "vite build"
+  }
+}
diff --git a/examples/marker-clustering/src/app.tsx b/examples/marker-clustering/src/app.tsx
@@ -0,0 +1,88 @@
+import React, {useEffect, useState, useRef} from 'react';
+import {createRoot} from 'react-dom/client';
+
+import {
+  APIProvider,
+  Map,
+  useMap,
+  AdvancedMarker
+} from '@vis.gl/react-google-maps';
+import {MarkerClusterer} from '@googlemaps/markerclusterer';
+import type {Marker} from '@googlemaps/markerclusterer';
+import trees from './trees';
+
+const API_KEY = process.env.GOOGLE_MAPS_API_KEY as string;
+
+const App = () => (
+  <APIProvider apiKey={API_KEY}>
+    <Map
+      mapId={'bf51a910020fa25a'}
+      center={{lat: 43.64, lng: -79.41}}
+      zoom={10}>
+      <Markers points={trees} />
+    </Map>
+  </APIProvider>
+);
+
+type Point = google.maps.LatLngLiteral & {key: string};
+type Props = {points: Point[]};
+
+const Markers = ({points}: Props) => {
+  const map = useMap();
+  const [markers, setMarkers] = useState<{[key: string]: Marker}>({});
+  const clusterer = useRef<MarkerClusterer | null>(null);
+
+  // Initialize MarkerClusterer
+  useEffect(() => {
+    if (!map) return;
+    if (!clusterer.current) {
+      clusterer.current = new MarkerClusterer({map});
+    }
+  }, [map]);
+
+  // Update markers
+  useEffect(() => {
+    clusterer.current?.clearMarkers();
+    clusterer.current?.addMarkers(Object.values(markers));
+  }, [markers]);
+
+  const setMarkerRef = (marker: Marker | null, key: string) => {
+    if (marker && markers[key]) return;
+    if (!marker && !markers[key]) return;
+
+    setMarkers(prev => {
+      if (marker) {
+        return {...prev, [key]: marker};
+      } else {
+        const newMarkers = {...prev};
+        delete newMarkers[key];
+        return newMarkers;
+      }
+    });
+  };
+
+  return (
+    <>
+      {points.map(point => (
+        <AdvancedMarker
+          position={point}
+          key={point.key}
+          ref={marker => setMarkerRef(marker, point.key)}>
+          <span className="tree">🌳</span>
+        </AdvancedMarker>
+      ))}
+    </>
+  );
+};
+
+export default App;
+
+export function renderToDom(container: HTMLElement) {
+  const root = createRoot(container);
+
+  root.render(
+    <React.StrictMode>
+      <App />
+    </React.StrictMode>
+  );
+}
diff --git a/examples/marker-clustering/src/control-panel.tsx b/examples/marker-clustering/src/control-panel.tsx
@@ -0,0 +1,26 @@
+import * as React from 'react';
+
+function ControlPanel() {
+  return (
+    <div className="control-panel">
+      <h3>Marker Clustering</h3>
+      <p>Using MarkerClusterer to cluster Markers on a map.</p>
+
+      <div className="links">
+        <a
+          href="https://codesandbox.io/s/github/visgl/react-google-maps/tree/main/examples/marker-clustering"
+          target="_new">
+          Try on CodeSandbox ↗
+        </a>
+
+        <a
+          href="https://github.com/visgl/react-google-maps/tree/main/examples/marker-clustering"
+          target="_new">
+          View Code ↗
+        </a>
+      </div>
+    </div>
+  );
+}
+
+export default React.memo(ControlPanel);
