Enable KAS #2598

antt1995 · 2022-06-30T11:58:03Z

Enabling KAS

Not sure what to put or where in the Readme

antt1995 · 2022-06-30T12:04:59Z

wulfdj · 2022-07-01T06:47:45Z

Are these settings all I need? I've tried to change on the running container but still doesn't work. On the clusters page I get the error message that GRPC is not available

blattersturm · 2022-07-02T09:02:52Z

This seems to only set the configuration settings in case you're trying to use an external KAS install.

The Omnibus repo seems to use some more steps to deploy the built-in KAS instance.

kkimurak

@antt1995 Thank you for your contribution.
Those settings seems fine, but we need some step to make them accessible.

Please add function (like gitlab_configure_gitlab_kas()) to assets/runtime/functions
Maybe simplest reference is gitlab_configure_monitoring():

docker-gitlab/assets/runtime/functions

Lines 264 to 273 in b34d48a


           gitlab_configure_monitoring() {

             echo "Configuring gitlab::monitoring..."

             update_template ${GITLAB_CONFIG} \

               GITLAB_MONITORING_UNICORN_SAMPLER_INTERVAL \

               GITLAB_MONITORING_IP_WHITELIST \

               GITLAB_MONITORING_SIDEKIQ_EXPORTER_ENABLED \

               GITLAB_MONITORING_SIDEKIQ_EXPORTER_ADDRESS \

               GITLAB_MONITORING_SIDEKIQ_EXPORTER_PORT

           }

So the implementation will be like:

gitlab_configure_gitlab_kas() {
  echo "Configuring gitlab::KAS..."

  update_template ${GITLAB_CONFIG} \
    GITLAB_KAS_ENABLED \
    GITLAB_KAS_SECRET \
    GITLAB_KAS_EXTERNAL \
    GITLAB_KAS_INTERNAL \
    GITLAB_KAS_PROXY
}

Call the function in configure_gitlab(). This function will be called on container startup.

docker-gitlab/assets/runtime/functions

Lines 1814 to 1877 in b34d48a


           configure_gitlab() {

             echo "Configuring gitlab..."

             update_template ${GITLAB_CONFIG} \

               GITLAB_INSTALL_DIR \

               GITLAB_SHELL_INSTALL_DIR \

               GITLAB_DATA_DIR \

               GITLAB_REPOS_DIR \

               GITLAB_DOWNLOADS_DIR \

               GITLAB_SHARED_DIR \

               GITLAB_HOME \

               GITLAB_HOST \

               GITLAB_PORT \

               GITLAB_RELATIVE_URL_ROOT \

               GITLAB_HTTPS \

               GITLAB_SSH_HOST \

               GITLAB_SSH_LISTEN_PORT \

               GITLAB_SSH_PORT \

               GITLAB_SIGNUP_ENABLED \

               GITLAB_IMPERSONATION_ENABLED \

               GITLAB_PROJECTS_LIMIT \

               GITLAB_USERNAME_CHANGE \

               GITLAB_DEFAULT_THEME \

               GITLAB_CREATE_GROUP \

               GITLAB_ISSUE_CLOSING_PATTERN

             gitlab_configure_database

             gitlab_configure_redis

             gitlab_configure_actioncable

             gitlab_configure_secrets

             gitlab_configure_sidekiq

             gitlab_configure_gitaly

             gitlab_configure_monitoring

             gitlab_configure_gitlab_workhorse

             gitlab_configure_relative_url

             gitlab_configure_trusted_proxies

             gitlab_configure_puma

             gitlab_configure_timezone

             gitlab_configure_rack_attack

             gitlab_configure_ci

             gitlab_configure_artifacts

             gitlab_configure_packages

             gitlab_configure_terraform_state

             gitlab_configure_lfs

             gitlab_configure_uploads

             gitlab_configure_mattermost

             gitlab_configure_project_features

             gitlab_configure_mail_delivery

             gitlab_configure_mailroom

             gitlab_configure_oauth

             gitlab_configure_ldap

             gitlab_configure_gravatar

             gitlab_configure_cron_jobs

             gitlab_configure_analytics

             gitlab_configure_backups

             generate_registry_certificates

             gitlab_configure_registry

             gitlab_configure_pages

             gitlab_configure_sentry

             generate_healthcheck_script

             gitlab_configure_content_security_policy

             # remove stale gitlab.socket

             rm -rf ${GITLAB_INSTALL_DIR}/tmp/sockets/gitlab.socket

           }

(optional) The variable naming rule is not strictly defined, but it seems converting all yaml key name into UPPER_CASE is common approach for this repository.
- GITLAB_KAS_SECRET -> GITLAB_KAS_SECRET_FILE
- GITLAB_KAS_EXTERNAL -> GITLAB_KAS_EXTERNAL_URL
- GITLAB_KAS_INTERNAL -> GITLAB_KAS_INTERNAL_URL
- GITLAB_KAS_PROXY -> GITLAB_KAS_K8S_PROXY_URL

antt1995 · 2022-07-04T13:13:38Z

@kkimurak
I have added that to the Functions

kkimurak

Passed build and test! Thanks for your contribution.

Sorry for forgetting to check in the last review, but could you please fill these additional tasks?

add a description of the variables you added to the "Available Configuration Parameters" section of the README.md
check default values for the variables

assets/runtime/env-defaults

antt1995 · 2022-07-05T13:33:49Z

Building Now with basic info in readme

antt1995 · 2022-07-05T15:46:50Z

Not sure what to put or where in the Readme

Still not sure what to put but have put the vars and their defaults

kkimurak

Sorry for late, I have added review for README and fixed typo in my previous suggestion. Could you confirm them?

Best,

README.md

assets/runtime/env-defaults

antt1995 · 2022-07-13T14:15:43Z

@kkimurak Confirmed

Updated to Latest 15.1.2

kkimurak · 2022-07-13T14:24:46Z

@antt1995 Do you mean you confirmed KAS works as expected applying this PR? Then I can approve. Thank you for your contribution and sorry for my rough review.

By the way I have no permission to merge. Please ask for maintainer (@sachilles is active, I think)

antt1995 · 2022-07-13T14:47:35Z

@kkimurak

Sorry for late, I have added review for README and fixed typo in my previous suggestion. Could you confirm them?

That's what I was Confirming

kkimurak · 2022-07-13T15:12:47Z

@antt1995 ok Thank you. I approve the code changes themselves, but I'm not sure if KAS works.
I would like to find time to see if kas works. As mentioned above, using the internal KAS should require more work. If you are ready to use external KAS, please ask @sachilles to merge this (It is nice to confirm if it works building image by youself).

tiehfood · 2022-07-26T13:58:56Z

Would love this feature to be included

sachilles · 2022-07-28T11:01:07Z

Hi there, sorry for being late. I guess @kkimurak did a great job with his valuable hints. However, I don't use KAS and thus, I can't confirm that this PR works.

Nevertheless, I'd like to ask if the configuration file for secrets (GITLAB_KAS_SECRET=${GITLAB_INSTALL_DIR}/.gitlab_kas_secret}) will be generated dynamically? If not, I guess the README.md has to be extended in order to explain the configuration for KAS in detail.

kkimurak

Hi @antt1995 , Sorry for the tedious review process, but after being pointed out by @sachilles I reviewed the README again. Could you please confirm it?

edit: Oops sorry but I have added comment to "resolved" thread (and hidden by default). I apologize for the inconvenience, but for the second item, press "show resolved" and see the last comment.

README.md

eslamhossam23 · 2022-08-16T08:14:16Z

Hello @antt1995 , I tested this pull request on my Gitlab instance but I haven't been able to make it work.

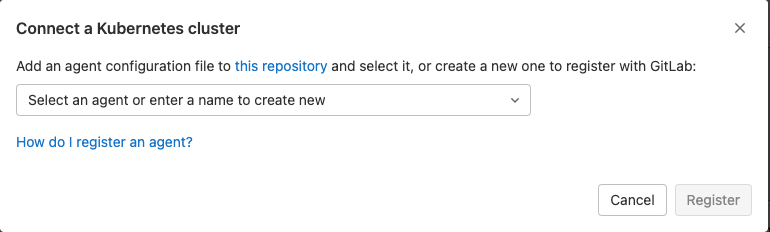

The KAS was detected as installed by the UI as shown here:

However, when adding a new agent, I always got the error message: GRPC::Unavailable.
Upon inspecting the container via ss -lp, I also noticed that the KAS service was never started at port 8153 as it should have been.

Should the service start by itself automatically by setting GITLAB_KAS_ENABLED to true or is there something that needs to be done after that? Thanks!

antt1995 · 2022-08-16T10:33:05Z

@eslamhossam23 Did you map the port in your docker config "-p 8153:8153" or in docker-compose "- 8153:8153"

eslamhossam23 · 2022-08-16T13:19:19Z

Hello @antt1995 yes, I had the port correctly mapped.

The container itself haven't had started the KAS service inside it.
I checked using ss -lp and verified that it was not started.

tiehfood · 2022-08-24T07:52:16Z

@eslamhossam23 I deployed the KAS service with separate docker image and set the variables from this PR corresponding. Then it was working for me

kkimurak · 2022-08-24T08:56:16Z

@eslamhossam23 As already reported above (#2598 (comment)), this image currently does not provides built-in KAS. This PR requires external KAS is exists.

If you have time to do that, could you please try to build and test my support-builtin-kas branch ?
In addition to the work done by @antt1995, I've made sure to build gitlab-kas when building the image and add setting for supervisord to launch kas if enabled. Also I have added configuration file for KAS and minimal configuration parameters.

I have never used Kubernetes so never tested if the registration success, but made sure the gitlab-kas service starts without exiting.
Here are new entries for env of docker-compose.yml on test:

services:
  gitlab:
    environment:
      GITLAB_KAS_ENABLED: 'true'
      # If we don't set this, built-in gitlab-kas will exit with an error
      # See https://gitlab.com/gitlab-org/cluster-integration/gitlab-agent/-/blob/8069d9b79763859b5bcead437a28f4dc73b66ae8/cmd/kas/kasapp/configured_app.go#L96-98
      OWN_PRIVATE_API_URL: grpc://127.0.0.1:8155

sachilles · 2022-09-11T10:40:56Z

Hi,

is this PR considered to be ready to merge?

I guess (and based on this discussion) there should be some comments on using KAS with this image (something like if you want using KAS you'll need to deploy an additional docker image), isn't it?

defp · 2023-09-12T04:21:21Z

@eslamhossam23 I deployed the KAS service with separate docker image and set the variables from this PR corresponding. Then it was working for me

Is there any tutorial? @tiehfood
