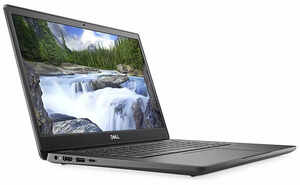

Dell Latitude 3410 EFI OpenCore

OpenCore EFI configuration for Dell Latitude 3410, tailored for macOS Sonoma 14.4 and Intel 10th Generation processors.

System Specifications

Component	Model Details
CPU	Intel Core i7-10510U
iGPU	Intel UHD620
Storage	KBG40ZNS512G NVMe KIOXIA
Audio	Realtek ALC236
WLAN	Intel AX201
LAN	Realtek RTL8111

macOS Version

This EFI configuration is designed specifically for macOS Sonoma 14.4 but should also work with earlier versions. To use this EFI with versions other than Sonoma, replace the AirportItlwm.kext in EFI/OC/Kexts with the appropriate version.

Download AirportItlwm.kext here

---

Features

• Full support for Intel UHD620 integrated graphics.
• NVMe KIOXIA drive support included.
• Realtek ALC236 audio support (limited to external output; microphone not supported natively).
• Intel AX201 wireless support via AirportItlwm.kext.

---

Known Issues

• dGPU Support: No NVIDIA dGPU support available.
• Microphone: No Intel microphone array support. Use a USB-C DAC instead for audio input.

---

Setup Instructions

1. Download the latest release from this repository and extract it to a USB drive.
2. Modify the SMBIOS information in EFI/OC/config.plist under PlatformInfo/Generic before booting the system.

For more detailed instructions on configuring the SMBIOS, refer to the OpenCore Laptop Guide.

---

Not Working

• dGPU (NVIDIA): This laptop has no NVIDIA GPU support.
• Microphone: Built-in Intel microphone array doesn't work. Use an external USB-C DAC for microphone support.

---

Credits

• OpenIntelWireless for wireless drivers.
• Dortania's OpenCore Install Guide for the detailed installation process.

---
