Fix Reconnect ReliableProducer/ ReliableConsumer in case leader is down

[Gsantomaggio]

Fixes: #150
Reconnect ReliableProducer and/or ReliableConsumer in case the leader is down and if the Stream changes the topology.

Signed-off-by: Gabriele Santomaggio G.santomaggio@gmail.com

Refactor The Reliable part

How to test:

using a cluster with 3 nodes and:

 using System.Net;
using System.Text;
using RabbitMQ.Stream.Client;
using RabbitMQ.Stream.Client.Reliable;

namespace example;

public static class MultiEndPoints
{
    public static async Task Start()
    {

        var config = new StreamSystemConfig()
        {
            UserName = "test",
            Password = "test",
            Endpoints = new EndPoint[]
            {
                new DnsEndPoint("node0", 5552),
                new DnsEndPoint("node1", 5552),
                new DnsEndPoint("node2", 5552),
            }
        };

        var system = await StreamSystem.Create(config);
        var streamName = Guid.NewGuid().ToString();
        await system.CreateStream(new StreamSpec(streamName));

        var producer = await ReliableProducer.CreateReliableProducer(new ReliableProducerConfig()
        {
            Stream = streamName,
            StreamSystem = system,
            ConfirmationHandler = confirmation =>
            {
                Console.WriteLine($"Confirmation: {confirmation.Status} {confirmation.PublishingId}");
                return Task.CompletedTask;
            },
        });

        var t= Task.Run(async () =>
        {
            for (int i = 0; i < 1000; i++)
            {
                if (!producer.IsOpen())
                {
                    Console.WriteLine("Producer is not connected");
                    return;
                }
                await producer.Send(new Message(Encoding.UTF8.GetBytes($"hello {i}")));
                Console.WriteLine($"Sent message {i}");
                Thread.Sleep(1 * 1000);
            }
        });

        var consumer = await ReliableConsumer.CreateReliableConsumer(new ReliableConsumerConfig()
        {
            Stream = streamName,
            StreamSystem = system,
            MessageHandler = (_, _, message) =>
            {
                Console.WriteLine($"Consumed message {Encoding.UTF8.GetString(message.Data.Contents)}");
                return Task.CompletedTask;
            },
        });
        Console.WriteLine("Press enter to stop");
        Console.ReadKey();
        t.Dispose();
        await producer.Close();
        await consumer.Close();
        await system.DeleteStream(streamName);
        await system.Close();
        Console.WriteLine("Closed");
    }
}

Then Identify the leader node for the queue:

And stop the node; in this case, it is the node0. The producer should reconnect to another node.

Note:

Locator connection can be in the same leader stream node. The locator connection should be able to reconnect to another node too.

[Gsantomaggio]

@ricsiLT when you have time, can you please try it?

still work in progress but it should work :) !

[ricsiLT]

Had this issue today, would have been perfect :D Will try to deploy tomorrow and cause and issue with a forced restart ^^

[codecov]

Codecov Report

Merging #163 (a454f5e) into main (56c0e68) will decrease coverage by 0.43%.
The diff coverage is 93.29%.

@@            Coverage Diff             @@
##             main     #163      +/-   ##
==========================================
- Coverage   92.29%   91.85%   -0.44%
==========================================
  Files          78       78
  Lines        6122     6201      +79
  Branches      378      385       +7
==========================================
+ Hits         5650     5696      +46
- Misses        382      412      +30
- Partials       90       93       +3

Impacted Files	Coverage Δ
...bitMQ.Stream.Client/Reliable/IReconnectStrategy.cs	78.94% <42.85%> (-21.06%)	⬇️
RabbitMQ.Stream.Client/StreamSystem.cs	91.75% <73.33%> (-1.78%)	⬇️
RabbitMQ.Stream.Client/MetaData.cs	91.58% <83.33%> (ø)
Tests/ReliableTests.cs	99.27% <93.18%> (-0.73%)	⬇️
RabbitMQ.Stream.Client/Reliable/ReliableBase.cs	98.63% <97.77%> (-1.37%)	⬇️
RabbitMQ.Stream.Client/Client.cs	89.76% <100.00%> (-1.03%)	⬇️
RabbitMQ.Stream.Client/ClientExceptions.cs	65.71% <100.00%> (+3.21%)	⬆️
...abbitMQ.Stream.Client/Reliable/ReliableConsumer.cs	100.00% <100.00%> (+1.31%)	⬆️
...abbitMQ.Stream.Client/Reliable/ReliableProducer.cs	86.50% <100.00%> (-0.41%)	⬇️
RabbitMQ.Stream.Client/CreditResponse.cs	0.00% <0.00%> (-85.00%)	⬇️
... and 8 more

Help us with your feedback. Take ten seconds to tell us how you rate us. Have a feature suggestion? Share it here.

[lukebakken]

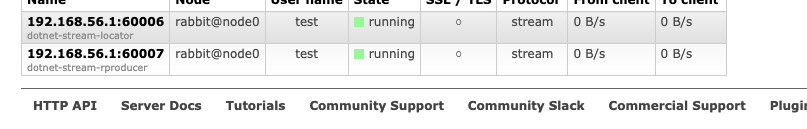

I don't think I see the correct behavior. I do see a reconnection being made, but the "Stream" page in the management UI only shows one entry, even after I restart the node I stopped:

In addition, the page starts returning a 500 error (not good), and I see some log messages like this which seem fishy:

docker-node0-1  | 2022-09-12 20:53:47.105297+00:00 [debug] <0.611.0> Marking RabbitMQ as running
docker-node0-1  | 2022-09-12 20:53:47.105320+00:00 [debug] <0.611.0> Change boot state to `ready`
docker-node0-1  | 2022-09-12 20:53:47.105401+00:00 [debug] <0.133.0> Boot state/systemd: notifying of state `ready`
docker-node0-1  | 2022-09-12 20:53:47.230426+00:00 [debug] <0.9.0> Time to start RabbitMQ: 28938365 us
docker-node0-1  | 2022-09-12 20:53:47.426391+00:00 [debug] <0.554.0> rabbit_stream_coordinator: pre_vote election called for in term 1
docker-node0-1  | 2022-09-12 20:53:47.426585+00:00 [debug] <0.554.0> rabbit_stream_coordinator: follower -> pre_vote in term: 1 machine version: 3
docker-node0-1  | 2022-09-12 20:53:47.426747+00:00 [debug] <0.554.0> rabbit_stream_coordinator: pre_vote granted #Ref<0.2376076381.66060290.251237> for term 1 votes 1
docker-node1-1  | 2022-09-12 20:53:47.427289+00:00 [debug] <0.1019.0> rabbit_stream_coordinator declining pre-vote to {rabbit_stream_coordinator,rabbit@node0} for term 1, current term 2
docker-node0-1  | 2022-09-12 20:53:47.434834+00:00 [debug] <0.554.0> rabbit_stream_coordinator: pre_vote -> follower in term: 2 machine version: 3
docker-node0-1  | 2022-09-12 20:53:47.435044+00:00 [debug] <0.554.0> rabbit_stream_coordinator: is not new, setting election timeout.
docker-node0-1  | 2022-09-12 20:53:47.435193+00:00 [info] <0.554.0> rabbit_stream_coordinator: follower did not have entry at 29 in 2. Requesting {rabbit_stream_coordinator,rabbit@node2} from 11
docker-node0-1  | 2022-09-12 20:53:47.435425+00:00 [info] <0.554.0> rabbit_stream_coordinator: detected a new leader {rabbit_stream_coordinator,rabbit@node2} in term 2
docker-node0-1  | 2022-09-12 20:53:47.435564+00:00 [debug] <0.554.0> rabbit_stream_coordinator: follower -> await_condition in term: 2 machine version: 3
docker-node2-1  | 2022-09-12 20:53:47.435878+00:00 [debug] <0.1364.0> rabbit_stream_coordinator: setting last index to 10,  next_index 11 for {rabbit_stream_coordinator,rabbit@node0}
docker-node0-1  | 2022-09-12 20:53:47.437594+00:00 [debug] <0.554.0> rabbit_stream_coordinator: await_condition -> follower in term: 2 machine version: 3
docker-node0-1  | 2022-09-12 20:53:47.437785+00:00 [debug] <0.554.0> rabbit_stream_coordinator: is not new, setting election timeout.
docker-node0-1  | 2022-09-12 20:53:47.438991+00:00 [debug] <0.554.0> rabbit_stream_coordinator: enabling ra cluster changes in 2
docker-node0-1  | 2022-09-12 20:53:47.439137+00:00 [debug] <0.554.0> rabbit_stream_coordinator: unknown command {nodedown,rabbit@node0}
docker-node1-1  | 2022-09-12 20:54:18.814975+00:00 [debug] <0.1232.0> User 'guest' authenticated successfully by backend rabbit_auth_backend_internal
docker-node1-1  | 2022-09-12 20:54:18.836385+00:00 [debug] <0.1234.0> User 'guest' authenticated successfully by backend rabbit_auth_ba

unknown command makes me nervous!

This repo contains a docker compose environment to bring up a cluster, and a version of your test program -

https://github.com/lukebakken/rabbitmq-stream-dotnet-client-163

In order to use a locally built NuGet package, here's what I did:

mkdir ~/development/nuget-packages
cd ~/development/rabbitmq/rabbitmq-stream-dotnet-client
git pull && git checkout fix_reconnect_leader_down
make build
dotnet nuget push --source ~/development/nuget-packages ./packages/RabbitMQ.Stream.Client.1.0.0-rc.5.2.nupkg
cd ~/development/lukebakken/rabbitmq-stream-dotnet-client-163/test
git checkout lukebakken/local-nupkg
dotnet add package --prerelease --source ~/development/nuget-packages RabbitMQ.Stream.Client

[Gsantomaggio]

I think the problem is that you are using only two nodes; with one node, it doesn't reach the quorum. I will investigate

[lukebakken]

I'm starting out with three nodes, then stopping one, then re-starting it. There are three nodes in that log output 😄

• docker-node0-1
• docker-node1-1
• docker-node2-1

[lukebakken]

Great work @Gsantomaggio
