arc-path

Draws an arc-path on a canvas, with adjustable width and equal spacing.

install

npm install arc-path

usage

The library exposes the drawArcPath method which can be used like so:

import drawArcPath from 'arc-path';

drawArcPath(
  context,
  centerX,
  centerY,
  startRadians,
  endRadians,
  outerRadius,
  innerRadius,
  partSpacing,
 );

context.fill();

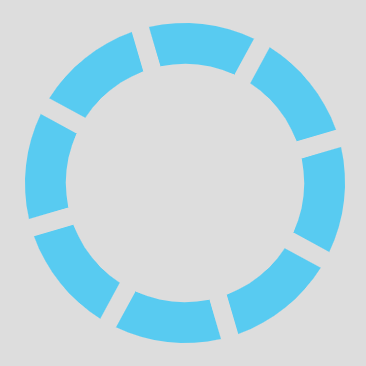

The method draws a path for the following blue shape:

• drawArcPath only draws a path, so you will need to do a fill() or stroke() call after it
• the path consists of four parts: two arcs and two straight lines, drawn clockwise and in the order as shown in the image
• the dashed black lines represent the startRadians and endRadians
• the magenta line has a length half of the partSpacing (and is perpendicular to the dashed line)
• the dashed line and the blue edge across are parallel, so the distance between them is half the partSpacing on every location (not just on the magenta line)
• the method returns an object containing the positions of all four points in the image: outerStart, outerEnd, innerStart and innerEnd

but... why

The reason you would want to use this is to draw a full circle of several parts, all with an equal amount of partSpacing between them (instead of a gap that grows wider towards the outer edges)

An interactive example can be found here.
