Netdata zoneminder plugin

Plugin to monitor your zoneminder cameras. Includes some alarms you can use to monitor your cameras and zoneminder's availability.

Requirements

1. netdata: https://github.com/netdata/netdata To install netdata on Linux systems:

   # make sure you run `bash` for your shell
   bash

   # install Netdata directly from GitHub source
   bash <(curl -Ss https://my-netdata.io/kickstart.sh)

2. requests python library: https://requests.readthedocs.io/en/master/ To install requests library run:

   sudo -H python -m pip install requests


3. PyJWT python library: https://pyjwt.readthedocs.io/en/latest/ To install PyJWT library run:

   sudo -H python -m pip install pyjwt


4. zoneminder: https://zoneminder.com/ You need to make sure zoneminder's api is enabled: https://zoneminder.readthedocs.io/en/stable/api.html#enabling-api

Installation

1. Clone repository and cd to repo directory:

   git clone https://github.com/pepe386/netdata-zoneminder
   cd netdata-zoneminder


2. Edit zoneminder.conf with your zoneminder url, user and password.
3. Run installation script:

   chmod +x install.sh
   ./install.sh


4. restart netdata

   service netdata restart


   If the above command fails try:

   systemctl restart netdata


   or:

   /etc/init.d/netdata restart


For other installation options run:

./install.sh -h

Installation script attempts to install python plugin to /usr/libexec/netdata/python.d directory. It also assumes netdata configuration directory is /etc/netdata. This paths might be different depending on your netdata installation, refer to https://learn.netdata.cloud/docs/agent/daemon/config To specify different plugin and configuration directories check "./install.sh -h" output for other installation options.

Updates

To update just cd to repo directory and run:

git pull
./install.sh

Charts

This module generates 4 netdata charts:

1. FPS of each camera
2. Bandwidth of each camera
3. Events of each camera

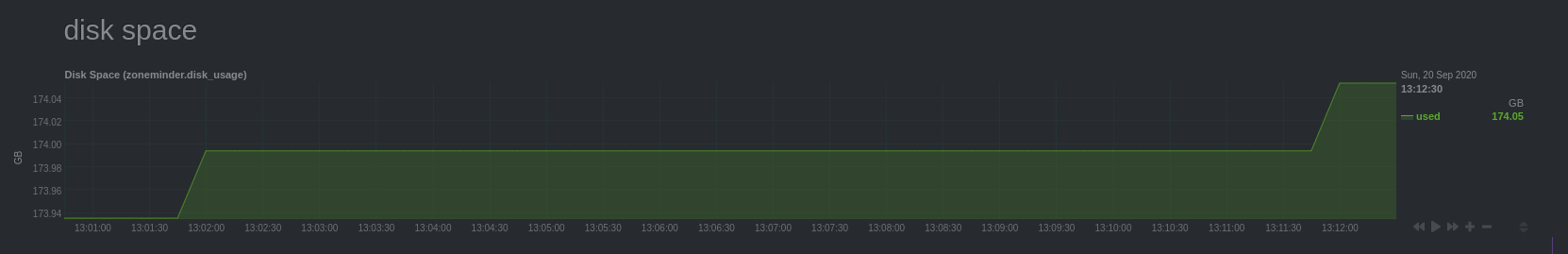

4. Disk usage of all saved events

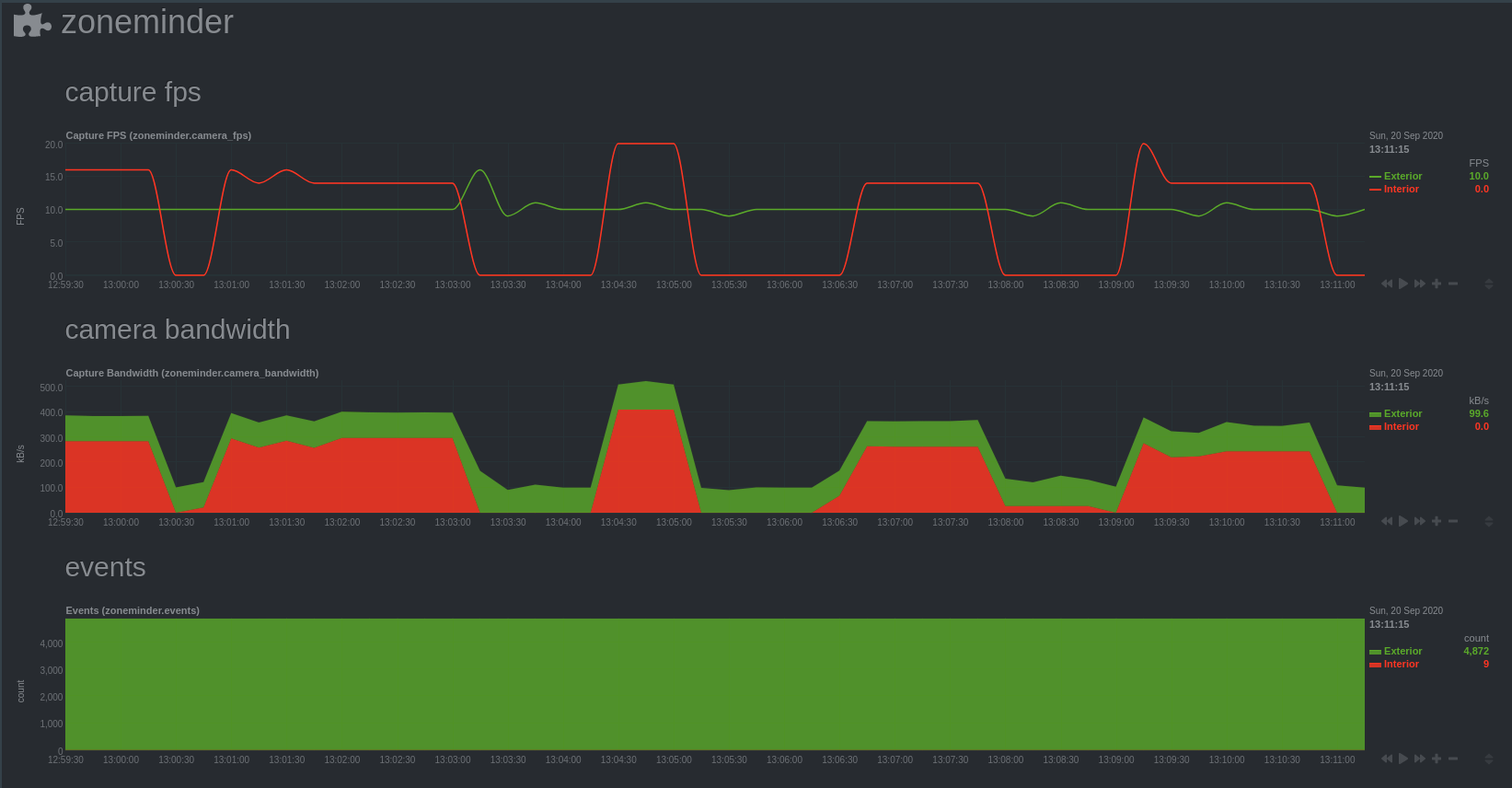

This is how charts look in netdata dashboard:

Alarms

Installation script by default installs 2 netdata alarms:

1. Average FPS of last 5 minutes: by default this alarm sets "warn" level when average fps is less than 5 in the last 5 minutes, and "critical" level when average fps is less than 2 in the last 5 minutes.
2. Time since last successful data collection: "warn" when no data is collected for last 5 minutes, and "critical" when no data is collected for last 15 minutes.

To restart netdata alarms you can run:

killall -USR2 netdata

For instructions on setting up netdata email alerts see: https://learn.netdata.cloud/docs/agent/health/notifications/email
