Seeing Keepalive Drop Packets when Running in ASTF Mode with UDP Protocol

[jeremy020]

Description

• With multi core: I'm seeing some packet drops when running trex in ASTF mode with UDP protocol. I tried with 1M CPS which gave me around 1600 keepalive packet drops. I'm also seeing this when running at a higher CPS.
• With single core: I'm seeing half of the transmitted packets are getting dropped due to the keepalive issue. Upon investigation, realized that half of the packets are going into queue 1 and the other half are going into queue 0; however, they should all go to queue 0.

TRex Configuration

  interfaces: ['0000:14:00.0', '0000:15:00.0']
  rx_desc: 4096
  port_info:
      - ip: 1.1.1.1
        default_gw: 2.2.2.2
      - ip: 2.2.2.2
        default_gw: 1.1.1.1
  platform:
      master_thread_id: 0
      latency_thread_id: 10
      dual_if:
        - socket: 0
          threads: [1,2,3,4,5,6,7,8,9,20,21,22,23,24,25,26,27,28,29]

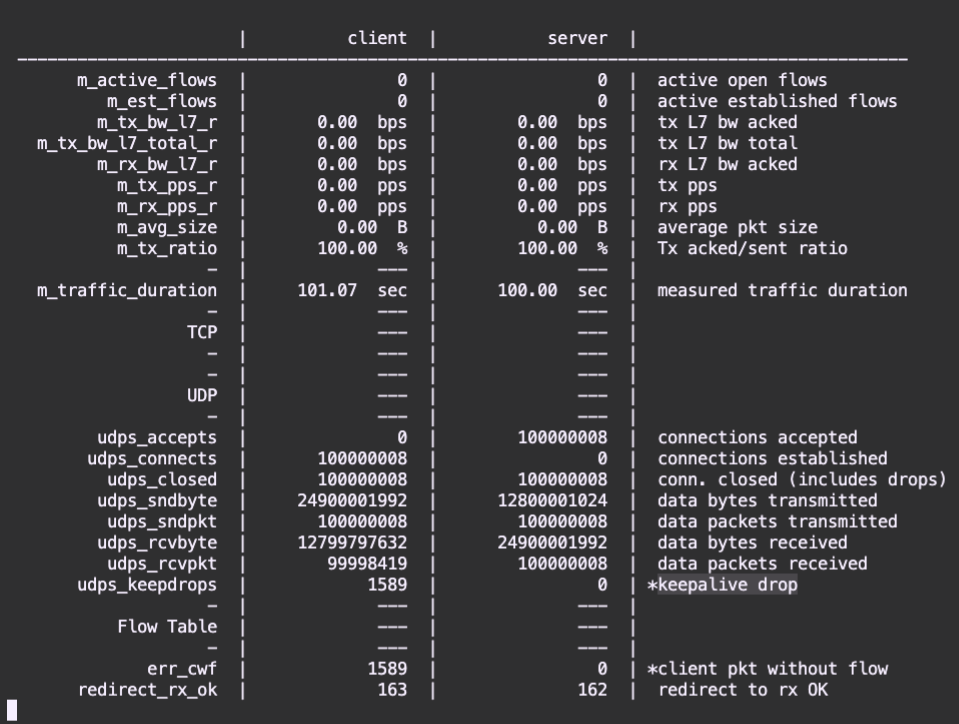

Screenshots

To Reproduce

1. Start trex on one terminal by using ./t-rex-64 -c 8 -i --astf
2. Start trex-console on another terminal using ./trex-console
3. Then using this command start -f astf/udp1.py -m 10000000 -d 100 in trex-console
