Log Analysis Pipeline with ETL, RDS, and Serverless API Integration

Description

In this project, I built an end-to-end data pipeline on AWS by uploading log data to S3, processing it with a Python-based ETL, and storing it in an RDS PostgreSQL database. I created a Lambda function behind an API Gateway (secured with an API key) to provide log statistics (hourly, daily, or weekly). To streamline deployment, I set up CI/CD using GitHub Actions to automatically deploy the Lambda function on every commit.

Utilities Used

• Python
• AWS S3
• AWS RDS (PostgreSQL)
• AWS Lambda
• AWS API Gateway
• boto3, psycopg2, pandas
• GitHub Actions
• pgAdmin

Project Walk-through

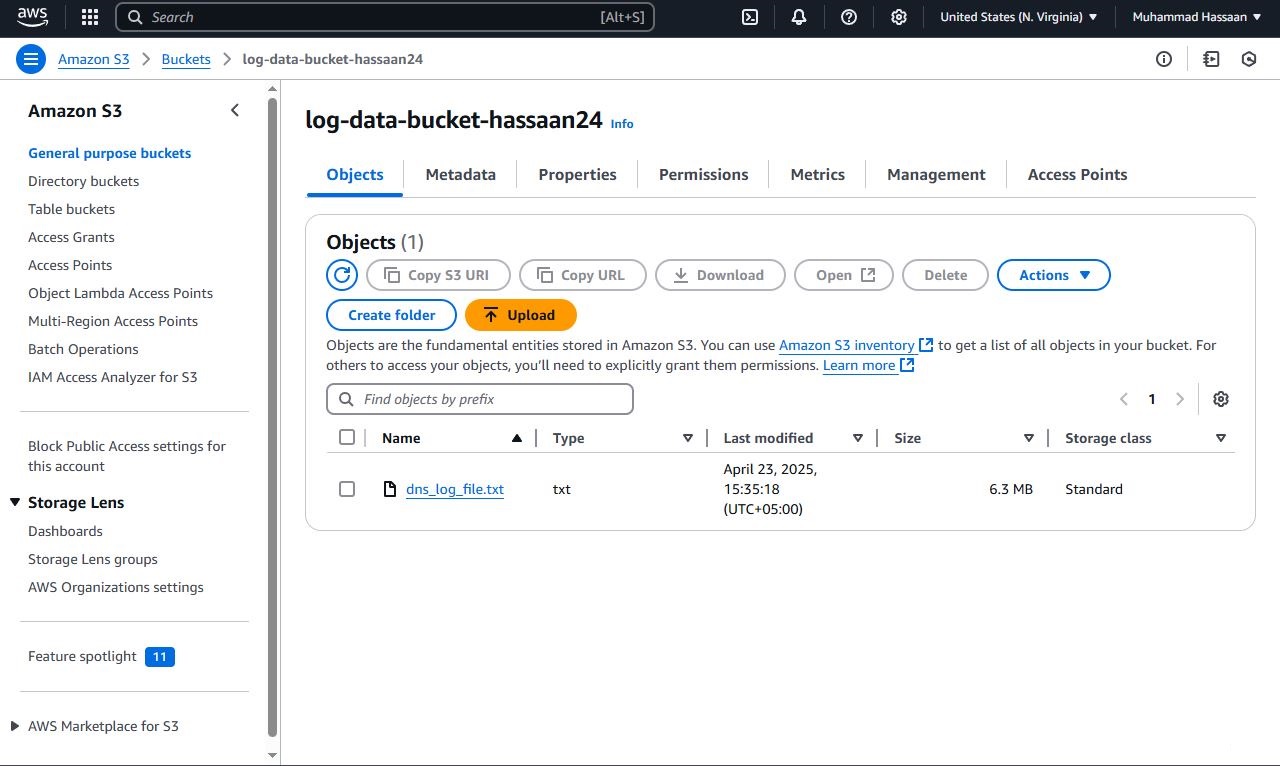

Step 1: Upload the Dataset to S3

1. Go to Kaggle Log Analysis Dataset and download the log file.
2. Login to your AWS Console and open the S3 service.
3. Create a new bucket and name it.
4. Open the bucket > Upload > Add files > Choose your downloaded file > Upload

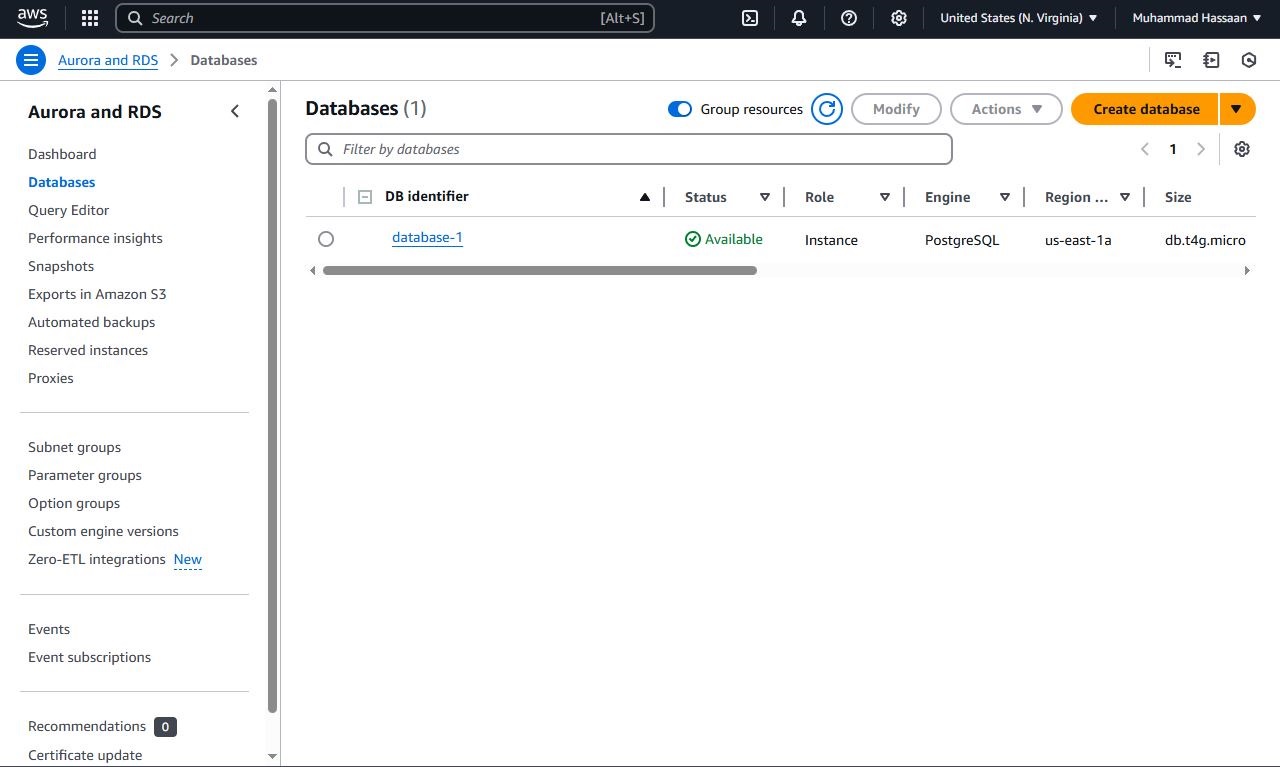

Step 2: Create RDS Database with Schema

1. Go to AWS Console > RDS > Create database
• Engine: PostgreSQL
• Templates: Free Tier
• DB instance identifier: log-db
• Username: postgres
• Password: StrongPassword
• Enable public access: Yes
• VPC security group: Allow PostgreSQL port 5432
• Create database
2. Go to postgresql.org and download the .exe file for setting up pgAdmin.
3. In pgAdmin, run a query to create the table.

Step 3: Extract & Load (ETL)

1. Launch an EC2 and update it.
2. Install boto3, psycopg2, pandas, using pip after enabling python virtual environment.

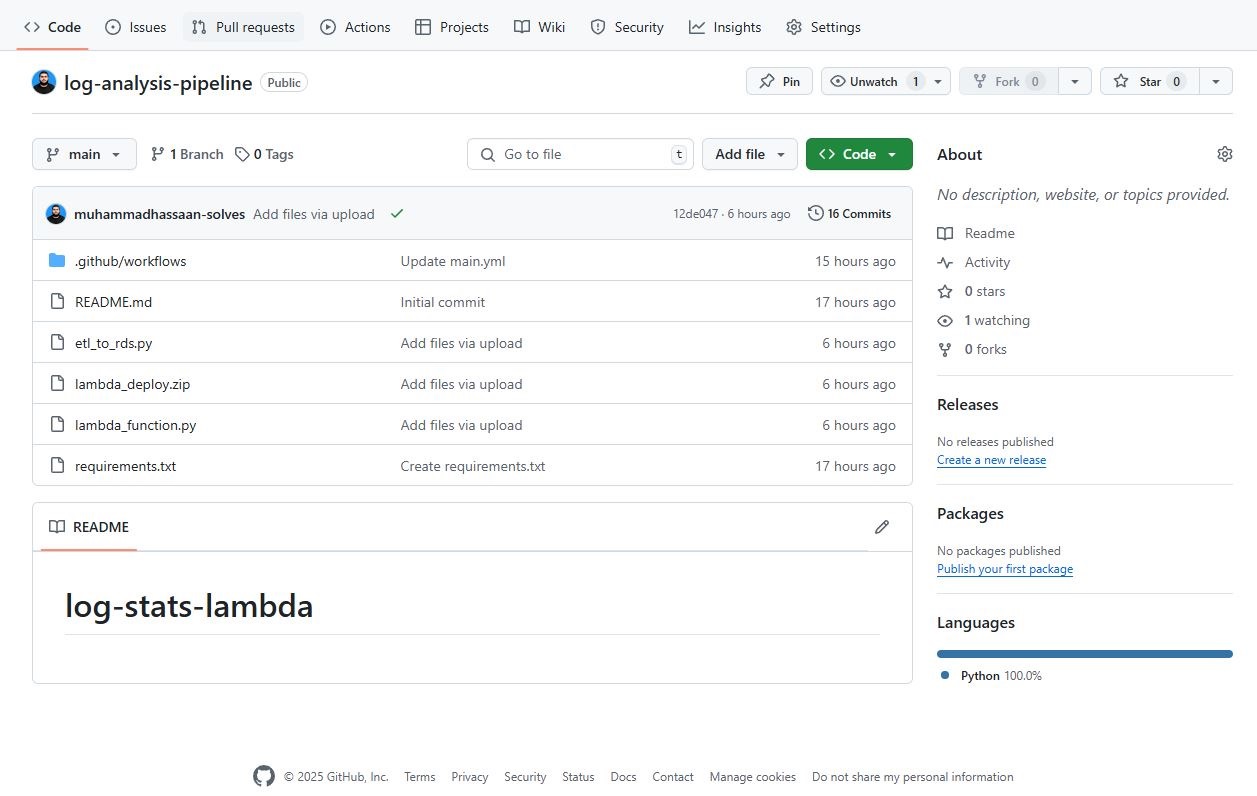

3. Create a script etl_to_rds.py (availble in this repo).
4. Run the script.

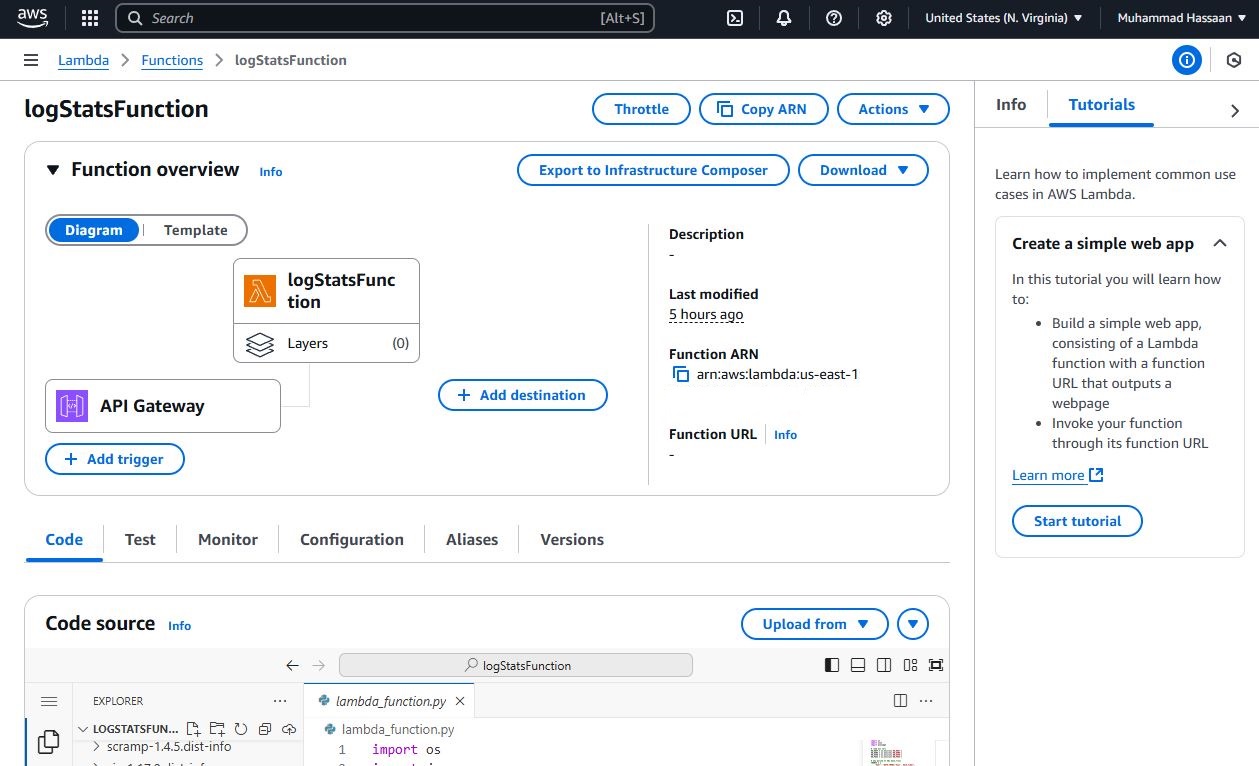

Step 4: Create Lambda Function

1. Go to AWS Lambda > Create function.
• Name: your-function-name
• Runtime: Python 3.12
• Role: Create new role with basic Lambda permissions
2. Set environment variables (in Lambda console Configuration → Environment variables).
• DB_HOST = your-rds-endpoint
• DB_NAME = your-db-name
• DB_USER = your-db-username
• DB_PASS = YourStrongPassword
3. Create a lambda_function.py file (availble in this repo) and install the required library (psycopg2-binary) in the same folder.
4. Zip the contents and name it as lambda_deploy.zip.
5. Go to AWS Lambda Console → Your Function → Code → Upload from → .zip file → choose lambda_deploy.zip → Deploy
6. In Lambda console Test → Configure test { "queryStringParameters": { "period": "hour" } } → event Run and check output.

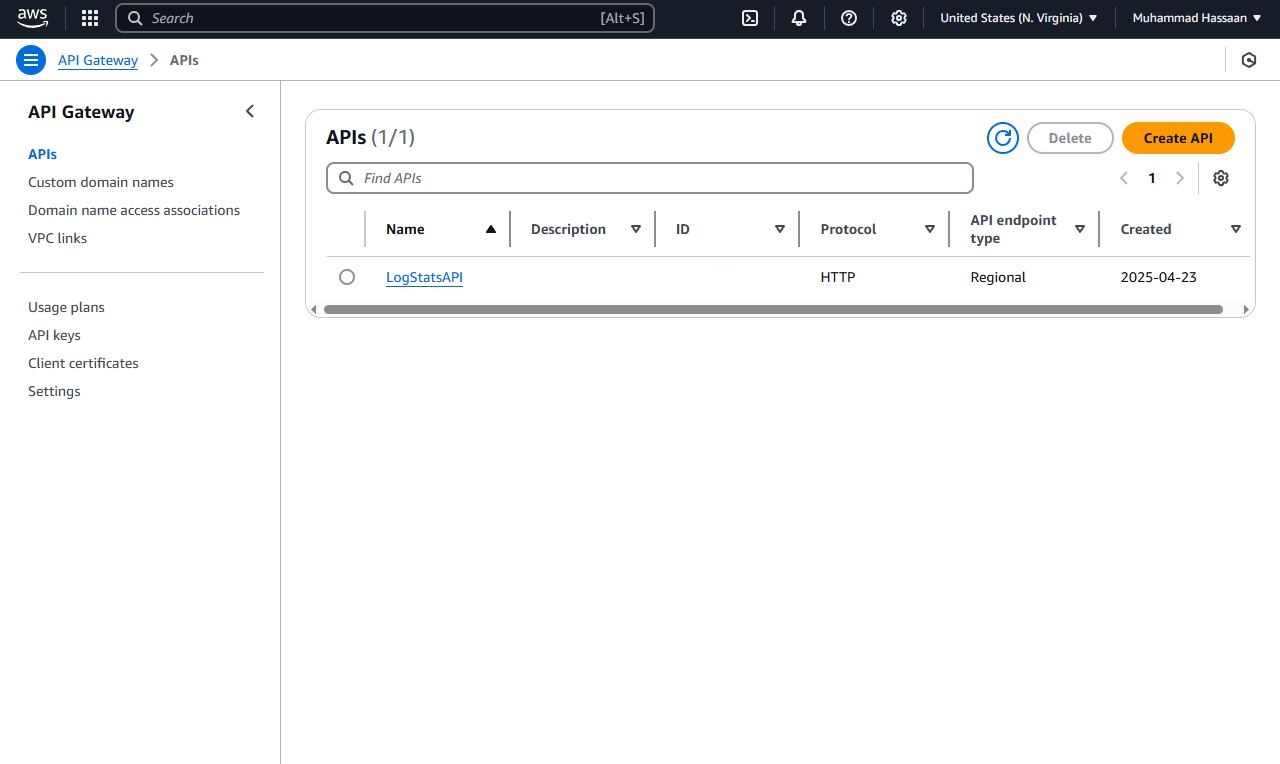

Step 5: Configure API Gateway with API key

1. Search “API Gateway” in AWS search bar → click it.
2. Click Create API → Choose HTTP API → Click Build
3. Under add integration, choose Lambda and select your function.
4. Configure routes → Add route → Method: GET → Resource path: /stats
5. Configure stages → Stage name: default (keep default) → Click Create
6. Go to API Gateway → Create API Keys
7. Go to Usage Plans → Create Usage Plans → Add API stage → Choose your API → Choose the stage (default) → Attach the API Key you created
