RPi Zero Teleprompter

A lightweight, dedicated teleprompter built on a Raspberry Pi Zero 2 W, running a custom Python/Pygame application. Designed to be cheap, compact, and reliable — a single-purpose device that boots straight into the app and does nothing else.

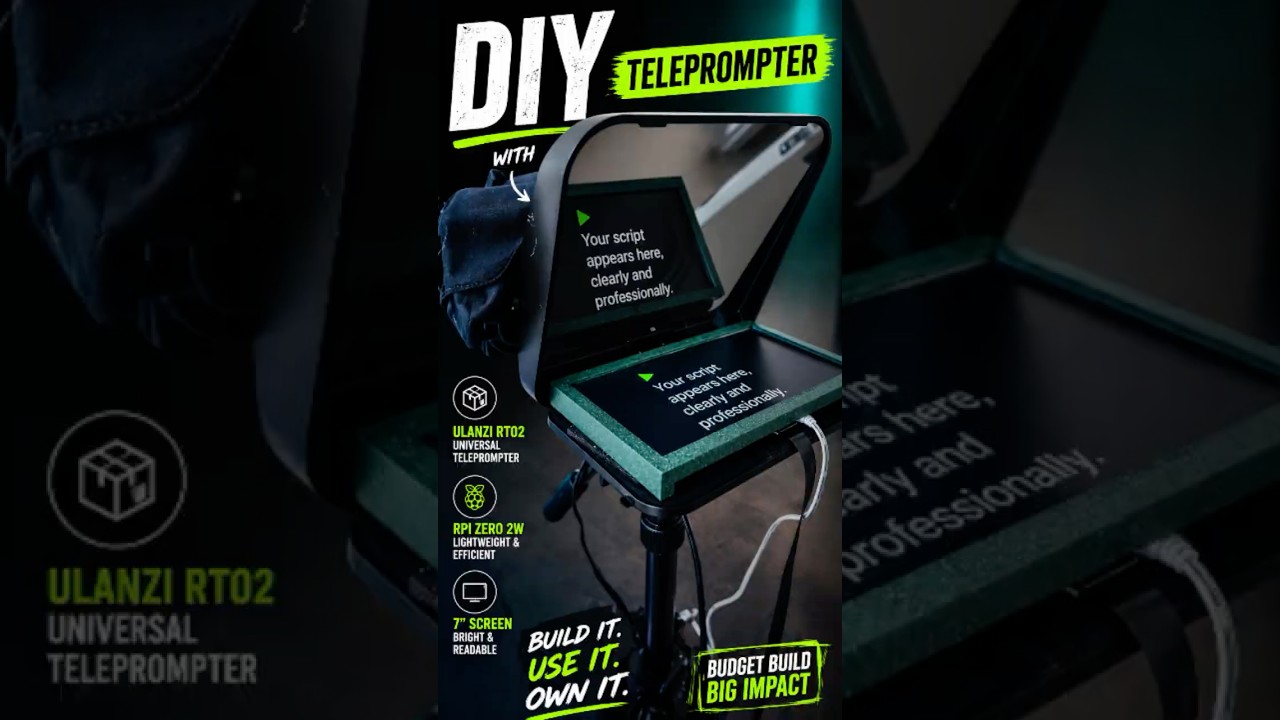

Demo

---

My Setup

Component	Details	Link
Computer	Raspberry Pi Zero 2 W	raspberrypi.com
Display	8" LCD 1024x768, 174x136mm (recommended)	AliExpress
Display (alt)	7" LCD 1024x600, 165x100mm	AliExpress
Display controller	Mini HDMI driver board, 5V via Micro USB	included with display
Teleprompter frame	Ulanzi RT02 with beam splitter glass	AliExpress
Mini HDMI cable	Connector C1 x2 + Flexible Flat Cable for RPi Zero 2W	AliExpress
Input	Bluetooth keyboard
OS	Raspberry Pi OS Lite 64-bit

The 8" display (174mm wide) fits the Ulanzi RT02 holder (180mm) almost perfectly, covering the full beam splitter glass area with just 3mm clearance on each side. The 7" display also fits well with more clearance. The whole unit is powered independently — no phone battery anxiety, no notifications, no distractions.

---

Features

• Auto-boots straight into the script selection menu
• White text for speech, red text for stage directions in [ ] brackets
• Adjustable scroll speed (1–10)
• Play/Pause, rewind, speed control
• Beam splitter glass correction (horizontal flip)
• Top fade effect — text fades out as it reaches the top
• Multilingual UI: Serbian, English, German, Spanish, French
• Language preference saved to config.json
• Shutdown option directly from the menu
• Exit to terminal option for maintenance
• Web interface for wireless script management — no WinSCP needed

---

Web Interface

Upload and manage scripts directly from your browser — no WinSCP, no SSH, no cables needed.

Access via: http://teleprompter.local:5000 or http://[ip_address]:5000

Features:

• Upload .txt script files via drag & drop or file picker
• Delete scripts
• Preview script content with color-coded stage directions
• Works from any device on the same WiFi network (phone, tablet, PC)

Install Flask before first use:

sudo apt install python3-flask -y

---

Hardware Notes

RPi Zero 2 W — quad-core ARMv8, 512MB RAM, built-in WiFi + Bluetooth 4.2. The app uses pre-rendering (all text drawn to one large surface at startup) so scrolling is smooth even on this compact hardware.

Display — 8" LCD 1024x768, 174x136mm. Paired with a compact mini HDMI controller board from AliExpress. The controller is small enough to hide behind the display, keeping the setup clean. Powered via Micro USB 5V.

Ulanzi RT02 — designed for phones and tablets but works perfectly as an open frame for a custom display. The 8" panel (174mm) fits the RT02 holder (180mm internal width) with 3mm clearance on each side, covering the full beam splitter glass area cleanly. Mounts on any standard tripod via 1/4" thread.

---

Installation

1. Flash OS

Use Raspberry Pi Imager:

• Device: Raspberry Pi Zero 2 W
• OS: Raspberry Pi OS Lite (64-bit)
• Edit Settings:
  • Hostname: teleprompter
  • Username: zero
  • Password: your password
  • WiFi SSID + password
  • Enable SSH (password authentication)

2. First boot and SSH

Wait 2–3 minutes for first boot, then:

ssh zero@teleprompter.local
sudo apt update && sudo apt upgrade -y

3. Install dependencies

sudo apt install python3-pygame python3-evdev fonts-dejavu-core bluetooth bluez python3-flask -y
sudo systemctl enable bluetooth
sudo systemctl start bluetooth

4. Create folder structure

mkdir ~/teleprompter
mkdir ~/teleprompter/scripts
echo 'zero ALL=(ALL) NOPASSWD: /sbin/poweroff' | sudo tee /etc/sudoers.d/teleprompter

5. Upload files

Use WinSCP (SFTP, host: teleprompter.local) to upload:

• teleprompter.py → /home/zero/teleprompter/
• webserver.py → /home/zero/teleprompter/
• start.sh → /home/zero/teleprompter/
• Your .txt script files → /home/zero/teleprompter/scripts/

Important: Always use WinSCP for uploading Python files. Copy-pasting code through the terminal can corrupt formatting.

6. Auto-login

sudo raspi-config
# System Options → S6 Auto Login → Yes

7. Autostart on boot

echo 'if [ "$(tty)" = "/dev/tty1" ]; then /home/zero/teleprompter/start.sh; fi' >> ~/.profile

Make start.sh executable:

chmod +x ~/teleprompter/start.sh

8. Reboot and test

sudo reboot

After reboot:

• Teleprompter app appears on display automatically
• Web interface available at http://teleprompter.local:5000

---

Script Format

Scripts are plain .txt files in the scripts/ folder. One file per episode.

Welcome to the show.

[Pause — look at the camera]

Today we are talking about artificial intelligence.

[Cut to B-roll]

The technology has evolved rapidly over the past decade.

• Normal lines → large white text (speech)
• Lines wrapped in [ ] → smaller red text (stage directions)
• Empty lines → paragraph spacer

---

Keyboard Controls

Key	Action
Space	Play / Pause
↑	Speed up
↓	Slow down
R (hold)	Rewind (3× speed)
ESC	Back to menu

---

Display Resolution

Depending on which display you use, change these two lines at the top of teleprompter.py:

# 8" display (recommended)
SCREEN_WIDTH  = 1024
SCREEN_HEIGHT = 768

# 7" display
SCREEN_WIDTH  = 1024
SCREEN_HEIGHT = 600

And update /boot/config.txt accordingly:

# 8" display
hdmi_cvt=1024 768 60 6 0 0 0

# 7" display
hdmi_cvt=1024 600 60 6 0 0 0

---

Bluetooth Remote Controller (coming soon)

A dedicated wireless controller is currently in development — an ESP32-based Bluetooth HID device in a custom 3D-printed enclosure with:

• 5 onboard buttons (Play/Pause, Speed+, Speed−, ESC, Enter)
• 3 avionic plug outputs for external foot pedals
• Presents itself to the RPi as a standard Bluetooth keyboard — no drivers needed

This will be published as a separate project and linked here when ready.

---

Display Configuration (/boot/config.txt)

If the display does not show correctly, add to /boot/config.txt:

# Force HDMI output
hdmi_force_hotplug=1

# Set resolution to match your display
hdmi_group=2
hdmi_mode=87
hdmi_cvt=1024 768 60 6 0 0 0

# Disable overscan (black borders)
disable_overscan=1

---

Beam Splitter Flip

The beam splitter glass mirrors the image. The flip direction is set in the script:

# In apply_beam_splitter_flip() and load_and_run():
pygame.transform.flip(surface, True, False)   # horizontal flip (current)
pygame.transform.flip(surface, False, True)   # vertical flip
pygame.transform.flip(surface, True, True)    # both

---

Troubleshooting

Black screen on boot:

cat ~/teleprompter/start.log

Permission denied on start.sh:

chmod +x ~/teleprompter/start.sh

fbcon not available error: Use kmsdrm — do not use fbcon or x11 on RPi Zero.

Slow or stuttering scroll: Make sure the script uses pre-rendering (big_surface). Without it, the Zero CPU cannot render text fast enough.

Bluetooth not ready:

sudo rfkill unblock bluetooth
sudo systemctl restart bluetooth

Script does not autostart: Use .profile, not .bashrc or .bash_profile.

cat ~/.profile   # check the line is there at the bottom

Web interface not accessible:

sudo apt install python3-flask -y
sudo reboot

---

Project Structure

teleprompter/
├── teleprompter.py        # Main application
├── webserver.py           # Web interface for script management
├── config.json            # Saved language preference
├── start.sh               # Startup script (launches both apps)
├── start.log              # Runtime log (auto-generated)
├── webserver.log          # Web server log (auto-generated)
└── scripts/
    ├── episode_01.txt
    ├── episode_02.txt
    └── ...

---

Support the Project

If this saved you hours of frustration, consider buying me a coffee ☕

---

License

MIT License. Use freely, modify freely, share freely.
