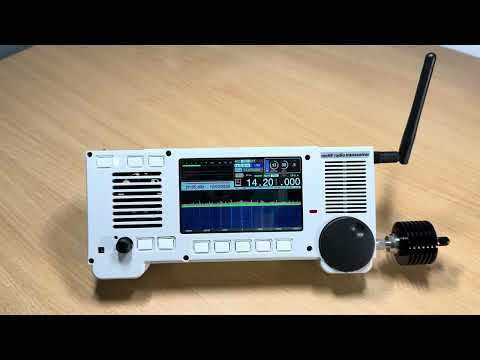

The mcHF is a fully open source SDR transceiver intended to be used on the HF bands. Main goal is to provide planet-wide, off-grid communications(ionosphere allowing), without the need of cellular or satellite infrastructure. Ideally, during peace time, you should have amateur radio licence to transmit with it!
It could be easily built, it's firmware compiled and updated. The hardware is designed to be modular with mostly off the shelf components that could be soldered by hand and if something goes wrong, easy to repair.
Both, hardware and firmware is designed by combining the great work of many hams. Please feel free to make one yourself and contribute.
- 3-30 Mhz amateur bands transmit and receive
- Large, 4.3inch IPS LCD with capacitive touch
- Supported SSB, AM, FM and CW
- Realtime waterfall and spectrum scope
- 25W output power
- Built in 80Wh LiOn battery
- Dual USB-C ports for power, charging and PC connection
- Support for Bluetooth stereo headphones
- Lora Sub-GHz radio
For older HW versions, firmware repository here
Crash course into the project and features here
rev6,mcHF,0.6.3(pcb/__legacy/bin/v6)rev7,mcHF,0.7.0(pcb/__legacy/bin/v7)rev8,mcHF,0.8.5(testing/gerbers/0_8_5)
mcHF is licensed under GPLv3.
