CrawlCraft 🕷️ Webcrawler

This system capable of crawling data from a provided web URL, vectorizing the crawled data, and enabling users to submit queries to retrieve and visualize relevant information.

Requirements

• Implement a web crawling mechanism in JavaScript or TypeScript to fetch and extract data from any provided URL or website.
• Ensure that your solution is capable of handling dynamic content or elements loaded asynchronously on the web page.
• Implement a method to convert the crawled textual data into vectorized representations. Choose an appropriate vectorization technique (eg. Word Embeddings) and store the data in a Vector DB.
• Develop a system where the user submits text queries, vectorizing them using the same technique, and providing the top 3 relevant crawled data.

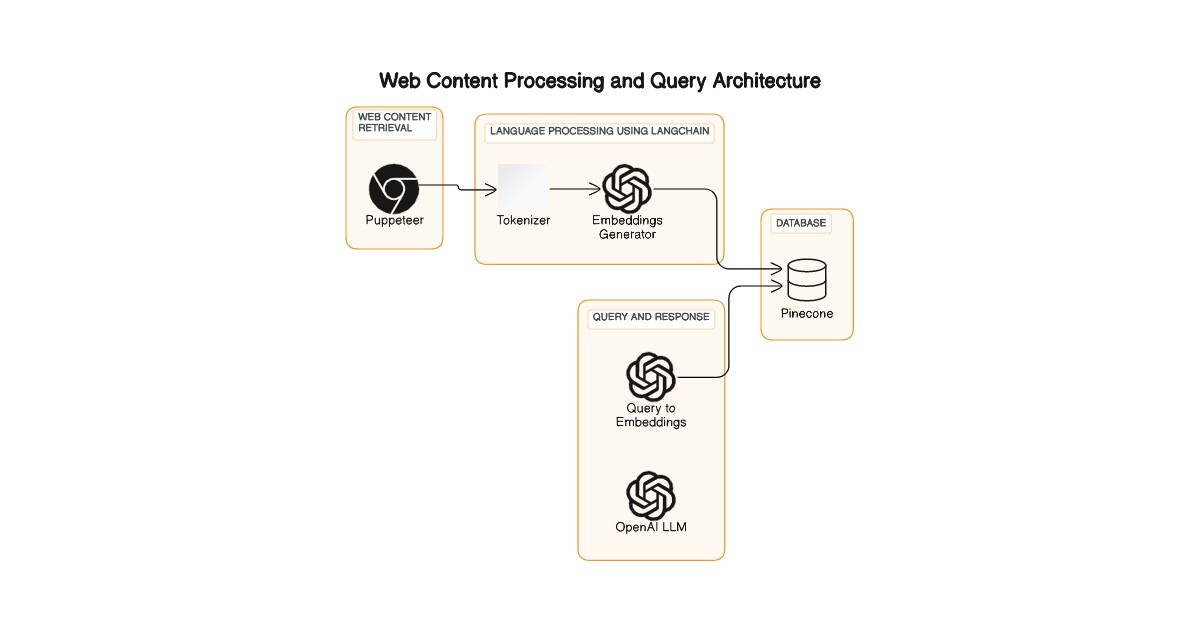

Architecture Diagram

Here's a description of the architecture diagram, incorporating the specified components:

1. Data Ingestion

   • Puppeteer: Fetches web page content from given URL and passes it to the next component.

2. Tokenization and OpenAI Embeddings

   • LangChain: Tokenizes text into meaningful units, generates OpenAI embeddings for tokens.

3. Embedding Storage

   • Pinecone: Pinecone is used as a vector database. It stores OpenAI embeddings efficiently, enables fast similarity search.

4. Query Processing and Retrieval from db:

   • Query Input: Receives user query.
   • Embedding Generation: Generates OpenAI embeddings for query.
   • Similarity Search: Uses Pinecone to find top 3 matching embeddings.

5. Response Generation

   • Data Retrieval: Retrieves corresponding web page content based on matched embeddings.
   • OpenAI LLM: Processes retrieved content and query, generates informative and comprehensive answer.

6. NodeJs Server

   • Express: This whole setup is running on the top of express server which is providing interface to use this system.

Visual Diagram (Conceptual)

View on Eraser

Key Considerations

• Embedding Dimensionality: Choose appropriate dimensionality for embeddings, balancing accuracy and storage/search efficiency.
• Similarity Metric: Select a suitable similarity metric for Pinecone search (e.g., cosine similarity).
• Query Understanding: Ensure the LLM can effectively understand and interpret user queries.
• Answer Generation: Refine LLM prompts and parameters for generating accurate and relevant answers.

Build and Run

1. Prerequisites

   • Make sure you have node js installed with version >=18.0.0 and npm version >=8.0.0 <10.0.0
   • You create should create Pinecone vector databse account and generate api key pinecone-api-link. Pinecone also have free tier database which can be used by beginners witout need of adding credit card.
   • You create should create OpenAI account and generate api key openapi-link.

2. Install node js dependencies

   • Go to the project's root folder and run

   $ npm install

3. Configuration

   • Create .env file in project's root folder with given template below and provide api keys mentioned below. You can tweak config according to your need.

     ENV=dev
     PORT=8001
     URL=http://127.0.0.1:8001
     OPENAI_API_KEY=sk-YOUR_OPENAI_API_KEY
     PINECONE_API_KEY=YOUR_PINECONE_API_KEY
     PINECONE_ENVIRONMENT=gcp-starter
     PINECONE_INDEX=web-crawler


4. Run Tests

   • To run tests use,

     $ npm run test

5. Run App

   • To start express server just run

     $ npm start

     By default server will run on 8001 port. Open the link http://127.0.0.1:8001 in the browser.

   • To run express server in dev mode, run

     $ npm run dev

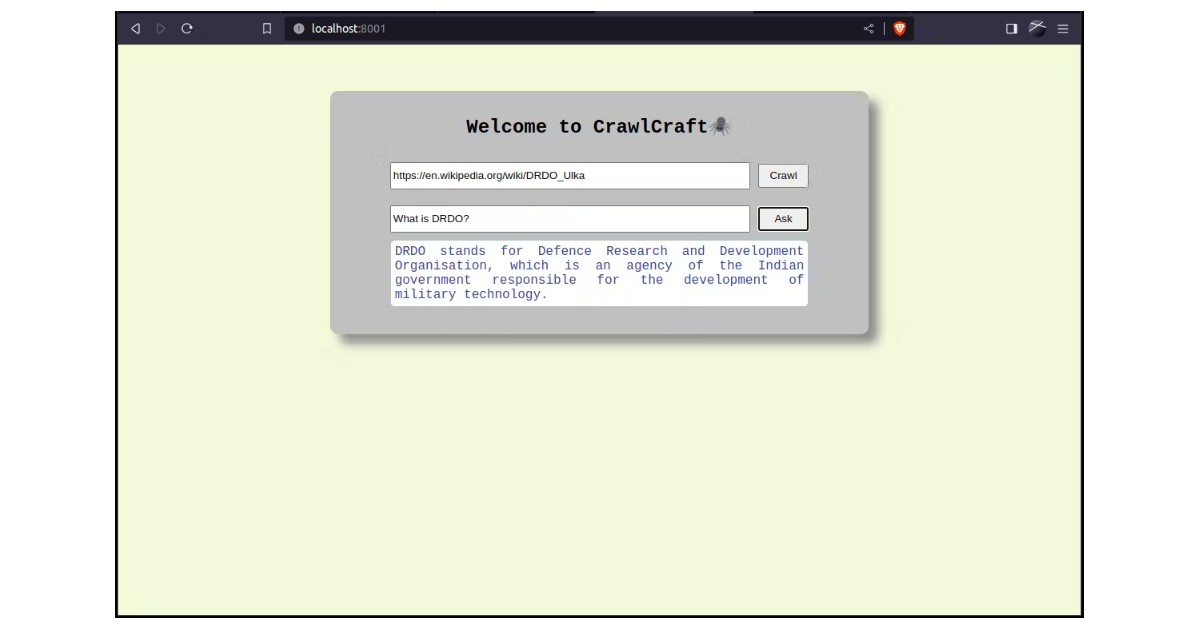

   This is how UI looks like in the browser. Screenshot
