Simple steps to run the trackers on Windows 7, 8.1 using Visual Studio 2013, cmake and OpenCV 3.0. It is assumed that a 64bit Windows is installed. If you use a 32bit Windows, update to 64bit.

Download and Install

OpenCV 3

• Download "OpenCV for Windows" from www.opencv.org.

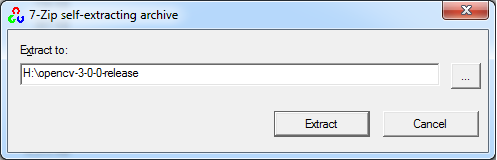

• Execute the file. It is a self-extracting archive. Throughout this tutorial, H:\opencv-3-0-0-release is used as install path for opencv:
• Setup the required OpenCV Paths:
  • Right-click on Computer -> Properties -> Advanced System Settings -> Environment Variables
  • On the System variables scroll list, select Path and click Edit. CAUTION: if you screw up your environment variables, you can break your system. Thus, ensure that you do not change anything else!: Prepend: H:\opencv-3-0-0-release\opencv\build\x64\vc12\bin; and click ok.
  • Click on new and create a system variable with name OPENCV_DIR and value H:\opencv-3-0-0-release\opencv\build\x64\vc12

Cmake

• Download cmake Windows Installer from http://www.cmake.org/
• Execute it. Install it anywhere on your system. Use default options for the rest of the dialogues.

Visual Studio 2013

• If you don't have Visual Studio: Microsoft provides a free version for individual developers (Read the license terms and ensure that these apply to you!): https://www.visualstudio.com/en-us/products/visual-studio-community-vs.aspx
• Install it anywhere on your system.

Download and build the project

• Download https://github.com/klahaag/cf_tracking/archive/master.zip to H:\

• Extract the zip files to H:\cf_tracking-master

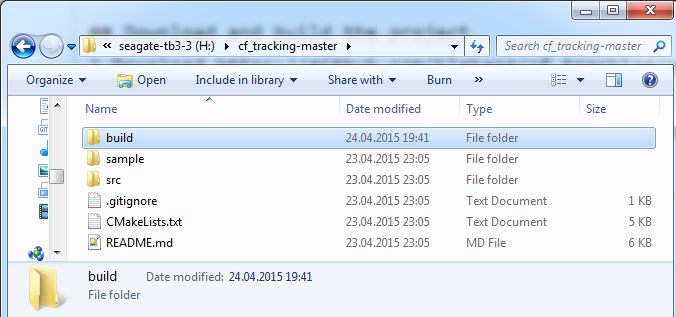

• Create the directory H:\cf_tracking-master\build The directory H:\cf_tracking-master should look like this:

• Run cmake-gui.

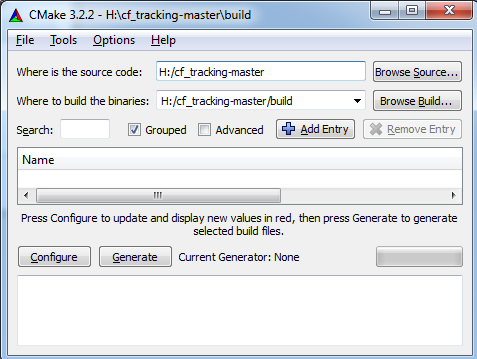

• Enter the src and build folder in the cmake gui like it is shown in the screenshot:

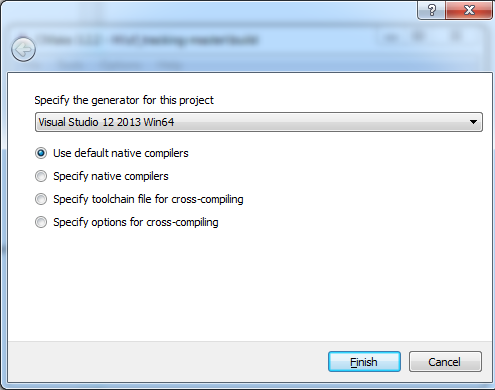

• Click on configure. A popup will open: Select Visual Studio 12 2013 Win64 from the generator dropdown.

• Click on Finish.

• You will see a couple of messages in the cmake-gui.

• Click above the messages on Generate. This will create a CfTracking.sln Visual Studio solution file in the folder H:\cf_tracking-master\build\.

• Open CfTracking.sln in Visual Studio.

• Select Release and build.

• The trackers are now located in H:\cf_tracking-master\build\Release.

• Copy the contents of H:\cf_tracking-master\sample to H:\cf_tracking-master\build\Release.

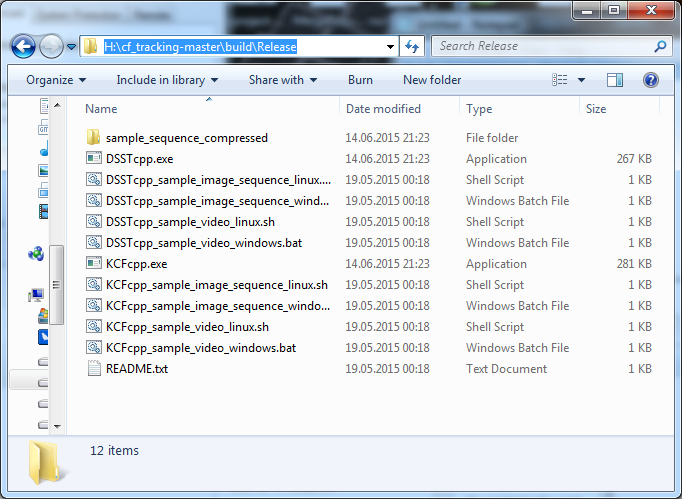

• `H:\cf_tracking-master\build\Release``should now look like this:

• Execute KCFcpp_sample_image_sequence_windows.bat to test KCFcpp or DSSTcpp_sample_image_sequence_windows.batto test DSSTcpp.

• Execute KCFcpp or DSSTcpp without arguments to use your webcam.

Xubuntu 14.04/15.04 Build

Install OpenCV 3.0

Guide based on http://docs.opencv.org/doc/tutorials/introduction/linux_install/linux_install.html:

• sudo apt-get install build-essential cmake git libgtk2.0-dev pkg-config libavcodec-dev libavformat-dev libswscale-dev
• git clone https://github.com/Itseez/opencv.git
• cd opencv
• git checkout tags/3.0.0
• mkdir build && cd build
• cmake -D CMAKE_BUILD_TYPE=RELEASE -D CMAKE_INSTALL_PREFIX=/usr/local ../
• make -j 8
• sudo make install

Download and and build trackers

• cd ~ && mkdir trackers && cd trackers
• git clone https://github.com/klahaag/cf_tracking.git
• mkdir -p cf_tracking/build && cd cf_tracking/build
• cmake -DCMAKE_BUILD_TYPE=Release -DWITH_OPENMP=ON ../
• make -j 8
• cp -r ../sample/* ./
