Vulkan-Game-Engine-Tutorial

practice repo for Vulkan game engine lecture and Vulkan tutorial
all the base codes and materials from

• Vulkan Game Engine lecture (Lec1~Lec27)
  https://www.youtube.com/playlist?list=PL8327DO66nu9qYVKLDmdLW_84-yE4auCR
  https://github.com/blurrypiano/littleVulkanEngine
• Vulkan Tutorial (texture mapping ~ compute shader)
  https://vulkan-tutorial.com/
  https://github.com/Overv/VulkanTutorial

Summary

• ~Lec08

  • covered:
    • env setup
    • window, glfw, glm, RAII
    • pipeline, shader, glsl
    • device, validatioin layer,
    • pipeline stage configuration, pipeline layout, render pass
    • frame buffer, v-sync, swap chain
    • command buffer, recording
    • vertex buffer, binding, attribute
    • interpolation
    • swap chain recreation, dynamic viewport and scissors
  •

• Lec09

  • covered:
    • push constants
    • shader alignment requirement
  •

• Lec10

  • covered:
    • transformation
    • ECS(Entity Component System) (game objects)
  • TODO
    • https://austinmorlan.com/posts/entity_component_system/
  •

• Lec11

  • covered:
    • refactoring -> rederer/ render system
    • reder pass compatibility
    • break one-to-one correspondence between swap chain image and command buffer.

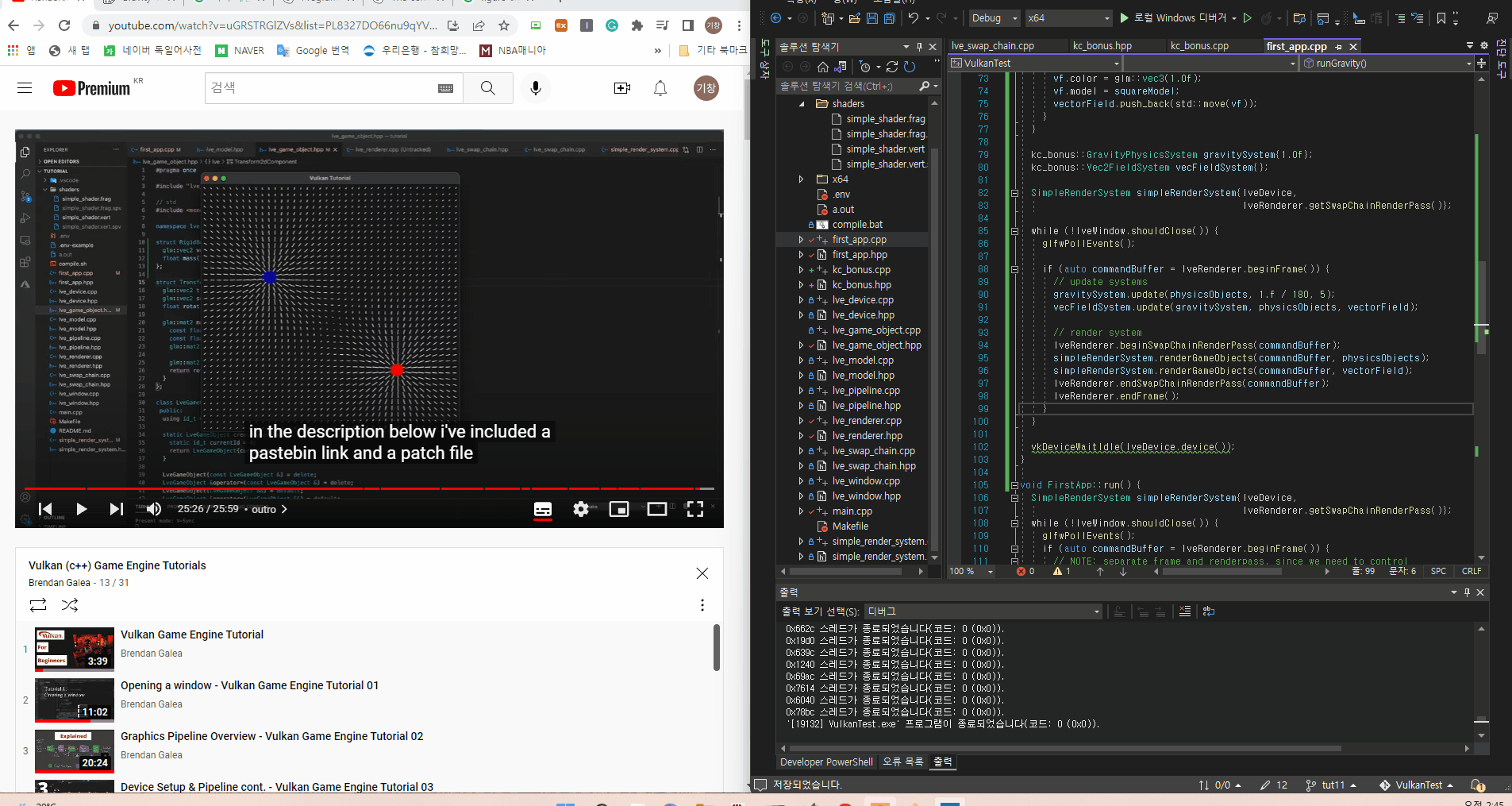

  • bonus: gravity simulation

• Lec12

  • covered:

    • homogeneous coordinates
    • Euler angle
    • 3d rendering
  • intrinsic rotation, extrinsic rotation

    intrinsic rotation, extrinsic rotation

    https://math.stackexchange.com/questions/1137745/proof-of-the-extrinsic-to-intrinsic-rotation-transform

    4개의 basis와 변환. rotation mat들은 모두 similar.

    $$ \begin{align} P_0 = S_{world_0}^{-1} \\ P_0: xyz \rightarrow x_0y_0z_0 \\ P_1: x_0y_0z_0 \rightarrow x_1y_1z_1 \\ P_2: x_1y_1z_1 \rightarrow x_2y_2z_2 \end{align} $$

    intrinsic xyz 순서로 alpha, beta, gamma 회전을 한다는것은 다음 mat연산

    $$ R = Z''(\gamma) P_2 Y'(\beta) P_1 X(\alpha) $$

    $$ \begin{align} X: A_{x_{0} y_{0} z_{0}} \rightarrow A_{x_{0} y_{0} z_{0}} \\ Y' P_1: A_{x_{0} y_{0} z_{0}} \rightarrow A_{x_{1} y_{1} z_{1}} \\ Z'' P_2: A_{x_{1} y_{1} z_{1}} \rightarrow A_{x_{2} y_{2} z_{2}} \end{align} $$

    Claim) : extrinsic으로 볼 수도 있다. (회전 축 순서는 반대방향)

    $$ \begin{align} S_{world_2}Z''(\gamma) P_2 Y'(\beta) P_1 X(\alpha) S_{world_0}^{-1} = X^{*}(\alpha) Y^{*}(\beta) Z^{*}(\gamma) \\ where \; S_{world_2} = (P_0 P_1 P_2)^{-1} \; and \; S_{world_0}^{-1} = P_0 \\ X^{*}: A_{xyz} \rightarrow A_{xyz} \\ Y^{*}: A_{xyz} \rightarrow A_{xyz} \\ Z^{*}: A_{xyz} \rightarrow A_{xyz} \end{align} $$

    Pf)

    $$ \begin{align} Y^{*} = S_{world_1} Y' S_{world_1}^{-1} = (P_1 P_0)^{-1} Y'(P_1 P_0) \\ Z^{*} = (P_2 P_1 P_0)^{-1} Z''(P_2 P_1 P_0) \\ \Rightarrow X^{*} Y^{*} Z^{*} = S_{world_2} Z''P_2 Y' P_1 X P_0 = \\ P_0^{-1}(P_1^{-1} P_2^{-1} Z''P_2 Y' P_1 X ) P_0 \end{align} $$

• Lec13

  • covered:
    • projection
      • orthographic
      • perspective
    • homogeneous coordinates
  •

• Lec14

  • covered:
    • cameara transformation
    • Viewing transformation (model - camera - perspective - orthographic - viewport)

• Lec15

  • covered:
    • game loop and time
    • camera controller

• Lec16

  • covered:
    • index buffer
    • staging buffer

• Lec17

  • covered:

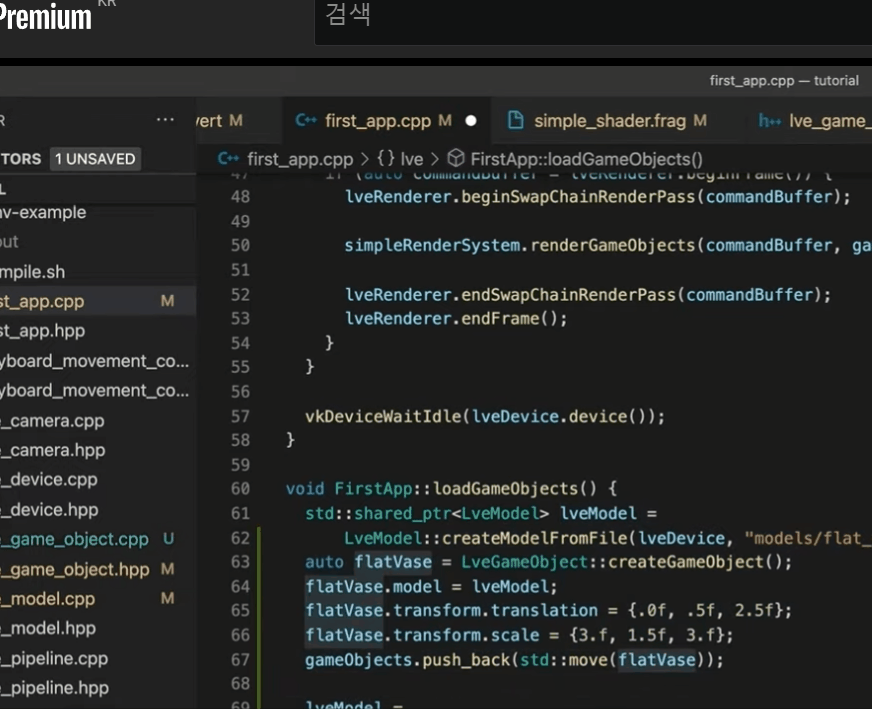

    • wavefront .obj format
    • tiny obj loader
    • .obj format using index buffer (vertex hash)
  •

• Lec18

  • covered:
    • lighting model. lambertian
    • directional light, diffuse, ambient
    • smooth shading, flat shading
    • surface normal transform
  •

• Lec19

  • covered:
    • uniform buffer, alignment
    • refactoring buffer abstraction, descriptor set intro
    • refactoring frame info

• Lec20

  • covered:
    • Descriptors, descriptor set, descriptor set layout, descriptor pool
    • update projection view model matrix to use uniform buffer.

• Lec21

  • covered:
    • Point light, attenuation
    • floor object
  •

• Lec22

  • covered:
    • per fragment lighting.
    • ECS refactoring - game objects controlled by a map with key of ID.
  •

• Lec23

  • covered:
    • build system refactoring with cmake

• Lec24

  • covered:
    • billboard - screen aligned
    • point light render system
  •

• Lec25

  • covered:

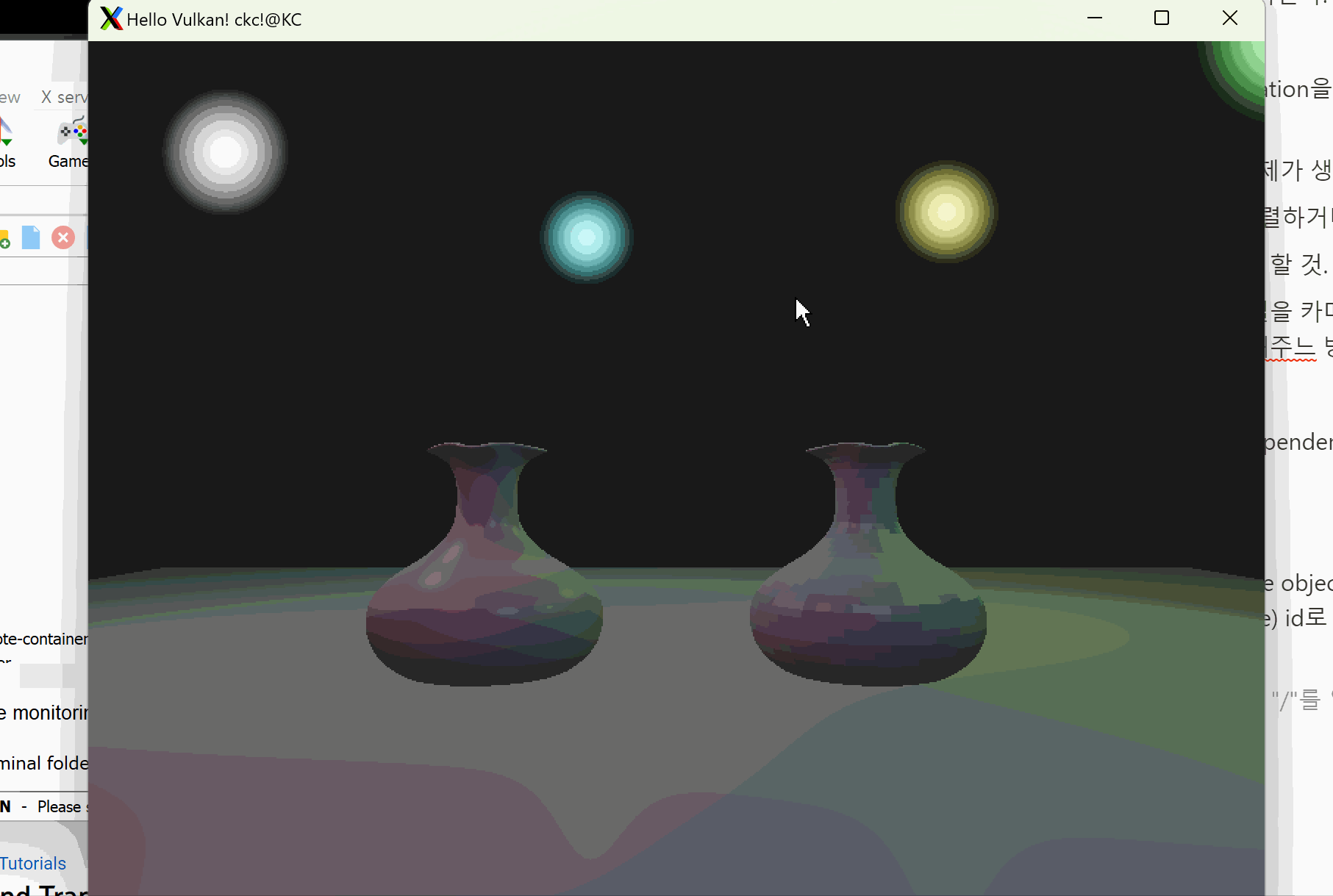

    • multiple point light
      • multiple light calculation in shader
      • multiple light source rendering
  •

• Lec26

  • covered:
    • specular lighting
    • Blinn-Phong model, inverse view matrix and half angle vector
  •

• Lec27

  • covered:
    • alpha blending
    • sorting semi-transparents object in rendering
  •

• Tutorial Texture mapping

  • covered:
    • image, imageView, texture sampler
    • texture resource descriptor set per object
  •

• Tutorial Depth buffering

  • covered:
    • depth image, render pass update
  •

• Tutorial Loading models

  • covered:
    • textured model loading, vertex deduplication
  • refacotoring: point light rotation system
  •

• Tutorial Generating mipmaps

  • covered:
    • using mipmap, image blit command and transition, sampler mipmap update
  •
  •
  •

• Tutorial Multi-Sampling-Anti-Aliasing

  • covered:
    • MSAA sample count, render target update, sample shading

  • x1 w/o MSAA	MSAAx4

• Tutorial Compute Shader

  • covered:

    • compute pipeline, compute shader, SSBO(shader storage buffer object)

  • recap:

    • descriptor sets, submitting commands buffers to queue and synchronization, depth test and alpha blending

  •

  •
