chartctl

This is a Python command-line tool that generates flowcharts based on a JSON configuration file, and outputs them as a PNG.

Requirements

• graphviz Python package (pip install graphviz)
• Graphviz binary (for the dot command)

Installation

1. Clone this repository or download the script:

   git clone https://github.com/jsf0/chartctl.git
   cd chartctl

2. Install the required Python package:

   pip install graphviz

Usage

Command-Line Options

• -i, --input (required): Path to the JSON configuration file.
• -o, --output (optional): Path to save the output PNG file (without the PNG extension). Defaults to flowchart.png.

Examples

Here's a simple config file:

{
  "nodes": {
    "start": { "label": "Start Process" },
    "approval": { "label": "Request Approval" },
    "approved": { "label": "Approved" },
    "rejected": { "label": "Rejected" },
    "retry": { "label": "Retry Request" },
    "end": { "label": "End Process" }
  },
  "connectors": [
    { "from": "start", "to": "approval" },
    { "from": "approval", "to": "approved", "label": "Yes" },
    { "from": "approval", "to": "rejected", "label": "No" },
    { "from": "rejected", "to": "retry", "label": "Retry?" },
    { "from": "retry", "to": "approval" },
    { "from": "approved", "to": "end" }
  ]
}

"Nodes" are the start/end blocks, processes, decision points, or anything else you want in your flowchart. "Connectors" are the lines that connect them together. You can label nodes and connectors however you want.

You can create the PNG out of the JSON above with the following command:

chartctl.py -i request_process.json

It will create the following PNG:

You can optionally add colors and custom shapes for the nodes and connectors too:

{
  "nodes": {
    "start": { "label": "Start Process", "shape": "oval", "fillcolor": "lightblue", "style": "filled" },
    "approval": { "label": "Request Approval", "shape": "diamond", "fillcolor": "yellow", "style": "filled" },
    "approved": { "label": "Approved", "shape": "rectangle", "fillcolor": "lightgreen", "style": "filled" },
    "rejected": { "label": "Rejected", "shape": "rectangle", "fillcolor": "lightcoral", "style": "filled" },
    "retry": { "label": "Retry Request", "shape": "rectangle", "fillcolor": "lightgray", "style": "filled" },
    "end": { "label": "End Process", "shape": "oval", "fillcolor": "lightblue", "style": "filled" }
  },
  "connectors": [
    { "from": "start", "to": "approval" },
    { "from": "approval", "to": "approved", "label": "Yes", "color": "green" },
    { "from": "approval", "to": "rejected", "label": "No", "color": "red" },
    { "from": "rejected", "to": "retry", "label": "Retry?", "color": "orange" },
    { "from": "retry", "to": "approval" },
    { "from": "approved", "to": "end" }
  ]
}

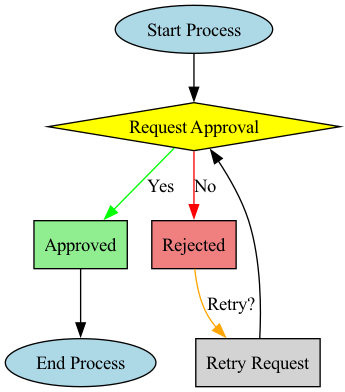

This will generate a more colorful flowchart:
