🚀 AgnFlow

Efficient lightweight Python Agent Workflow Engine
高效轻量的 Python 智能体工作流引擎

Support Sync/Async Nodes, Branching Loops, Visual Flowcharts | Build Agent Task Flows Fast
支持同步/异步节点、分支循环、可视化流程图 | 快速搭建 Agent 任务流

💻 Code → 📊 Log → 🎨 Flowchart - Complete development agent workflow visualization in minutes
💻 代码 → 📊 日志 → 🎨 流程图 - 快速开发复杂的智能体工作流可视化

---

English Documentation

⚡ Quick Start - Minimalist Syntax

from typing import TypedDict
from agnflow import Node, Flow

# Define state
class State(TypedDict):
  message: str

# Define nodes
start = Node(
  name="start",
  exec=lambda s: ("process", {"message": "Hello"}) # Instantiate Node, specify exec
)
class ProcessNode(Node): # Inherit Node, override exec
  def exec(state: State):
    # Route to end node and update message state
    return "end", {"message": s["message"] + " World"}
process = ProcessNode() # No name specified, automatically gets variable name "process"
end = Node(exec=print) # Print state

# Create workflow
flow = Flow(start >> process >> end)

# Run workflow
state: State = {"message": ""}
flow.run(state)  # Output: {'message': 'Hello World'}

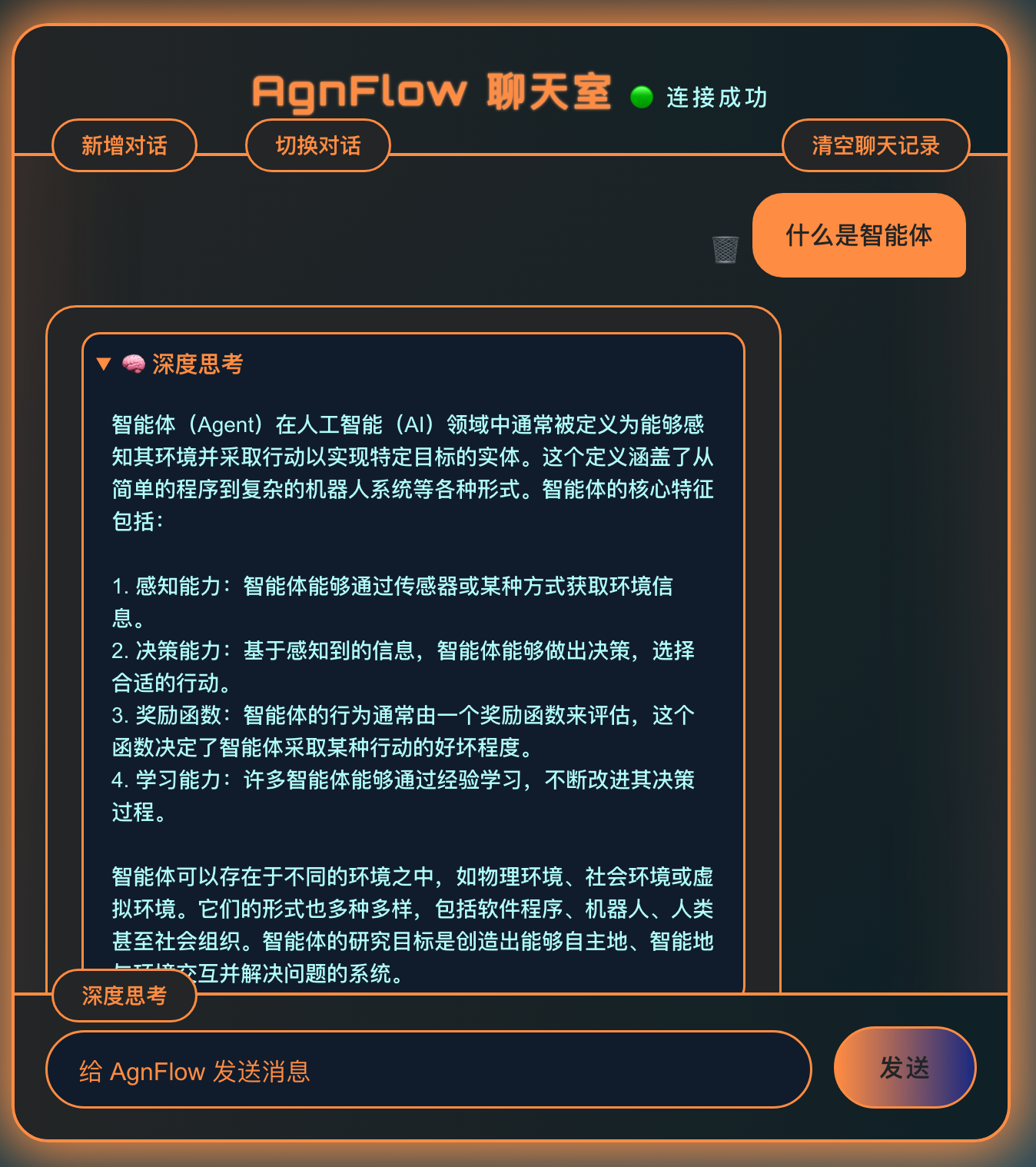

🤖 Static Web Chat Room Experience - Visit Backend Interface http://127.0.0.1:8000/en

from agnflow.chatbot.server import Server

server = Server()
server.run()

🧠 Structured reasoning with step-by-step thinking process | 💻 Intelligent code generation with detailed explanations

🎨 Automatic Flow Visualization

flow.render_mermaid(saved_file="flow.png")  # Directly generate image

Complex Connection	Supervisor Agent	Runtime Management
n1 >> [n2 >> n3, n3 >> n4] >> n5	s1[n1, n2, n3] >> n4	flow += new_node flow -= old_node

🔄 Runtime Node Management

# Add/Remove nodes at runtime
flow += new_node
flow -= old_node

# Symmetric connect/disconnect syntax
a >> b >> c    # Connect nodes
a - b - c      # Symmetrically disconnect

🚀 Advanced Flow Control

• Sync/Async Mixed: n = Node(exec=sync_func, aexec=async_func)
• Branch/Loop: n1 >> [n2, n3] >> n1 (n1 points to n2 and n3, n2 and n3 point to n1)
• Swarm Agent: s = Swarm(); s[n1, n2, n3] >> n4 (n1, n2, n3 are fully connected inside s)
• Parallel Flow: pf = ParallelFlow(); pf[n1, n2, n3] (Execute child nodes concurrently)
• Human Review: CLI/API intervention with hitl

📦 Installation

pip install agnflow

---

中文文档

1. ⚡ 快速开始 - 极简语法

from typing import TypedDict
from agnflow import Node, Flow

# 定义状态
class State(TypedDict):
  message: str

# 定义节点
start = Node(
  name="start",
  exec=lambda s: ("process", {"message": "Hello"}) # 实例化 Node，指定 exec
)
class ProcessNode(Node): # 继承 Node，重写 exec
  def exec(state: State):
    # 路由到 end 节点，并且更新 message 状态，
    return "end", {"message": s["message"] + " World"}
process = ProcessNode() #  没有指定 name 属性，自动获取实例化变量名 "process"
end = Node(exec=print) # 打印 state

# 创建工作流
flow = Flow(start >> process >> end)

# 运行工作流
state: State = {"message": ""}
flow.run(state)  # 输出: {'message': 'Hello World'}

2. 🤖 静态 Web 聊天室体验 - 访问后端接口 http://127.0.0.1:8000/zh

from agnflow.chatbot.server import Server

server = Server()
server.run()

🧠 结构化推理，每一步都有清晰的思考过程 | 💻 智能代码生成，提供详细解释

3. 🎨 自动可视化流程图

flow.render_mermaid(saved_file="flow.png")  # 直接生成图片

复杂连接	监督者智能体	运行期管理
n1 >> [n2 >> n3, n3 >> n4] >> n5	s1[n1, n2, n3] >> n4	flow += new_node flow -= old_node

4. 🔄 运行期动态节点管理

# 运行期增删节点
flow += new_node
flow -= old_node

# 对称的连接/断开语法
a >> b >> c    # 建立连接
a - b - c      # 对称断开

5. 🚀 高级流程控制

• 同步/异步混合: n = Node(exec=sync_func, aexec=async_func)
• 分支/循环: n1 >> [n2, n3] >> n1（n1 指向 n2 和 n3，n2 和 n3 指向 n1）
• 蜂群智能体: s = Swarm(); s[n1, n2, n3] >> n4（s 内部的 n1，n2，n3 全互连）
• 并行工作流: pf = ParallelFlow(); pf[n1, n2, n3]（并发执行多个子节点）
• 人工审核: CLI/API 介入 hitl

6. 📦 安装

pip install agnflow

---

📚 学习文档 Documentation

访问我们的文档获取：
Visit our documentation for:

• 详细教程和示例 Detailed tutorials and examples
• API 参考 API reference
• 最佳实践 Best practices
• 高级用法 Advanced usage

🤝 贡献 Contributing

我们欢迎贡献！请随时提交 Pull Request。
We welcome contributions! Please feel free to submit a Pull Request.

📄 许可证 License

本项目基于 MIT 许可证 - 查看 LICENSE 文件了解详情。
This project is licensed under the MIT License - see the LICENSE file for details.

---

📞 联系方式与社区

💬 加入我们的社区，参与讨论、提问和协作！

个人微信 直接联系维护者

开发者社群 加入我们的开发者社区

欢迎随时联系我们，提出问题、建议或只是打个招呼！👋

---

If you find this project helpful, please give it a ⭐️ Star!
如果这个项目对你有帮助，请给它一个 ⭐️ Star！
Your support is my motivation to keep improving 💪

你的支持是我持续改进的动力 💪

---
