Reporting functioning for all the box purposes, also exporting to PDF and SVG working. I know that we talked on the contrary. Still, I'm submitting one big PR because:

it was started from an old version of main and the rebasing plus applying the changes dividing this PR is much more error-prone;
the intermediate PRs had code that changes at the end and revising that code will double the work without the necessity
the first of the PRs to be submitted before was not much smaller than this one.

Said this... There are three plots & one visualization, which have some differences from the mockups that will be remarked.

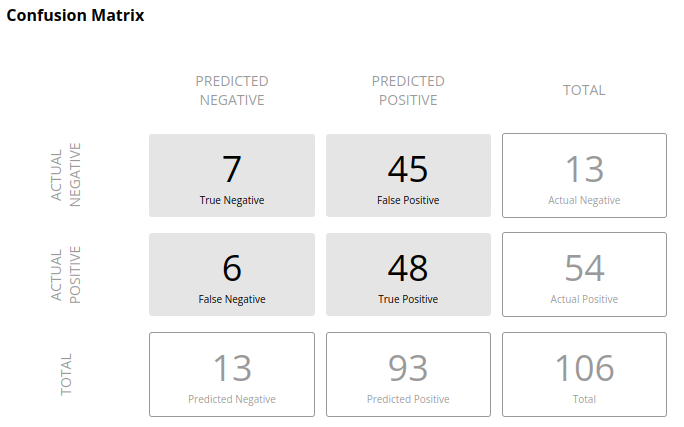

Confusion matrix, which is displayed on all the visualizations

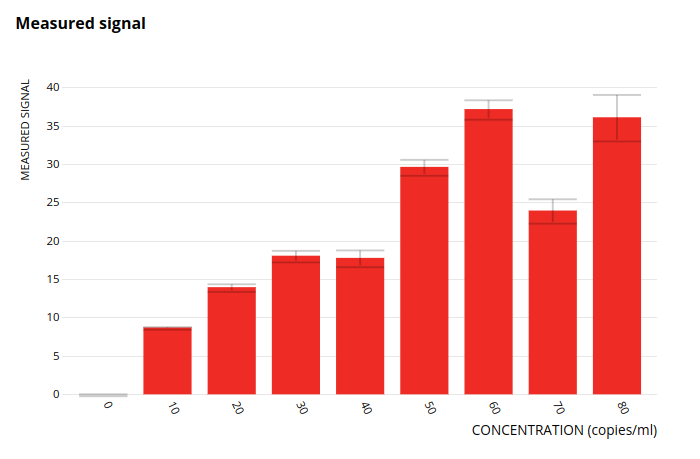

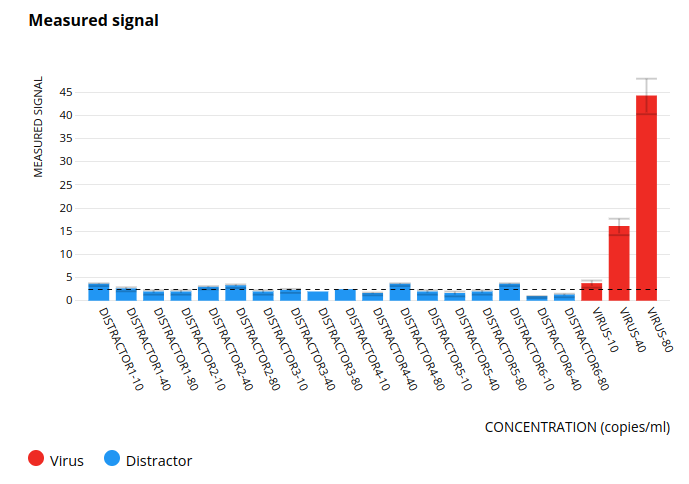

Measured signal, looks like the mockup for Variants & LOD and in the case of Challenge have two differences: distractor samples are grouped in blue bars and virus ones are kept in red, and there is a line to indicate the threshold.

For LOD:

For Challenge:

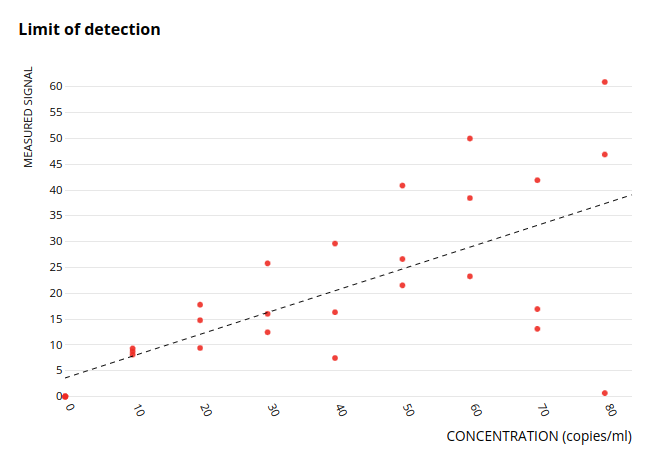

Limit of detection which is only displayed in LOD purpose and looks different attending client request: each sample has a concentration and a measured signal and represents a point in the plot, the regression line computed for all these points is represented with a dashed line.

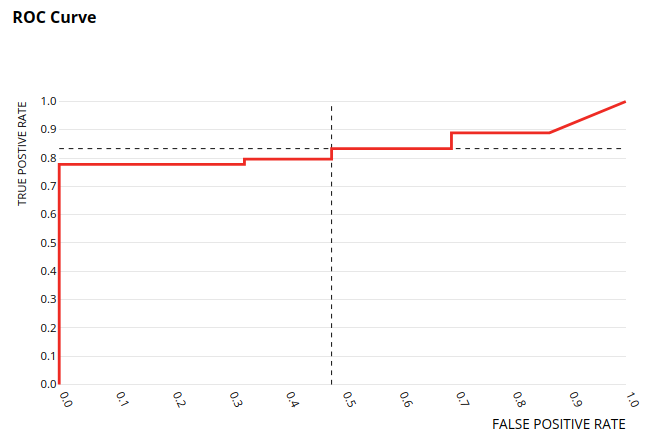

ROC curve which is only displayed for Challenge purpose. The curve itself is displayed in red, and the TPR and FPR of the selected threshold are updated to accommodate the dashed lines.

The Challenge report allows the user to update the threshold via a slider:

This threshold will update the confusion matrix, dashed lines mentioned above, and the information card on the left:

When the threshold bar is moved update_threshold is GET from the controller to update variables. For Variants and LOD threshold is always zero: all the samples contain virus, then they are only negative those containing zero concentration (no virus).

Also, there are enabled buttons to download SVG and PDF files are functioning:

For the PDF exporting, a new view was generated, avoiding layout and generating a view that will be "printed" to a file. This file is generated using this library, which helps with margins/page-orientation/page-breaks, etc. The library wasn't installed with NPM in the project, is dynamically loaded in javascript. Should it be installed?
For the SVG exporting: after intensive stack overflowing the issue, the only solution working properly was to:

generate an element that downloads a generated Blob; along with
a function that recursively takes the CSS styles of the elements and writes them into the styles property. This function is called applyInLine. The natural option for this when looking to solve this issue was to use getComputedStyle, but it didn't work properly for the react-generated SVG, while this one, more "sophisticated" did.

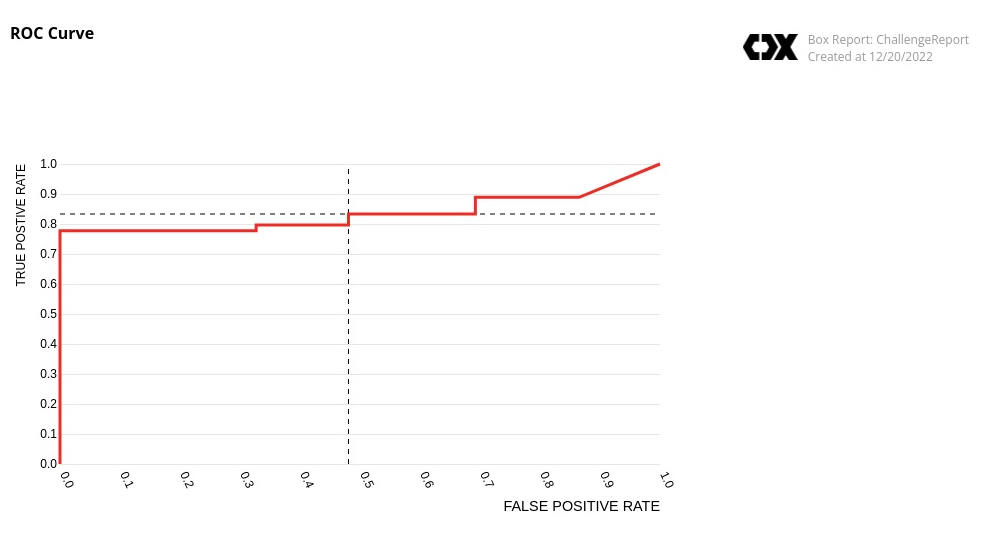

Screenshots of the PDF (for Challenge purpose, illustrative of the others):

1/3

2/3

3/3

Important: this PR rely in the existence of a distractor attribute in samples, which was faked during the development and not committed, and it should be merged into main after the PRs containing the addition of this attribute are merged
