MineSweeper

This is an agent to automatically detect all mines in a map consisting of clues and mines.

There are 4 parts for this program.

• Map: to generate a map consisting of clues and mines if given row, col and mines.
• User: to judge if agent win or lose, and give agent the clue number.
• Agent: to play the minesweeper as a man, during this process, it stores and updates all interesting information and analysize to give next click.
• Visualizaton: to display agent's each click event.

Logics behind the agent.

Denote point A and point B

• Mark all A's undetected neighbours as safe squares if len(A's mines) is equal to A's clue number.
• Mark all A's undetected neighbours as mines if A's clue number is equal to len(A's mines) + len(A's undetected neighbours).
• Mark all [A's undetected neighbours - B's undetected neighbours] as mines if [A's number - len(A's mines)] > [B's number - len(B's mines)] and len(A's undetected neighbours - B's undetected neighbours) is equal to [A's number - len(A's mines)] - [B's number - len(B's mines)]
• Mark all [A's undetected neighbours - B's undetected neighbours] as safe squares if A's undetected neighbours contains B's undetected neighbours totally and [A's number - len(A's mines)] = [B's number - len(B's mines)]

What the agent will do when there is no safe squares to click at all?

Denote p as a percentage given before.

• If the number of unvisited squares outside clue number circle divides the number all squares, the agent will randomly click a square outside the clue number circle.
• Else, the agent will pick an unvisited square with highest priority(an unvisited square with most clue squares around it) to mark it as a mine, then update knowledge accordingly.

Different reasons of failure.

It's obvious that the agent may have kinds of faults that cause it to lose the game according to its strategy that deals with uncertainty.

• Type A: Randomly click a square with a mine in it.
• Type B: Mark a fake mine.

Some running screenshots of the agent on 30*30 map with different number of mines.

Notations

• Squares with GREY color represents that this square has NOT been visited.
• Squares with YELLOW color and NO TEXT represents that this square has been sweeped correctly by agent.
• Squares with YELLOW color and T represents that the agent clicks the square with a mine in it and loses the game.
• Squares with YELLOW color and F represents that the agent marks a fake mine.
• Squares with ORANGE color and NUMBER represents that this clue square has been clicked by agent.
• Squares with WHITE color and NO TEXT represents that this is an empty square(with clue number 0).

The percentage of mines is 0.11(100 mines)

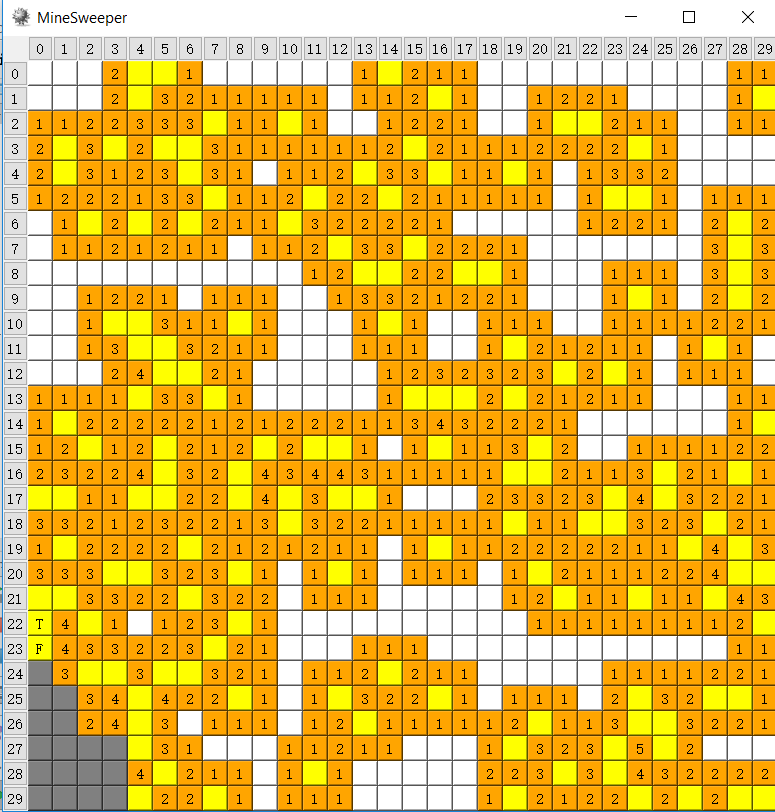

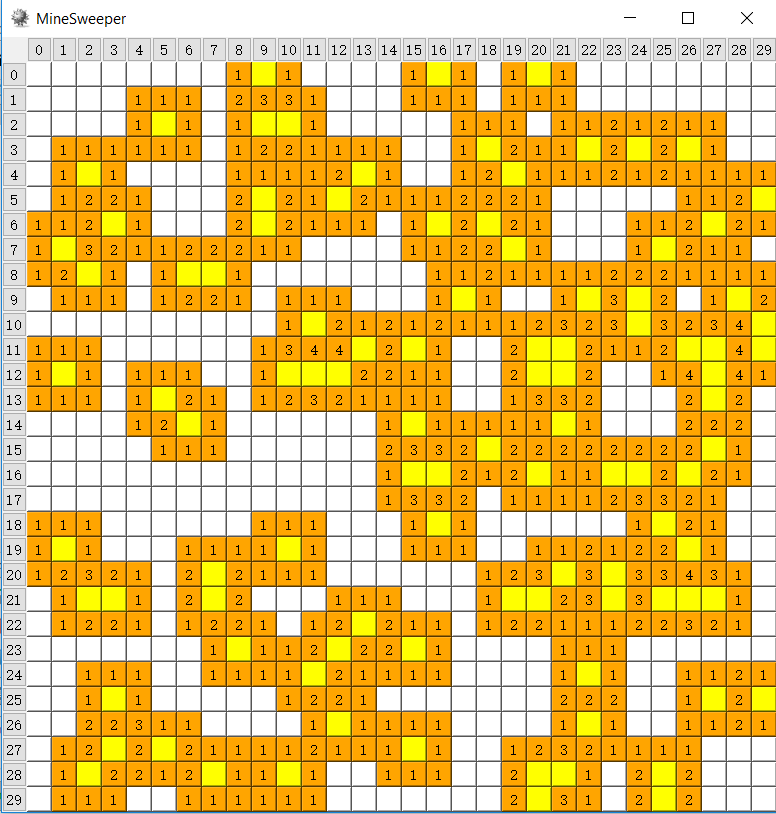

success screenshot

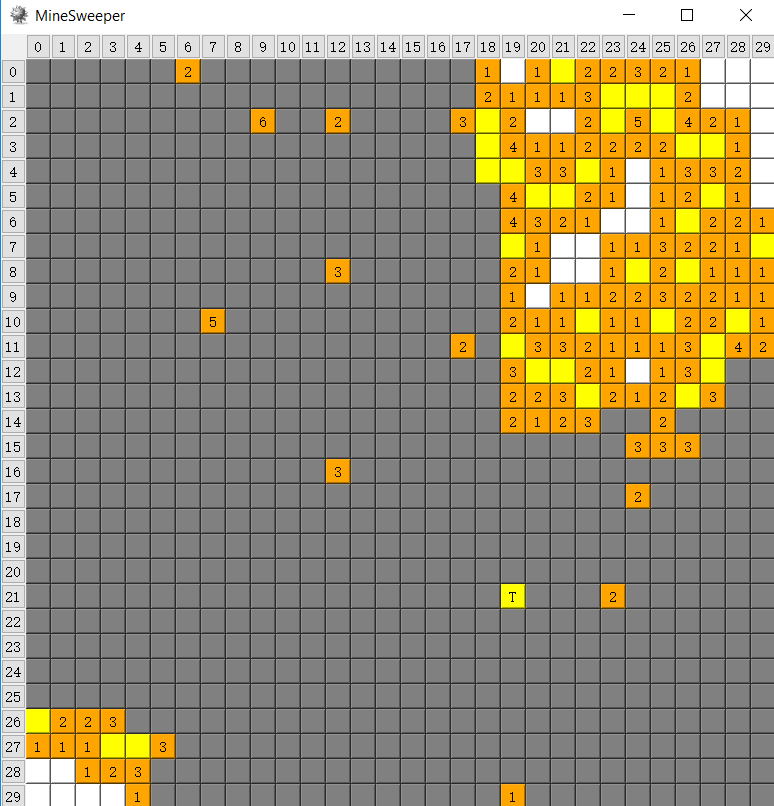

randomClick failure screenshot

The percentage of mines is 0.17(150 mines)

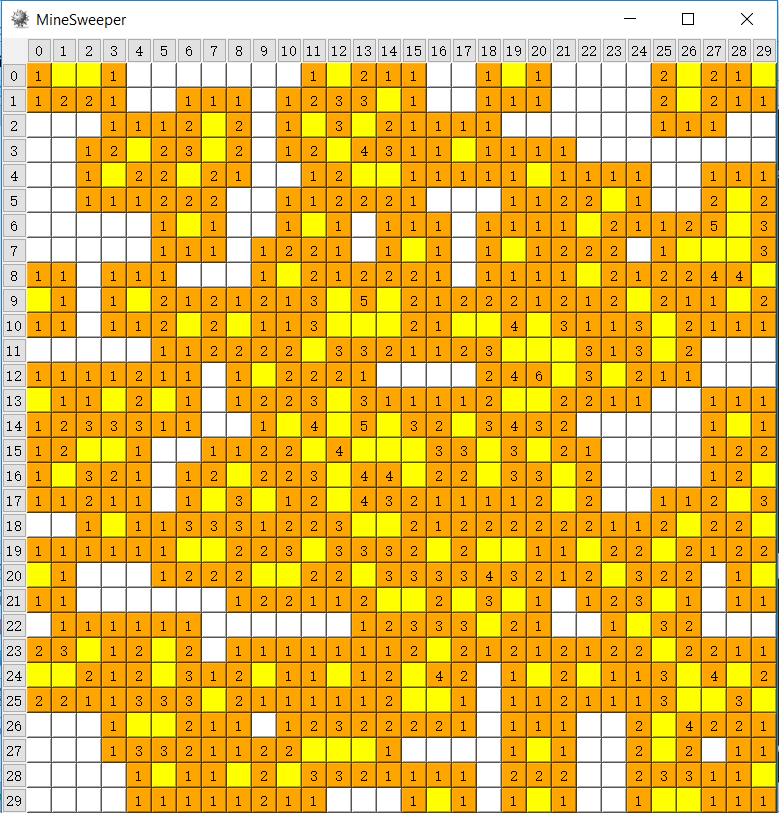

success screenshot
randomClick failure

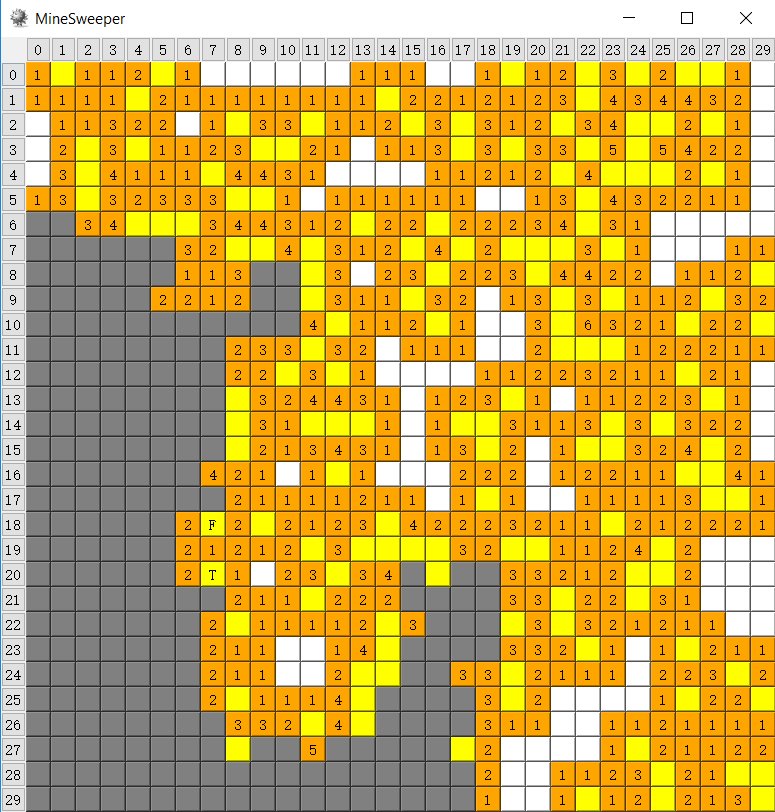

markFakeMine failure

The percentage of mines is 0.22(200 mines)

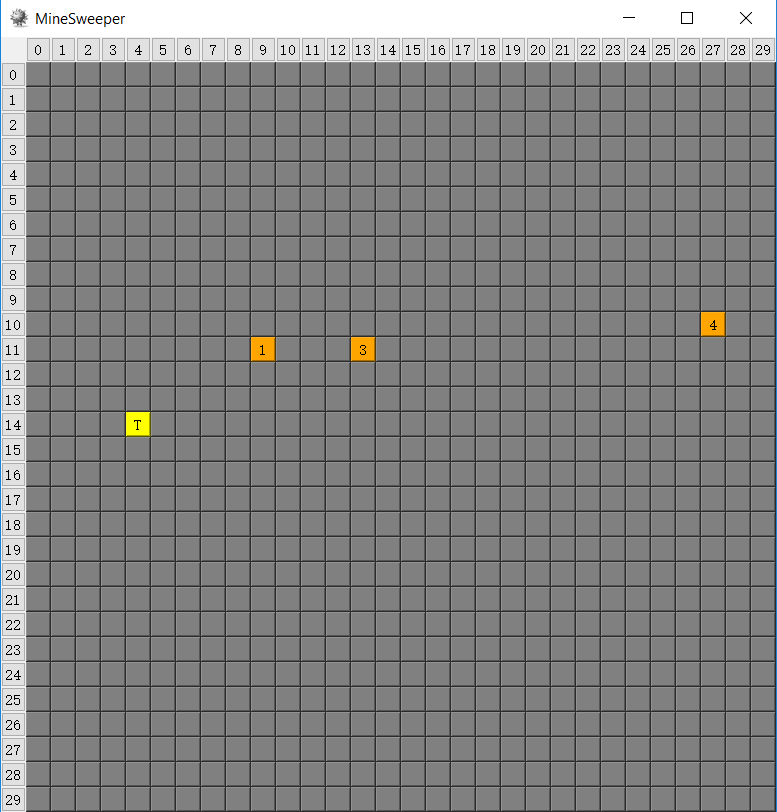

randomClick failure

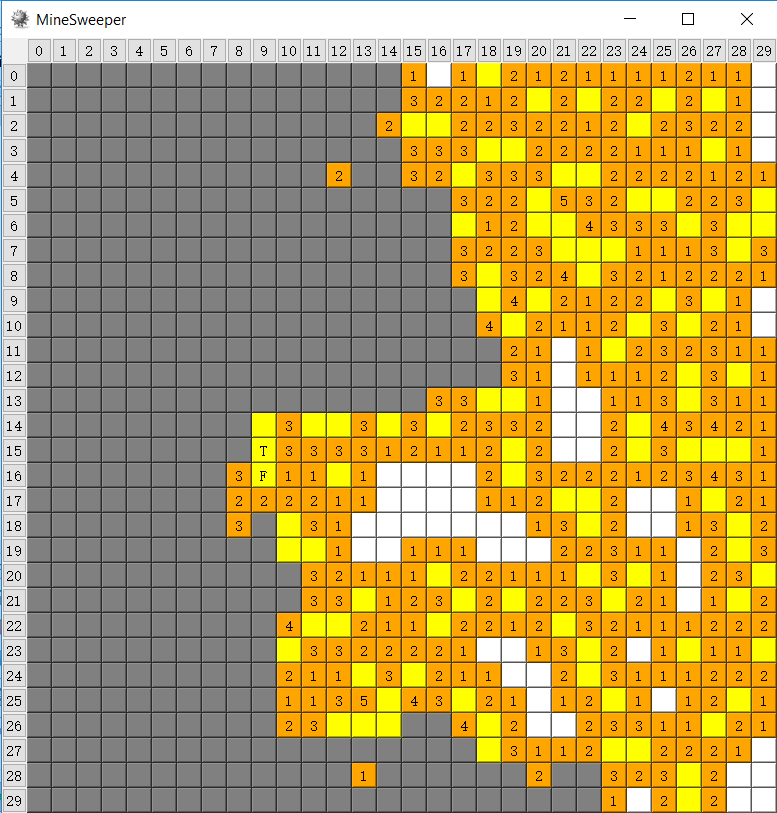

markFakeMine failure1
markFakeMine failure2

The percentage of mines is 0.28(250 mines)

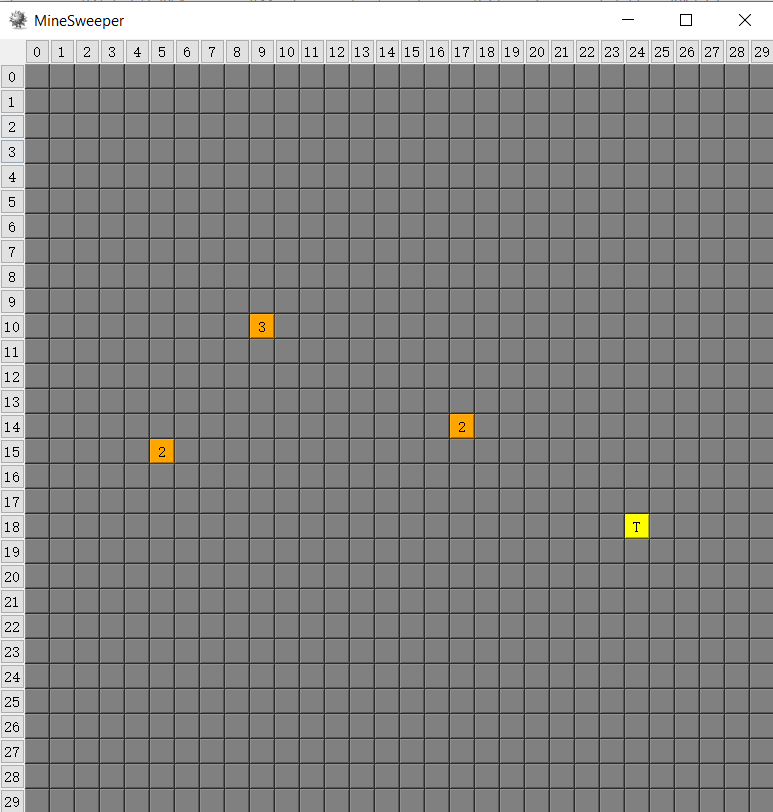

randomClick failure

Analysis of these screenshots

As we can see, when p is small, the agent will sweeper all the mines with higher possibility, as the p goes up, the agent will do more calculations and has to deal with some uncentainty, and when p is high enough( higher than 0.25), the agent will hardly win the game because it's randomly click action will become dangerous.

How to run?

• First, install all dependent packages.
• Second, run visualize.py
