Related Libraries

This project is meant to be used with the following RPC libraries:

• Go：https://github.com/gufeijun/rpch-go
• C：https://github.com/gufeijun/rpch-c
• Node：https://github.com/gufeijun/rpch-node

Introduction

hgen is the compiler for the Interface Definition Language (IDL) of a cross-language RPC framework, similar in concept to gRPC.

Instead of using a third-party IDL like Protocol Buffers, hgen uses its own simple, custom-designed syntax. The purpose of this compiler is to parse our custom syntax and generate stub code for target languages, which then interfaces with the RPC frameworks listed above. Currently, it supports mutual RPC calls between Go, C, and Node.js.

The compiler's frontend is a hand-written recursive descent parser for an LL(1) grammar, and the backend uses Go's template engine for code generation. The grammar can be found in bnf.txt.

For details on the RPC framework's protocol design, please see the rpch-go

IDL Syntax

Create a math.gfj file：

service Math{
    // Add two numbers
    uint32 Add(uint32,uint32)	// Multiple input parameters of basic types are allowed
       // Subtract two numbers
    int32 Sub(int32,int32)
    // Multiply two numbers
    int32 Multiply(TwoNum)
    // Divide two numbers
    Quotient Divide(uint64,uint64)
    void NoReturnFunc(void)		// Services can have no return value or request parameters
}

message Quotient{
    uint64 Quo	// Quotient
    uint64 Rem	// Remainder
}

message TwoNum{
    int32 A
    int32 B
}

// A message can contain other messages as members
message ComplexStruct {
    TwoNum Nums
    Quotient noConcern
}

There are only two keywords:

• message defines composite structures.
• service defines a collection of services.

Basic Types：int8、uint8、int16、uint16、int32、uint32、int64、uint64、float32、float64、string、void、stream、istream、ostream。stream is a streaming type, currently only supported by rpch-go. See rpch-go for more details。

Benchmarking

In addition to the three language implementations of rpch, we introduced Go's standard RPC library and the gRPC framework for a comparative analysis.

The test case is a simple Add service (adding two numbers). Our framework can implement this service in two ways via the IDL:

Implementation 1

service Math{
	int32 Add(int32,int32)
}

No JSON serialization is needed; data is transferred directly in little-endian format, resulting in higher efficiency.

Implementation 2

service Math{
	Response Add(Request)
}
message Response{
	int32 Result
}
message Request{
	int32 A
	int32 B
}

This requires serialization to transfer composite message structures, leading to lower efficiency but better representing typical application scenarios. Since gRPC can only use this method, this implementation is more representative of real-world business cases. Therefore, in addition to the first method, we also benchmarked our framework with this second implementation.

We measured throughput and latency with a varying number of concurrent clients. When the number of concurrent clients was 500 or less, each client sent 10,000 RPC requests. When it exceeded 500, each client sent 1,000 requests to save time.

The tests used a synchronous request-response model, where a new request is not sent until the response to the previous one is received. All tests were run multiple times, and the average values were taken.

Raw Data

rpch-c represents the framework implemented in C. rpch-c(json) represents the C implementation using the second method (JSON serialization).

Throughput (requests/sec) under different numbers of concurrent clients:

	rpch-c	rpch-c(json)	rpch-go	rpch-go(json)	rpch-node	stdrpc	grpc-go
1	9980	9320	11792	9355	1039	6993	3686
10	74239	72727	91491	78740	8702	71994	29420
100	178922	144928	148456	115380	12649	110803	37926
200	167940	130387	139860	111988	15759	107718	39118
300	158587	125697	134735	109601	17549	104102	39425
500	150299	119927	131144	107794	17370	101161	39538
1000	151604	120460	130371	111089	16420	102162	39757
2000	145041	1209575	129514	109922	15709	99789	37434
5000	143661	113254	123066	102303	14772	90283	36342

Latency per request (ms) under different numbers of concurrent clients:

	rpch-c	rpch-c(json)	rpch-go	rpch-go(json)	rpch-node	stdrpc	grpc-go
1	0.1002	0.1073	0.0848	0.1069	0.9628	0.143	0.2713
10	0.1347	0.1375	0.1093	0.127	1.1491	0.1389	0.3399
100	0.5589	0.69	0.6736	0.8667	7.9056	0.9025	2.6367
200	1.1909	1.5339	1.43	1.7859	12.691	1.8567	5.1127
300	1.8917	2.3867	2.2266	2.7372	17.0947	2.8818	7.6093
500	3.3267	4.1692	3.8126	4.6385	28.785	4.9426	12.6462
1000	6.5961	8.3015	7.6704	9.0018	60.903	9.7884	25.1527
2000	13.7892	16.5323	15.4424	18.1948	127.3164	20.0422	53.427
5000	34.8042	44.1485	40.6287	48.8744	338.4807	55.3812	137.5815

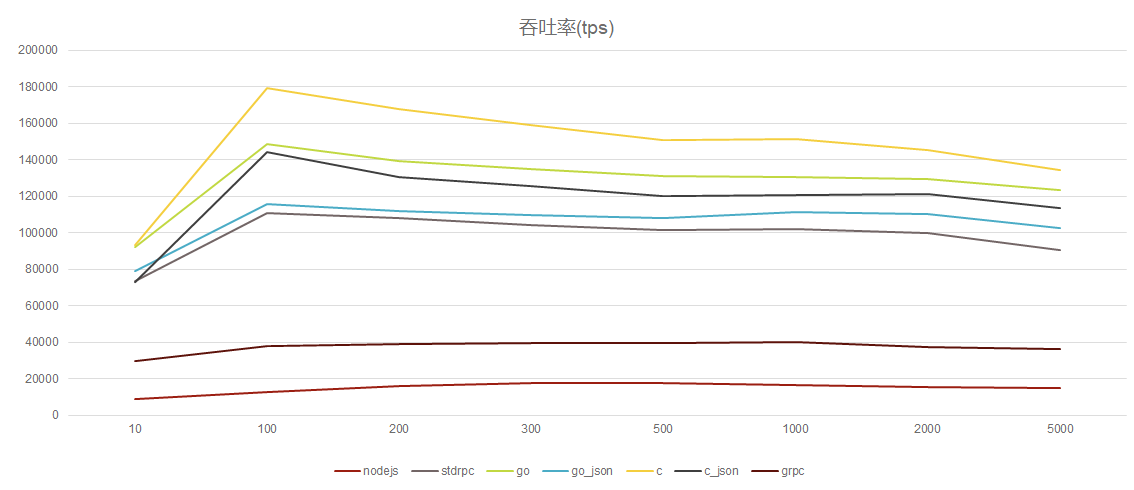

Throughput

(The horizontal axis represents the number of concurrent clients, and the vertical axis represents throughput in RPC requests per second. Higher is better.)

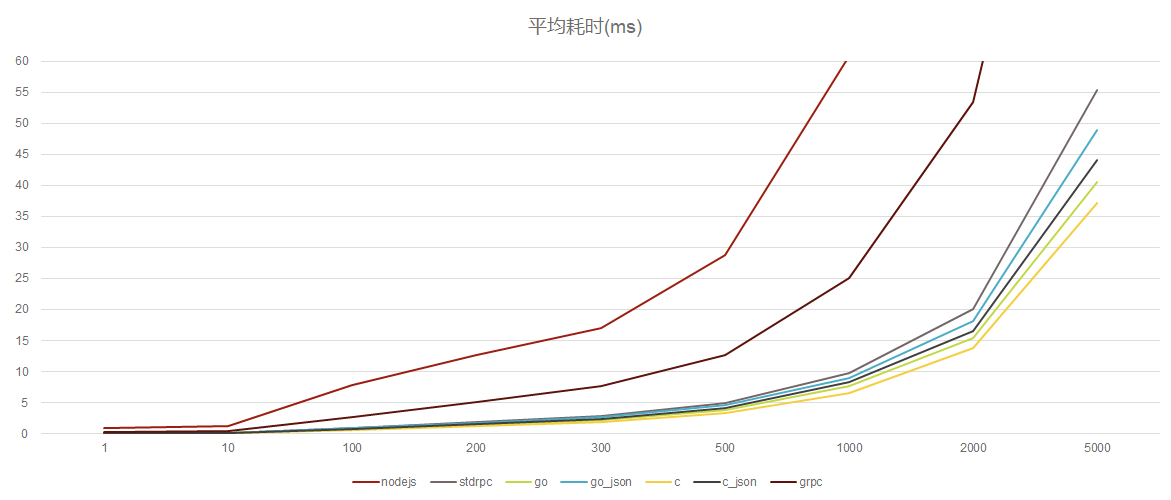

Latency

(The horizontal axis represents the number of concurrent clients, and the vertical axis represents the latency per request in milliseconds. Lower is better.)

Conclusion

Based on the benchmark results, we can draw the following conclusions in order of performance: rpch-c > rpch-go > rpch-c(json) > rpch-go(json) > stdrpc >> grpc-go > rpch-node.

Overall Performance:

1. The custom rpch framework developed in C (rpch-c) achieves the highest performance, followed closely by the Go implementation (rpch-go).
2. Serialization Overhead: Employing JSON serialization results in a noticeable performance degradation. However, even with this overhead, both C and Go implementations still outperform Go's standard RPC library (stdrpc).
3. Framework Comparison: The performance of grpc-go is significantly lower, only about twice that of rpch-node. Stability: All frameworks exhibit stable performance, with latency increasing linearly as the number of concurrent clients grows. The performance rankings for latency are consistent with those for throughput.
4. Language Impact: As expected, the C implementation delivers the best performance, while the Node.js implementation is the least performant.

Installation and Usage

There are two ways to install hgen:

1. Build from Source

# for linux
git clone github.com/gufeijun/hgen
cd hgen
go build -o hgen main.go

This will generate an executable file named hgen.

2. Download Binaries

   Pre-compiled binaries are available on the Releases page.

Usage：

Usage of hgen:
	hgen [options] <IDLfiles...>
options：
  -dir string
    	the dirpath where the generated source code files will be placed (default "gfj")
  -lang string
    	the target languege the IDL will be compliled to (default "c")
