Added binary STL support. #802

rhulha · 2022-01-26T22:19:07Z

Hello all,

I am trying to add binary STL format to Draco.
STL is an incredibly simple single mesh 3D file format and it would be a perfect addition to Draco due to its popularity and large file size.
Some basic tests seem to work great.
Please let me know if I am going into the right direction.

This fixes: #773

ondys

Thank you for the PR. STL support would be great! There are a few concerns I had that I would like to see addressed before we merge this though.

src/draco/io/stl_encoder.cc

src/draco/io/stl_decoder.cc

tomfinegan

Thanks for the PR. I added a single comment to those left by @ondys, but please fix the copyright year in the file comment headers throughout your PR. It's boring, but it's necessary.

Also, some simple decode and encode tests would be a great addition to this PR before we accept it. In depth coverage of every STL feature and every line of code in this PR is not required, but some basic tests are needed. The tests for the other decoders/encoders in the draco/io directory should serve as a guide-- basically, simple succeed/fail tests that can be used to confirm basic feature correctness will be sufficient.

src/draco/io/stl_decoder.cc

tomfinegan · 2022-02-07T18:44:26Z

And one last note: Please update your branch when you have the time to do so: I've made some changes to the Github CI integration for Draco, and this PR needs to be updated to pick up the correct test config.

Thanks again!

rhulha · 2022-02-14T13:19:38Z

I haven't forgotten about this task, just need some more time.

rhulha · 2022-02-26T11:16:10Z

And one last note: Please update your branch when you have the time to do so: I've made some changes to the Github CI integration for Draco, and this PR needs to be updated to pick up the correct test config.

Thanks again!

Done

Added ASCII STL detection and proper error message. Made StlEncoder methods return Status instead of bool. Added better error messages using Status. Added better header writing (using setw). Added STL testdata created from the existing testdata using Blender.

…he input mesh: normalize(cross(p2-p1, p3-p1))

rhulha · 2022-03-01T15:20:51Z

Is the pull request good now? Anything else I can do?

src/draco/io/mesh_io.cc

src/draco/io/stl_decoder.cc

src/draco/io/stl_decoder.h

src/draco/io/stl_encoder.cc

Moved ASCII STL detection code to DecodeFromBuffer. Removed normal attribute usage in stl_encoder, normals are now always calculated. Used Vector3f instead of ugly manual vector math code.

rhulha · 2022-03-01T22:02:39Z

Another day, another commit... :-)
I feel like we are getting really close now!

rhulha · 2022-03-02T18:10:10Z

On a side note I want to say thank you for being so patient with and supportive of me. Much appreciated! This is a great project!

ondys

Thanks for the PR, code looks good to me. One remaining thing would be to add a very simple unit test for the _encoder and _decoder. I see that you added test files but I don't see the unit tests themselves. E.g. you can check unit tests ply_encoder_test.cc + ply_decoder_test.cc for examples how to do it + cmake\draco_tests.cmake to actually build them / integrate them. Note that a very simple test that verifies that model is loaded / saved should be sufficient for now.

rhulha · 2022-03-03T00:03:30Z

Done and done! :-)

src/draco/io/stl_decoder_test.cc

src/draco/io/stl_encoder_test.cc

Used DRACO_ASSIGN_OR_ASSERT

ondys

I think it looks good. We will try to merge in the near future. Thanks for the PR!

myselfhimself · 2022-12-18T22:07:35Z

Hello, I am looking for documentation on STL I/O <-> Draco support.
It is not mentioned in the google/draco README.md at least.
Is STL supported by the npm module as well?

myselfhimself · 2022-12-18T22:10:26Z

It would also be nice to have a general idea of compression ratio between binary STL -> Draco, and ASCII STL -> Draco.
The target application is long-term STLs archiving for auditive 3d printing prosthesis companies.

myselfhimself · 2022-12-18T22:51:49Z

Hello, I was able to build the draco binaries for Linux with the BUILDING instructions.

I then used the command:

./draco_encoder -i SteBlandineiMaterialiseShortName.stl # The inputfile is a binary STL weighing 31MB

Here is a simple compression "ratio" overview (compressed file size / original file size):
draco: 2.8MB with ./draco_encoder -i SteBlandineiMaterialiseShortName.stl => 9.0%
draco with no quantization and max compression level: 4.4MB with ./draco_encoder -i SteBlandineiMaterialiseShortName.stl -o SteBlandineiMaterialiseShortName-compressionlevel10NoQuantization.stl.drc -cl 10 -qp 0 => 14.2%
7zip: 8.8MB with 7z a steBlandine.7z SteBlandineiMaterialiseShortName.stl => 28.4%
zip: 12MB with zip steBlandine.zip SteBlandineiMaterialiseShortName.stl => 38.7%
tar.gz: 12MB with tar czvf steBlandine.tar.gz SteBlandineiMaterialiseShortName.stl (I am unsure if .tar.gz is the right extension for those letters) => 38.7%

I have noticed that the original STL file and the encoded+decoded STL file are both binary, have the overall same file size (31MB), but they differ using the diff tool (even when quantization was disabled (with -qp 0) at encoding time).

How can we be sure that there is no information / mesh loss in the STL->draco->STL encoding/decoding pipeline?

myselfhimself · 2022-12-18T22:53:49Z

Overview of my build_dir for curious people, the building process was fast and simple, with no dependencies to install on my end, thank you:

~/Productions/draco-1.5.5/build_dir$ ls -lhart
total 140M
drwxrwxr-x 12 hey hey 4,0K déc.  18 23:25 ..
drwxrwxr-x  2 hey hey 4,0K déc.  18 23:25 draco
-rw-rw-r--  1 hey hey  155 déc.  18 23:25 draco.pc
-rw-r--r--  1 hey hey 1,4K déc.  18 23:25 draco-config-version.cmake
-rw-rw-r--  1 hey hey  943 déc.  18 23:25 draco-config.cmake
-rw-rw-r--  1 hey hey  18K déc.  18 23:25 CMakeCache.txt
-rw-rw-r--  1 hey hey 184K déc.  18 23:25 Makefile
-rw-rw-r--  1 hey hey 2,2K déc.  18 23:25 draco-targets.cmake
-rw-rw-r--  1 hey hey 153K déc.  18 23:25 cmake_install.cmake
-rw-rw-r--  1 hey hey 4,1M déc.  18 23:28 libdraco.a
-rwxrwxr-x  1 hey hey 1,7M déc.  18 23:29 draco_encoder-1.5.5
lrwxrwxrwx  1 hey hey   19 déc.  18 23:29 draco_encoder -> draco_encoder-1.5.5
-rwxrwxr-x  1 hey hey 990K déc.  18 23:29 draco_decoder-1.5.5
lrwxrwxrwx  1 hey hey   19 déc.  18 23:29 draco_decoder -> draco_decoder-1.5.5
drwxrwxr-x 37 hey hey 4,0K déc.  18 23:29 CMakeFiles
-rw-rw-r--  1 hey hey  31M déc.  18 23:33 SteBlandineiMaterialiseShortName.stl
-rw-rw-r--  1 hey hey  31M déc.  18 23:34 steBlandineUncompressed.stl
-rw-rw-r--  1 hey hey 8,8M déc.  18 23:39 steBlandine.7z
-rw-rw-r--  1 hey hey  12M déc.  18 23:41 steBlandine.zip
-rw-rw-r--  1 hey hey 2,8M déc.  18 23:42 SteBlandineiMaterialiseShortName.stl.drc
-rw-rw-r--  1 hey hey  12M déc.  18 23:45 steBlandine.tar.gz
-rw-rw-r--  1 hey hey 2,8M déc.  19 00:08 SteBlandineiMaterialiseShortName-compressionlevel10.stl.drc
-rw-rw-r--  1 hey hey 4,4M déc.  19 00:10 SteBlandineiMaterialiseShortName-compressionlevel10NoQuantization.stl.drc
drwxrwxr-x  4 hey hey 4,0K déc.  19 00:13 .
-rw-rw-r--  1 hey hey  31M déc.  19 00:13 steBlandineUncompressedNoQuantization.stl

myselfhimself · 2022-12-18T23:24:57Z

(seeking for lossless encoding)

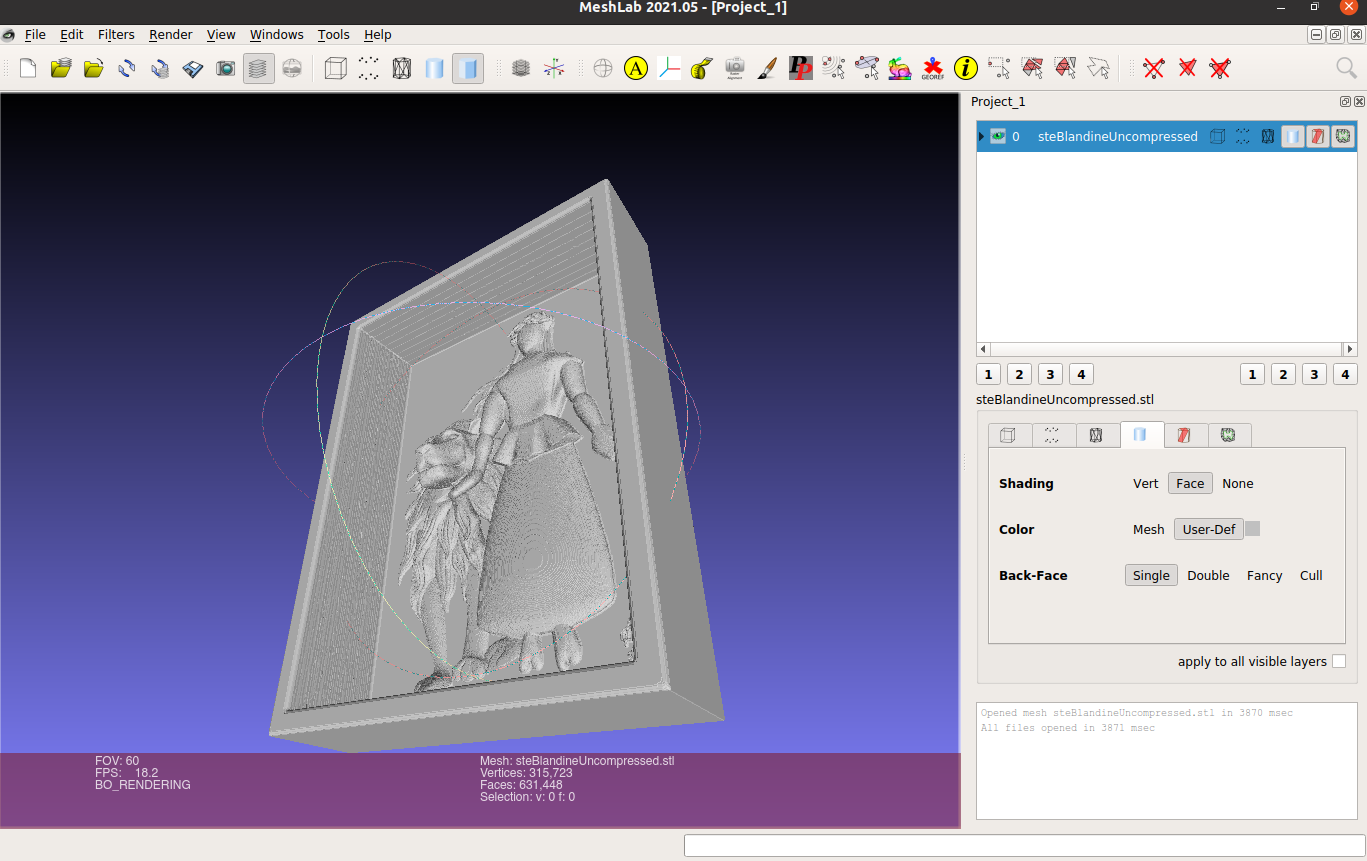

The default quantization looks weird in Meshlab (sort of Z layers as if we were FDM-3d printing):

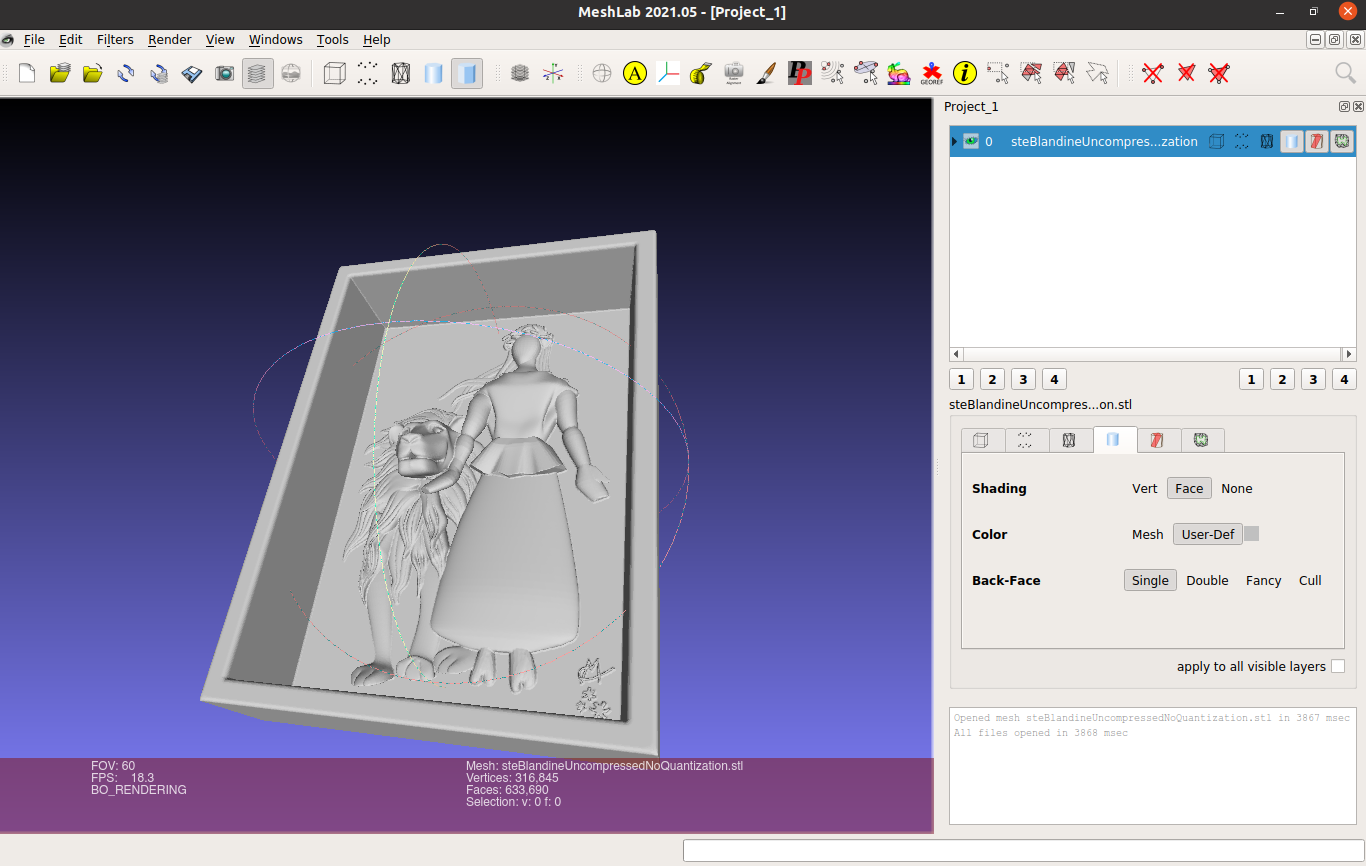

While without quantization, the model seems smooth and intact:

Are there other parameters to use, in addition to -qp 0 to attain a lossless Draco encoding?

myselfhimself · 2022-12-18T23:31:21Z

I opened a new PR just for mentioning working STL support in README. Should there be other places where to mention it?
BTW @rhulha (and Draco team) really thank you for your awesome work

The npm Draco support for STL question is still lingering also.

myselfhimself · 2022-12-21T14:52:14Z

Ensure that 0-quantization-encoded STL->Draco->STL files are lossless despite STL binary difference
Ensure that NPM *asm Draco encoding/decoding project supports STL
Follow README STL support PR integration.
blog about that, it is quite nice...

myselfhimself · 2022-12-21T14:56:13Z

Reminder for later on STL files (before Draco i/o, after Draco i/o) lossless comparison (with Meshlab or Cloudcompare):
https://www.researchgate.net/post/How_to_compare_two_stl_files

rhulha · 2022-12-21T23:15:31Z

Draco is a lossy compression method, you can't compare STL before and after...

myselfhimself · 2022-12-22T00:18:08Z

not even with quantization=0?

myselfhimself · 2022-12-22T00:28:43Z

@rhulha No, obviously Draco is not lossless if need be: https://github.com/google/draco/search?q=lossless&type=code #878 #933
The latter issue especially mentions 0 quantizations & sequential encoding (instead of edgebreaker) to be perfectly lossless (with no loose geometry removal).
The "issue" is data ordering which differs from input files in the encoding->decoding pipeline. So Draco could be used now for STL archiving...

Co-authored-by: Ondrej Stava <ondys@users.noreply.github.com>

Includes support for binary STL and some basic tests.

…#959) Co-authored-by: Ondrej Stava <ondys@users.noreply.github.com>

Added binary STL support.

3845568

ondys requested changes Feb 2, 2022

View reviewed changes

tomfinegan reviewed Feb 7, 2022

View reviewed changes

src/draco/io/stl_decoder.cc Outdated Show resolved Hide resolved

Merge branch 'master' into STL_Support

d3cf136

rhulha and others added 4 commits February 26, 2022 17:27

Merge branch 'master' into STL_Support

9a786c2

Added normal vector calculation in case normal data is missing from t…

b528647

…he input mesh: normalize(cross(p2-p1, p3-p1))

Merge remote-tracking branch 'origin/STL_Support' into STL_Support

8975317

ondys reviewed Mar 1, 2022

View reviewed changes

Return directly from the stl_decoder in mesh_io.cc.

28e94bd

Moved ASCII STL detection code to DecodeFromBuffer. Removed normal attribute usage in stl_encoder, normals are now always calculated. Used Vector3f instead of ugly manual vector math code.

ondys reviewed Mar 2, 2022

View reviewed changes

Added test code.

ceb7f8f

ondys reviewed Mar 3, 2022

View reviewed changes

src/draco/io/stl_decoder_test.cc Outdated Show resolved Hide resolved

src/draco/io/stl_decoder_test.cc Show resolved Hide resolved

src/draco/io/stl_encoder_test.cc Outdated Show resolved Hide resolved

rhulha and others added 2 commits March 3, 2022 23:49

Merge branch 'master' into STL_Support

2315e26

Renamed statusOrMesh to status_or_mesh.

8bf6783

Used DRACO_ASSIGN_OR_ASSERT

ondys approved these changes Mar 4, 2022

View reviewed changes

Merge branch 'master' into STL_Support

03a42a5

tomfinegan merged commit befe2d8 into google:master Mar 25, 2022

myselfhimself added a commit to myselfhimself/draco that referenced this pull request Dec 18, 2022

google#802 Mentioning STL encoding/decoding support in README

a202e5c

ondys added a commit that referenced this pull request Feb 1, 2023

#802 Mentioning STL encoding/decoding support in README (#959)

a39ce0e

Co-authored-by: Ondrej Stava <ondys@users.noreply.github.com>

danielgronlund pushed a commit to danielgronlund/draco that referenced this pull request Aug 22, 2024

Add binary STL support. (google#802)

be6c969

Includes support for binary STL and some basic tests.

danielgronlund pushed a commit to danielgronlund/draco that referenced this pull request Aug 22, 2024

google#802 Mentioning STL encoding/decoding support in README (google…

8079c6c

…#959) Co-authored-by: Ondrej Stava <ondys@users.noreply.github.com>
