Audio Waveform

Browser-only audio extraction and waveform visualization from large video files. Upload videos up to 5 GB, extract audio with ffmpeg.wasm, and render interactive waveforms — no server-side processing.

Try it live: https://audio-waveform.roomler.live/

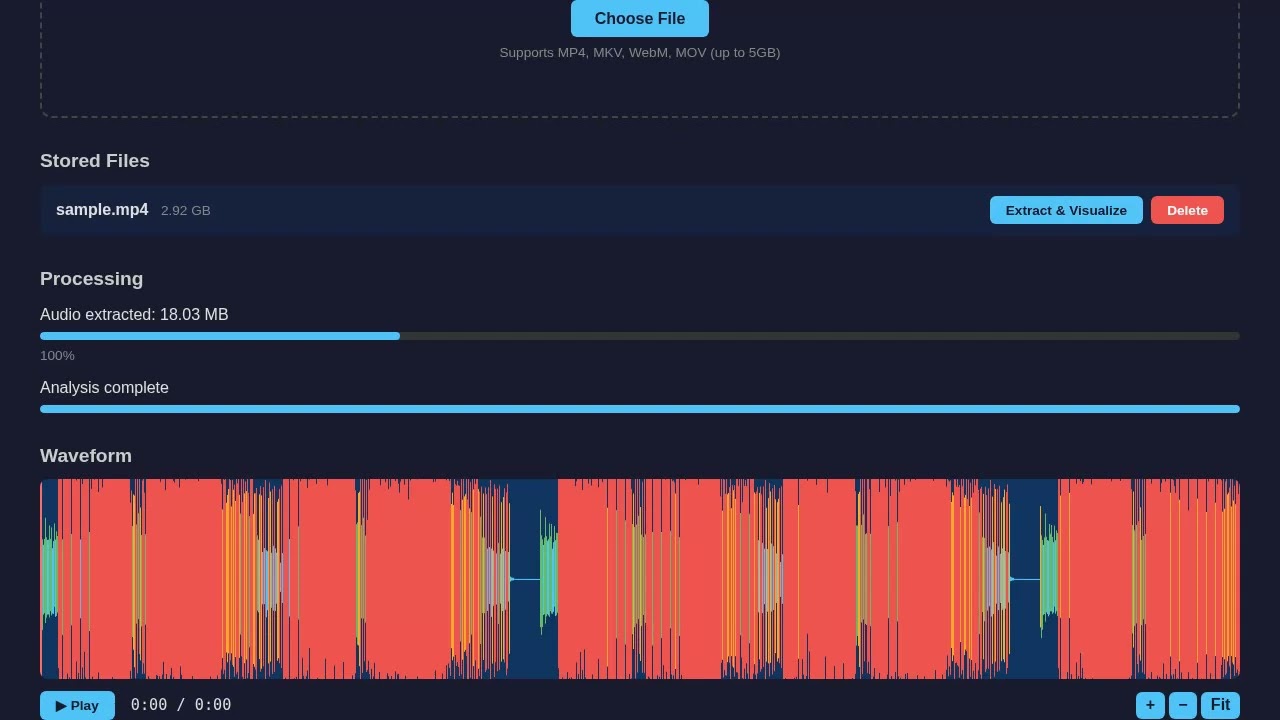

Demo

https://github.com/gjovanov/audio-waveform/raw/master/audio-waveform-intro.mp4

Drop a video, extract audio, visualize the waveform — all in the browser. Zero server processing. Your files never leave your machine.

The intro video demonstrates a 3 GB MP4 file being processed entirely in the browser. The sample video is a 4x concatenation of the Blender Reel 2013 (Creative Commons Attribution 3.0, re-encoded to H.264).

---

Features

Category	Feature	Status
Upload	Drag-and-drop or file picker for video files	✅
	Chunked IndexedDB storage (50 MB chunks, up to 5 GB)	✅
	Storage quota monitoring	✅
	Persistent across page reloads	✅
Extraction	Audio track extraction via ffmpeg.wasm (stream copy, no re-encoding)	✅
	WORKERFS mount for files > 1.5 GB (avoids ArrayBuffer limit)	✅
	Multi-threaded with single-threaded fallback	✅
	Progress reporting	✅
Analysis	Adaptive downsampling (16 kHz default, 8 kHz for >2hr files)	✅
	Peak extraction for waveform rendering	✅
	Memory-efficient — never loads full audio into heap	✅
Visualization	Canvas-based mirrored waveform	✅
	Amplitude color coding (blue/green/orange/red)	✅
	Zoom in/out and fit-to-width	✅
	Click-to-seek with playback cursor	✅
	Auto-scroll during playback	✅
Playback	Audio playback via <audio> element	✅
	Synchronized cursor with requestAnimationFrame	✅
	Play/pause and seek controls	✅

Tech Stack

Layer	Technology
Frontend	Vanilla JS (ES modules), HTML5, CSS3
Audio Extraction	ffmpeg.wasm 0.12 (WebAssembly)
Audio Analysis	ffmpeg downsampling (16 kHz adaptive)
Rendering	HTML5 Canvas (device-pixel-ratio aware)
Storage	IndexedDB (chunked Blob storage)
Dev Server	Node.js or Bun (COOP/COEP headers)

Architecture

graph TB
    subgraph Browser["Browser (zero server-side processing)"]
        UI["Vanilla JS SPA<br/>Drag-and-drop · Controls · Log"]
        IDB[("IndexedDB<br/>50 MB Blob chunks")]
        FFMPEG["ffmpeg.wasm 0.12<br/>WebAssembly · WORKERFS"]
        ANALYZER["Audio Analyzer<br/>Peak extraction from PCM"]
        CANVAS["Canvas Renderer<br/>Waveform · Cursor · Zoom"]
        AUDIO["&lt;audio&gt; Element<br/>Playback · Seek"]
    end

    subgraph Server["Dev Server (static files only)"]
        NODE["Node.js / Bun<br/>COOP + COEP headers"]
        FILES["Static Files<br/>HTML · JS · CSS · WASM"]
    end

    UI -->|"File.slice()"| IDB
    IDB -->|"Blob reassembly"| FFMPEG
    FFMPEG -->|"-vn -c:a copy"| FFMPEG
    FFMPEG -->|"AAC audio Blob"| ANALYZER
    FFMPEG -->|"16kHz mono f32le"| ANALYZER
    ANALYZER -->|"peaks [{min,max}]"| CANVAS
    UI -->|"click-to-seek"| AUDIO
    AUDIO -->|"currentTime"| CANVAS
    NODE --> FILES

    style UI fill:#4fc3f7,color:#1a1a2e
    style IDB fill:#78909c,color:#fff
    style FFMPEG fill:#e65100,color:#fff
    style ANALYZER fill:#00695c,color:#fff
    style CANVAS fill:#0f3460,color:#fff
    style AUDIO fill:#1565c0,color:#fff
    style NODE fill:#ff9800,color:#fff
    style FILES fill:#78909c,color:#fff

Loading

Quick Start

# Install dependencies (ffmpeg.wasm served locally)
bun install          # or: npm install

# Start dev server (pick one)
bun server.bun.js    # Bun
node server.js       # Node.js

# Open http://localhost:3000

Note: The dev server sets Cross-Origin-Opener-Policy: same-origin and Cross-Origin-Embedder-Policy: require-corp headers, required for ffmpeg.wasm's SharedArrayBuffer support.

Scripts

Command	Description
bun server.bun.js	Start Bun static server on port 3000
node server.js	Start Node.js static server on port 3000
bun run start	Alias for node server.js
bun run start:bun	Alias for bun server.bun.js

Browser Requirements

Requirement	Why
SharedArrayBuffer	ffmpeg.wasm multi-threaded mode
COOP/COEP headers	SharedArrayBuffer prerequisite
IndexedDB	Chunked file storage
WebAssembly	ffmpeg.wasm runtime
Canvas 2D	Waveform rendering

Tested on: Chrome 120+, Firefox 120+, Edge 120+. Safari has limited SharedArrayBuffer support — ffmpeg falls back to single-threaded mode.

Documentation

Document	Description
Architecture	Processing pipeline, data flow, memory strategy
Storage	IndexedDB chunking, quota management, Blob reassembly
Audio Extraction	ffmpeg.wasm loading, WORKERFS mount, codec strategies
Waveform	Analysis, peak extraction, canvas rendering, playback sync

Known Limitations

• Files > 2 GB require WORKERFS mount (automatic) — extraction speed depends on browser I/O
• Blob.arrayBuffer() limited to ~2 GB in most browsers — handled via WORKERFS fallback
• ffmpeg.wasm single-threaded mode is significantly slower (used when SharedArrayBuffer is unavailable)
• Audio analysis decodes to 16 kHz mono (8 kHz for files over 2 hours) — sufficient for smooth waveform visualization, not for high-fidelity analysis

Deployment

The app is deployed at audio-waveform.roomler.live via Nginx + systemd. Deployment scripts: audio-waveform-deploy.

License

MIT
