High Performance, easy to use network library supporting 16k+ concurrent clients on all provided topologies.
Designed for distributed realtime concurrent applications over LAN or Internet.
Provides infrastructure for high throughput message passing, P2P, Nat Traversal, Reliable Udp.
This repository consist of main core assembly and several serialization spesific sub assemblies.
Network Library, which is the core of entire network library. Includes all logic associated with the network systems, starting from raw bytes to abstractions such as P2P lobbies. It provides generic templates to be used with any type of serialization.
Plug&Play mature high performance models, working with raw bytes. Also used as base for complex abstracted models.
Tcp Server/Client modelwith dynamic buffering and queueing sub systems, bytes can come fragmented like regular sockets.Tcp Byte Message Server/Clientwhere bytes are sent with 4 byte lenght header. It ensure atomic message delivery without fragmentation.Udp Server/Clientudp system where a server is emulated with optimised for performance.Reliable Udp Client/Serverwhere modern TCP protocol is implemented over Udp.- Secure variants of all of the above(SSL with TLS for Tcp, Symetric Key AES for Udp).
Involves generic models which can work with any serialization protocol.
Generic Message Server/Clientdesigned to send and receive serialized messages atomically.Generic MessageProtocol Server/clientsimilar to above, but with addition of "MessageEnvelope" carrier class, used as header/metadata.P2P Relay Client/Serverwhere Peers(Clients) discover each other via Relay server, can use Udp/Rudp/Tcp to communicate. Supports Udp Holepunch.P2P Room/Lobby Server/Clientextention of Relay model where peers can define a room, similar to game matchmaking servers.
- Tcp models come with a buffering/queueing system. This system is activated only during high load. In a nutsell, if the socket is busy sending, next messages are buffered/queued and stiched together. When the socket becomes available again, sent as batch. Its like Naggle, but without sacrificing the fast sends on moderate/low traffic.
- This improves the throughput of small messages quite significantly (1000 fold compared to naive sends) as shown on benchmarks.
- Library implements "Shared Thread Local Memory Pool", where all byte arrays and the stream backing buffers are rented from. Memory is weak referenced. Pool allows minimum number GC cycles and automatically trims on system memory pressure.
- As an example, RelayServer can relay 21 Gigabyte/s Udp traffic using 36 mb process memory with 0 GC Collects.
- Library provides high performance binary encoders for primitivish* types and employs static srialization for internal message types and carrier classes with smallest possible byte size.
Library is tested with as many clients as OS(Windows) supports (around 16k dynamic ports). Data reliability includung RUDP is tested over the internet extensively. Nat Traversal Udp holepunching is also tested over the internet with success.
Note: Libary has unsafe code and stack allocations. Unsafe sections are well tested and not subject to change.
Generic models from main assembly are implemented with the spesific serializer. All method signatures and usage are identical. It includes:
- Protobuf-Net
- MessagePack
- NetSerializer
- System.Text.Json
- .NET Standard 2.0+
Nuget Packages are available:
| Core Network Library | Protobuf | MessagePack | NetSeralizer | Json |
|---|---|---|---|---|
 |
 |
 |
 |
 |
Infinite Echo benchmarks are done by sending set of messages to server and getting echo response. Each response causes new request. Each server response is counted as 1 Echo.
- Separate client and server applications are used for the tests.
- Tests are done on my personal laptop with CPU AMD Ryzen 7 5800H.
- Benchmark programs are provided in the project.
1000 seed messages (32 bytes message + 4 header) each:
| Mumber Of Clients | TCP Echo per Second | SSL Echo per Second |
|---|---|---|
| 100 | 53,400,000 | 41,600,000 |
| 1000 | 43,600,000 | 22,200,000 |
| 5000 | 43,400,000 | 21,800,000 |
| 10000 | 42,800,000 | 21,700,000 |
1000 seed message envelopes ( 32 byte payload, 48 byte total):
| Mumber Of Clients | Protobuf Echo per Second | Secure Protobuf Echo per Second |
|---|---|---|
| 100 | 9,440,000 | 8,050,000 |
| 1000 | 8,780,000 | 7,480,000 |
| 5000 | 8,360,000 | 7,390,000 |
| 10000 | 8,340,000 | 7,350,000 |
This benchmarks is only sending message envelope with raw byte payload. For serialization spesific performance please refer to: SerializationBenchmarks
Any chunk of byte array or array segment will reach the destination without fragmentation.
private static void ExampleByteMessage()
{
ByteMessageTcpServer server = new ByteMessageTcpServer(20008);
server.OnBytesReceived += ServerBytesReceived;
server.StartServer();
ByteMessageTcpClient client = new ByteMessageTcpClient();
client.OnBytesReceived += ClientBytesReceived;
client.Connect("127.0.0.1", 20008);
client.SendAsync(Encoding.UTF8.GetBytes("Hello I'm a client!"));
void ServerBytesReceived(Guid clientId, byte[] bytes, int offset, int count)
{
Console.WriteLine(Encoding.UTF8.GetString(bytes, offset, count));
server.SendBytesToClient(clientId, Encoding.UTF8.GetBytes("Hello I'm the server"));
}
void ClientBytesReceived(byte[] bytes, int offset, int count)
{
Console.WriteLine(Encoding.UTF8.GetString(bytes, offset, count));
}
}output:
Hello I'm a client!
Hello I'm the serverNote: Important performance setting here is whether to use a buffer or a queue as buffering policy. Use Buffer if messages are mainly regions of byte[] such as (buffer, offset,count). Use Queue if the messages are full byte[] (0 to end).
client.GatherConfig = ScatterGatherConfig.UseQueue;
server.GatherConfig = ScatterGatherConfig.UseBuffer;
For SSL variants difference is:
var ccert = new X509Certificate2("client.pfx", "greenpass");
client = new SslByteMessageClient(ccert);
var scert = new X509Certificate2("server.pfx", "greenpass");
server = new SslByteMessageServer(8888,scert);
// You can override the SSL cerificate validation callback
server.RemoteCertificateValidationCallback+= ...
client.RemoteCertificateValidationCallback+= ...Base Server/Client where raw bytes are transfered. Method and callback signarures are identical to byte message models. There is no protocol implemented over base Server/Client, hence bytes may come fragmented depending on your MTU size.
AsyncTcpServer server = new AsyncTcpServer(port: 20000);
AsyncTpcClient client = new AsyncTpcClient();
// SSL variant
var ccert = new X509Certificate2("client.pfx", "greenpass");
var scert = new X509Certificate2("server.pfx", "greenpass");
SslServer server = new SslServer(2000, scert);
SslClient client = new SslClient(ccert);Serialized Networks are implementations of generic classes provided by Core Library
It is applicable to all serialization protocols.
Examples here is only given for Protobuf-net, but signature is identical for any other provided serialization protocol(MessagePack, Json etc).
Implements a server client model where serialized messages are transfered atomically. Declare your type:
[ProtoContract]
class SampleMessage
{
[ProtoMember(1)]
public string sample;
} PureProtoServer server = new PureProtoServer(11234);
server.StartServer();
server.BytesReceived += (clientId,bytes, offset, count) =>
{
SampleMessage msg = server.Serializer.Deserialize<SampleMessage>(bytes, offset, count);
Console.WriteLine(msg.sample);
msg.sample = "Jesse Lets cook";
server.SendAsync(clientId,msg);
};
PureProtoClient client = new PureProtoClient();
client.Connect("127.0.0.1", 11234);
client.BytesReceived += (bytes, offset, count) =>
{
SampleMessage msg = client.Serializer.Deserialize<SampleMessage>(bytes, offset, count);
Console.WriteLine(msg.sample);
};
client.SendAsync(new SampleMessage() { sample = "Yo! Mr White" });Message protocol is implemented for wrapping all dynamic message types with a standard header. Please refer to MessageProtocol Documentation for detailed explanation.
You can declare your payload types, which any type that is serializable with protobuf.
[ProtoContract]
class SamplePayload :IProtoMessage
{
[ProtoMember(1)]
public string sample;
}Example for the Secure Variant:
private static async Task ExampleProtoSecure()
{
var scert = new X509Certificate2("server.pfx", "greenpass");
var cert = new X509Certificate2("client.pfx", "greenpass");
SecureProtoMessageServer server = new SecureProtoMessageServer(20008, scert);
server.StartServer();
server.OnMessageReceived += ServerMessageReceived;
var client = new SecureProtoMessageClient(cert);
client.OnMessageReceived += ClientMessageReceived;
client.Connect("127.0.0.1", 20008);
var Payload = new SamplePayload() { sample = "Hello" };
var messageEnvelope = new MessageEnvelope();
messageEnvelope.Header = "PayloadTest";
// You can just send a message, get replies on ClientMessageReceived.
client.SendAsyncMessage(messageEnvelope);
client.SendAsyncMessage(messageEnvelope, Payload);
// Or you can wait for a reply async.
MessageEnvelope result = await client.SendMessageAndWaitResponse(messageEnvelope, Payload);
var payload = result.UnpackPayload<SamplePayload>();
Console.WriteLine($"Client Got Response {payload.sample}");
void ServerMessageReceived(Guid clientId, MessageEnvelope message)
{
Console.WriteLine($"Server Received message {message.Header}");
server.SendAsyncMessage(clientId, message);
}
void ClientMessageReceived(MessageEnvelope message)
{
}
}- Unsecure variants
ProtoMessageServerandProtoMessageClienthas identical signarures except the constructors doesnt take a ceritificate
This model is what I personally use on my other projects such as P2PVideocall and Multiplayer Starfighter Game.

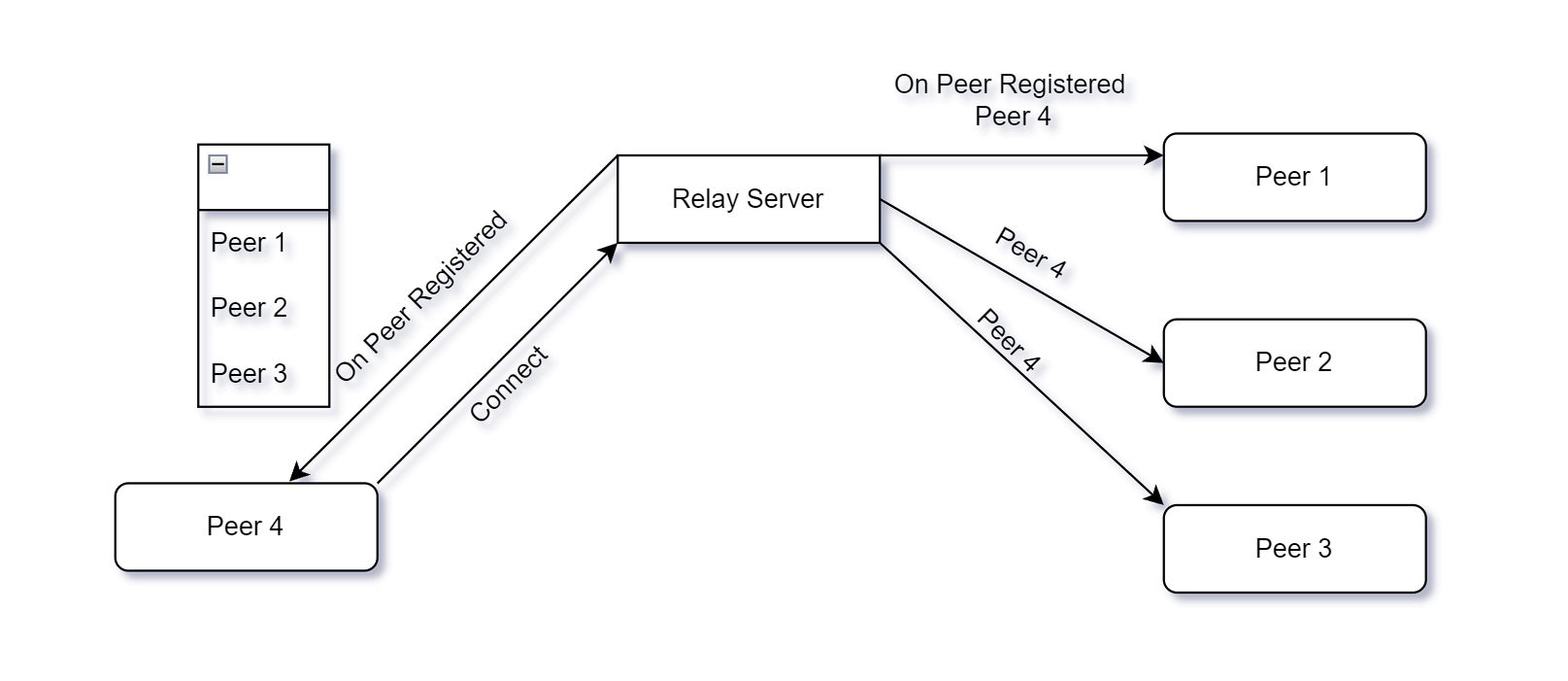

Basically you have a Relay server somewhere in your network, which can act as a local network hub in LAN and/or open to connections from internet if port forwarding is enabled.
Relay clients (Peers) connect to Relay server and get notifications about existince of other peers. Peers can send messages to each other through Relay Server, or directly to each other (Udp holepunch).
Server is completely passive, allowing other peers to discover and send messages to each other. Additionally NAT traversal methods such as UDP holepunching provided to allow direct communication via Internet or LAN (UDP only so far, but we have reliable udp).
Relay Server Is Serialization Agnostic which means any serialized network Peers, (Protobuff, MessagePack etc) can use the same relay server.
To use the Relay server, simply declere your server as:
var scert = new X509Certificate2("server.pfx", "greenpass");
var server = new SecureProtoRelayServer(20010, scert);
server.StartServer();Relay server is already pre-configured.
Relay client is where your application logic is implemented. You can web your client applications to discover and talk with each other.
To declere a client:
var cert = new X509Certificate2("client.pfx", "greenpass");
var client = new RelayClient(cert);
client.OnPeerRegistered += (Guid peerId) => ..
client.OnPeerUnregistered += (Guid peerId) => ..
client.OnMessageReceived += (MessageEnvelope message) => ..
client.OnUdpMessageReceived += (MessageEnvelope message) => ..
client.OnDisconnected += () => ..
client.Connect("127.0.0.1", 20010);Method signatures and callbacks are identical to proto client/server model (also with Payloads). Only difference is you have to specify the destination peer Guid Id. It comes from OnPeerRegistered event, whenever a new peer is connected to relay server. Relay Server guaranties syncronisation of current peer set with eventual consistency among all peers. So new peers will receive all other connected peers from this event and old peers will receive an update.
client.SendAsyncMessage(destinationPeerId, new MessageEnvelope() { Header = "Hello" });
client.SendUdpMesssage(destinationPeerId, new MessageEnvelope() { Header = "Hello" });
// Or with an async reply
MessageEnvelope response = await client.SendRequestAndWaitResponse(destinationPeerId,
new MessageEnvelope() { Header = "Who Are You?" });Additionally there is a broadcast support for TCP and Udp. This allows a single message to be send to relay server and multiplexed to all reachable peers there. On Udp case, if holpucnh is active between 2 peers message is sent directly like regular message.
client.BroadcastMessage(peerId, envelope);
client.BroadcastUdpMessage(peerId, envelope);
Udp messages can be more than the datagram limit of 65,527 bytes. The system detects large udp messages as Jumbo messages and sends them in chunks. Receiving end with will try to reconstruct the message. if all the parts does not arrive within a timeout message is dropped. In a nutsell it works same as regular udp.
Max message size for udp is 16,256,000 bytes.
This is also applicable to Udp broadcasts.
client.SendUdpMesssage(destinationPeerId,
new MessageEnvelope() { Header = "Hello" Payload = new byte[256000]});We have build in reliable udp protocol implemneted aswell which is TCP implemented over UDP.
client.SendRudpMessage(peerId, envelope);
client.SendRudpMessage(peerId, envelope, innerMessage);
client.SendRudpMessageAndWaitResponse(peerId, envelope, innerMessage);
client.SendRudpMessageAndWaitResponse(peerId, envelope);On top of that 3 independent channels are provided for Rudp. Ch1,Ch2 and Realtime. Reason for this is if you send a large message like a file from single channel, it will be blocked until message is completely sent. hence subsequent messages has to wait in buffer. By having independent channels this issue is avoided.
Ch1 and 2 are standard channels with same timeout mechanics of windows TCP implmentation.
Realtime channel is more sensitive to timeouts and may resend messages "pre-emtively". But resends are much faster so data is delivered reliably with minimum delay.
client.SendRudpMessage(peerId, envelope, RudpChannel.Ch1);
client.SendRudpMessage(peerId, envelope, RudpChannel.Ch2);
client.SendRudpMessage(peerId, envelope, RudpChannel.Realtime);Following image shows a peer update diagram on connection to relay server:
Holepunch Support:
bool result = await client.RequestHolePunchAsync(destinationPeerId, timeOut:10000);if succesfull, it will allow you to send direct udp messages between current and destination peers for the rest of the udp messages in both directions.
This is an extention of Relay Server/Client. The addition is the room system where peers can create or join rooms, query available rooms, sends message to rooms(multicast). Additionally keeping same message system to send 1-1 messages among peers.
You can join multiple rooms
Room Server Is Serialization Agnostic which means any serialized network Peers, (Protobuf, MessagePack etc) can use the same Room server.
Decleration of Server and client
var server = new SecureProtoRoomServer(20010, scert);
server.StartServer();
var client1 = new SecureProtoRoomClient(cert);To create/join and leave rooms simply:
client1.CreateOrJoinRoom("Kitchen");
client1.LeaveRoom("Kitchen");Room callbacks are as followed. This callbacks are only triggered if you are in the same room.
client1.OnPeerJoinedRoom += (roomName, peerId) =>..
client1.OnPeerLeftRoom += (roomName, peerId) =>..
client1.OnPeerDisconnected +=(peerId) =>..Additionally to the standard 1-1 message callback we have room message callbacks.
client1.OnTcpRoomMesssageReceived += (roomName, message) => ..
client1.OnUdpRoomMesssageReceived += (roomName, message) => ..
client1.OnTcpMessageReceived += (message) => ..
client1.OnUdpMessageReceived += (message) => ..- Relay and lobby servers only uses MessageEnvelope and staticly serialized internal message types to communicate and provide functionalities, Therefore any Room client or Relay client, independent of what type of serialization they use, can acces and use all functionalities simultaneously.
- Peers with different serialization protocols can talk with each other. They can send MessageEnvelope and Raw bytes without a problem. Understanding which protocol peer uses should be defined in application which is up to the user. Hence their serialized inner messages can be deserialized from envelope payload bytes accordingly.
All secure TCP variants are implementing standard SSL socket with TLS authentication/validation.
In case of P2P systems same strategy is applied for the TCP connection. if Peer A wants to communicate between Peer B through TCP, it sends a message to Relay server through its SSL connection. Relay server Decrypts the message and gets the destination peer. Then sends the message with the SSL connection of peer B
Considering the UDP where there is no TLS authentication (not provided by .NET), instead Symetric Key AES encrption is used. Key exchange is done by using previously authenticated SSL connection. Each peer has its own key, generated by the Relay server with secure random at runtime upon connection. This key is not shared and only provides communication with Relay server. If peer A wants to talk with peer B through UDP via Relay server, Peer A sends an encrpyted message to Relay. Relay then decrypts it and checks for the destination. Then encrypts the message with destination peers AES key. This way no peer can know each others keys where Relay server acts as security bridge.
In case of holepunching, during the procedure with two peers, Relay server generates a key to be shared between two peers. If the procedure succees, PeerA and B will use this symetric key to directly communicate. Of course this key exchange is also done with secure SSL channel.
Under no condition not a single message (including internal messages) is sent without encyption.
The certificates(.pfx files) located in library are just placeholders, they are generated using OpenSSL only for test purposes. Eventhough they provide encrption, they are publicly avaibale hence not secure. You should generate your own certificates for usage. I am not going to go in detail for authority payments and signing procedure here but in future i will provide SSL generation and signing application where you can generate and sign certificates to be used on local networks.
