rray

A simple raytracer

About

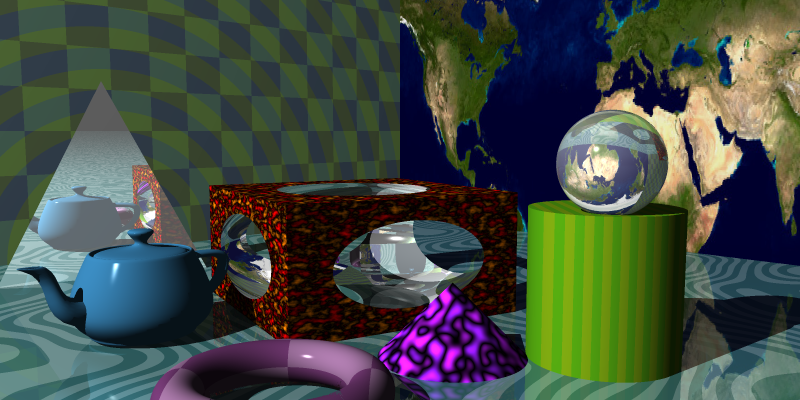

Rray is A raytracer implementation in Rust, following the book "The Ray Tracer Challenge" by Jamis Buck.

Built With

• Rust

Prerequisites

Before you begin, ensure you have met the following requirements:

• You have installed the latest version of Rust and Cargo.

Getting Started

To build rray, follow these steps:

cargo build --release

The rray executable will be built in the target/release directory.

rray has these arguments:

> rray % ./target/release/rray -h
A simple raytracer

Usage: rray [OPTIONS] --scene <SCENE>

Options:
  -W, --width <WIDTH>    Width of the generated image, default is 800 [default: 800]
  -H, --height <HEIGHT>  Height of the generated image, default is 600 [default: 600]
  -s, --scene <SCENE>    Scene file in YAML format
  -o, --output <OUTPUT>  Name of the output file, default is output.png [default: output.png]
  -a, --aa <AA>          Anti-aliasing level (default 1) (max 5) [default: 1]
  -h, --help             Print help
  -V, --version          Print version

Usage

Create your scene file in yaml format. Here is an example:

camera:
  fov: 60
  from: [0, 2.5, -5.0]
  to: [0,1,0]
  up: [0,1,0]
lights:
  - type: point
    color: [1,1,1]
    position: [-10,10,-10]
scene:
  - type: plane
    transforms: []
    material:
      pattern:
        type: checker
        pattern_a:
          type: solid
          color: [0.25, 0.25, 0.75]
          transforms: []
        pattern_b:
          type: solid
          color: [0.75, 0.75, 0.75]
          transforms: []
        transforms:
          - type: scale
            amount: [1, 1, 1]
      ambient: 0.1
      diffuse: 0.9
      specular: 0
      shininess: 200
  - type: sphere
    transforms:
     - type: translate
       amount: [0, 1, 2]
     - type: scale
       amount: [0.5, 0.5, 0.5]
    material:
     pattern:
       type: solid
       color: [1, 0, 0]
       transforms: []
     ambient: 0.1
     diffuse: 0.9
     specular: 0.9
     shininess: 200
     reflective: 0.9
     transparency: 0.1
     refractive_index: 1.5

Then run the raytracer with the following command:

./target/release/rray -W 800 -H 400 -s <scene file> -o test.png

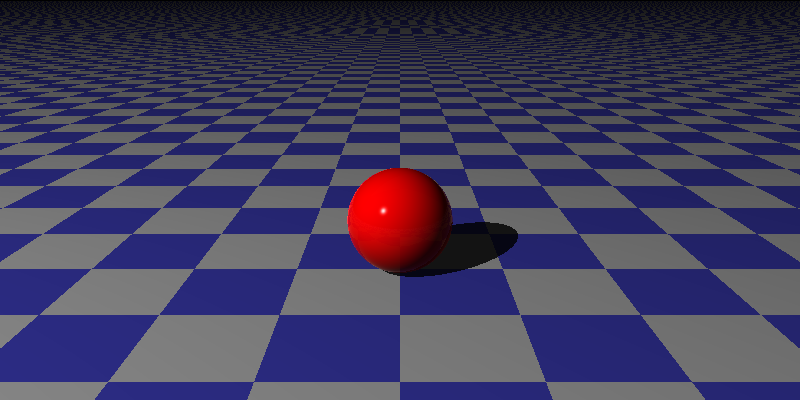

Get this image as output:

Scene file format

General structure

camera:
# Camera settings
lights:
# List of lights
scene:
# List of scene objects

Camera

The camera has the following properties:

• fov: Field of view in degrees
• from: Position of the camera
• to: Point the camera is looking at
• up: Up vector of the camera

Example:

camera:
  fov: 60
  from: [0, 2.5, -5.0]
  to: [0,1,0]
  up: [0,1,0]

Lights

The lights section is a list of light sources. Each light source has the following properties:

• type: Type of light source (point or area only for now)
• color: Color of the light source
• position: Position of the light source (only for point lights)
• corner: Corner of the area light source
• uvec: U vector of the area light source
• vvec: V vector of the area light source
• level: sample level for the area light source (default 5), total number of samples will be level squared

Example:

lights:
  - type: point
    color: [1,1,1]
    position: [-10,10,-10]

lights:
  - type: area
    color: [1,1,1]
    corner: [-1, 10, -1]
    uvec: [2, 0, 0]
    vvec: [0, 0, 2]
    samples: 20

Scene

The scene section is a list of scene objects.

Scene objects

Each scene object has the following properties:

• type: Type of scene object (sphere, plane, cube, cylinder, cone, triangle, torus, group, csg)
• transforms: List of transformations to apply to the object
• material: Material of the object
• hidden: If the object is hidden (default false)
• type specific properties

Types

Here are the types of scene objects:

Sphere

The sphere object has no specific properties.

Example:

  - type: sphere
    transforms:
     - type: translate
       amount: [0, 0, 0]
    material:
     pattern:
       type: solid
       color: [1, 0, 0]
     ambient: 0.1
     diffuse: 0.9
     specular: 0.9
     shininess: 200
     reflective: 0.9
     transparency: 0.1
     refractive_index: 1.5

Plane

The plane object has no specific properties.

Example:

  - type: plane
    transforms: []
    material:
      pattern:
        type: checker
        color_a: [ 0.25, 0.5, 0.5 ]
        color_b: [ 0.5, 0.7, 0.7 ]
        transforms:
          - type: scale
            amount: [1, 1, 1]
      ambient: 0.1
      diffuse: 0.9
      specular: 0
      shininess: 200

Cube

The cube object has no specific properties.

Example:

  - type: cube
    transforms:
     - type: translate
       amount: [0, 0, 0]
    material:
     pattern:
       type: solid
       color: [1, 0, 0]
     ambient: 0.1
     diffuse: 0.9
     specular: 0.9
     shininess: 200
     reflective: 0.9
     transparency: 0.1
     refractive_index: 1.5

Cylinder

The cylinder object has the following properties:

• minimum: Minimum y value of the cylinder (default -infinity)
• maximum: Maximum y value of the cylinder (default infinity)
• closed: If the cylinder has caps (default false)

Example:

  - type: cylinder
    minimum: 0
    maximum: 1
    closed: true
    transforms:
     - type: translate
       amount: [0, 0, 0]
    material:
     pattern:
       type: solid
       color: [1, 0, 0]
     ambient: 0.1
     diffuse: 0.9
     specular: 0.9
     shininess: 200
     reflective: 0.9
     transparency: 0.1
     refractive_index: 1.5

Cone

The cone object has the following properties:

• minimum: Minimum y value of the cone (default -infinity)
• maximum: Maximum y value of the cone (default infinity)
• closed: If the cone has caps (default false)

Example:

  - type: cone
    minimum: 0
    maximum: 1
    closed: true
    transforms:
     - type: translate
       amount: [0, 0, 0]
    material:
     pattern:
       type: solid
       color: [1, 0, 0]
     ambient: 0.1
     diffuse: 0.9
     specular: 0.9
     shininess: 200
     reflective: 0.9
     transparency: 0.1
     refractive_index: 1.5

Torus

The torus object has the following properties:

• minor_radius: Minor radius of the torus

The torus is centered at the origin and has a major radius of 1. It faces the z-axis.

Example:

  - type: torus
    minor_radius: 0.5
    transforms:
     - type: translate
       amount: [0, 0, 0]
    material:
     pattern:
       type: solid
       color: [1, 0, 0]
     ambient: 0.1
     diffuse: 0.9
     specular: 0.9
     shininess: 200
     reflective: 0.9
     transparency: 0.1
     refractive_index: 1.5

Triangle

The triangle object has the following properties:

• p1: First point of the triangle
• p2: Second point of the triangle
• p3: Third point of the triangle

Example:

  - type: triangle
    p1: [0, 1, 0]
    p2: [1, 0, 0]
    p3: [0, 0, 1]
    transforms:
     - type: translate
       amount: [0, 0, 0]
    material:
     pattern:
       type: solid
       color: [1, 0, 0]
     ambient: 0.1
     diffuse: 0.9
     specular: 0.9
     shininess: 200
     reflective: 0.9
     transparency: 0.1
     refractive_index: 1.5

Group

The group object has the following properties:

• children: List of scene objects that are part of the group

Example:

  - type: group
    transforms:
     - type: translate
       amount: [0, 1, 2]
    children:
      - type: sphere
        transforms:
         - type: translate
           amount: [0, 0, 0]
        material:
         pattern:
           type: solid
           color: [1, 0, 0]
         ambient: 0.1
         diffuse: 0.9
         specular: 0.9
         shininess: 200
         reflective: 0.9
         transparency: 0.1
         refractive_index: 1.5
      - type: sphere
        transforms:
         - type: translate
           amount: [0, 1, 0]
        material:
         pattern:
           type: solid
           color: [0, 1, 0]
         ambient: 0.1
         diffuse: 0.9
         specular: 0.9
         shininess: 200
         reflective: 0.9
         transparency: 0.1
         refractive_index: 1.5

CSG

The CSG object has the following properties:

• operation: Type of operation (union, intersection, difference)
• left: Left object
• right: Right object

Example:

  - type: csg
    operation: intersection
    left:
      type: sphere
      transforms:
       - type: translate
         amount: [0, 0, 0]
      material:
       pattern:
         type: solid
         color: [1, 0, 0]
       ambient: 0.1
       diffuse: 0.9
       specular: 0.9
       shininess: 200
       reflective: 0.9
       transparency: 0.1
       refractive_index: 1.5
    right:
      type: sphere
      transforms:
       - type: translate
         amount: [0, 1, 0]
      material:
       pattern:
         type: solid
         color: [0, 1, 0]
       ambient: 0.1
       diffuse: 0.9
       specular: 0.9
       shininess: 200
       reflective: 0.9
       transparency: 0.1
       refractive_index: 1.5

Materials

Each material has the following properties:

• pattern: Pattern of the material
• ambient: Ambient coefficient
• diffuse: Diffuse coefficient
• specular: Specular coefficient
• shininess: Shininess coefficient
• reflective: Reflective coefficient
• transparency: Transparency coefficient
• refractive_index: Refractive index

Example:

    material:
     pattern:
       type: solid
       color: [1, 0, 0]
     ambient: 0.1
     diffuse: 0.9
     specular: 0.9
     shininess: 200
     reflective: 0.9
     transparency: 0.1
     refractive_index: 1.5

Pattern

The pattern object has the following properties:

• type: Type of pattern
  • solid
  • stripe
  • gradient
  • ring
  • checker
  • blend
  • perturbed
  • noise
  • image
• color: Color of the pattern (used by solid pattern)
• color_a: color A
• color_b: color B
• pattern_a: sub-pattern A (can be used instead of color_a)
• pattern_b: sub-pattern B (can be used instead of color_b)
• scale: Scale of the pattern (used by perturbed, noise)
• octaves: Number of octaves (used by perturbed, noise)
• persistence: Persistence (used by perturbed, noise)
• image: Image file (used by image pattern)
• transforms: List of transformations to apply to the pattern

Examples:

solid pattern:

     pattern:
       type: solid
       color: [1, 0, 0]

stripe pattern:

     pattern:
       type: stripe
       color_a: [1, 0, 0]
       color_b: [0, 1, 0]
       transforms: []

gradient pattern:

     pattern:
       type: gradient
       color_a: [1, 0, 0]
       color_b: [0, 1, 0]
       transforms: []

ring pattern:

     pattern:
       type: ring
       color_a: [1, 0, 0]
       color_b: [0, 1, 0]
       transforms: []

checker pattern:

     pattern:
       type: checker
       color_a: [ 0.25, 0.5, 0.5 ]
       color_b: [ 0.5, 0.7, 0.7 ]
       transforms:
         - type: scale
           amount: [1, 1, 1]

blend pattern:

     pattern:
       type: blend
       pattern_a:
         type: ring
         color_a: [1, 0, 0]
         color_b: [0, 1, 0]
         transforms: []
       pattern_b:
         type: checker
         color_a: [0, 1, 0]
         color_b: [0, 0, 1]
         transforms: []
       transforms:
         - type: scale
           amount: [1, 1, 1]

perturbed pattern:

     pattern:
       type: perturbed
       scale: 0.1
       octaves: 5
       persistence: 0.5
       pattern_a:
         type: stripe
         color_a: [1, 0, 0]
         color_b: [0, 1, 0]
         transforms: []
       transforms:
         - type: scale
           amount: [0.1, 0.1, 0.1]

noise pattern:

     pattern:
       type: noise
       scale: 0.1
       octaves: 5
       persistence: 0.5
       color_a: [1, 0, 0]
       color_b: [1, 1, 0]
       transforms:
         - type: scale
           amount: [0.1, 0.1, 0.1]

image pattern:

     pattern:
       type: image
       image: "image.png"
       transforms:
         - type: scale
           amount: [1, 1, 1]

Transformations

Each transformation has the following properties:

• type: Type of transformation
  • translate
  • scale
  • rotate
  • shear

Translate

The translate transformation has the following properties:

• amount: Amount of transformation

Example:

    transforms:
     - type: translate
       amount: [0, 1, 2]

Scale

The scale transformation has the following properties:

• amount: Amount of transformation

Example:

    transforms:
     - type: scale
       amount: [0.5, 0.5, 0.5]

Rotate

The rotate transformation has the following properties:

• axis: Axis of rotation (x, y, z)
• angle: Angle of rotation in degrees

Example:

    transforms:
     - type: rotate
       axis: y
       angle: 45

Shear

The shear transformation has the following properties:

• xy: Amount of shear in the xy plane
• xz: Amount of shear in the xz plane
• yx: Amount of shear in the yx plane
• yz: Amount of shear in the yz plane
• zx: Amount of shear in the zx plane
• zy: Amount of shear in the zy plane

Example:

    transforms:
     - type: shear
       xy: 1
       xz: 2
       yx: 1
       yz: 3
       zx: 1
       zy: 5

Contributing

Contributions are what make the open source community such an amazing place to learn, inspire, and create. Any contributions you make are greatly appreciated.

If you have a suggestion that would make this better, please fork the repo and create a pull request. You can also simply open an issue with the tag "enhancement". Don't forget to give the project a star! Thanks again!

1. Fork the Project
2. Create your Feature Branch (git checkout -b feature/AmazingFeature)
3. Commit your Changes (git commit -m 'Add some AmazingFeature')
4. Push to the Branch (git push origin feature/AmazingFeature)
5. Open a Pull Request

License

Distributed under the MIT License. See MIT License for more information.

Contact

David Lopez - @davelpz

Project Link: https://github.com/davelpz/rray
