VPC support for the Lambda function #10

MattiasGees · 2018-02-27T16:59:06Z

When your Elasticsearch is running inside your VPC, you also need to run your Lambda function inside your VPC. This is the groundwork to make it possible.
We need to do the following:

Create securitygroup for Lambda + open ports both on Lambda and Elasticsearch side
Extend IAM role to allow VPC execution
Add the variables subnet_ids and the elasticsearch securitygroup

When subnet_ids and elasticsearch_sg_id are empty it will create the lambda without VPC support. These changes are backwards compatible and will not break previous behaviour.

I tested this change the following ways
Without VPC

module "es_cleanup" {
  source = "<path_to_module>/aws-lambda-es-cleanup/terraform"

  prefix       = "test-"
  es_endpoint  = "https://es-endpoint.test"
  index        = "cwl"
  delete_after = 31
  index_format = "%Y.%m.%d"
  python_version = "3.6"
}

With VPC support

module "es_cleanup" {
  source = "<path_to_module>/aws-lambda-es-cleanup/terraform"

  prefix       = "test-"
  es_endpoint  = "https://es-endpoint.test"
  es_endpoint  = "${data.terraform_remote_state.elasticsearch.es_logs_endpoint}"
  index        = "cwl"
  delete_after = 31
  index_format = "%Y.%m.%d"
  python_version = "3.6"
  subnet_ids          = ["<subnet_id"]
  elasticsearch_sg_id = "sg-xxxx"
}

Plan of without shows this

  + module.es_cleanup.aws_lambda_function.es_cleanup
      id:                                   <computed>
      arn:                                  <computed>
      environment.#:                        "1"
      environment.0.variables.%:            "5"
      environment.0.variables.delete_after: "31"
      environment.0.variables.es_endpoint:  "https://es-endpoint.test"
      environment.0.variables.index:        "cwl"
      environment.0.variables.index_format: "%Y.%m.%d"
      environment.0.variables.sns_alert:    ""
      filename:                             "/Users/stacks/cwlogs-to-es/.terraform/modules/6894bcd4a8a3d05d502dd16ebb78c508/es-cleanup.zip"
      function_name:                        "test-es-cleanup"
      handler:                              "es-cleanup.lambda_handler"
      invoke_arn:                           <computed>
      last_modified:                        <computed>
      memory_size:                          "128"
      publish:                              "false"
      qualified_arn:                        <computed>
      role:                                 "${aws_iam_role.role.arn}"
      runtime:                              "python3.6"
      source_code_hash:                     "oSpCIkdW1m/XxRRvbD8CC8t2XpXSjI52r1djIT0ZA6E="
      timeout:                              "300"
      tracing_config.#:                     <computed>
      version:                              <computed>
      vpc_config.#:                         "1"
      vpc_config.0.vpc_id:                  <computed>

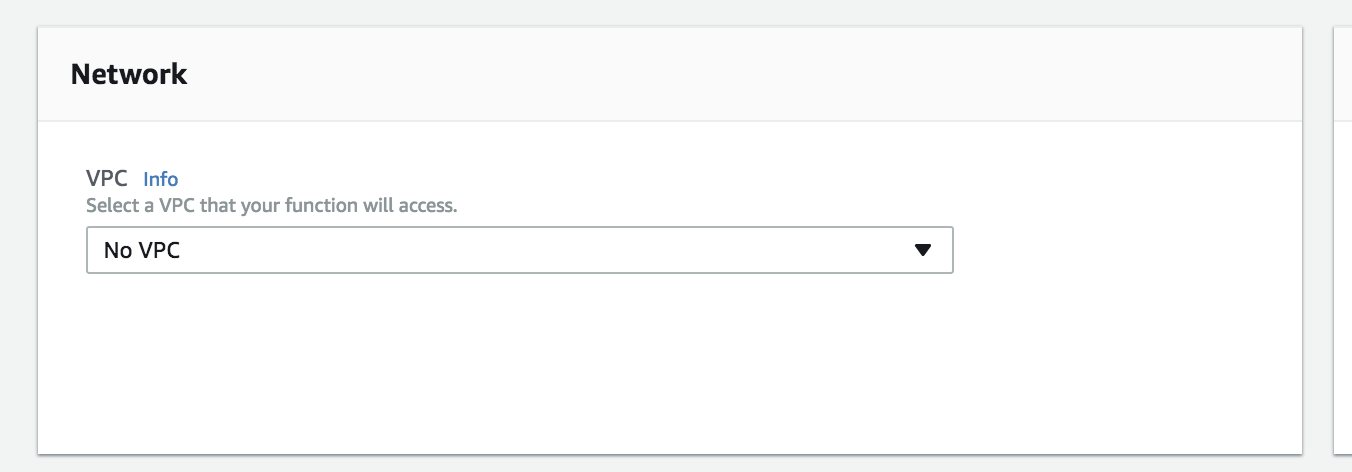

After deploy I checked the Lambda function

When your Elasticsearch is running inside your VPC, you also need to run your Lambda function inside your VPC. This is the groundwork to make it possible. We need to do the following: - Create securitygroup for Lambda + open ports both on Lambda and Elasticsearch side - Extend IAM role to allow VPC execution - Add the variables subnet_ids and the elasticsearch securitygroup

giuliocalzo · 2018-02-28T16:02:03Z

Hi @MattiasGees thanks again for your PR,
I did some commit to fix some little issue like IAM permission to run on VPC and some var.prefix

I did a simplification on Security Group in order to avoid circular dependency between modules
could be a very nice to have a flag to enabled/disabled the SG creation

MattiasGees · 2018-02-28T18:05:26Z

@giuliocalzolari Reason I like to split up security_group and security_group_rule is that it is easier to add rules afterwards from other places if needed. Circular dependency issues shouldn't be a real problem here.

I also went for the security group to security group approach instead of the 0.0.0.0 is of security reasons. I always try to limit the attack vectors.

IAM is indeed correct and I forgot about it.

giuliocalzo · 2018-02-28T20:46:47Z

@MattiasGees understood your point about security.
Keep in mind this lambda performs only outgoing connections over https to a specific endpoint. There isn't any public exposure.

just added some if conditions to maintain the compatibility between ES Public vs ES VPC.

Quick example:

module "public_es_cleanup" {
  source       = "github.com/skyscrapers/aws-lambda-es-cleanup.git//terraform?ref=c7c4fc9e9034afa01f13a924f39577ab00d72192"

  prefix       = "public-es"
  es_endpoint  = "search-demo-bue23pz5lzqzoc3m2ipc22554u.eu-central-1.es.amazonaws.com"

}


module "vpc_es_cleanup" {
  source       = "github.com/skyscrapers/aws-lambda-es-cleanup.git//terraform?ref=c7c4fc9e9034afa01f13a924f39577ab00d72192"

  prefix       = "vpc_es_"
  es_endpoint  = "vpc-demo-gloo5rzcdhyiykwdlots2hdjla.eu-central-1.es.amazonaws.com"
  subnet_ids   = ["subnet-d8660da2"]
}

MattiasGees · 2018-03-01T07:48:16Z

@giuliocalzolari the compatibility was working without the if conditions. I explicitly tested this see #10 (comment)

When you don't fill in subnet_ids, the vpc_config block inside the lambda is both times an empty list and the lambda will be created outside of the VPC (same as the original behaviour from before my PR). This is also explained in https://www.terraform.io/docs/providers/aws/r/lambda_function.html#vpc_config

NOTE: if both subnet_ids and security_group_ids are empty then vpc_config is considered to be empty or unset.

I think there is now a lot of code duplication that is not needed.

MattiasGees · 2018-03-05T08:08:58Z

@giuliocalzolari what do you think?

giuliocalzo · 2018-03-05T08:11:53Z

Hi @MattiasGees I'm testing all use case. Can you tell me which terraform version are you using and which Aws provider version are you using?

MattiasGees · 2018-03-05T08:27:34Z

Terraform v0.11.3
AWS 1.10.0

giuliocalzo · 2018-03-05T15:58:40Z

Hi @MattiasGees
also without parameters

it means subnet_ids = [] this is the output
terraform try to build create vpc_config with nil value

  vpc_config.#: "0" => "1"

Error: Error applying plan:

1 error(s) occurred:

* module.public_es_cleanup.aws_lambda_function.es_cleanup: 1 error(s) occurred:

* aws_lambda_function.es_cleanup: vpc_config is <nil>

I use the same version of you.

keep in mind with this configuration we can create a function inside or outside the vpc using the same module

MattiasGees · 2018-03-06T07:46:10Z

@giuliocalzolari This is really weird. I just tested my PR an in there it works. Steps I took

main.tf

provider "aws" {
  region = "eu-west-1"
}

module "es_cleanup" {
  source              = "github.com/skyscrapers/aws-lambda-es-cleanup//terraform?ref=3df5e9c52292270e6c4bfc2bfec663aca6c6bc2e"
  prefix              = "testpr-"
  es_endpoint         = "https://127.0.0.1"
  index               = "cwl"
  delete_after        = 31
  index_format        = "%Y.%m.%d"
  python_version      = "3.6"
}

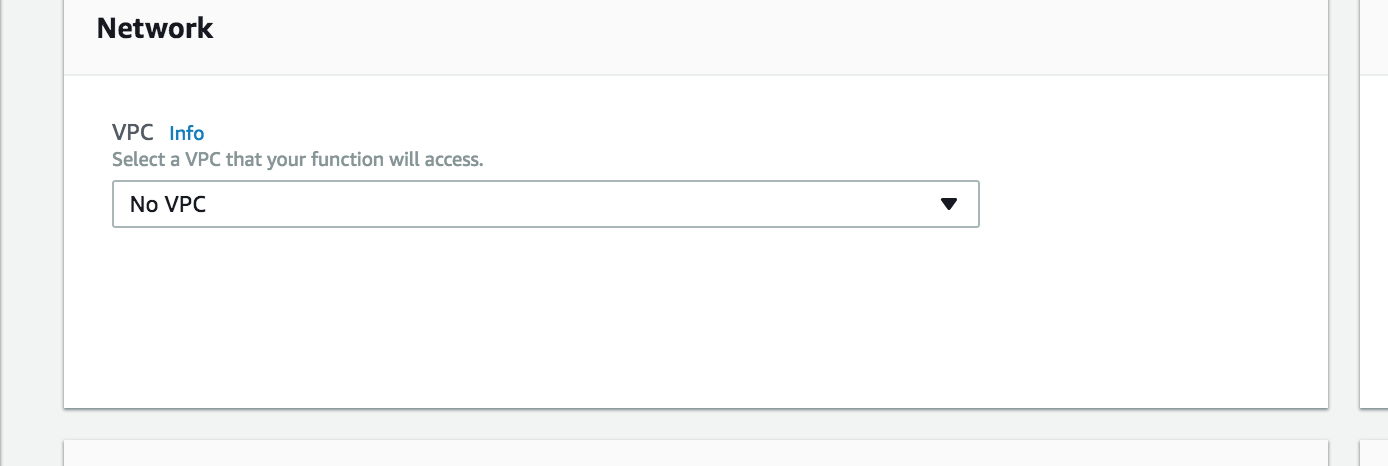

You can see I took my commit of the pr + left out the subnet id and the elasticsearch security group.

terraform init

Initializing modules...
- module.es_cleanup
  Getting source "github.com/skyscrapers/aws-lambda-es-cleanup//terraform?ref=3df5e9c52292270e6c4bfc2bfec663aca6c6bc2e"

Initializing provider plugins...
- Checking for available provider plugins on https://releases.hashicorp.com...
- Downloading plugin for provider "archive" (1.0.0)...
- Downloading plugin for provider "aws" (1.10.0)...
- Downloading plugin for provider "template" (1.0.0)...

The following providers do not have any version constraints in configuration,
so the latest version was installed.

To prevent automatic upgrades to new major versions that may contain breaking
changes, it is recommended to add version = "..." constraints to the
corresponding provider blocks in configuration, with the constraint strings
suggested below.

* provider.archive: version = "~> 1.0"
* provider.aws: version = "~> 1.10"
* provider.template: version = "~> 1.0"

Terraform has been successfully initialized!

You may now begin working with Terraform. Try running "terraform plan" to see
any changes that are required for your infrastructure. All Terraform commands
should now work.

If you ever set or change modules or backend configuration for Terraform,
rerun this command to reinitialize your working directory. If you forget, other
commands will detect it and remind you to do so if necessary.

terraform apply

data.archive_file.es_cleanup_lambda: Refreshing state...
data.template_file.policy: Refreshing state...

An execution plan has been generated and is shown below.
Resource actions are indicated with the following symbols:
  + create

Terraform will perform the following actions:

  + module.es_cleanup.aws_cloudwatch_event_rule.schedule
      id:                                   <computed>
      arn:                                  <computed>
      description:                          "es-cleanup execution schedule"
      is_enabled:                           "true"
      name:                                 "testpr-es-cleanup-execution-schedule"
      schedule_expression:                  "cron(0 3 * * ? *)"

  + module.es_cleanup.aws_cloudwatch_event_target.es_cleanup
      id:                                   <computed>
      arn:                                  "${aws_lambda_function.es_cleanup.arn}"
      rule:                                 "testpr-es-cleanup-execution-schedule"
      target_id:                            "testpr-lambda-es-cleanup"

  + module.es_cleanup.aws_iam_policy.policy
      id:                                   <computed>
      arn:                                  <computed>
      description:                          "Policy for es-cleanup Lambda function"
      name:                                 "testpr-es-cleanup"
      path:                                 "/"
      policy:                               "{\n  \"Version\": \"2012-10-17\",\n  \"Statement\": [\n    {\n      \"Sid\": \"LambdaLogCreation\",\n      \"Effect\": \"Allow\",\n      \"Action\": [\"logs:*\"],\n      \"Resource\": \"arn:aws:logs:*:*:*\"\n    },\n    {\n      \"Sid\": \"ESPermission\",\n      \"Effect\": \"Allow\",\n      \"Action\": [\n        \"es:*\"\n      ],\n      \"Resource\": \"*\"\n    }\n  ]\n}"

  + module.es_cleanup.aws_iam_role.role
      id:                                   <computed>
      arn:                                  <computed>
      assume_role_policy:                   "{\n  \"Version\": \"2012-10-17\",\n  \"Statement\": [\n    {\n      \"Effect\": \"Allow\",\n      \"Principal\": {\n        \"Service\": \"lambda.amazonaws.com\"\n      },\n      \"Action\": \"sts:AssumeRole\"\n    }\n  ]\n}\n"
      create_date:                          <computed>
      force_detach_policies:                "false"
      name:                                 "testpr-es-cleanup"
      path:                                 "/"
      unique_id:                            <computed>

  + module.es_cleanup.aws_iam_role_policy_attachment.policy_attachment
      id:                                   <computed>
      policy_arn:                           "${aws_iam_policy.policy.arn}"
      role:                                 "testpr-es-cleanup"

  + module.es_cleanup.aws_lambda_function.es_cleanup
      id:                                   <computed>
      arn:                                  <computed>
      environment.#:                        "1"
      environment.0.variables.%:            "5"
      environment.0.variables.delete_after: "31"
      environment.0.variables.es_endpoint:  "https://127.0.0.1"
      environment.0.variables.index:        "cwl"
      environment.0.variables.index_format: "%Y.%m.%d"
      environment.0.variables.sns_alert:    ""
      filename:                             "/Users/mattias/Documents/git/skyscrapers/skyscrapers-terraform/stacks/test/.terraform/modules/dd1e28959ebb36594642aef891181702/terraform/es-cleanup.zip"
      function_name:                        "testpr-es-cleanup"
      handler:                              "es-cleanup.lambda_handler"
      invoke_arn:                           <computed>
      last_modified:                        <computed>
      memory_size:                          "128"
      publish:                              "false"
      qualified_arn:                        <computed>
      role:                                 "${aws_iam_role.role.arn}"
      runtime:                              "python3.6"
      source_code_hash:                     "oSpCIkdW1m/XxRRvbD8CC8t2XpXSjI52r1djIT0ZA6E="
      timeout:                              "300"
      tracing_config.#:                     <computed>
      version:                              <computed>
      vpc_config.#:                         "1"
      vpc_config.0.vpc_id:                  <computed>

  + module.es_cleanup.aws_lambda_permission.allow_cloudwatch
      id:                                   <computed>
      action:                               "lambda:InvokeFunction"
      function_name:                        "${aws_lambda_function.es_cleanup.arn}"
      principal:                            "events.amazonaws.com"
      source_arn:                           "${aws_cloudwatch_event_rule.schedule.arn}"
      statement_id:                         "AllowExecutionFromCloudWatch"


Plan: 7 to add, 0 to change, 0 to destroy.

Do you want to perform these actions?
  Terraform will perform the actions described above.
  Only 'yes' will be accepted to approve.

  Enter a value: yes

module.es_cleanup.aws_cloudwatch_event_rule.schedule: Creating...
  arn:                 "" => "<computed>"
  description:         "" => "es-cleanup execution schedule"
  is_enabled:          "" => "true"
  name:                "" => "testpr-es-cleanup-execution-schedule"
  schedule_expression: "" => "cron(0 3 * * ? *)"
module.es_cleanup.aws_iam_role.role: Creating...
  arn:                   "" => "<computed>"
  assume_role_policy:    "" => "{\n  \"Version\": \"2012-10-17\",\n  \"Statement\": [\n    {\n      \"Effect\": \"Allow\",\n      \"Principal\": {\n        \"Service\": \"lambda.amazonaws.com\"\n      },\n      \"Action\": \"sts:AssumeRole\"\n    }\n  ]\n}\n"
  create_date:           "" => "<computed>"
  force_detach_policies: "" => "false"
  name:                  "" => "testpr-es-cleanup"
  path:                  "" => "/"
  unique_id:             "" => "<computed>"
module.es_cleanup.aws_iam_policy.policy: Creating...
  arn:         "" => "<computed>"
  description: "" => "Policy for es-cleanup Lambda function"
  name:        "" => "testpr-es-cleanup"
  path:        "" => "/"
  policy:      "" => "{\n  \"Version\": \"2012-10-17\",\n  \"Statement\": [\n    {\n      \"Sid\": \"LambdaLogCreation\",\n      \"Effect\": \"Allow\",\n      \"Action\": [\"logs:*\"],\n      \"Resource\": \"arn:aws:logs:*:*:*\"\n    },\n    {\n      \"Sid\": \"ESPermission\",\n      \"Effect\": \"Allow\",\n      \"Action\": [\n        \"es:*\"\n      ],\n      \"Resource\": \"*\"\n    }\n  ]\n}"
module.es_cleanup.aws_iam_policy.policy: Creation complete after 0s (ID: arn:aws:iam::847239549153:policy/testpr-es-cleanup)
module.es_cleanup.aws_cloudwatch_event_rule.schedule: Creation complete after 1s (ID: testpr-es-cleanup-execution-schedule)
module.es_cleanup.aws_iam_role.role: Creation complete after 1s (ID: testpr-es-cleanup)
module.es_cleanup.aws_iam_role_policy_attachment.policy_attachment: Creating...
  policy_arn: "" => "arn:aws:iam::847239549153:policy/testpr-es-cleanup"
  role:       "" => "testpr-es-cleanup"
module.es_cleanup.aws_lambda_function.es_cleanup: Creating...
  arn:                                  "" => "<computed>"
  environment.#:                        "" => "1"
  environment.0.variables.%:            "" => "5"
  environment.0.variables.delete_after: "" => "31"
  environment.0.variables.es_endpoint:  "" => "https://127.0.0.1"
  environment.0.variables.index:        "" => "cwl"
  environment.0.variables.index_format: "" => "%Y.%m.%d"
  environment.0.variables.sns_alert:    "" => ""
  filename:                             "" => "/Users/mattias/Documents/git/skyscrapers/skyscrapers-terraform/stacks/test/.terraform/modules/dd1e28959ebb36594642aef891181702/terraform/es-cleanup.zip"
  function_name:                        "" => "testpr-es-cleanup"
  handler:                              "" => "es-cleanup.lambda_handler"
  invoke_arn:                           "" => "<computed>"
  last_modified:                        "" => "<computed>"
  memory_size:                          "" => "128"
  publish:                              "" => "false"
  qualified_arn:                        "" => "<computed>"
  role:                                 "" => "arn:aws:iam::847239549153:role/testpr-es-cleanup"
  runtime:                              "" => "python3.6"
  source_code_hash:                     "" => "oSpCIkdW1m/XxRRvbD8CC8t2XpXSjI52r1djIT0ZA6E="
  timeout:                              "" => "300"
  tracing_config.#:                     "" => "<computed>"
  version:                              "" => "<computed>"
  vpc_config.#:                         "" => "1"
  vpc_config.0.vpc_id:                  "" => "<computed>"
module.es_cleanup.aws_iam_role_policy_attachment.policy_attachment: Creation complete after 2s (ID: testpr-es-cleanup-20180306073946601000000001)
module.es_cleanup.aws_lambda_function.es_cleanup: Still creating... (10s elapsed)
module.es_cleanup.aws_lambda_function.es_cleanup: Creation complete after 17s (ID: testpr-es-cleanup)
module.es_cleanup.aws_cloudwatch_event_target.es_cleanup: Creating...
  arn:       "" => "arn:aws:lambda:eu-west-1:847239549153:function:testpr-es-cleanup"
  rule:      "" => "testpr-es-cleanup-execution-schedule"
  target_id: "" => "testpr-lambda-es-cleanup"
module.es_cleanup.aws_lambda_permission.allow_cloudwatch: Creating...
  action:        "" => "lambda:InvokeFunction"
  function_name: "" => "arn:aws:lambda:eu-west-1:847239549153:function:testpr-es-cleanup"
  principal:     "" => "events.amazonaws.com"
  source_arn:    "" => "arn:aws:events:eu-west-1:847239549153:rule/testpr-es-cleanup-execution-schedule"
  statement_id:  "" => "AllowExecutionFromCloudWatch"
module.es_cleanup.aws_lambda_permission.allow_cloudwatch: Creation complete after 1s (ID: AllowExecutionFromCloudWatch)
module.es_cleanup.aws_cloudwatch_event_target.es_cleanup: Creation complete after 1s (ID: testpr-es-cleanup-execution-schedule-testpr-lambda-es-cleanup)

Apply complete! Resources: 7 added, 0 changed, 0 destroyed.

I then looked at the lambda function and there it shows the lambda function without VPC

I don't know which commit you tested or with which code, but with my example you should be able to reproduce it.

This is all tested with this commit skyscrapers@3df5e9c

giuliocalzo · 2018-03-07T10:12:30Z

Hi @MattiasGees
I manage to reproduce the issue

the problem appear only on the second execution
the first is perfect

$ terraform apply
.... omitt...
  statement_id:  "" => "AllowExecutionFromCloudWatch"
module.es_cleanup.aws_lambda_permission.allow_cloudwatch: Creation complete after 0s (ID: AllowExecutionFromCloudWatch)
module.es_cleanup.aws_cloudwatch_event_target.es_cleanup: Creation complete after 0s (ID: testpr-es-cleanup-execution-schedule-testpr-lambda-es-cleanup)

Apply complete! Resources: 7 added, 0 changed, 0 destroyed.

second execution

[10:08:45] gc ~/aws-lambda-es-cleanup $ terraform apply
data.template_file.policy: Refreshing state...
data.archive_file.es_cleanup_lambda: Refreshing state...
aws_iam_role.role: Refreshing state... (ID: testpr-es-cleanup)
aws_iam_policy.policy: Refreshing state... (ID: arn:aws:iam::111111111:policy/testpr-es-cleanup)
aws_cloudwatch_event_rule.schedule: Refreshing state... (ID: testpr-es-cleanup-execution-schedule)
aws_lambda_function.es_cleanup: Refreshing state... (ID: testpr-es-cleanup)
aws_iam_role_policy_attachment.policy_attachment: Refreshing state... (ID: testpr-es-cleanup-20180307100826942900000001)
aws_cloudwatch_event_target.es_cleanup: Refreshing state... (ID: testpr-es-cleanup-execution-schedule-testpr-lambda-es-cleanup)
aws_lambda_permission.allow_cloudwatch: Refreshing state... (ID: AllowExecutionFromCloudWatch)

An execution plan has been generated and is shown below.
Resource actions are indicated with the following symbols:
  ~ update in-place

Terraform will perform the following actions:

  ~ module.es_cleanup.aws_lambda_function.es_cleanup
      vpc_config.#: "0" => "1"


Plan: 0 to add, 1 to change, 0 to destroy.

Do you want to perform these actions?
  Terraform will perform the actions described above.
  Only 'yes' will be accepted to approve.

  Enter a value: yes

module.es_cleanup.aws_lambda_function.es_cleanup: Modifying... (ID: testpr-es-cleanup)
  vpc_config.#: "0" => "1"

Error: Error applying plan:

1 error(s) occurred:

* module.es_cleanup.aws_lambda_function.es_cleanup: 1 error(s) occurred:

* aws_lambda_function.es_cleanup: vpc_config is <nil>

Terraform does not automatically rollback in the face of errors.
Instead, your Terraform state file has been partially updated with
any resources that successfully completed. Please address the error
above and apply again to incrementally change your infrastructure.

this is the reason why I was forced to write more code if multiple if
I believe there is a bug in the module aws_lambda_function I'm going to open an issue on the main terraform-provider-aws repo

thanks for your support

giuliocalzo · 2018-03-07T10:45:26Z

issue already discoverd
hashicorp/terraform-provider-aws#443

hashicorp/terraform-provider-aws#1341
hashicorp/terraform-provider-aws#3473

MattiasGees added 3 commits February 27, 2018 16:20

Add vpc config to lambda

566f258

Add docs for lambda VPC support

3df5e9c

giuliocalzo added the enhancement label Feb 28, 2018

giuliocalzo self-assigned this Feb 28, 2018

giuliocalzo added 7 commits February 28, 2018 16:42

remove tmp file

b21ecb5

fix prefix vars in cw event

372487a

add AWSLambdaVPCAccessExecutionRole if subnet_ids is present

503f2b1

simplify security group

9a76b07

set default value in vars

3c57cbd

add tags and prefix to lambda

9a9ef2e

update docs

2fc937c

giuliocalzo added the in review label Feb 28, 2018

giuliocalzo added 3 commits February 28, 2018 21:26

add condition on lambda creation

5a1232c

clean-up python function

86fa325

add compatibility for public/vpc

c7c4fc9

giuliocalzo added 2 commits February 28, 2018 21:53

remove unused var

46fa954

update Readme

74f8bf1

giuliocalzo merged commit 7e025bc into cloudreach:master Feb 28, 2018

giuliocalzo mentioned this pull request Feb 28, 2018

create serverless configuration for AWS ES running on VPC #11

Open

giuliocalzo mentioned this pull request Mar 7, 2018

Code optimisation when aws_lambda_function.vpc_config is solved #12

Closed

Provide feedback

Saved searches

Use saved searches to filter your results more quickly

Uh oh!

VPC support for the Lambda function #10

VPC support for the Lambda function #10

Uh oh!

MattiasGees commented Feb 27, 2018

Uh oh!

giuliocalzo commented Feb 28, 2018

Uh oh!

MattiasGees commented Feb 28, 2018 •

edited

Loading

Uh oh!

giuliocalzo commented Feb 28, 2018

Uh oh!

MattiasGees commented Mar 1, 2018

Uh oh!

MattiasGees commented Mar 5, 2018

Uh oh!

giuliocalzo commented Mar 5, 2018

Uh oh!

MattiasGees commented Mar 5, 2018

Uh oh!

giuliocalzo commented Mar 5, 2018

Uh oh!

MattiasGees commented Mar 6, 2018

Uh oh!

giuliocalzo commented Mar 7, 2018

Uh oh!

giuliocalzo commented Mar 7, 2018

Uh oh!

Reviewers

Assignees

Labels

Projects

Milestone

Development

Uh oh!

2 participants

VPC support for the Lambda function #10

VPC support for the Lambda function #10

Uh oh!

Conversation

MattiasGees commented Feb 27, 2018

Uh oh!

giuliocalzo commented Feb 28, 2018

Uh oh!

MattiasGees commented Feb 28, 2018 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

giuliocalzo commented Feb 28, 2018

Uh oh!

MattiasGees commented Mar 1, 2018

Uh oh!

MattiasGees commented Mar 5, 2018

Uh oh!

giuliocalzo commented Mar 5, 2018

Uh oh!

MattiasGees commented Mar 5, 2018

Uh oh!

giuliocalzo commented Mar 5, 2018

Uh oh!

MattiasGees commented Mar 6, 2018

Uh oh!

giuliocalzo commented Mar 7, 2018

Uh oh!

giuliocalzo commented Mar 7, 2018

Uh oh!

Reviewers

Assignees

Labels

Projects

Milestone

Development

Uh oh!

2 participants

MattiasGees commented Feb 28, 2018 •

edited

Loading
