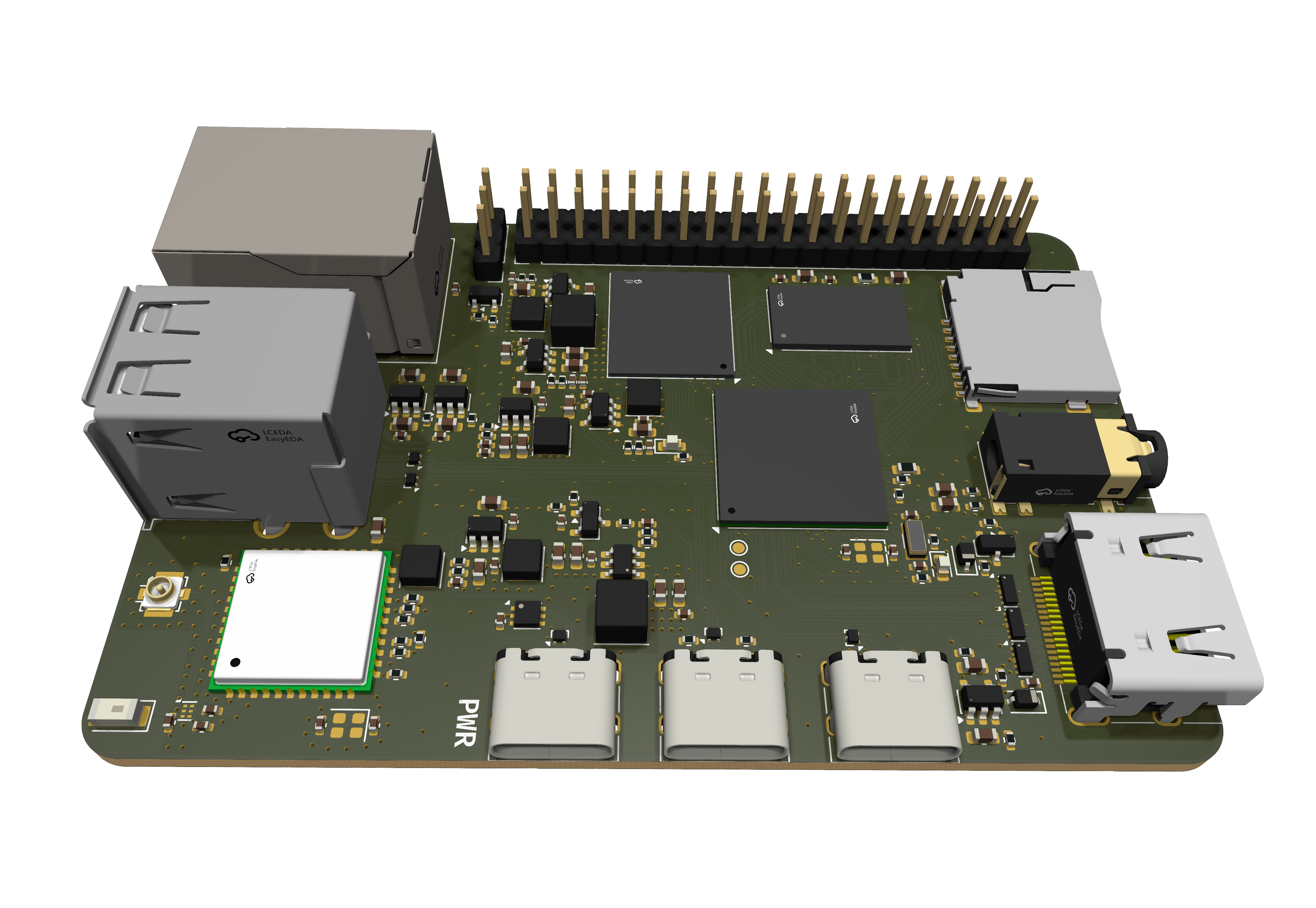

A low-cost carrier board for the H3 CPU. It let's you have a cheap yet powerful Linux/Android device on your hand.

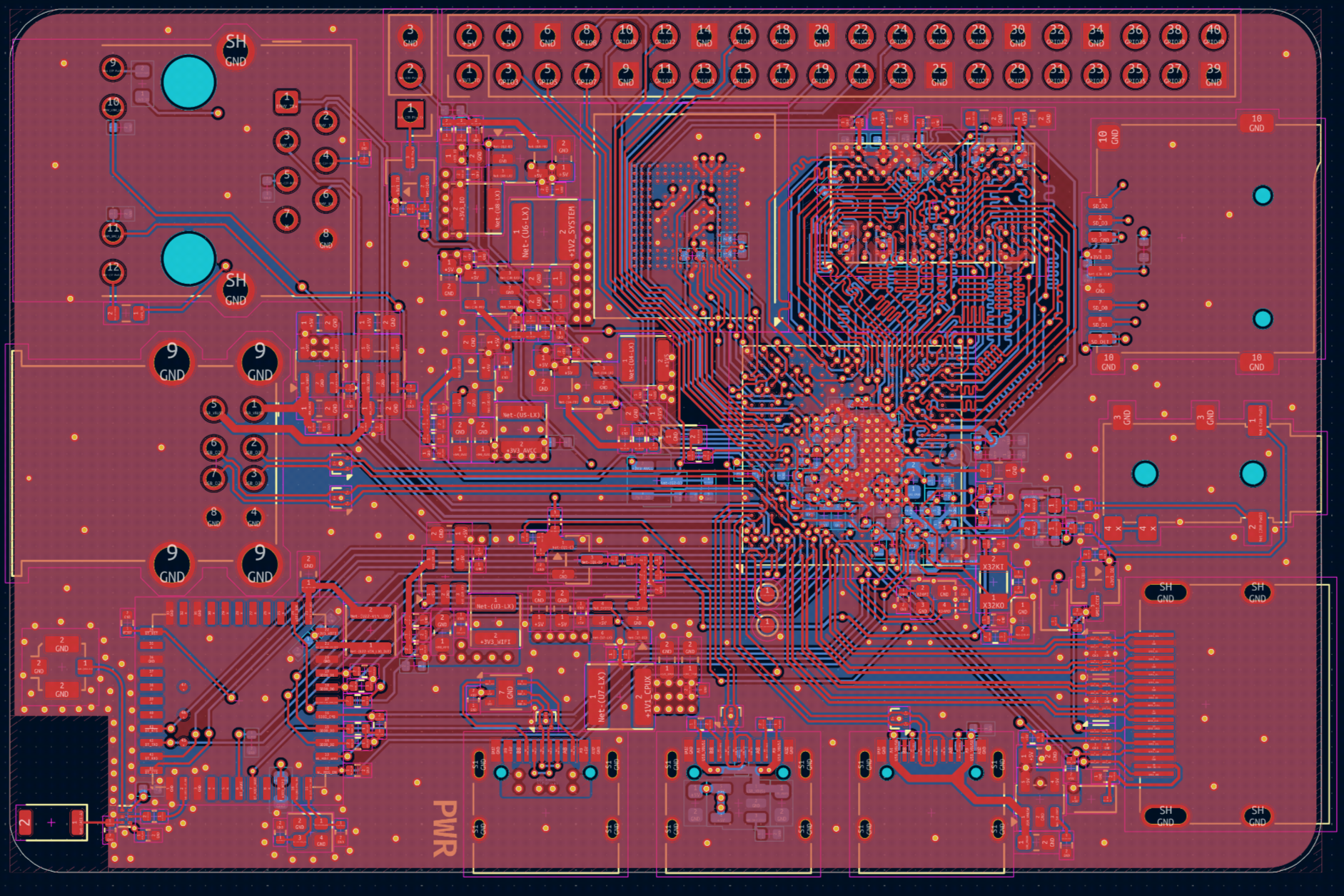

The PCB is 4 layers ensuring minimal cost and overhead during production.
- H3 Processor
- Quad-Core ARM Cortex-A7 @ 1.296GHz
- ARM Mali400 MP2 OpenGL ES 2.0
- 512MiB of DDR3 RAM
- Ethernet PHY
- WiFi & Bluetooth
- GPDI video out
- Raspberry-pi compatiable GPIO
- USB connectors:
- 2x USB-A
- 2x USB-C with one OTG
- 1x USB-C 100W PD
- 3.5mm audio jack
- SD card slot
- eMMC 5.1 storage
This project is licensed under the Solderpad hardware license, granting the maximum amount of liberty :)
It will be submitted to OSHWA for review once my prototypes come back
Any questions? Dm @Cyao. on Discord (Send a friend request or join the KiCAD Discord server) or send an email to cyao _at_ duck.com!
More info coming soon...
