Implement Standard Metrics - Free Memory by lzchen · Pull Request #708 · census-instrumentation/opencensus-python

lzchen · 2019-07-01T23:15:27Z

Initial implementation of standard metrics. [#695]
Standard Metrics are defined as metrics that will be exported by default using the metrics exporter.

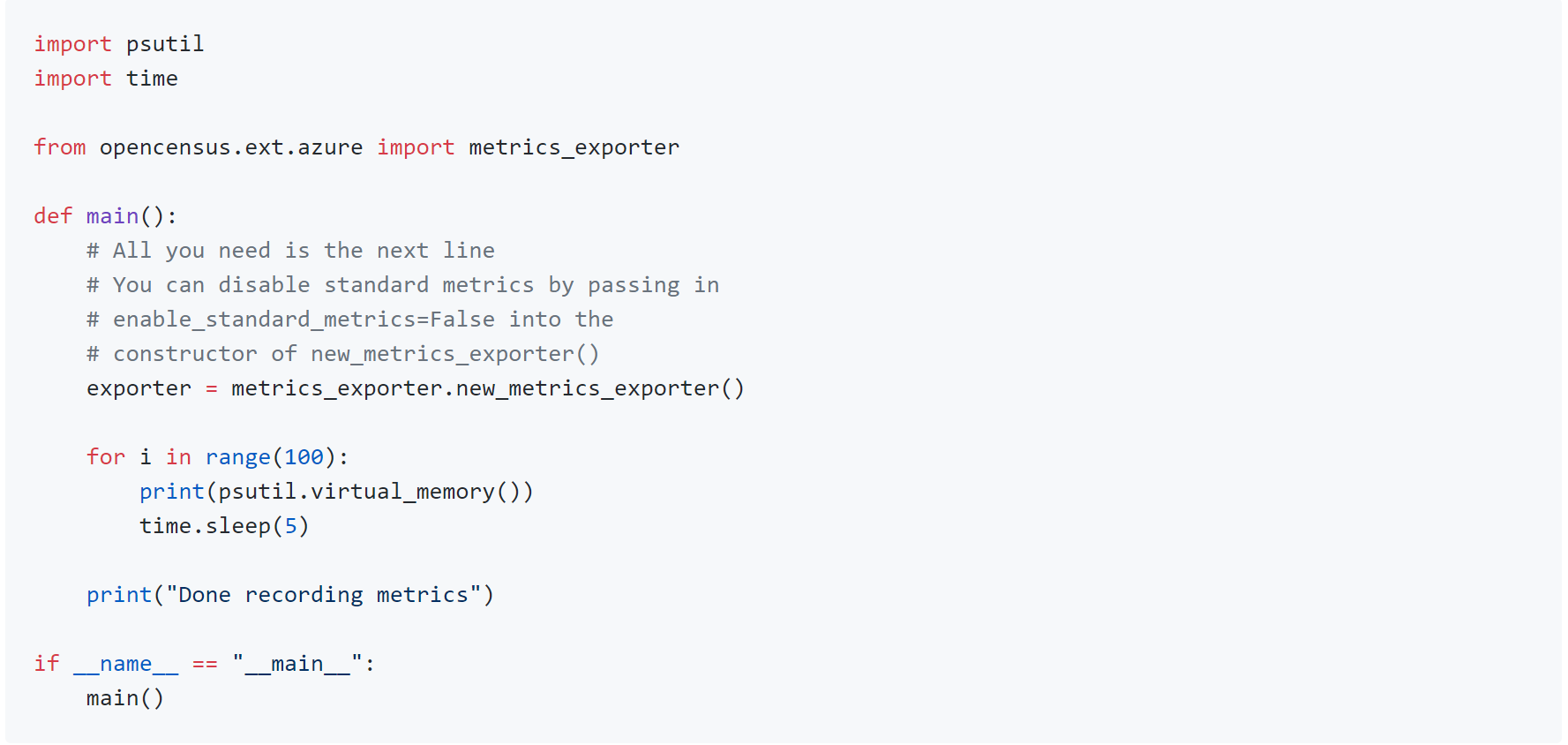

Standard metrics are enabled by default as suggested by @c24t

The first one that I am including is Free Memory in bytes.
Free Memory is defined as: memory not being used at all (zeroed) that is readily available; note that this doesn’t reflect the actual memory available (use available instead). total - used does not necessarily match free. Defined in https://psutil.readthedocs.io/en/latest/

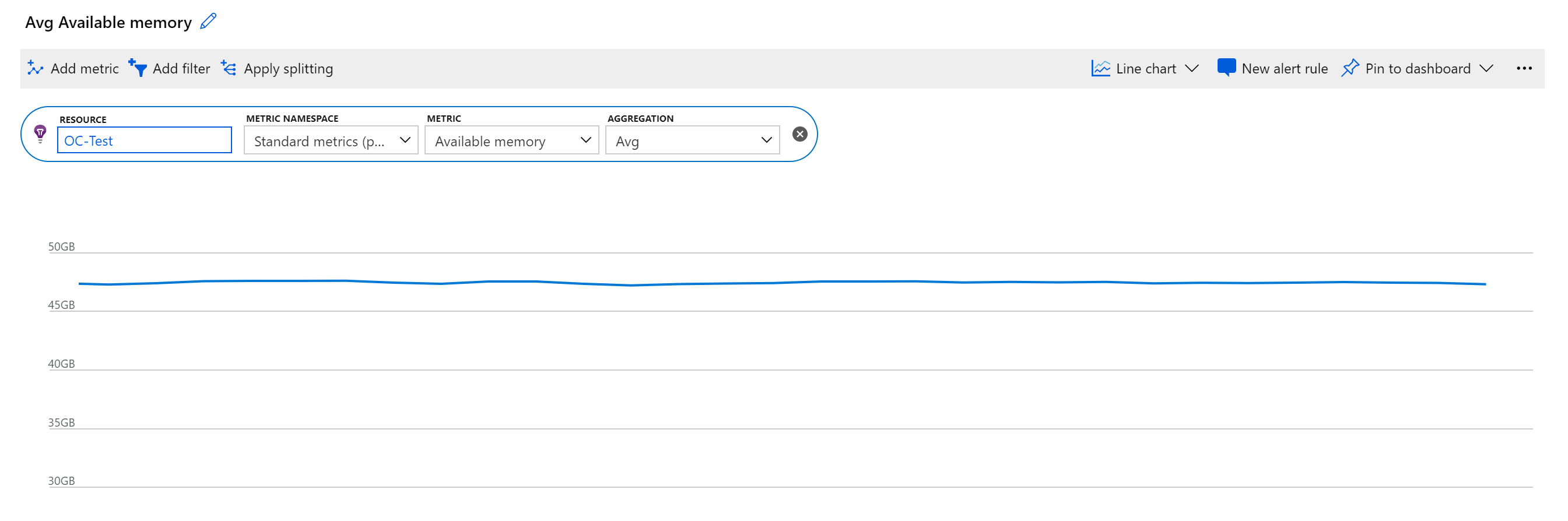

In Azure Monitor, there are special namespace names to denote a metric as being "standard". For Free Memory, you can view the telemetry in metrics explorer by going to Standard Metrics (preview) namespace and Available Memory under Performance Counters.

As for architectural decisions, the periodic recording of the standard metrics must be non-blocking to the main thread. So I chose to use a separate recording thread (initiated by MetricExporterTask) to perform this. The exporter and recorder threads should be decoupled to perform their specific jobs (the simpler the task, the better on cpu and memory).

There is a possible race condition in which the exporting is called before the recording, but the metric will then be simply delayed by one interval, which I don't think is a huge issue.

lzchen · 2019-07-01T23:16:11Z

lzchen · 2019-07-01T23:20:04Z

contrib/opencensus-ext-azure/opencensus/ext/azure/metrics_exporter/__init__.py

reyang · 2019-07-01T23:33:45Z

contrib/opencensus-ext-azure/opencensus/ext/azure/metrics_exporter/__init__.py

+        exporter.enable_standard_metrics()
+        # Separate thread for recording of metrics
+        transport.get_recorder_thread(exporter.record_standard_metrics,
+                                      interval=options_.export_interval)


Not sure if the recording interval should be the same as export interval. What are the other SDKs doing today?

In the Node SDK, the intervals for recording and exporting are different and can be configured. I was using the same interval because I was thinking of simplicity for the user so they do not have to configure anything in options. Perhaps derive the recording interval from the export interval (maybe interval-%age), as long as the recording happens prior.

@reyang We can also add another option in Options. What do you think?

I wonder how we plan to do this in OpenCensus/OpenTelemetry, it is not supposed to be exporter specific I guess?

If it won't be exporter specific, we can abstract out Options to have OpenCensus default behaviour and then implement exporter specific behaviour. Just an idea.

reyang · 2019-07-01T23:34:04Z

contrib/opencensus-ext-azure/setup.py

    install_requires=[
        'opencensus >= 0.7.dev0, < 1.0.0',
        'requests >= 2.19.0',
+        'psutil >= 5.6.3',


reyang · 2019-07-01T23:36:29Z

opencensus/metrics/transport.py

+    :return: A running thread responsible for executing record_metrics().
+
+    """
+    tt = MetricExporterTask(interval, record_metrics)


Maybe we should find another name for MetricExporterTask as we started to use it for non-exporting tasks.

reyang · 2019-07-01T23:36:49Z

opencensus/metrics/transport.py

+    :return: A running thread responsible for executing record_metrics().
+
+    """
+    tt = MetricExporterTask(interval, record_metrics)


Maybe we should find another name for MetricExporterTask as we started to use it for non-exporting tasks.

Good idea. I will use something more appropriate.

reyang · 2019-07-02T17:20:12Z

contrib/opencensus-ext-azure/opencensus/ext/azure/metrics_exporter/__init__.py

+    def enable_standard_metrics(self):
+        # Sets up stats related objects to begin
+        # recording standard metrics
+        stats_ = stats.stats


Curious, why not use stats_module.stats for consistency?

I'll use stats_module.stats for consistency.

reyang · 2019-07-02T17:22:11Z

contrib/opencensus-ext-azure/opencensus/ext/azure/metrics_exporter/__init__.py

+        # Function called periodically to record standard metrics
+        vmem = psutil.virtual_memory()
+        available_memory = vmem.available
+        available_measure = self.standard_metrics_measure_map[StandardMetricType.AVAILABLE_MEMORY]


The 'available_measure' name is confusing.

Good catch. I will match with the previous naming.

reyang · 2019-07-02T17:26:53Z

contrib/opencensus-ext-azure/opencensus/ext/azure/metrics_exporter/__init__.py

+        # Uniqueness should be based off the name of the view and
+        # measure. A warning message in the logs will be shown
+        # if there are duplicate names
+        self.standard_metrics_map = stats_recorder.new_measurement_map()


Consider decoupling the actual logic from the exporter class. We will need to add several default metrics, need to control the size of this file and have a better organized way.

Yes I will do this.

c24t

Have you considered using gauges for this? This is the ideal use case: instantaneous measurements that don't need to be aggregated and can be collected at export time.

If you use a derived gauge here it'll call psutil only when you collect the metrics for export:

import psutil
from opencensus.metrics.export.gauge import Registry
from opencensus.metrics.export.gauge import DerivedLongGauge

def get_available_memory():
    return psutil.virtual_memory().available

gauge = DerivedLongGauge('available_memory', 'Bytes of available memory on the host', 'byte', [])
gauge.create_default_time_series(get_available_memory)

reg = Registry()
reg.add_gauge(gauge)

[metric] = reg.get_metrics()
print(metric)
print(metric.time_series)
print(metric.time_series[0].points[0].value.value)

gives:

>>> Metric(time_series=<1 TimeSeries>, descriptor.name="available_memory")
>>> [TimeSeries([ValueLong(6316986368)], label_values=(), start_timestamp=2019-07-03 22:17:44.561518)]
>>> 6316986368

Gauges are relatively new, and you might discover they still need some work when you use them in the exporter, but since this solution doesn't rely on views at all it's more future-proof.

c24t · 2019-07-03T21:27:25Z

contrib/opencensus-ext-azure/opencensus/ext/azure/metrics_exporter/standard_metrics.py

+class StandardMetricsType(object):
+    # Memory that can be given instantly to
+    # processes without the system going into swap
+    AVAILABLE_MEMORY = "\\Memory\\Available Bytes"


Where does this come from, and why the backslashes?

This is the namespace that is used in Azure Monitor that uniquely identifies certain standard metrics.

Gotcha, any reason not to move this up to the module?

c24t · 2019-07-03T21:55:19Z

contrib/opencensus-ext-azure/opencensus/ext/azure/metrics_exporter/standard_metrics.py

+        # the storage only uses one single data structure
+        # Uniqueness should be based off the name of the view and
+        # measure. A warning message in the logs will be shown
+        # if there are duplicate names


Nit, here and above: what's with the short text wrapping?

It's to pass the lint checks for maximum characters. I just eyeballed the length.

lzchen · 2019-07-03T23:20:20Z

@c24t The gauges look really cool! DerivedGauge seems to fit exactly what we need. We can also get rid of the recorder thread this way. If this is implemented for standard metrics, then the exporter would essentially be "getting metrics" from two different places, the gauges registry and the measure to view map. So before they are exported, these two lists should be merged. There is a case where measure_to_view_map produces metrics that have the same name as the certain metrics produces from the gauges registry. But since we are in control of the naming for standard metrics, I don't think this is a huge issue. What do you think?

googlebot · 2019-07-05T18:46:35Z

So there's good news and bad news.

👍 The good news is that everyone that needs to sign a CLA (the pull request submitter and all commit authors) have done so. Everything is all good there.

😕 The bad news is that it appears that one or more commits were authored or co-authored by someone other than the pull request submitter. We need to confirm that all authors are ok with their commits being contributed to this project. Please have them confirm that here in the pull request.

Note to project maintainer: This is a terminal state, meaning the cla/google commit status will not change from this state. It's up to you to confirm consent of all the commit author(s), set the cla label to yes (if enabled on your project), and then merge this pull request when appropriate.

ℹ️ Googlers: Go here for more info.

lzchen · 2019-07-05T18:52:48Z

Implementation now uses Gauges instead of measures and views. StandardMetricProducer and BaseStandardMetric are also abstracted into the core sdk. Developers can make their own Producers and StandardMetrics that extend from these classes.

contrib/opencensus-ext-azure/opencensus/ext/azure/metrics_exporter/standard_metrics.py

reyang · 2019-07-09T18:09:24Z

contrib/opencensus-ext-azure/opencensus/ext/azure/metrics_exporter/standard_metrics.py

+# https://psutil.readthedocs.io/en/latest/
+class AvailableMemoryStandardMetric(BaseStandardMetric):
+    """ Metric for Available Memory
+        Avaliable memoru is defined as memory that can be given


typo: memoru -> memory

reyang · 2019-07-09T18:12:56Z

contrib/opencensus-ext-azure/tests/test_standard_metrics.py

+        execution_context.set_measure_to_view_map({})
+        stats_module.stats = stats_module._Stats()
+
+    def test_constructor_and_setup(self):


Is this intentionally empty (since the purpose is to call setUp)?

My mistake I should have commented this out. I tend to leave writing tests once the design changes have been approved.

reyang · 2019-07-09T18:19:57Z

opencensus/metrics/transport.py

    Get a `PeriodicTask` that periodically calls:

-        exporter.export_metrics(metric_producer.get_metrics())
+        exporter.export_metrics(all_metrics)


Consider putting the actual code example here (instead of the description below).
Consider itertools.chain.

reyang · 2019-07-09T18:28:52Z

opencensus/metrics/transport.py



-def get_exporter_thread(metric_producer, exporter, interval=None):
+def get_exporter_thread(metric_producers, exporter, interval=None):


I have a design question, do we intend to have one MetricProducer taking multiple metrics, or multiple MetricProducer (which I guess is the case)? If it is the latter, what's the main consideration of having multiple producers (e.g. just to categorize by ownership, or ext lib, or we expect each producer to export individually?)

Yes we intend to take multiple MetricProducer. The idea is simply as you noted to categorize ownership of the types of metrics that each Producer produces. My thought was to separate these based on logic (separate standard from custom in this case). If a developer would like to produce some other set of metrics using a different Producer, they can simply create their own MetricProducer and implement "get_metrics".

Got it, thanks.

@c24t would you take a look at the changes to the core library? Thanks.

This change looks fine, but the other option is to add a metric producer class that calls other metric producers under the hood. Since we're likely to make a similar change for exporters we might want to revisit this later. But note that this change changes the API, the other way doesn't.

reyang · 2019-07-09T21:55:39Z

tests/unit/metrics/test_transport.py

+            exporter.export_metrics.assert_called_once_with(metrics)
+        finally:
+            task.cancel()
+            task.join()


nit, new line before EOF

reyang · 2019-07-09T21:57:18Z

contrib/opencensus-ext-azure/opencensus/ext/azure/metrics_exporter/__init__.py

-    options = Options(**options)
-    exporter = MetricsExporter(options=options)
-    transport.get_exporter_thread(stats.stats,
+    options_ = Options(**options)


I don't have a strong opinion here, but I was curious on why do we need options_ instead of using options = Options(**options).

It was to differentiate the parameter from the local variable. I didn't want to name it something completely different.

reyang · 2019-07-10T18:05:56Z

tests/unit/metrics/export/test_standard_metrics.py

+                                      'test',
+                                      'test',
+                                      [])
+        test_gauge.create_default_time_series(lambda x: (1))


why (1) instead of 1?

reyang · 2019-07-10T18:08:36Z

contrib/opencensus-ext-azure/opencensus/ext/azure/metrics_exporter/standard_metrics.py

+# Definitions taken from psutil docs
+# https://psutil.readthedocs.io/en/latest/
+class AvailableMemoryStandardMetric(BaseStandardMetric):
+    """ Metric for Available Memory


minor, the comments are using different styles, it'll be good to keep a consistent style.

c24t

Stepping back, I don't think there's a good case for standard_metrics.py in the core library, but the changes in the azure exporter look fine. Some comments on the code, structure, and style.

c24t · 2019-07-10T18:16:54Z

contrib/opencensus-ext-azure/tests/test_azure_metrics_exporter.py

+        self.assertEqual(len(exporter_mock.call_args[0][0]), 2)
+
+    @mock.patch('opencensus.ext.azure.metrics_exporter' +
+                '.transport.get_exporter_thread', return_value=mock.Mock())


These will join without the +, and isn't returning a mock the default behavior?

c24t · 2019-07-10T18:26:29Z

opencensus/metrics/export/standard_metrics.py

+    def __init__(self):
+        super(StandardMetricsProducer, self).__init__()
+
+    """


Docstring in the wrong place?

c24t · 2019-07-10T18:29:04Z

opencensus/metrics/export/standard_metrics.py

+        using gauges
+    """
+    def __init__(self):
+        super(StandardMetricsProducer, self).__init__()


You'd call the super init anyway if this init didn't exist.

c24t · 2019-07-10T18:32:58Z

opencensus/metrics/export/standard_metrics.py

+
+class StandardMetricsProducer(Registry):
+    """Implementation of the producer of standard metrics
+        using gauges


Last comment about docstring line wrapping:

class StandardMetricsProducer(Registry): """Some short description up to 79 chars. Longer flowing text isn't indented, and can wrap and wrap and wrap and wrap and wrap and wrap and wrap and wrap and wrap. :type some_arg: document init args in the class docstring :param some_arg: :class:`OrOmitIfThereArentAny` """ def __init__(self): ...

Really we ought to catch this in lint to avoid this kind of comment in review.

c24t · 2019-07-10T18:37:28Z

contrib/opencensus-ext-azure/opencensus/ext/azure/metrics_exporter/standard_metrics.py

+        instantly to processes without the system going into swap
+    """
+    def __init__(self):
+        super(AvailableMemoryStandardMetric, self).__init__()


This init is a no-op too.

c24t · 2019-07-10T19:16:40Z

contrib/opencensus-ext-azure/tests/test_azure_standard_metrics.py

+        types = [a for a in attributes
+                 if not(a[0].startswith('__') and
+                        a[0].endswith('__'))]
+        self.assertEquals(len(producer.metrics), len(types))


It'd be a lot clearer just to list these out (especially since there's only one metric at the moment) than call inspect in the test.

c24t · 2019-07-10T19:18:36Z

opencensus/metrics/transport.py

+        export(itertools.chain(*all_gets))

-    :type metric_producer:
+        where all_gets is the concatenation of all metrics produced by


Dedent this to get it to render as text, and consider wrapping the code blocks in backticks. You might want to generate the docs to see how this looks.

c24t · 2019-07-10T19:18:58Z

opencensus/metrics/transport.py

+        metric_producer.get_metrics()
+
+    :type metric_producers: list
+    :param metric_producers: The list of metric producers to use to get metrics


Same thing, move down a line.

c24t · 2019-07-10T19:21:22Z

opencensus/metrics/transport.py



-def get_exporter_thread(metric_producer, exporter, interval=None):
+def get_exporter_thread(metric_producers, exporter, interval=None):


This change looks fine, but the other option is to add a metric producer class that calls other metric producers under the hood. Since we're likely to make a similar change for exporters we might want to revisit this later. But note that this change changes the API, the other way doesn't.

c24t · 2019-07-10T19:22:22Z

CHANGELOG.md

 # Changelog

 ## Unreleased
+- Refactored PeriodicMetricTask


The changelog should generally describe user-facing changes.

lzchen · 2019-07-10T22:27:38Z

@c24t Thanks for reviewing. My initial design idea was to abstract the metric types and producers so that developers can write their own standard metrics and producers. However I realize that Metric_producer class does essentially this for ALL metric producers; there is no need to have an interface for STANDARD metric producer.

lzchen · 2019-07-11T20:51:50Z

@c24t I removed the standard metrics file from the core sdk as per your suggestion. It doesn't make a lot of sense to include it. I have also made changes to the docstrings to adhere to the recommended practices for python docstrings. Can you take a look when you have the time?

c24t

Only minor comments, LGTM!

c24t · 2019-07-12T19:23:56Z

contrib/opencensus-ext-azure/opencensus/ext/azure/metrics_exporter/__init__.py

                    md = metric.descriptor
-                    # Each time series will be uniquely
-                    # identified by it's label values
+                    # Each time series will be uniquely identified by it's


Suggested change

# Each time series will be uniquely identified by it's

# Each time series will be uniquely identified by its

c24t · 2019-07-12T19:42:24Z

contrib/opencensus-ext-azure/tests/test_azure_metrics_exporter.py


        self.assertEqual(exporter.options.instrumentation_key, iKey)
+        self.assertEqual(len(exporter_mock.call_args_list), 1)
+        self.assertEqual(len(exporter_mock.call_args[0][0]), 2)


Why not check that the the actual metric producer is in the arg list here?

c24t · 2019-07-12T19:48:08Z

contrib/opencensus-ext-azure/examples/metrics/standard.py

+    print("Done recording metrics")
+
+
+if __name__ == "__main__":


More for @reyang than @lzchen: if you expect users to actually run the azure example scripts you might want to make them executable and add a #!/usr/bin/env python line up top. Not for this PR, but to consider later.

And chmod 755.

lzchen · 2019-07-12T23:45:02Z

@reyang Ready to merge!

lzchen requested review from a team, c24t, reyang and songy23 as code owners July 1, 2019 23:15

googlebot added the cla: yes label Jul 1, 2019

reyang reviewed Jul 1, 2019

View reviewed changes

contrib/opencensus-ext-azure/opencensus/ext/azure/metrics_exporter/__init__.py Outdated Show resolved Hide resolved

reyang reviewed Jul 1, 2019

View reviewed changes

reyang reviewed Jul 2, 2019

View reviewed changes

c24t reviewed Jul 3, 2019

View reviewed changes

googlebot added cla: no and removed cla: yes labels Jul 5, 2019

reyang reviewed Jul 9, 2019

View reviewed changes

contrib/opencensus-ext-azure/opencensus/ext/azure/metrics_exporter/standard_metrics.py Outdated Show resolved Hide resolved

reyang reviewed Jul 9, 2019

View reviewed changes

lzchen added 4 commits July 9, 2019 11:47

Implement free memory standard metric

be37c03

add dependency

d032255

remove quote

914708a

update README

2d841f4

rename test file

1538572

reyang reviewed Jul 9, 2019

View reviewed changes

lzchen added 7 commits July 9, 2019 15:08

fix tests

b417022

fix transport test

bbb652c

fix lint

45e7798

fix lint, add changelog

1062301

fix spaces

08c2669

fix space

3aca653

fix space

f9ceed3

reyang reviewed Jul 10, 2019

View reviewed changes

wrap comments

f036af2

c24t reviewed Jul 10, 2019

View reviewed changes

address comments

90ff7ac

lzchen added 3 commits July 10, 2019 15:39

fix lint

18c5727

fix comments

e735a24

fix example

c686a90

reyang approved these changes Jul 11, 2019

View reviewed changes

c24t approved these changes Jul 12, 2019

View reviewed changes

lzchen added 3 commits July 12, 2019 14:36

address comments

da05e5e

fix spacing

9e45dac

fix spacing

7ebf5b5

reyang merged commit c809229 into census-instrumentation:master Jul 13, 2019

lzchen mentioned this pull request Jul 26, 2019

Implement "out-of-the-box" (OOTB) metrics for exporters #695

Closed

This was referenced Aug 5, 2019

opencensus-ext-python (==0.4.0) is shipped with broken StackdriverStatsExporter. #745

Closed

Bump SD exporter package version for release #747

Merged



		def get_exporter_thread(metric_producer, exporter, interval=None):
		def get_exporter_thread(metric_producers, exporter, interval=None):

	# Each time series will be uniquely identified by it's
	# Each time series will be uniquely identified by its

Conversation

lzchen commented Jul 1, 2019 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

lzchen commented Jul 1, 2019

Uh oh!

lzchen commented Jul 1, 2019

Uh oh!

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

c24t left a comment

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

lzchen commented Jul 3, 2019

Uh oh!

googlebot commented Jul 5, 2019

Uh oh!

lzchen commented Jul 5, 2019

Uh oh!

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

lzchen Jul 9, 2019 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

lzchen commented Jul 1, 2019 •

edited

Loading

lzchen Jul 9, 2019 •

edited

Loading
