AyresWiFiManager (AWM)

GitHub stars

⭐ If you find this project useful, please consider giving it a star. Thank you.

AWM Release License Issues

ESP32 ESP8266 Arduino PlatformIO

LittleFS Captive Portal DNS catch-all NTP ArduinoJson

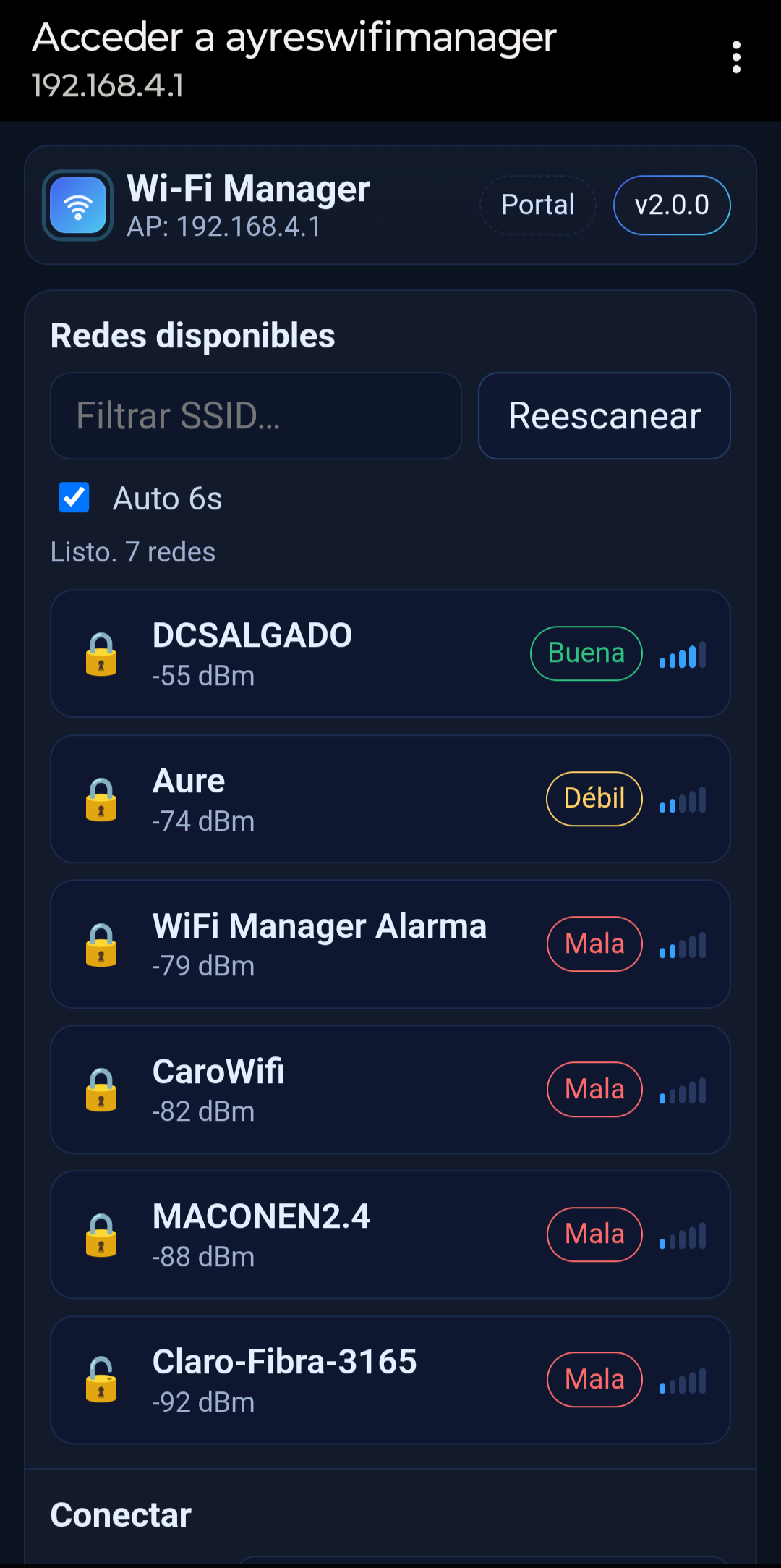

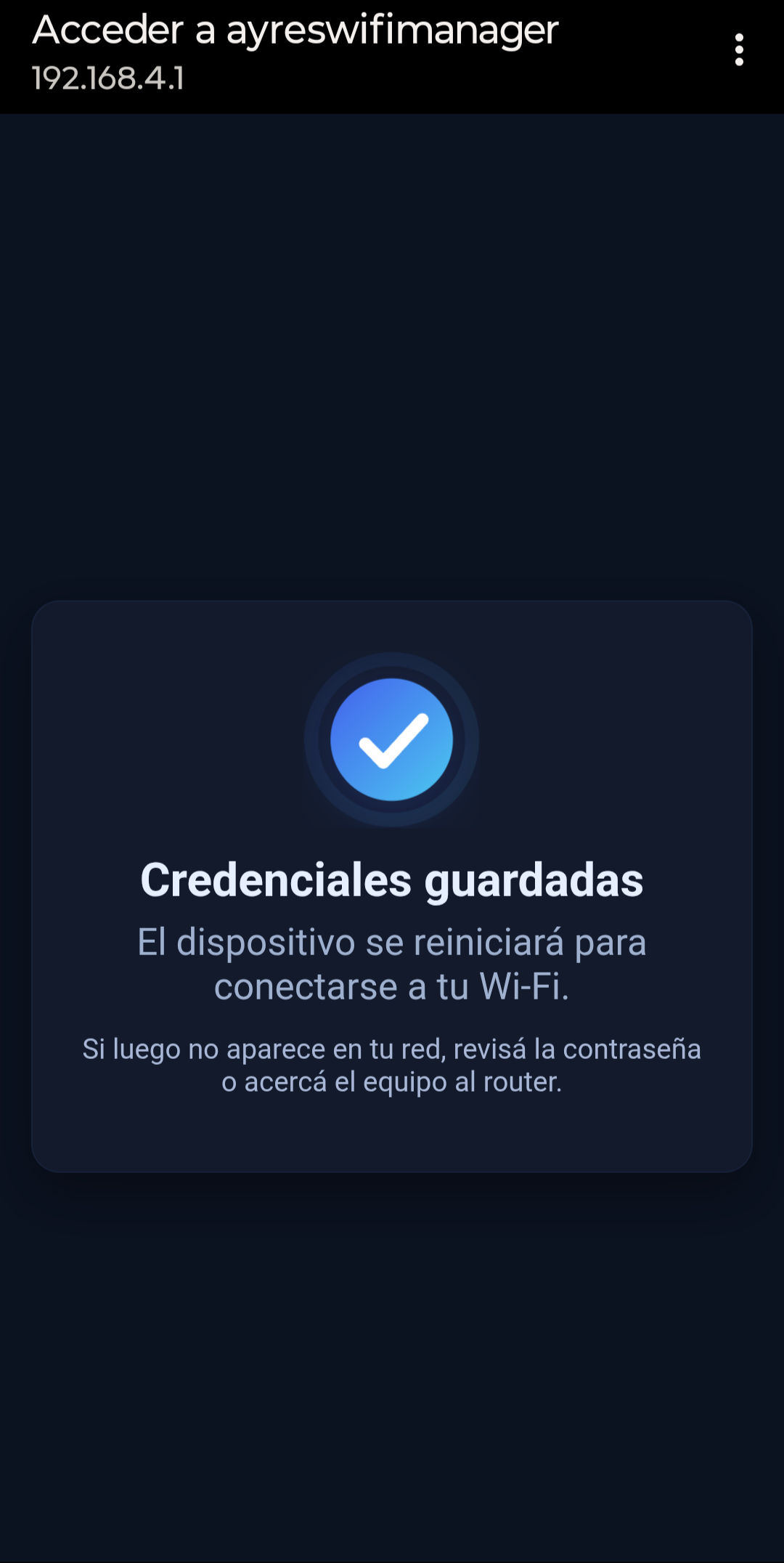

Screenshot 1 Screenshot 2 Screenshot 3

📢 Now available in the Arduino IDE!

You can install AyresWiFiManager directly from the Arduino IDE Library Manager.
Just search for “AyresWiFiManager” and click “Install”.

AWM — Pro Wi‑Fi manager for ESP32/ESP8266 featuring a real captive portal (AP+DNS), modern UI served from LittleFS, secure credential storage, fallback policies, provisioning button, status LED, NTP, Internet reachability check, and configurable logging.

Project: https://github.com/AyresNet/AyresWiFiManager
License: MIT — (c) 2025 AyresNet

🇪🇸 ¿Español? Lee el README.es.md.

⭐ Why AyresWiFiManager?

  • Real captive portal: DNS catch‑all + OS connectivity routes (Android/iOS/Windows) to force open http://192.168.4.1.
  • Lightweight UI (no external deps) served from /data (LittleFS): search, rescan, signal bars, and an option to erase credentials from the portal.
  • Clear, cross‑platform API for ESP32/ESP8266 with explicit policies.
  • Smart fallbacks: NO_CREDENTIALS_ONLY (default), ON_FAIL, SMART_RETRIES, BUTTON_ONLY, NEVER.
  • Integrated Button & LED:
    • Button (LOW): 2–5 s opens portal · ≥5 s erases JSON and restarts.
    • LED: ON connected · BLINK_SLOW portal · BLINK_FAST scanning · OFF idle (+ double/triple patterns for feedback).
  • Safe JSON erase with whitelist, recursive on ESP32.
  • Professional logging (AWM_LOG* macros) with level set via build_flags.
  • Utilities: NTP (pool.ntp.org/time.nist.gov), hayInternet() (Google 204), RSSI, timestamp, auto‑reconnect.

🚀 Features

  • Credential storage at /wifi.json (LittleFS).
  • Portal routes
    • GET / → index.html
    • POST /save → stores {ssid,password} and restarts
    • GET /scan or /scan.json → [{ssid,rssi,secure}]
    • POST /erase → deletes .json (respects whitelist) and restarts
  • Example HTML/JS/CSS included: data/index.html, data/success.html, data/error.html
  • ESP32: esp_wifi_set_ps(WIFI_PS_NONE), LittleFS.begin(true) (auto‑format)
    ESP8266: WiFi.setSleepMode(WIFI_NONE_SLEEP), non‑recursive LittleFS iteration

📦 Installation

PlatformIO (recommended)

Minimal platformio.ini:

[env:esp32dev]
platform = espressif32
board = esp32dev
framework = arduino
monitor_speed = 115200
board_build.filesystem = littlefs

; Optional: logging
build_flags =
  -D AWM_ENABLE_LOG=1     ; 0=off, 1=on
  -D AWM_LOG_LEVEL=3      ; 1=E, 2=W, 3=I, 4=D, 5=V
  • Place your portal files in data/ (e.g. index.html).
  • Upload FS: pio run -t uploadfs.
  • Flash the sketch and open the serial monitor.

Arduino IDE

  • Install the official ESP32/ESP8266 cores.
  • Install the appropriate LittleFS uploader (ESP32/ESP8266).
  • Upload the data/ folder to the FS with the “Data Upload” tool.
  • Build and upload the sketch.

✏️ Minimal usage

#include <AyresWiFiManager.h>

AyresWiFiManager wifi;

void setup() {
  Serial.begin(115200);

  wifi.setAPCredentials("ayreswifimanager","123456789");
  wifi.setPortalTimeout(300);   // 5 min of inactivity
  wifi.setAPClientCheck(true);  // don't close if clients connected
  wifi.setWebClientCheck(true); // each HTTP request resets the timer
  // wifi.setCaptivePortal(false); // disable redirections if you prefer

  wifi.begin();  // mounts FS, loads /wifi.json if present
  wifi.run();    // tries STA; if it fails applies the fallback policy
}

void loop() {
  wifi.update(); // serves HTTP/DNS and handles timeouts/LED
}

🪄 Recommended boot flow

The example examples/30sVentana/src/main.cpp does:

  • If credentials exist → opens portal with 30 s inactivity timeout; if unused, it closes and continues automatically.
  • If no credentials → opens a “normal” portal (e.g. 5 min inactivity timeout).
  • In both cases, while the portal is in use (AP clients or HTTP requests), it won’t close until usage stops.

🧩 API overview

// Portal / AP
void setHtmlPathPrefix(const String& prefix);  // e.g.: "/wifimanager"
void setHostname(const String& host);
void setAPCredentials(const String& ssid, const String& pass);
void setCaptivePortal(bool enabled);           // DNS + captive routes
void setPortalTimeout(uint32_t seconds);       // 0 = no timeout
void setAPClientCheck(bool enabled);           // keep open if clients connected
void setWebClientCheck(bool enabled);          // each request resets timer
void openPortal();
void closePortal();
bool isPortalActive() const;

// Fallback
enum class FallbackPolicy { ON_FAIL, NO_CREDENTIALS_ONLY, SMART_RETRIES, BUTTON_ONLY, NEVER };
void setFallbackPolicy(FallbackPolicy p);
void setSmartRetries(uint8_t maxRetries, uint32_t windowMs);
void enableButtonPortal(bool enable);
void setAutoReconnect(bool enabled);

// Status / utilities
bool tieneCredenciales() const;
bool connectToWiFi();
bool isConnected();
int  getSignalStrength();     // RSSI
uint64_t getTimestamp();      // ms (0 if no NTP)
bool hayInternet();           // generate_204
bool scanRedDetectada();
void forzarReconexion();

// LED
enum class LedPattern { OFF, ON, BLINK_SLOW, BLINK_FAST, BLINK_DOUBLE, BLINK_TRIPLE };
void setLedAuto(bool enable);
void setLedPatternManual(LedPattern p);

// FS safety (.json whitelist)
void setProtectedJsons(std::initializer_list<const char*> names); // e.g.: {"/wifi.json","license.json"}

🔘 Button & 💡 LED

  • Button (default pin 0, INPUT_PULLUP, active LOW):
    • 2–5 s → open portal (if enableButtonPortal(true))
    • ≥5 s → erase .json (respects setProtectedJsons) and restart
  • LED (default pin 2):
    • ON connected to Wi‑Fi
    • BLINK_SLOW portal active
    • BLINK_FAST scanning
    • BLINK_DOUBLE / TRIPLE feedback while holding the button
    • OFF no link/portal

You can set the pattern manually (setLedPatternManual) or leave it automatic (setLedAuto(true)).

📋 Logging (optional, recommended)

Include include/AWM_Logging.h and use the macros:

AWM_LOGE("error: %d", code);   // Error
AWM_LOGW("warning...");
AWM_LOGI("info...");
AWM_LOGD("debug x=%d", x);
AWM_LOGV("verbose...");

Enable via compile flags (PlatformIO):

build_flags =
  -D AWM_ENABLE_LOG=1
  -D AWM_LOG_LEVEL=3    ; 1=ERROR, 2=WARN, 3=INFO, 4=DEBUG, 5=VERBOSE
  • Set AWM_ENABLE_LOG=0 to turn all logs off (no‑ops).
  • Raise/lower AWM_LOG_LEVEL to control verbosity.

🗂 Portal files (LittleFS)

  • data/index.html – scan, filter, SSID selection, save form, advanced options
  • data/success.html – saved confirmation (SVG with pulse; the device restarts)
  • data/error.html – save error (SVG with subtle shake + “Back” link)

Change the root with setHtmlPathPrefix("/wifimanager") if you prefer another folder.

Upload FS

  • PlatformIO: pio run -t uploadfs
  • Arduino IDE: “Data Upload” tool

🔁 Migrating from tzapu/WiFiManager

AyresWiFiManager aims to be simple and explicit:

  • No configuration auto‑magic: you decide when to open the portal and for how long.
  • A truly captive portal (DNS + routes), not just AP + webserver.
  • Modern UI without CDNs, tailored for low RAM/flash ESPs.
  • Safe erase of .json with whitelist and (on ESP32) recursive.
  • Logging with adjustable levels.

📚 Examples

  • examples/AWM_Minimal/AWM_Minimal.ino – minimal usage (begin(), update(), isConnected()).
  • examples/AWM_Advanced/AWM_Advanced.ino – status LED, short-press button → portal, NTP, reconnect.
  • examples/standard/main.cpp – simple reference flow.
  • examples/30sVentana/main.cpp – 30-second “boot window” portal if credentials exist.
  • examples/usedExample/usedExample.ino – legacy usage example.

📂 Repository structure

AyresWiFiManager/
├─ data/                     # Captive-portal HTML/CSS/JS (LittleFS examples)
│  ├─ index.html             # Main portal page
│  ├─ success.html           # Confirmation after saving credentials
│  └─ error.html             # Error page
│
├─ examples/                 # Example sketches (Arduino IDE & PlatformIO)
│  ├─ AWM_Minimal/
│  │   └─ AWM_Minimal.ino    # Minimal usage (begin + update + isConnected)
│  ├─ AWM_Advanced/
│  │   └─ AWM_Advanced.ino   # Advanced: LED, button, NTP, reconnect
│  ├─ standard/
│  │   └─ main.cpp           # Simple reference flow
│  ├─ 30sVentana/
│  │   └─ main.cpp           # 30s "boot window" captive portal
│  └─ usedExample/
│      └─ usedExample.ino    # Legacy usage example
│
├─ src/                      # Core library sources
│  ├─ AyresWiFiManager.h     # Main header (public API)
│  ├─ AyresWiFiManager.cpp   # Implementation
│  └─ AWM_Logging.h          # Optional lightweight logging macros
│
├─ library.properties        # Arduino Library Manager metadata
├─ library.json              # PlatformIO metadata
├─ platformio.ini            # Example PIO project config
├─ LICENSE                   # MIT License
├─ README.md                 # Main documentation (English)
└─ README.es.md              # Documentation in Spanish

To keep local libs out of the repo, add paths to .gitignore (e.g. lib/AyresShell/).

📂 Captive portal HTML

The portal files (index.html, success.html, error.html) must be uploaded to the LittleFS of your own sketch:

  1. Copy the files from this library’s data/ folder into the data/ folder of your sketch.
  2. Upload them to the device:
    • Arduino IDE: menu → ESP32 LittleFS Data Upload
    • PlatformIO:
      pio run --target uploadfs

⚠️ Important note:
The data/ folder in the root of this library is for reference/example only.
It is not automatically uploaded when compiling a sketch.

✅ Production tips

  • Protect critical files:
    wifi.setProtectedJsons({"/wifi.json","license.json"});
  • Set coherent inactivity timeouts (setPortalTimeout) and enable setAPClientCheck(true) + setWebClientCheck(true) so it doesn’t close while in use.
  • For remote installs, setFallbackPolicy(SMART_RETRIES) + setAutoReconnect(true) usually gives a great UX.
  • If you need fewer logs in production: -D AWM_ENABLE_LOG=0.

🧩 Compatibility

  • ESP32 (Arduino core)
  • ESP8266 (Arduino core)

Requires LittleFS. On ESP32 it auto‑formats if begin(true) fails.

🤝 Contributing

PRs & issues are welcome!
Ideas: more examples, translations, portal UI/UX tweaks, new fallback policies.

📄 License

MIT — see LICENSE (or SPDX headers in source files).

📘 Read this in Spanish → README.es.md

Questions or ideas? Open an issue. Thanks for trying AyresWiFiManager! 🚀
