Event-Driven Architecture with IBM Event Streams

This project demonstrates a distributed, event-driven microservices architecture built with NestJS, Apache Kafka, and Docker. It includes three core services (customer-service, transaction-service, notification-service) that communicate asynchronously via Kafka topics. The application is containerized, deployed to IBM Cloud Code Engine, and leverages GitHub Actions for CI/CD.

• Customer Service – Manages customer data and publishes events when a new customer is created.

• Transaction Service – Handles financial transactions and produces events when a transaction occurs.

• Notification Service – Listens for customer and transaction events to send real-time notifications.

  ---

High Level Architecture Diagram

---

Event Flow Sequence Diagram

---

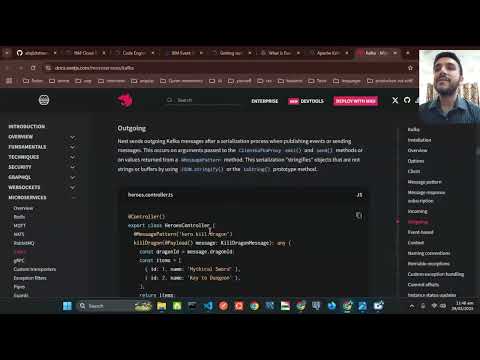

Here is the full tutorial :

---

Key Technologies & Tools

• Backend Framework: NestJS (TypeScript)

• Event Streaming: Apache Kafka (via kafka.js)

• Containerization: Docker

• Orchestration: Kubernetes (implied via IBM Cloud Code Engine)

• CI/CD: GitHub Actions

• Cloud Deployment: IBM Cloud (Code Engine, Event Streams)

• Authentication: SASL/SSL for Kafka brokers

• Logging & Monitoring: NestJS Logger, structured event tracking

---

Architecture Workflow

1. Service Breakdown

• Customer Service:

  • REST API to create customers.

  • Emits Customer.created Kafka events on successful registration.

• Transaction Service:

  • Processes financial transactions (debit/credit).

  • Emits transaction.processed (success) or transaction.failed (error) events.

  • Maintains in-memory account balances for demo purposes.

• Notification Service:

  • Listens to Kafka events (Customer.created, transaction.processed, transaction.failed).

  • Sends emails/notifications based on event payloads (e.g., welcome emails, transaction alerts).

2. Event-Driven Communication

• Kafka Topics:

  • Customer.created: Triggered by customer registration.

  • transaction.requested: Initiated for transaction processing.

  • transaction.processed/transaction.failed: Outcomes of transaction processing.

• Asynchronous Workflow:

  1. A customer is created via customer-service → Customer.created event emitted.

  2. notification-service consumes the event → sends a welcome email.

  3. A transaction request is sent to transaction-service → processed asynchronously.

  4. On success/failure, transaction-service emits corresponding events → notification-service sends alerts.

3. Kafka Configuration

• Broker Setup:

  • Brokers are configured via EVENT_STREAMS_KAFKA_BROKERS_SASL environment variable (supports JSON or comma-separated strings).

  • SASL/SSL authentication using EVENT_STREAMS_USER and EVENT_STREAMS_PASSWORD.

• Reusable Utilities:

  • KafkaConnectionUtils class standardizes Kafka client configuration (SSL, timeouts, retries) across services.

4. Containerization & Deployment

• Docker:

  • Each service has a dedicated Dockerfile optimized with multi-stage builds.

  • Images are pushed to IBM Container Registry (au.icr.io).

• IBM Cloud Code Engine:

  • Services are deployed as serverless applications with auto-scaling.

  • GitHub Actions automates build, push, and deployment steps on master branch updates.

5. CI/CD Pipeline

• GitHub Actions Workflow:

  • Checks out code, installs IBM Cloud CLI, and authenticates via API key.

  • Builds/pushes Docker images for all services.

  • Deploys updates to IBM Cloud Code Engine using ibmcloud ce commands.

Event-Driven Architecture with IBM Event Streams

📂 Repository Structure

.
├── apps/
│   ├── customer-service/      # Customer registration and event emission
│   ├── transaction-service/   # Transaction processing core
│   └── notification-service/  # Event-driven notifications
├── .github/workflows/         # CI/CD pipelines for IBM Cloud deployment
├── docker/                    # Dockerfiles for each service
├── nest-cli.json              # Monorepo configuration
└── kafka-connection-utils/    # Reusable Kafka client setup (SSL, retries, logging)

1. Clean Up Existing Resources

Run the following commands to delete any existing applications:

ibmcloud ce application delete --name customer-service --force
ibmcloud ce application delete --name transaction-service --force
ibmcloud ce application delete --name notification-service --force

List all service instances in your IBM Cloud account:

ibmcloud resource service-instances

Retrieve details of your Event Streams instance:

ibmcloud resource service-instance my-event-streams --output json

---

2. Create an Event Streams Instance

ibmcloud resource service-instance-create my-event-streams messagehub standard au-syd

Verify and initialize the Event Streams instance:

ibmcloud es init -i my-event-streams

---

3. Create Applications with Temporary Dummy Images

Customer Service

ibmcloud ce application create --name customer-service \
  --image nginx:alpine \
  --port 80 \
  --registry-secret icr-secret

Transaction Service

ibmcloud ce application create --name transaction-service \
  --image nginx:alpine \
  --port 80 \
  --registry-secret icr-secret

Notification Service

ibmcloud ce application create --name notification-service \
  --image nginx:alpine \
  --port 80 \
  --registry-secret icr-secret

---

4. Bind Event Streams Service to Applications

For Customer Service

ibmcloud ce application bind --name customer-service \
  --service-instance my-event-streams \
  --prefix EVENT_STREAMS

For Transaction Service

ibmcloud ce application bind --name transaction-service \
  --service-instance my-event-streams \
  --prefix EVENT_STREAMS

For Notification Service

ibmcloud ce application bind --name notification-service \
  --service-instance my-event-streams \
  --prefix EVENT_STREAMS

Verify bindings:

ibmcloud ce application get --name notification-service

---

5. Rebuild and Push Docker Images

Rebuild with Updated Code

docker build -t au.icr.io/mycodeengine/customer-service:latest -f Dockerfile.customer-service .
docker build -t au.icr.io/mycodeengine/transaction-service:latest -f Dockerfile.transaction-service .
docker build -t au.icr.io/mycodeengine/notification-service:latest -f Dockerfile.notification-service .

Push to IBM Cloud Container Registry

docker push au.icr.io/mycodeengine/customer-service:latest
docker push au.icr.io/mycodeengine/transaction-service:latest
docker push au.icr.io/mycodeengine/notification-service:latest

---

6. Update Applications with Real Images

ibmcloud ce application update --name customer-service \
  --image au.icr.io/mycodeengine/customer-service:latest

ibmcloud ce application update --name transaction-service \
  --image au.icr.io/mycodeengine/transaction-service:latest

ibmcloud ce application update --name notification-service \
  --image au.icr.io/mycodeengine/notification-service:latest

---

7. Test the Setup

Produce Test Data

create a customer

curl -X POST http://customer-service/app/customers \
  -H "Content-Type: application/json" \
  -d '{"id": "cust-001", "name": "John Doe", "email": "john@example.com"}'

Initiate a Transaction

curl -X POST http://transaction-service/transactions \
  -H "Content-Type: application/json" \
  -d '{"from": "cust-001", "to": "cust-002", "amount": 100, "transactionId": "txn-123"}
