Using Custom Painter in Jetpack Compose

Jetpack Compose provides a Painter object to replace the Drawable APIs used for drawing graphics in Android. A Painter object represents something that can be drawn and influences the measurement and layout of the composable it is used in. For example, a BitmapPainter takes an ImageBitmap that can draw a Bitmap on the screen.

A Painter is different from a DrawModifier. A DrawModifier strictly draws within the bounds given to it and does not influence the measurement or layout of the composable.

Creating a Custom Painter

To create a custom painter, extend the Painter class and implement the onDraw method. This method provides access to the DrawScope to draw custom graphics. You can also override the intrinsicSize, which will be used to influence the Composable that it is contained in.

Below is an example of a custom painter that overlays two images:

class OverlayImagePainter(
    private val image: ImageBitmap,
    private val imageOverlay: ImageBitmap,
    private val srcOffset: IntOffset = IntOffset.Zero,
    private val srcSize: IntSize = IntSize(image.width, image.height),
    private val overlaySize: IntSize = IntSize(imageOverlay.width, imageOverlay.height),
) : Painter() {

    private val size: IntSize = validateSize(srcOffset, srcSize)

    override fun DrawScope.onDraw() {
        drawImage(
            image,
            srcOffset,
            srcSize,
            dstSize = IntSize(
                this@onDraw.size.width.roundToInt(),
                this@onDraw.size.height.roundToInt(),
            ),
        )

        drawImage(
            imageOverlay,
            srcOffset,
            overlaySize,
            dstSize = IntSize(
                this@onDraw.size.width.roundToInt(),
                this@onDraw.size.height.roundToInt()
            ),
            blendMode = BlendMode.Overlay,
        )
    }

    override val intrinsicSize: Size get() = size.toSize()

    private fun validateSize(srcOffset: IntOffset, srcSize: IntSize): IntSize {
        require(
            srcOffset.x >= 0 &&
            srcOffset.y >= 0 &&
            srcSize.width >= 0 &&
            srcSize.height >= 0 &&
            srcSize.width <= image.width &&
            srcSize.height <= image.height
        )
        return srcSize
    }
}

You can overlay any image on top of your source image with this custom painter as follows:

val rainbowImage = ImageBitmap.imageResource(id = R.drawable.rainbow)
val dogImage = ImageBitmap.imageResource(id = R.drawable.dog)
val customPainter = remember {
    OverlayImagePainter(dogImage, rainbowImage)
}

Image(
    painter = customPainter,
    contentDescription = stringResource(id = R.string.dog_content_description),
    contentScale = ContentScale.Crop,
    modifier = Modifier.wrapContentSize(),
)

Creating a Different Example Using Custom Painter

Now, instead of the OverlayImagePainter example, we will create our own custom painter and draw a new example. In this example, we will create a painter that draws a simple circle with a cross on top of it:

class CrossCirclePainter : Painter() {
    override val intrinsicSize: Size = Size(100f, 100f)

    override fun DrawScope.onDraw() {
        // Circle
        drawCircle(
            color = Color.Blue,
            radius = size.minDimension / 2,
            center = center,
        )

        // Cross
        val strokeWidth = 5f

        drawLine(
            color = Color.Red,
            start = Offset(center.x - size.minDimension / 4, center.y - size.minDimension / 4),
            end = Offset(center.x + size.minDimension / 4, center.y + size.minDimension / 4),
            strokeWidth = strokeWidth,
        )

        drawLine(
            color = Color.Red,
            start = Offset(center.x - size.minDimension / 4, center.y + size.minDimension / 4),
            end = Offset(center.x + size.minDimension / 4, center.y - size.minDimension / 4),
            strokeWidth = strokeWidth,
        )
    }
}

To use this painter within a Composable:

val customPainter = remember { CrossCirclePainter() }

Image(
    painter = customPainter,
    contentDescription = null,
    modifier = Modifier.size(100.dp),
)

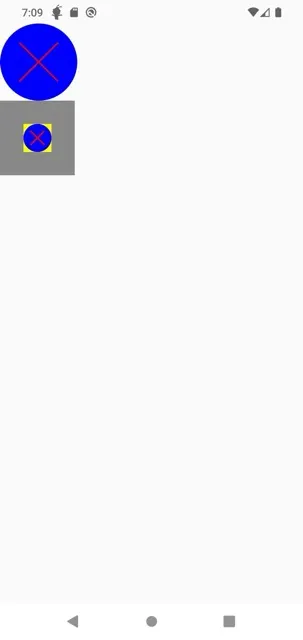

Drawing Inside a Box Using Custom Painter

You can also use the custom painter inside a Box with Modifier.paint(customPainter):

val customPainter = remember { CrossCirclePainter() }

Box(
    modifier = Modifier
        .background(color = Color.Gray)
        .padding(30.dp)
        .background(color = Color.Yellow)
        .paint(customPainter),
) {
    // sonar - comment
}

Drawing graphics using a custom painter in Jetpack Compose is quite flexible and powerful. By extending the Painter class, you can create your own graphics and integrate them into your Composable elements. If you want to make a drawing that influences measurement or layout, you should use the Painter class. Otherwise, if you only need to draw within the given bounds, using a DrawModifier would be more appropriate.

You learned how to create custom graphics using two different custom painter examples and how to use these graphics within Composable elements. I hope you found it helpful :)
