Angular Material 2 SSR doesn't work

[Jacooscript]

I have created asp.net core Angular template project in Visual studio 2017 (15.5.6). I added and configured Angular Material 2.

But when a page loads, I see a common html button. But after loading all js files, styles are applied to the button.

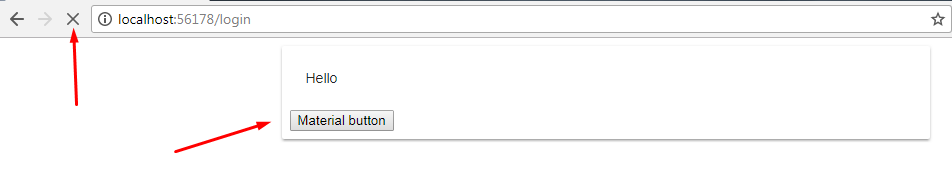

1. Page is loading:

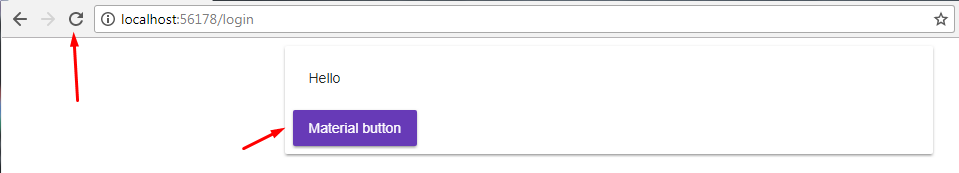

2. Page is loaded:


Also I have created GIF.
I import material module in "app.shared.module.ts".

Snapshots:

package.json

{
  "name": "myProj",
  "private": true,
  "version": "0.0.0",
  "scripts": {},
  "devDependencies": {
    "@angular/animations": "5.2.5",
    "@angular/cdk": "5.2.1",
    "@angular/common": "5.2.5",
    "@angular/compiler": "5.2.5",
    "@angular/compiler-cli": "5.2.5",
    "@angular/core": "5.2.5",
    "@angular/flex-layout": "2.0.0-beta.12",
    "@angular/forms": "5.2.5",
    "@angular/http": "5.2.5",
    "@angular/material": "5.2.1",
    "@angular/platform-browser": "5.2.5",
    "@angular/platform-browser-dynamic": "5.2.5",
    "@angular/platform-server": "5.2.5",
    "@angular/router": "5.2.5",
    "@ngtools/webpack": "1.9.8",
    "@types/chai": "4.1.2",
    "@types/webpack-env": "1.13.5",
    "angular2-router-loader": "0.3.5",
    "angular2-template-loader": "0.6.2",
    "aspnet-prerendering": "3.0.1",
    "aspnet-webpack": "2.0.1",
    "awesome-typescript-loader": "3.4.1",
    "bootstrap": "3.3.7",
    "chai": "4.1.2",
    "css": "2.2.1",
    "css-loader": "0.28.9",
    "es6-shim": "0.35.3",
    "event-source-polyfill": "0.0.12",
    "expose-loader": "0.7.4",
    "extract-text-webpack-plugin": "3.0.2",
    "file-loader": "1.1.6",
    "html-loader": "0.5.5",
    "isomorphic-fetch": "2.2.1",
    "jquery": "3.3.1",
    "json-loader": "0.5.7",
    "preboot": "5.1.7",
    "raw-loader": "0.5.1",
    "reflect-metadata": "0.1.12",
    "rxjs": "5.5.6",
    "style-loader": "0.20.1",
    "to-string-loader": "1.1.5",
    "typescript": "2.7.1",
    "url-loader": "0.6.2",
    "webpack": "3.11.0",
    "webpack-hot-middleware": "2.21.0",
    "webpack-merge": "4.1.1",
    "zone.js": "0.8.20",
    "hammerjs": "2.0.8"
  }
}

webpack.config.vendor.js

const path = require('path');
const webpack = require('webpack');
const ExtractTextPlugin = require('extract-text-webpack-plugin');
const merge = require('webpack-merge');
const treeShakableModules = [
    '@angular/animations',
    '@angular/common',
    '@angular/compiler',
    '@angular/core',
    '@angular/forms',
    '@angular/http',
    '@angular/platform-browser',
    '@angular/platform-browser-dynamic',
    '@angular/router',
    "@angular/cdk",
    "@angular/material",
    "@angular/flex-layout",
    'zone.js',
    "hammerjs"
];
const nonTreeShakableModules = [
    "@angular/material/prebuilt-themes/deeppurple-amber.css",
    'es6-promise',
    'es6-shim',
    'event-source-polyfill',
    'jquery'
];
const allModules = treeShakableModules.concat(nonTreeShakableModules);

module.exports = (env) => {
    const extractCSS = new ExtractTextPlugin('vendor.css');
    const isDevBuild = !(env && env.prod);
    const sharedConfig = {
        stats: { modules: false },
        resolve: { extensions: [ '.js' ] },
        module: {
            rules: [
                { test: /\.(png|woff|woff2|eot|ttf|svg)(\?|$)/, use: 'url-loader?limit=100000' }
            ]
        },
        output: {
            publicPath: 'dist/',
            filename: '[name].js',
            library: '[name]_[hash]'
        },
        plugins: [
          new webpack.ProvidePlugin({ $: 'jquery', jQuery: 'jquery' }), // Maps these identifiers to the jQuery package (because Bootstrap expects it to be a global variable)
          new webpack.ContextReplacementPlugin(/\@angular\b.*\b(bundles|linker)/, path.join(__dirname, './ClientApp')), // Workaround for https://github.com/angular/angular/issues/11580
          new webpack.ContextReplacementPlugin(/angular(\\|\/)core(\\|\/)@angular/, path.join(__dirname, './ClientApp')), // Workaround for https://github.com/angular/angular/issues/14898
          new webpack.ContextReplacementPlugin(/\@angular(\\|\/)core(\\|\/)esm5/, path.join(__dirname, './ClientApp')), // Workaround for https://github.com/angular/angular/issues/20357
          new webpack.IgnorePlugin(/^vertx$/) // Workaround for https://github.com/stefanpenner/es6-promise/issues/100
        ]
    };

    const clientBundleConfig = merge(sharedConfig, {
        entry: {
            // To keep development builds fast, include all vendor dependencies in the vendor bundle.
            // But for production builds, leave the tree-shakable ones out so the AOT compiler can produce a smaller bundle.
            vendor: isDevBuild ? allModules : nonTreeShakableModules
        },
        output: { path: path.join(__dirname, 'wwwroot', 'dist') },
        module: {
            rules: [
                { test: /\.css(\?|$)/, use: extractCSS.extract({ use: isDevBuild ? 'css-loader' : 'css-loader?minimize' }) }
            ]
        },
        plugins: [
            extractCSS,
            new webpack.DllPlugin({
                path: path.join(__dirname, 'wwwroot', 'dist', '[name]-manifest.json'),
                name: '[name]_[hash]'
            })
        ].concat(isDevBuild ? [] : [
            new webpack.optimize.UglifyJsPlugin()
        ])
    });

    const serverBundleConfig = merge(sharedConfig, {
        target: 'node',
        resolve: { mainFields: ['main'] },
        entry: { vendor: allModules.concat(['aspnet-prerendering']) },
        output: {
            path: path.join(__dirname, 'ClientApp', 'dist'),
            libraryTarget: 'commonjs2',
        },
        module: {
            rules: [ { test: /\.css(\?|$)/, use: ['to-string-loader', isDevBuild ? 'css-loader' : 'css-loader?minimize' ] } ]
        },
        plugins: [
            new webpack.DllPlugin({
                path: path.join(__dirname, 'ClientApp', 'dist', '[name]-manifest.json'),
                name: '[name]_[hash]'
            })
        ]
    });

    return [clientBundleConfig, serverBundleConfig];
}

boot.server.ts (default)

import 'reflect-metadata';
import 'zone.js';
import 'rxjs/add/operator/first';
import { APP_BASE_HREF } from '@angular/common';
import { enableProdMode, ApplicationRef, NgZone, ValueProvider } from '@angular/core';
import { platformDynamicServer, PlatformState, INITIAL_CONFIG } from '@angular/platform-server';
import { createServerRenderer, RenderResult } from 'aspnet-prerendering';
import { AppModule } from './app/app.server.module';

enableProdMode();

export default createServerRenderer(params => {
    const providers = [
        { provide: INITIAL_CONFIG, useValue: { document: '<app></app>', url: params.url } },
        { provide: APP_BASE_HREF, useValue: params.baseUrl },
        { provide: 'BASE_URL', useValue: params.origin + params.baseUrl },
    ];

    return platformDynamicServer(providers).bootstrapModule(AppModule).then(moduleRef => {
        const appRef: ApplicationRef = moduleRef.injector.get(ApplicationRef);
        const state = moduleRef.injector.get(PlatformState);
        const zone = moduleRef.injector.get(NgZone);

        return new Promise<RenderResult>((resolve, reject) => {
            zone.onError.subscribe((errorInfo: any) => reject(errorInfo));
            appRef.isStable.first(isStable => isStable).subscribe(() => {
                // Because 'onStable' fires before 'onError', we have to delay slightly before
                // completing the request in case there's an error to report
                setImmediate(() => {
                    resolve({
                        html: state.renderToString()
                    });
                    moduleRef.destroy();
                });
            });
        });
    });
});

[SteveSandersonMS]

It sounds like there are additional config steps needed for Angular Material. Since that's a third-party package, I don't know what those steps are, so you'd need to check Angular Material docs for details.

However to make this easier, you might want to consider using our newer Angular CLI-based template. This means you have a completely standard Angular project, so whatever setup steps are most commonly used for third-party packages will be sure to work just the same for your project. For installation info, please see: https://docs.microsoft.com/en-us/aspnet/core/spa/angular?tabs=visual-studio

[chrisvfabio]

This should fix the issue: angular/components#9771

[bastienlemaitre]

It change nothing..

[chrisvfabio]

@bastienlemaitre angular/components#9771 is tagged as "release: major" so it's only available in v6+

I'm using @angular/material@5.1.0 for my Angular 5 apps.
