Tooltip hide non-collapsed data mistakenly when using stacked barchart with shared + inverseOrder tooltip

[WiNloSt]

Codesandbox

https://codesandbox.io/s/stacked-bar-chart-inverse-tooltip-order-bug-bm390

Explanation

This bug happens if you use the combination of stacked bar chart + tooltip.shared = true + tooltip.inverseOrder = true. And when you toggle some data set off and hover over the bar chart. I'll not show any data in the tooltip at all.

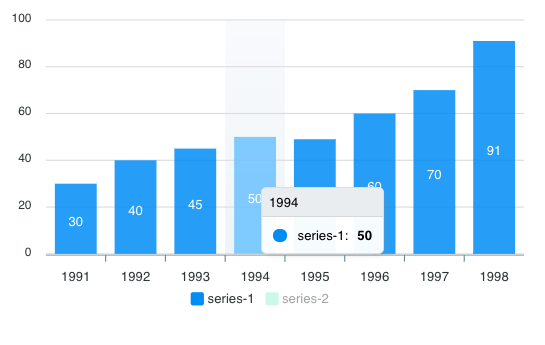

Not reverse tooltip (default)

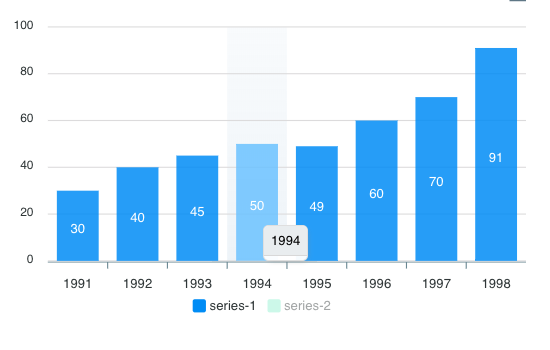

tooltip.inverseOrder = true

From my digging, I found out that the problem lies in the function DOMhandling

from this function call, we pass t as the index of the label without inversing so in this case, the order of looping is inverse so it starts the loop from series-2 (disabled) then series-1.

apexcharts.js/src/modules/tooltip/Labels.js

Lines 119 to 134 in 0ee4c5e

	this.DOMHandling({
	i,
	t,
	ttItems,
	values: {
	val,
	xVal,
	xAxisTTVal,
	zVal
	},
	seriesName,
	shared,
	pColor
	})
	}
	}

then the function runs to here. It checks if it found collapsedSeriesIndices (contains 1 because non-inverse series-2 data is 1) containing the current index or not. We got the index of 1 with the series-1 data because the order is inverse. So it matches then it also set the display style to none

apexcharts.js/src/modules/tooltip/Labels.js

Lines 261 to 266 in 0ee4c5e

	if (
	typeof val === 'undefined' ||
	val === null ||
	w.globals.collapsedSeriesIndices.indexOf(t) > -1
	) {
	ttItemsChildren[0].parentNode.style.display = 'none'

• What is the behavior you expect?
  The tooltip should show the data that's not toggled off.

• What is happening instead?
  The tooltip doesn't show any data at all.

• What error message are you getting?
  no error message

[junedchhipa]

Thanks for reporting, I confirm the issue.
Will be addressed soon.
