Discussion and design of Soul-Admin menu and data permission scheme

[nuo-promise]

Preamble

As the soul user group grows larger and larger, enterprises attach importance to gateway configuration permissions. The
following is a list of added functions:

• Authentication for soul-admin login
• Menu permission control
• Single-page function button permission control

Preparations

• JWT (Json Web Token)
• Shiro

Program Logic

• Login logic
  • The user name and password of the front-end POST are logged in to/login. If an encrypted token is returned, the logon page is redirected if the token fails.
  • After that, you must add the X-Access-Token field to the header to Access each URL request that requires permissions. For example, X-Access-Token: token, the token is the key.
• Logic after successful login
  • After the login is successful, the frontend sends a Token to the backend to request the user to use the resource interface. The backend obtains the user name from the token, retrieves the resource and returns it to the frontend.

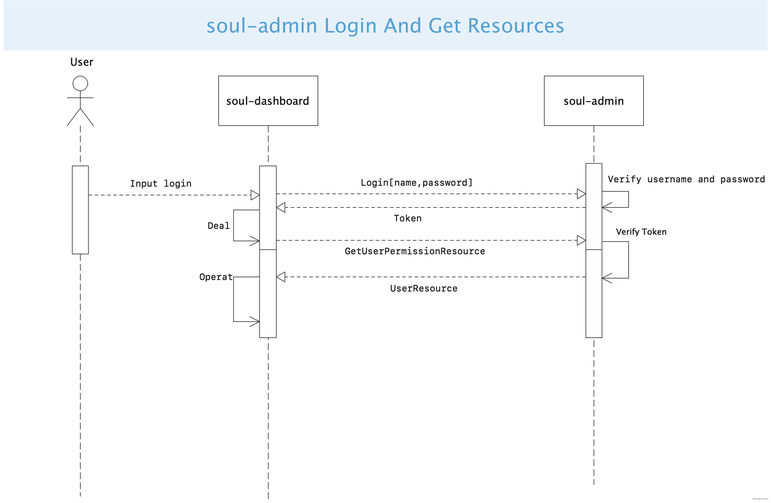

Sequence Diagram of login and resource acquisition

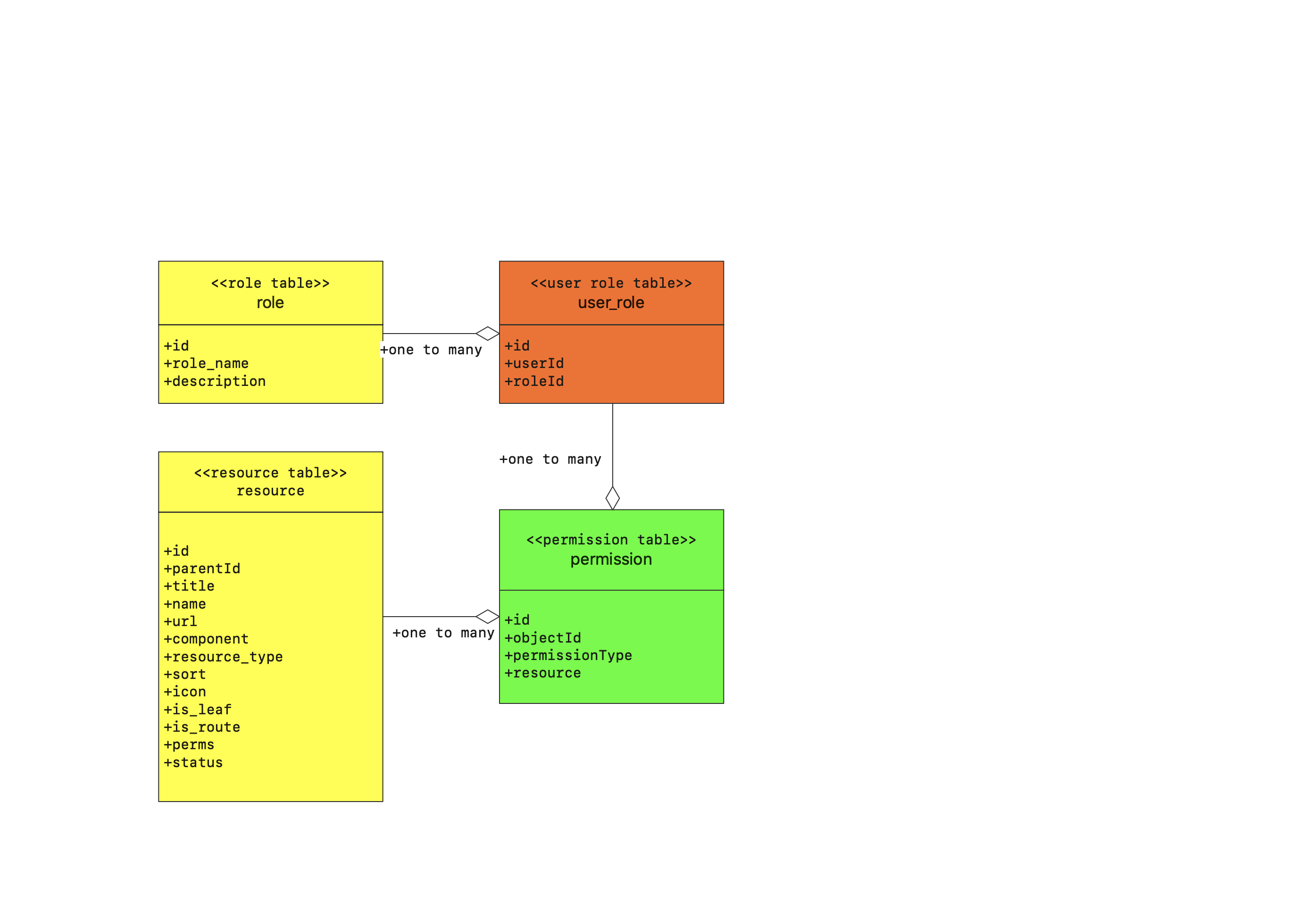

User role permission table structure

• Use existing user tables.
• role table field description

Field	Description
id	unique id
role_name	role name
description	description

• user_role table field description

Field	Description
id	unique id
user_id	unique user id
role_id	role unique id

• resource table field description

Field	Description
id	unique id
parent_id	parent menu id
title	menu name
name	frontend route name
url	the url used by frontend route
component	the name of frontend component
resource_type	resource type 0: main menu 1: submenu 2: function button
sort	menu display sorting
icon	menu usage icon
is_leaf	Entry recursion is judged by whether it is leaf or not
is_route	whether it is a route (extended use) 1 yes 0 no
perms	for example, sys:user:add/ sys:user:edit
status	data status 1 is valid and 0 is invalid

• permission table structure

Field	Description
id	unique id
objectId	role id or user id
permissionType	permission type ROLE role permission, USER user permission
resourceId	resource id

Plan

• Role, basic permission data currently does not interact with the page, use SQL to insert the default data, and add later; However, the soul-admin backend provides the corresponding add, delete, modify, and query development interface
• Logon authentication control is preferred
• User permission menu acquisition and control

Recommendations

• Whether you need to provide certain permissions based on the time range for a single user but not for a role. eg: 2020-12-29 13:00:00~2020-12-29 14:00:00 a user has the new plug-in permission, and the timeout expires.

[listart]

The menu is a kind of resource, which has the characteristics of tree structure and URI mapping. It is recommended to maintain it independently from the permission table. It is recommended to save the Instance-Level Access String directly with reference to shiro WildcardPermission in the permission table.

see also: Understanding Permissions in Apache Shiro

[nuo-promise]

The menu is a kind of resource, which has the characteristics of tree structure and URI mapping. It is recommended to maintain it independently from the permission table. It is recommended to save the Instance-Level Access String directly with reference to shiro WildcardPermission in the permission table.

see also: Understanding Permissions in Apache Shiro

@yu199195 @dengliming What do you think?

[nuo-promise]

soul-admin login authentication and page permission API documentation

HTTP/HTTPS message format

Overview

• Common parameters of HTTP/HTTPS communication interfaces

Request method

• HTTP GET / POST

Request Header

Parameter	Type	Required	Description
token	string	no	Interface access token

Request parameters

GET

http://host:port/xxx/xxx?xxx=xxx&xxx=xxx

POST

Parameter	Type	Required	Description
xxx	xxx	No	Business parameters

Sample request parameters

{
	"param1": "xxx",
	"param2":"xxx",
	...
}

Response paramteters

Parameter	Type	Required	Description
code	Integer	Yes	Error code
message	string	Yes	Error message
data	Object	No	Business data

Sample response parameters

{
	"code": 200,
	"msg":"login success",
	"data":null/xxx
}

**

Login module

Login

Interface Type

• HTTP/HTTPS

Description

• Frontend logon interface

Request method

• GET
• /platform/login

Request parameters

Parameter	Type	Required	Description
userName	string	Yes	Login username
password	string	Yes	Login password

Sample request parameters

http://localhost:9095/platform/login?userName=admin&password=123456

Success response parameter DashboardUserV0

Parameter	Type	Required	Description
id	string	Yes	primary key
userName	string	Yes	user name
password	string	Yes	user password
role	Integer	Yes	user role
enabled	Boolean	Yes	enable
token	string	Yes	token returned successfully
dateCreated	string	Yes	create time
dateUpdated	string	Yes	update time

Sample response parameters

{
	"code": 200,
	"message": "login dashboard user success",
	"data": {
		"id": "1",
		"userName": "admin",
		"password": "jHcpKkiDbbQh7W7hh8yQSA==",
		"role": 1,
		"enabled": true,
        "token":"eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJleHAiOjE1NzI5MjYwMDMsInVzZXJuYW1lIjoiZGptIn0.nSJ1LPh6ZZ9gcjW5TG2XKA2ED7FasPygSOCf5dqHsL4",
		"dateCreated": "2018-06-23 15:12:22",
		"dateUpdated": "2020-11-24 12:59:12"
	}
}

Note

• When the code is 200, the data is parsed. Otherwise, the data is displayed based on the code error code and message error message.

User module

Edit user features

Interface Type

• HTTP/HTTPS

Description

• Obtain user information based on user id

Request method

• GET
• /dashboardUser/{id}

Request parameters

Parameter	Type	Required	Description
id	string	Yes	user primary key

Sample request parameters

http://localhost:9095/dashboardUser/xxxxxxx

Success response parameter DashboardUserV0

Parameter	Type	Required	Description
id	string	Yes	user primary key
userName	string	Yes	user name
password	string	Yes	user password
role	Integer	Yes	user role
enabled	Boolean	Yes	Enable
roles	array	Yes	returns the current role information and supports the coexistence of multiple roles.
allRoles	array	Yes	all current roles are returned. The Super Administrator role is not displayed.
dateCreated	string	Yes	create time
dateUpdated	string	Yes	update time

Sample response parameters

{
    "code": 200,
    "message": "detail success",
    "data": {
        "id": "1348274356818300928",
        "userName": "ding",
        "password": "1",
        "role": 1,
        "enabled": true,
        "dateCreated": "2021-01-10 22:23:51",
        "dateUpdated": "2021-01-10 22:30:27",
        "roles": [
            {
                "id": "1347926115137064960",
                "roleName": "admin",
                "description": "管理员",
                "dateCreated": "2021-01-09 23:20:04",
                "dateUpdated": "2021-01-09 23:59:51"
            }
        ],
        "allRoles": [
            {
                "id": "1347926115137064960",
                "roleName": "admin",
                "description": "管理员",
                "dateCreated": "2021-01-09 23:20:04",
                "dateUpdated": "2021-01-09 23:59:51"
            }
        ]
    }
}

Save user information after editing

Interface Type

• HTTP/HTTPS

Description

• After editing the user information, save the user information and user role binding information.

Request method

• PUT
• /dashboardUser/{id}

Request parameters

Parameter	Type	Required	Description
userName	string	Yes	user name
password	string	No	user password
role	int	No	previous user role (abandoned)
enabled	bool	No	data is valid
roles	array	Yes	user's current role ids

Sample request parameters

http://localhost:9095/dashboardUser/xxxxxxx

Response paramteters

Parameter	Type	Required	Description
code	Integer	Yes	status code
message	string	Yes	response Description
data	Object	No	custom message body

Sample response parameters

{
	"code": 200,
	"msg":"登录成功",
	"data":null/xxx
}

Role Management Module

Add roles

Interface Type

• HTTP/HTTPS

Description

• Add roles

Request method

• POST
• /role

Request parameters

Parameter	Type	Required	Description
roleName	string	Yes	role name
description	string	No	role description

Sample request parameters

{
	"roleName":"admin",
	"description":"管理员角色"
}

Response paramteters

Parameter	Type	Required	Description
code	int	Yes	status code
message	string	Yes	response Description
data	Object	No	custom message body

Sample response parameters

{
    "message": "添加成功!",
    "code": 200,
    "data": 1,
}

View all roles

Interface Type

• HTTP/HTTPS

Description

• Role list

Request method

• GET
• /role

Request parameters

Parameter	Type	Required	Description
startPage	Integer	Yes	Start Page
pageSize	Integer	Yes	Size per page

Sample request parameters

{
	"startPage":1,
	"pageSize":10
}

Response paramteters

Parameter	Type	Required	Description
message	string	Yes	response description
code	Integer	Yes	status code
data	Object	No	Custom message body

data entity CommonPager -> PageParameter

Parameter	Type	Required	Description
currentPage	int	Yes	current page
prePage	int	Yes	which page is the previous page?
nextPage	int	Yes	which page is the next page?
pageSize	int	Yes	the size of each page.
offset	int	Yes	offset
totalPage	int	Yes	a total of how many pages
totalCount	int	Yes	total number of data entries

**

data entity CommonPager -> dataList -> data element

Parameter	Type	Required	Description
id	string	Yes	Primary key
roleName	string	Yes	role name
description	string	Yes	role description
dateCreated	string	Yes	create time
dateUpdated	string	Yes	update time

Sample response parameters

{
    "message": "获取角色列表成功",
    "code": 200,
    "data": {
        "page": {
            "currentPage":1,
            "prePage":1,
            "nextPage":1,
            "pageSize":12,
            "offset":0,
            "totalPage":1,
            "totalCount":2
        },
        "dataList": [
            {
                "id": "5dbfc02fb4c30b1cd789971f",
                "roleName": "super",
                "description": "内部角色",
                "dateCreated": "2019-11-04T14:07:43.452+0000",
                "dateUpdated": null
            },
            {
                "id": "5dbfc0d4b4c30b1cd7899720",
                "roleName": "user",
                "description": "用户角色",
                "dateCreated": "2019-11-04T14:07:43.452+0000",
                "dateUpdated": null
            }
        ]
    }
}

Obtain the role list when adding a user

Interface Type

• HTTP/HTTPS

Description

• When you click add user, you must obtain the role list first. The Super permission will not be returned.

Request method

• GET
• /role/getAllRoles

Sample request parameters

localhost:9095/role/getAllRoles

Response paramteters

Parameter	Type	Required	Description
code	int	Yes	status code
message	string	Yes	response description
data	Object	No	custom message body

data entity List -> RoleVO

Parameter	Type	Required	Description
id	string	Yes	role primary key
roleName	string	Yes	role name
description	string	Yes	role description
dateCreated	string	Yes	create time
dateUpdated	string	Yes	update time

Sample response parameters

{
    "message": "删除成功!",
    "code": 200,
    "data": [
        {
            "id":"dsfsf",
            "roleName":"admin",
            "description":"管理员",
            "dateCreated":"2021-01-01 23:23:23",
            "dateUpdated":"2021-01-01 23:23:23"
        },
        {
            "id":"dsfsf",
            "roleName":"admin1",
            "description":"管理员1",
            "dateCreated":"2021-01-01 23:23:23",
            "dateUpdated":"2021-01-01 23:23:23"
        }
    ]
}

View a role

Interface Type

• HTTP/HTTPS

Description

• View role information by id

Request method

• GET
• /role/{id}

Request parameters

Parameter	Type	Required	Description
id	string	Yes	role primary key

Sample request parameters

http://host:port/role?id="5dbfc02fb4c30b1cd789971f"

Response paramteters

Parameter	Type	Required	Description
message	string	Yes	response description
code	int	Yes	status code
data	Object	No	custom message body

data entity

Parameter	Type	Required	Description
rolePermissionList	array	Yes	list of existing permissions corresponding to a role
sysRole	object	Yes	role information
allPermissionInfo	object	Yes	all permissions

**

data entity class - sysRole

Parameter	Type	Required	Description
id	string	Yes	primary id
roleName	string	Yes	role name
description	string	Yes	role description
dateCreated	string	Yes	create time
dateUpdated	string	Yes	update time

data entity - allPermissionInfo

Parameter	Type	Required	Description
treeList	array	Yes	menu tree structure
permissionIds	array	Yes	list of all permission ids

data entity - allPermissionInfo-treeList

Parameter	Type	Required	Description
id	string	Yes	role primary key
title	string	Yes	title
children	array	Yes	child node data
parentId	string	Yes	parent node
name	string	Yes	resource name
isLeaf	boolean	Yes	ndicates whether it is a leaf node. Trigger recursion to add it to the parent node.

Sample response parameters

{
    "code": 200,
    "message": "detail success",
    "data": {
        "rolePermissionList": [],
        "sysRole": {
            "id": "1346358560427216896",
            "roleName": "super",
            "description": "超级管理员",
            "dateCreated": "2021-01-05 01:31:10",
            "dateUpdated": "2021-01-05 02:23:13"
        },
        "allPermissionInfo": {
            "treeList": [
                {
                    "id": "1346775491550474240",
                    "title": "SOUL.MENU.PLUGIN.LIST",
                    "name": "plug",
                    "children": [
                        {
                            "id": "1347026381504262144",
                            "title": "divide",
                            "name": "divide",
                            "children": [
                                {
                                    "id": "1347050493052071936",
                                    "title": "添加修改divide选择器按钮",
                                    "name": "",
                                    "children": null,
                                    "isLeaf": true,
                                    "parentId": "1347026381504262144"
                                }
                            ],
                            "isLeaf": false,
                            "parentId": "1346775491550474240"
                        },
                        {
                            "id": "1347026805170909184",
                            "title": "hystrix",
                            "name": "hystrix",
                            "children": [
                                {
                                    "id": "1347051850521784320",
                                    "title": "添加修改hyxtrix选择器按钮",
                                    "name": "",
                                    "children": null,
                                    "isLeaf": true,
                                    "parentId": "1347026805170909184"
                                }
                            ],
                            "isLeaf": false,
                            "parentId": "1346775491550474240"
                        },
                        {
                            "id": "1347027413357572096",
                            "title": "rewrite",
                            "name": "rewrite",
                            "children": [
                                {
                                    "id": "1347052833968631808",
                                    "title": "添加修改rewrite选择器按钮",
                                    "name": "",
                                    "children": null,
                                    "isLeaf": true,
                                    "parentId": "1347027413357572096"
                                }
                            ],
                            "isLeaf": false,
                            "parentId": "1346775491550474240"
                        },
                        {
                            "id": "1347027482244820992",
                            "title": "springCloud",
                            "name": "springCloud",
                            "children": [
                                {
                                    "id": "1347053324018528256",
                                    "title": "添加修改springCloud选择器按钮",
                                    "name": "",
                                    "children": null,
                                    "isLeaf": true,
                                    "parentId": "1347027482244820992"
                                }
                            ],
                            "isLeaf": false,
                            "parentId": "1346775491550474240"
                        },
                        {
                            "id": "1347027526339538944",
                            "title": "sign",
                            "name": "sign",
                            "children": [
                                {
                                    "id": "1347053363814084608",
                                    "title": "添加修改sign选择器按钮",
                                    "name": "",
                                    "children": null,
                                    "isLeaf": true,
                                    "parentId": "1347027526339538944"
                                }
                            ],
                            "isLeaf": false,
                            "parentId": "1346775491550474240"
                        },
                        {
                            "id": "1347027566034432000",
                            "title": "waf",
                            "name": "waf",
                            "children": [
                                {
                                    "id": "1347053404050042880",
                                    "title": "添加修改waf选择器按钮",
                                    "name": "",
                                    "children": null,
                                    "isLeaf": true,
                                    "parentId": "1347027566034432000"
                                }
                            ],
                            "isLeaf": false,
                            "parentId": "1346775491550474240"
                        },
                        {
                            "id": "1347027647999520768",
                            "title": "rate_limter",
                            "name": "rate_limter",
                            "children": [
                                {
                                    "id": "1347053442419535872",
                                    "title": "添加修改rate_limiter选择器按钮",
                                    "name": "",
                                    "children": null,
                                    "isLeaf": true,
                                    "parentId": "1347027647999520768"
                                }
                            ],
                            "isLeaf": false,
                            "parentId": "1346775491550474240"
                        },
                        {
                            "id": "1347027717792739328",
                            "title": "dubbo",
                            "name": "dubbo",
                            "children": [
                                {
                                    "id": "1347053477844627456",
                                    "title": "添加修dubbo选择器按钮",
                                    "name": "",
                                    "children": null,
                                    "isLeaf": true,
                                    "parentId": "1347027717792739328"
                                }
                            ],
                            "isLeaf": false,
                            "parentId": "1346775491550474240"
                        },
                        {
                            "id": "1347027769747582976",
                            "title": "monitor",
                            "name": "monitor",
                            "children": [
                                {
                                    "id": "1347053516423835648",
                                    "title": "添加修改monitor选择器按钮",
                                    "name": "",
                                    "children": null,
                                    "isLeaf": true,
                                    "parentId": "1347027769747582976"
                                }
                            ],
                            "isLeaf": false,
                            "parentId": "1346775491550474240"
                        },
                        {
                            "id": "1347027830602739712",
                            "title": "sentinel",
                            "name": "sentinel",
                            "children": [
                                {
                                    "id": "1347053554310983680",
                                    "title": "添加修改sentinel选择器按钮",
                                    "name": "",
                                    "children": null,
                                    "isLeaf": true,
                                    "parentId": "1347027830602739712"
                                }
                            ],
                            "isLeaf": false,
                            "parentId": "1346775491550474240"
                        },
                        {
                            "id": "1347027918121086976",
                            "title": "resilience4j",
                            "name": "resilience4j",
                            "children": [
                                {
                                    "id": "1347053595729735680",
                                    "title": "添加修改resilience4j选择器按钮",
                                    "name": "",
                                    "children": null,
                                    "isLeaf": true,
                                    "parentId": "1347027918121086976"
                                }
                            ],
                            "isLeaf": false,
                            "parentId": "1346775491550474240"
                        },
                        {
                            "id": "1347027995199811584",
                            "title": "tars",
                            "name": "tars",
                            "children": [
                                {
                                    "id": "1347053631159021568",
                                    "title": "添加修改tars选择器按钮",
                                    "name": "",
                                    "children": null,
                                    "isLeaf": true,
                                    "parentId": "1347027995199811584"
                                }
                            ],
                            "isLeaf": false,
                            "parentId": "1346775491550474240"
                        },
                        {
                            "id": "1347028169120821248",
                            "title": "context_path",
                            "name": "context_path",
                            "children": [
                                {
                                    "id": "1347053666227597312",
                                    "title": "添加修改context_path选择器按钮",
                                    "name": "",
                                    "children": null,
                                    "isLeaf": true,
                                    "parentId": "1347028169120821248"
                                }
                            ],
                            "isLeaf": false,
                            "parentId": "1346775491550474240"
                        },
                        {
                            "id": "1347063567603609600",
                            "title": "sofa",
                            "name": "sofa",
                            "children": null,
                            "isLeaf": true,
                            "parentId": "1346775491550474240"
                        }
                    ],
                    "isLeaf": false,
                    "parentId": ""
                },
                {
                    "id": "1346776175553376256",
                    "title": "SOUL.MENU.SYSTEM.MANAGMENT",
                    "name": "system",
                    "children": [
                        {
                            "id": "1346777157943259136",
                            "title": "SOUL.MENU.SYSTEM.MANAGMENT.USER",
                            "name": "manage",
                            "children": [
                                {
                                    "id": "1347032308726902784",
                                    "title": "添加用户按钮",
                                    "name": "",
                                    "children": null,
                                    "isLeaf": true,
                                    "parentId": "1346777157943259136"
                                }
                            ],
                            "isLeaf": false,
                            "parentId": "1346776175553376256"
                        },
                        {
                            "id": "1346777449787125760",
                            "title": "SOUL.MENU.SYSTEM.MANAGMENT.PLUGIN",
                            "name": "plugin",
                            "children": [
                                {
                                    "id": "1347034027070337024",
                                    "title": "查询插件按钮",
                                    "name": "",
                                    "children": null,
                                    "isLeaf": true,
                                    "parentId": "1346777449787125760"
                                }
                            ],
                            "isLeaf": false,
                            "parentId": "1346776175553376256"
                        },
                        {
                            "id": "1346777623011880960",
                            "title": "SOUL.PLUGIN.PLUGINHANDLE",
                            "name": "pluginhandle",
                            "children": [
                                {
                                    "id": "1347047555588042752",
                                    "title": "查询插件处理按钮",
                                    "name": "",
                                    "children": null,
                                    "isLeaf": true,
                                    "parentId": "1346777623011880960"
                                }
                            ],
                            "isLeaf": false,
                            "parentId": "1346776175553376256"
                        },
                        {
                            "id": "1346777766301888512",
                            "title": "SOUL.MENU.SYSTEM.MANAGMENT.AUTHEN",
                            "name": "auth",
                            "children": [
                                {
                                    "id": "1347048004105940992",
                                    "title": "查询认证按钮",
                                    "name": "",
                                    "children": null,
                                    "isLeaf": true,
                                    "parentId": "1346777766301888512"
                                }
                            ],
                            "isLeaf": false,
                            "parentId": "1346776175553376256"
                        },
                        {
                            "id": "1346777907096285184",
                            "title": "SOUL.MENU.SYSTEM.MANAGMENT.METADATA",
                            "name": "metadata",
                            "children": [
                                {
                                    "id": "1347048968414179328",
                                    "title": "查询元数据按钮",
                                    "name": "",
                                    "children": null,
                                    "isLeaf": true,
                                    "parentId": "1346777907096285184"
                                }
                            ],
                            "isLeaf": false,
                            "parentId": "1346776175553376256"
                        },
                        {
                            "id": "1346778036402483200",
                            "title": "SOUL.MENU.SYSTEM.MANAGMENT.DICTIONARY",
                            "name": "dict",
                            "children": [
                                {
                                    "id": "1347049542417264640",
                                    "title": "查询字典按钮",
                                    "name": "",
                                    "children": null,
                                    "isLeaf": true,
                                    "parentId": "1346778036402483200"
                                }
                            ],
                            "isLeaf": false,
                            "parentId": "1346776175553376256"
                        }
                    ],
                    "isLeaf": false,
                    "parentId": ""
                }
            ],
            "permissionIds": [
                "1346775491550474240",
                "1346776175553376256",
                "1346777157943259136",
                "1346777449787125760",
                "1346777623011880960",
                "1346777766301888512",
                "1346777907096285184",
                "1346778036402483200"
            ]
        }
    }
}

Delete a role

Interface Type

• HTTP/HTTPS

Description

• Delete multiple roles

Request method

• DELETE
• /role/batch

Request parameters

Parameter	Type	Required	Description
ids	List	Yes	role ids

Sample request parameters

[xxxx,xxxxx,xxxxx] 角色 ID

Response paramteters

Parameter	Type	Required	Description
code	int	Yes	status code
message	string	Yes	response description
data	Object	No	custom message body

Sample response parameters

{
    "message": "删除成功!",
    "code": 200,
    "data": 1
}

Update roles

Interface Type

• HTTP/HTTPS

Description

• Update role information

Request method

• PUT
• /role/{id}

Request parameters

Parameter	Type	Required	Description
id	string	No	role id
roleName	String	No	role name
description	string	No	description
currentPermissionIds	array	Yes	the list of permission ids after editing.

Sample request parameters

{
    "roleName":"super",
    "currentPermissionIds":[
        "1346775491550474240",
                "1346776175553376256",
                "1346777157943259136",
                "1346777449787125760",
                "1346777623011880960",
                "1346777766301888512"
                 ]
}

Response paramteters

Parameter	Type	Required	Description
message	string	Yes	response description
code	int	Yes	status code
data	Object	No	custom message body

Sample response parameters

{
    "message": "编辑成功!",
    "code": 200,
    "data": 1,
}

Permission management module

Obtain menu permissions

Interface Type

• HTTP/HTTPS

Description

• Obtain user menus and permissions based on the Token

Request method

• GET
• /permission/getUserPermissionByToken

Request parameters

Parameter	Type	Required	Description
token	string	Yes	token for successful login

**
Sample request parameters

/permission/getUserPermissionByToken?token=eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJleHAiOjE1NzI5MjYwMDMsInVzZXJuYW1lIjoiZGptIn0.nSJ1LPh6ZZ9gcjW5TG2XKA2ED7FasPygSOCf5dqHsL4

Response paramteters

Parameter	Type	Required	Description
code	int	Yes	status code
message	string	Yes	response description
data	Object	No	custom message body

data entity

Parameter	Type	Required	Description
menu	array	Yes	menu list
currentAuth	array	Yes	list of available permissions for the current user
allAuth	array	Yes	list of all system permissions

data entity - allAuth/auth

Parameter	Type	Required	Description
perms	string	Yes	function permission encoding
description	string	Yes	Description

perms : sys:user:add 控制码

data entity - menu

Parameter	Type	Required	Description
id	string	Yes	menu id
name	string	Yes	route Name
url	string	Yes	Url
component	string	Yes	Components
meta	object	Yes	Property
children	array	Yes	submenu node
sort	integer	Yes	menu sort

data entity - menu->meta

Parameter	Type	Required	Description
icon	string	Yes	Icon
title	string	Yes	title

Sample response parameters

{
    "code": 200,
    "message": "get menu and permission success",
    "data": {
        "menu": [
            {
                "id": "1346776175553376256",
                "name": "system",
                "url": "/system",
                "component": "system",
                "meta": {
                    "icon": "setting",
                    "title": "SOUL.MENU.SYSTEM.MANAGMENT"
                },
                "children": [
                    {
                        "id": "1346777766301888512",
                        "name": "auth",
                        "url": "/system/auth",
                        "component": "auth",
                        "meta": {
                            "icon": "",
                            "title": "SOUL.MENU.SYSTEM.MANAGMENT.AUTHEN"
                        },
                        "children": [],
                        "sort": 3
                    },
                    {
                        "id": "1346777157943259136",
                        "name": "manage",
                        "url": "/system/manage",
                        "component": "manage",
                        "meta": {
                            "icon": "",
                            "title": "SOUL.MENU.SYSTEM.MANAGMENT.USER"
                        },
                        "children": [],
                        "sort": 0
                    },
                    {
                        "id": "1346777623011880960",
                        "name": "pluginhandle",
                        "url": "/system/pluginhandle",
                        "component": "pluginhandle",
                        "meta": {
                            "icon": "",
                            "title": "SOUL.PLUGIN.PLUGINHANDLE"
                        },
                        "children": [],
                        "sort": 2
                    },
                    {
                        "id": "1346778036402483200",
                        "name": "dict",
                        "url": "/system/dict",
                        "component": "dict",
                        "meta": {
                            "icon": "",
                            "title": "SOUL.MENU.SYSTEM.MANAGMENT.DICTIONARY"
                        },
                        "children": [],
                        "sort": 5
                    },
                    {
                        "id": "1346777449787125760",
                        "name": "plugin",
                        "url": "/system/plugin",
                        "component": "plugin",
                        "meta": {
                            "icon": "",
                            "title": "SOUL.MENU.SYSTEM.MANAGMENT.PLUGIN"
                        },
                        "children": [],
                        "sort": 1
                    },
                    {
                        "id": "1346777907096285184",
                        "name": "metadata",
                        "url": "/system/metadata",
                        "component": "metadata",
                        "meta": {
                            "icon": "",
                            "title": "SOUL.MENU.SYSTEM.MANAGMENT.METADATA"
                        },
                        "children": [],
                        "sort": 4
                    }
                ],
                "sort": 1
            }
        ],
        "currentAuth": [
            {
                "perms": "plugin:dubboSelector:add",
                "description": "添加修dubbo选择器按钮"
            },
            {
                "perms": "plugin:sofaSelector:delete",
                "description": "删除sofa选择器按钮"
            }
        ],
        "allAuth": [
            {
                "perms": "system:manager:add",
                "description": "添加用户按钮"
            },
            {
                "perms": "system:manager:list",
                "description": "查询用户按钮"
            }
        ]
    }
}

[HessTina-YuI]

Client permission

Shiro configuration

Define shiro's white list

In application.yml

soul:
    shiro:
        white-list: /platform/login

Using comma to split white list, like:

soul:
    shiro:
        white-list: /platform/login,/platform/enum

If you want to allow the same route to request server, like:

soul:
    shiro:
        white-list: /platform/**

When token is error, the server will response:

{
    "code": 600,
    "message": "token is error"
}

Define permission

For example:

@RequiresPermissions("system:enums:admin")
@GetMapping("/enum")
public SoulAdminResult queryEnums() {
    return SoulAdminResult.success(enumService.list());
}

In @RequiresPermissions, fill in permission. The format is @RequiresPermissions("xxx:xxx:xxx"), also @RequiresPermissions({"xxx:xxx:xxx", "yyy:yyy:yyy"})

When token has no permission, the server will response:

{
    "code": 601,
    "message": "token has no permission"
}

JWT

org.dromara.soul.admin.utils.JwtUtils is JWT 的 tool class

In application.yml, to configurate attribute

soul:
    jwt:
        key: 2095132720951327

Current stage, JwtUtils has two method.

• Acquire user name

public static String getIssuer(final String token) {}

• Acquire generation token's time

public static LocalDate getIssuerDate(final String token) {}
