Implemented BoundedColumnValue partition function

[kmozaid]

Description

This PR adds a new implementation of PartitionFunction which is used to partition segments. The new partition function named BoundedColumnValue can be used to partition segments on column values and still generating partitionId of integer type.

Example Usage -

  "segmentPartitionConfig": {
    "columnPartitionMap": {
      "subject": {
        "functionName": "BoundedColumnValue",
        "functionConfig": {
          "columnValues": "Maths|English|Chemistry",
          "columnValuesDelimiter": "|"
        },
        "numPartitions": 4
      }
    }

PartitionId is generated based on position in columnValues. PartitionId would 1 for Maths, 2 for English and so on.
PartitionId 0 is reserved for any other subject which are not present in given columnValues. The different column values can be specified using pipe (|) separation. This additional partition functionConfig is persisted in metadata.properties and segment metadata in zookeeper. Broker can also use this function to prune segments.

Upgrade Notes

Does this PR prevent a zero down-time upgrade? (Assume upgrade order: Controller, Broker, Server, Minion)

• No

Does this PR fix a zero-downtime upgrade introduced earlier?

• No

Does this PR otherwise need attention when creating release notes? Things to consider:

• New configuration options
• Deprecation of configurations
• Signature changes to public methods/interfaces
• New plugins added or old plugins removed

• Yes, Adds new configuration option and changes to public interfaces.

Release Notes

Added new partition function called BoundedColumnValue to be able to partition segments based on column value.

Documentation

Yes, will create another PR in pinot-docs repo.

[codecov-commenter]

Codecov Report

Merging #8224 (f2f131f) into master (fa0db64) will increase coverage by 5.54%.
The diff coverage is 80.51%.

@@             Coverage Diff              @@
##             master    #8224      +/-   ##
============================================
+ Coverage     63.98%   69.53%   +5.54%
- Complexity     4239     4241       +2
============================================
  Files          1584     1631      +47
  Lines         83250    85276    +2026
  Branches      12608    12844     +236
============================================
+ Hits          53268    59293    +6025
+ Misses        26144    21847    -4297
- Partials       3838     4136     +298

Flag	Coverage Δ
integration2	27.57% <3.89%> (?)
unittests1	66.97% <79.16%> (+0.03%)	⬆️
unittests2	14.10% <3.89%> (+0.01%)	⬆️

Flags with carried forward coverage won't be shown. Click here to find out more.

Impacted Files	Coverage Δ
...ocal/indexsegment/mutable/IntermediateSegment.java	69.62% <0.00%> (-0.45%)	⬇️
...ltime/converter/stats/MutableColumnStatistics.java	53.22% <0.00%> (-1.78%)	⬇️
...verter/stats/MutableNoDictionaryColStatistics.java	40.90% <0.00%> (-4.10%)	⬇️
.../loader/defaultcolumn/DefaultColumnStatistics.java	73.07% <0.00%> (-2.93%)	⬇️
...java/org/apache/pinot/segment/spi/V1Constants.java	14.28% <ø> (ø)
...he/pinot/segment/spi/creator/ColumnStatistics.java	100.00% <ø> (ø)
.../core/realtime/PinotLLCRealtimeSegmentManager.java	75.25% <50.00%> (+9.15%)	⬆️
...partition/BoundedColumnValuePartitionFunction.java	70.58% <70.58%> (ø)
...pi/partition/metadata/ColumnPartitionMetadata.java	88.00% <83.33%> (+1.95%)	⬆️
.../routing/segmentpruner/PartitionSegmentPruner.java	61.24% <100.00%> (+0.30%)	⬆️
... and 361 more

---

Continue to review full report at Codecov.

Legend - Click here to learn more
Δ = absolute <relative> (impact), ø = not affected, ? = missing data
Powered by Codecov. Last update fa0db64...f2f131f. Read the comment docs.

[richardstartin]

Hi @kmozaid thanks for taking the time to make this contribution. Can you explain what problem this solves? Is it because you already have a partitioning and you want to maintain locality within partitions?

[kmozaid]

Hi @kmozaid thanks for taking the time to make this contribution. Can you explain what problem this solves? Is it because you already have a partitioning and you want to maintain locality within partitions?

Hi @richardstartin , We have a table where data is being ingested from multiple sources. (these multiple sources pushes data to same kafka topic). Data is kept for 5 days in realtime table and then moved offline table by minion task. We want to keep data from these sources in separate segments for offline table. There is a column which identifies the source. BoundedColumnValue partition function provides capability to keep data from different sources in respective partitioned segments. Later if we want to backfill the data of just one source, then we will be able to do so because we would know what are the segments for given source and replace them by backfill. The main use case is to be able to backfill data of particular source. This is also discussed in slack thread - https://apache-pinot.slack.com/archives/CDRCA57FC/p1643286670255700

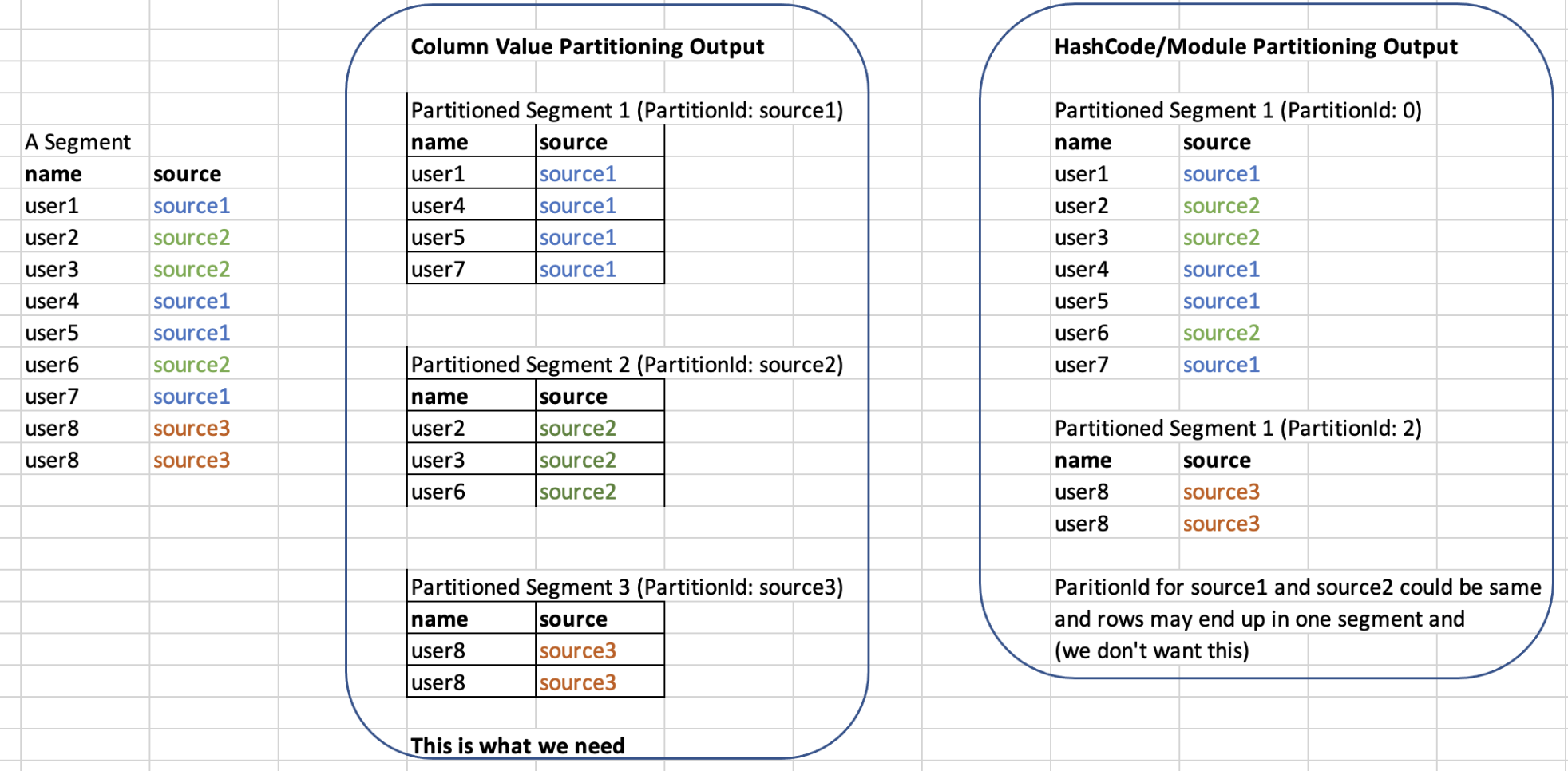

Just a note regarding the image - The partitionId mentioned in image are source1, source2 and source 3 although they would be integer value based on the their position in configured columnValues attributes.

[Jackie-Jiang]

Should we consider putting other values as the last partition in case all values are already configured, and no value goes into partition 0?

[kmozaid]

I wanted to keep a fixed value of partitionId for unknown column values. When putting other/unknown values as last partition, the partition id would different every time partition config is changed to add/remove another column value.

When backfilling data for a particular source/tenant (in our example, a subject), we can easily ignore segments which has partitionId set to 0 in segment metadata because we know for sure that it could have data for many different subjects.

[Jackie-Jiang]

LGTM otherwise. Please reformat the changes with latest Pinot Style

[Jackie-Jiang]

(code format)

Suggested change

	Map<String, String> functionConfig) {
	@Nullable Map<String, String> functionConfig) {

[kmozaid]

Thanks @Jackie-Jiang and @richardstartin for your prompt reviews, appreciate it!
