Decouple within-query concurrency from the index's segment geometry [LUCENE-8675]

[asfimport]

Segment search is a single threaded operation today, which can be a bottleneck for large analytical queries which index a lot of data and have complex queries which touch multiple segments (imagine a composite query with range query and filters on top). This ticket is for discussing the idea of splitting a single segment into multiple threads based on mutually exclusive document ID ranges.

This will be a two phase effort, the first phase targeting queries returning all matching documents (collectors not terminating early). The second phase patch will introduce staged execution and will build on top of this patch.

---

Migrated from LUCENE-8675 by Atri Sharma (@atris), 1 vote, updated Aug 04 2022
Attachments: PhraseHighFreqP50.png, PhraseHighFreqP90.png, TermHighFreqP50.png, TermHighFreqP90.png

[asfimport]

Adrien Grand (@jpountz) (migrated from JIRA)

The best way to address such issues is on top of Lucene by having multiple shards whose results can be merged with TopDocs#merge.

Parallelizing based on ranges of doc IDs is problematic for some queries, for instance the cost of evaluating a range query over an entire segment or only about a specific range of doc IDs is exactly the same given that it uses data-structures that are organized by value rather than by doc ID.

[asfimport]

Atri Sharma (@atris) (migrated from JIRA)

Thanks for the comments.

Having a multi shard approach makes sense, but a search is still bottlenecked by the largest segment it needs to scan. If there are many segments of that type, that might become a problem.

While I agree that range queries might not be directly benefited from parallel scans, but other queries (such as TermQueries) might be benefitted from a segment parallel scan. In a typical ElasticSearch interactive query, we see spikes when a large segment is hit for an interactive use case. Such cases can be optimized with parallel scans.

We should have a method of deciding whether a scan should be parallelized or not, and then let the execution operator get a set of nodes to execute. That is probably outside the scope of this JIRA, but I wanted to open this thread to get the conversation going.

[asfimport]

Michael McCandless (@mikemccand) (migrated from JIRA)

I think it'd be interesting to explore intra-segment parallelism, but I agree w/ @jpountz that there are challenges :)

If you pass an ExecutorService to IndexSearcher today you can already use multiple threads to answer one query, but the concurrency is tied to your segment geometry and annoyingly a supposedly "optimized" index gets no concurrency ;)

But if you do have many segments, this can give a nice reduction to query latencies when QPS is well below the searcher's red-line capacity (probably at the expense of some hopefully small loss of red-line throughput because of the added overhead of thread scheduling).  For certain use cases (large index, low typical query rate) this is a powerful approach.

It's true that one can also divide an index into more shards and run each shard concurrently but then you are also multiplying the fixed query setup cost which in some cases can be relatively significant.

Parallelizing based on ranges of doc IDs is problematic for some queries, for instance the cost of evaluating a range query over an entire segment or only about a specific range of doc IDs is exactly the same given that it uses data-structures that are organized by value rather than by doc ID.

Yeah that's a real problem – these queries traverse the BKD tree per-segment while creating the scorer, which is/can be the costly part, and then produce a bit set which is very fast to iterate over.  This phase is not separately visible to the caller, unlike e.g. rewrite that MultiTermQueries use to translate into simpler queries, so it'd be tricky to build intra-segment concurrency on top ...

[asfimport]

Adrien Grand (@jpountz) (migrated from JIRA)

If some segments are getting large enough that intra-segment parallelism becomes appealing, then maybe an easier and more efficient way to increase parallelism is to instead reduce the maximum segment size so that inter-segment parallelism has more potential for parallelizing query execution.

[asfimport]

Atri Sharma (@atris) (migrated from JIRA)

If some segments are getting large enough that intra-segment parallelism becomes appealing, then maybe an easier and more efficient way to increase parallelism is to instead reduce the maximum segment size so that inter-segment parallelism has more potential for parallelizing query execution.

Would that not lead to a much higher number of segments than required? That could lead to issues such as a lot of open file handles and too many threads required for scanning (although we would assign multiple small segments to a single thread).

Thanks for the point about range queries, that is an important thought. I will follow up with a separate patch on top of this which will do the first phase of BKD iteration and share the generated bitset across N parallel threads, where N is equal to the remaining clauses and each thread intersects a clause with the bitset.

[asfimport]

Michael McCandless (@mikemccand) (migrated from JIRA)

If some segments are getting large enough that intra-segment parallelism becomes appealing, then maybe an easier and more efficient way to increase parallelism is to instead reduce the maximum segment size so that inter-segment parallelism has more potential for parallelizing query execution.

Yeah that is a good workaround given how Lucene works today.

It's essentially the same as your original suggestion ("make more shards and search them concurrently"), just at the segment instead of shard level.

But this still adds some costs – the per-segment fixed cost for each query. That cost should be less than the per shard fixed cost in the sharded case, but it's still adding some cost.

If instead Lucene had a way to divide large segments into multiple work units (and I agree there are challenges with that! – not just BKD and multi-term queries, but e.g. how would early termination work?) then we could pay that per-segment fixed cost once for such segments then let multiple threads share the variable cost work of finding and ranking hits.

In our recently launched production index we see sizable jumps in the P99+ query latencies when a large segment merges finish and replicate, because we are using "thread per segment" concurrency that we are hoping we could improve by pushing thread concurrency into individual large segments.

[asfimport]

Atri Sharma (@atris) (migrated from JIRA)

Here are the results of luceneutil (patched to generate P50 and P90 and to run concurrent searching within IndexSearcher. Patch is posted to luceneutil repo).

Adrien has a valid point about costly scorers not benefitting from this approach. Specifically, range queries can take a hit since BKD Tree's scorer is two phase and is expensive to construct, so doing them per portion of a segment would lead to increase in latency, as is evident from the increase in P90 latency in the above results. I am spending time to evaluate how to tackle this problem and will post any thoughts that I see as viable. These benchmarks are targeted to measure the changes in the "happy" path i.e. the targeted big index sizes and low QPS cases. Luceneutil was configured accordingly (low number of search threads, impacts turned off)

In summary, the queries scanning a higher amount of data and having higher read latencies tend to have the maximum improvement. Term queries and queries involving term queries on higher frequency terms get a reasonable latency reduction.

The following are P50 and P90 latencies calculated by Luceneutil. P50 Base is the P50 latency of the base, P50 Cmp is the P50 latency of the competitor (patched version), and the same for P90.

Note: The QPS jumps are not real. Since Luceneutil was congigured to run a single searcher thread, QPS jump is proportional to the latency drop for task.

Luceneutil results: https://gist.github.com/atris/9a06d511fdfa9de1b48b47e09d5ab8d2

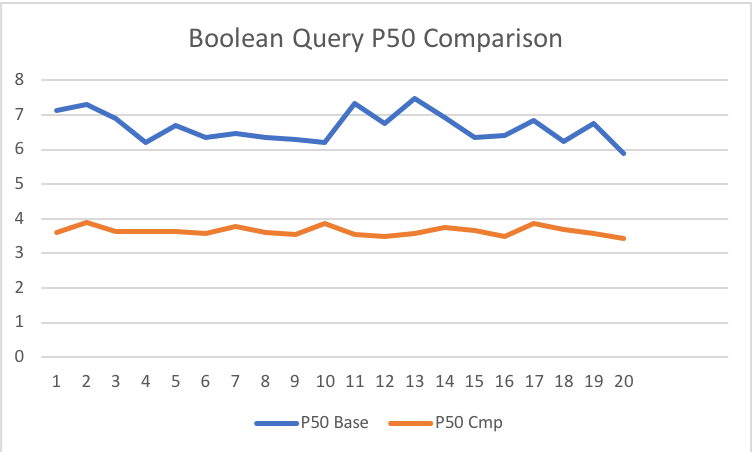

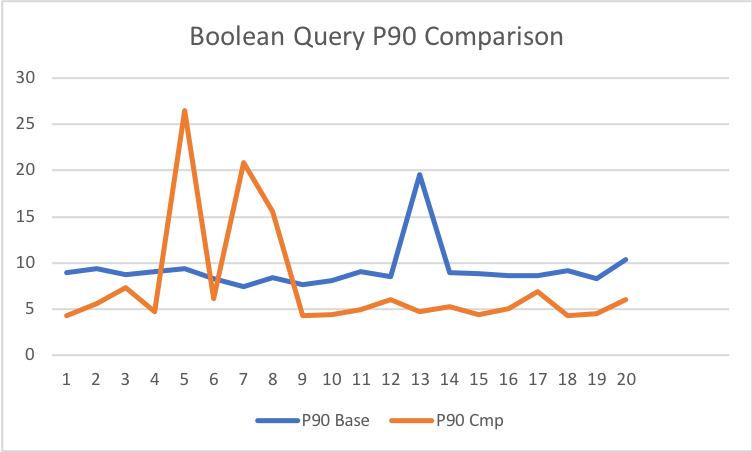

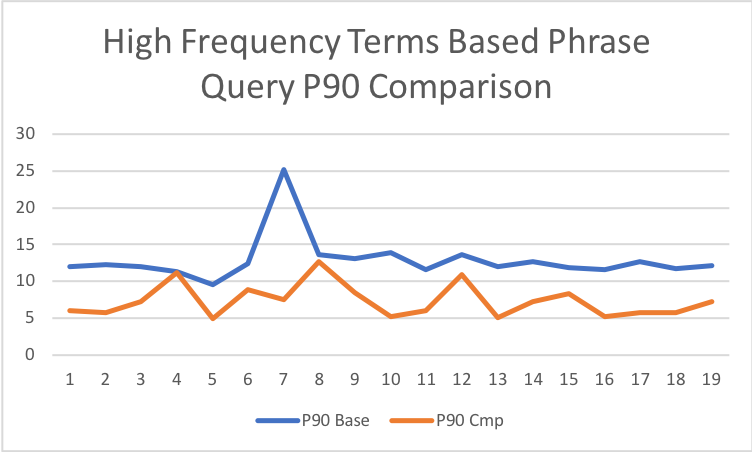

I have attached the P50 and P90 latency graphs for high frequency phrase and term queries. It is apparent that queries with high frequency terms have sizeable improvements.

To address Adrien's point, I have some ideas to improve performance of BKD tree scorer for this case, will open a separate JIRA issue and link here.

@jpountz Are there any other concerns that you see here? Happy to address your feedback.





[asfimport]

Atri Sharma (@atris) (migrated from JIRA)

Repeating the earlier results in a more human readable form



Task ('Wildcard', None)	P50 Base 9.993697	P50 Cmp 11.906981	Pct 19.1449070349	P90 Base 14.431318	P90 Cmp 13.953923	Pct -3.3080485095
Task ('HighTermDayOfYearSort', 'DayOfYear')	P50 Base 39.556908	P50 Cmp 44.389095	Pct 12.2157854198	P90 Base 62.421873	P90 Cmp 49.214184	Pct -21.1587515165
Task ('AndHighHigh', None)	P50 Base 3.814074	P50 Cmp 2.459326	Pct -35.5197093711	P90 Base 5.045984	P90 Cmp 7.932029	Pct 57.1948900353
Task ('OrHighHigh', None)	P50 Base 9.586193	P50 Cmp 5.846643	Pct -39.0097507947	P90 Base 14.978843	P90 Cmp 7.078967	Pct -52.7402283341
Task ('MedPhrase', None)	P50 Base 3.210464	P50 Cmp 2.276356	Pct -29.0957319565	P90 Base 4.217049	P90 Cmp 3.852337	Pct -8.64851226533
Task ('LowSpanNear', None)	P50 Base 11.247447	P50 Cmp 4.986828	Pct -55.6625783611	P90 Base 16.095342	P90 Cmp 6.121194	Pct -61.9691585305
Task ('Fuzzy2', None)	P50 Base 23.636902	P50 Cmp 20.959304	Pct -11.3280412128	P90 Base 112.5086	P90 Cmp 105.188025	Pct -6.50668037821
Task ('OrNotHighHigh', None)	P50 Base 4.225917	P50 Cmp 2.62127	Pct -37.9715692476	P90 Base 6.11225	P90 Cmp 8.525249	Pct 39.4780809031
Task ('OrHighNotLow', None)	P50 Base 4.015982	P50 Cmp 2.250697	Pct -43.956496817	P90 Base 10.636566	P90 Cmp 3.134868	Pct -70.5274427856
Task ('BrowseMonthSSDVFacets', None)	P50 Base 66.920633	P50 Cmp 66.986841	Pct 0.0989351072038	P90 Base 67.230757	P90 Cmp 76.011531	Pct 13.0606502021
Task ('Fuzzy1', None)	P50 Base 14.779783	P50 Cmp 12.559705	Pct -15.0210459788	P90 Base 46.329521	P90 Cmp 218.272906	Pct 371.131367838
Task ('HighSloppyPhrase', None)	P50 Base 21.362967	P50 Cmp 10.563982	Pct -50.5500242546	P90 Base 33.009649	P90 Cmp 15.74507	Pct -52.3016133858
Task ('OrNotHighMed', None)	P50 Base 2.032775	P50 Cmp 1.584332	Pct -22.0606314029	P90 Base 2.529475	P90 Cmp 2.044107	Pct -19.1884877297
Task ('LowPhrase', None)	P50 Base 4.937747	P50 Cmp 2.8876	Pct -41.5198875115	P90 Base 6.910574	P90 Cmp 5.159077	Pct -25.345173932
Task ('AndHighLow', None)	P50 Base 1.097696	P50 Cmp 1.416176	Pct 29.0134973617	P90 Base 3.426081	P90 Cmp 13.987273	Pct 308.258678064
Task ('LowTerm', None)	P50 Base 0.787595	P50 Cmp 1.038949	Pct 31.9141182968	P90 Base 1.12006	P90 Cmp 39.639455	Pct 3439.04746174
Task ('BrowseDayOfYearSSDVFacets', None)	P50 Base 80.006624	P50 Cmp 80.215023	Pct 0.260477182489	P90 Base 80.610476	P90 Cmp 81.187614	Pct 0.71595905227
Task ('Prefix3', None)	P50 Base 3.347358	P50 Cmp 3.219213	Pct -3.82824305019	P90 Base 6.716371	P90 Cmp 5.21174	Pct -22.4024402464
Task ('HighTermMonthSort', 'Month')	P50 Base 20.684075	P50 Cmp 19.601521	Pct -5.23375592092	P90 Base 21.341383	P90 Cmp 20.092673	Pct -5.85112033274
Task ('HighTerm', None)	P50 Base 2.991271	P50 Cmp 1.891199	Pct -36.7760727798	P90 Base 4.058212	P90 Cmp 2.320309	Pct -42.8243522024
Task Respell	P50 Base 17.33154	P50 Cmp 17.397468	Pct 0.38039320222	P90 Base 99.071728	P90 Cmp 66.75552	Pct -32.6190010535
Task ('MedTerm', None)	P50 Base 3.011125	P50 Cmp 1.793175	Pct -40.4483374154	P90 Base 4.206761	P90 Cmp 2.392798	Pct -43.1201820118
Task ('MedSloppyPhrase', None)	P50 Base 5.896878	P50 Cmp 3.304889	Pct -43.9552759952	P90 Base 8.044708	P90 Cmp 4.881775	Pct -39.316939782
Task ('HighSpanNear', None)	P50 Base 20.981466	P50 Cmp 9.533211	Pct -54.5636563241	P90 Base 28.98951	P90 Cmp 11.087743	Pct -61.7525684291
Task ('LowSloppyPhrase', None)	P50 Base 12.841091	P50 Cmp 6.075233	Pct -52.6891211969	P90 Base 18.539534	P90 Cmp 6.825001	Pct -63.1867715769
Task ('OrHighNotHigh', None)	P50 Base 11.822146	P50 Cmp 6.645646	Pct -43.786466518	P90 Base 17.02398	P90 Cmp 7.935497	Pct -53.3863585366
Task ('OrNotHighLow', None)	P50 Base 0.782455	P50 Cmp 1.06583	Pct 36.2161402253	P90 Base 1.668578	P90 Cmp 13.200645	Pct 691.131430476
Task ('MedSpanNear', None)	P50 Base 3.161032	P50 Cmp 2.154472	Pct -31.8427652741	P90 Base 5.386012	P90 Cmp 5.665401	Pct 5.18730741781
Task ('BrowseDateTaxoFacets', None)	P50 Base 444.971146	P50 Cmp 444.674024	Pct -0.066773318376	P90 Base 447.81169	P90 Cmp 445.950713	Pct -0.415571330887
Task ('HighPhrase', None)	P50 Base 7.464241	P50 Cmp 4.644244	Pct -37.7800904338	P90 Base 25.153245	P90 Cmp 7.548758	Pct -69.9889298578
Task ('OrHighLow', None)	P50 Base 6.344855	P50 Cmp 3.590218	Pct -43.4152868742	P90 Base 8.425453	P90 Cmp 15.578677	Pct 84.9001709463
Task ('BrowseDayOfYearTaxoFacets', None)	P50 Base 0.16655	P50 Cmp 0.184125	Pct 10.5523866707	P90 Base 0.207908	P90 Cmp 0.224575	Pct 8.01652654059
Task ('IntNRQ', None)	P50 Base 24.844282	P50 Cmp 12.870238	Pct -48.196377742	P90 Base 45.815197	P90 Cmp 57.190359	Pct 24.8283598999
Task ('BrowseMonthTaxoFacets', None)	P50 Base 0.16488	P50 Cmp 0.170045	Pct 3.13258127123	P90 Base 0.203625	P90 Cmp 0.200508	Pct -1.53075506446
Task ('AndHighMed', None)	P50 Base 2.109471	P50 Cmp 1.773399	Pct -15.9315771584	P90 Base 2.458244	P90 Cmp 3.943119	Pct 60.4038899312
Task ('OrHighNotMed', None)	P50 Base 3.580582	P50 Cmp 3.088177	Pct -13.7520939333	P90 Base 4.196391	P90 Cmp 4.16434	Pct -0.763775348865
Task PKLookup	P50 Base 9.248977	P50 Cmp 9.76835	Pct 5.61546428324	P90 Base 47.86882	P90 Cmp 10.705417	Pct -77.6359287737
Task ('OrHighMed', None)	P50 Base 9.072955	P50 Cmp 5.552202	Pct -38.8049207783	P90 Base 20.823925	P90 Cmp 7.961727	Pct -61.7664441262

[asfimport]

Adrien Grand (@jpountz) (migrated from JIRA)

I wonder if we could avoid paying the cost of Scorer/BulkScorer initialization multiple times by implementing Cloneable on these classes, similarly to how we use cloning on IndexInputs to consume them from multiple threads. It would require implementing Cloneable on a few other classes, e.g. PostingsEnum, and maybe we'd need to set some restrictions to keep this feature reasonable, e.g. it's only legal to clone when the current doc ID is -1. But this could help parallelize collecting a single segment by assigning each clone its own range of doc IDs.

A downside of this approach is that it wouldn't help parallelize the initialization of Scorers, but I don't know if there is a way around it.

[asfimport]

Michael McCandless (@mikemccand) (migrated from JIRA)

I wonder if we could avoid paying the cost of Scorer/BulkScorer initialization multiple times by implementing Cloneable on these classes, similarly to how we use cloning on IndexInputs to consume them from multiple threads.

+1
