Automated Build Android Using Github Action

• Available on Google Dev Library Click Here
• Project Github Action Script YAML
• Using Github Workflows
• Automated Build AAB (release)
• Automated Build APK (release and debug)
• Have Bundle Tool
• Download Artifact
• Upload Artifact
• Clear (Articfact naming)
• Sample Naming : ${date_today} - ${repository_name} - ${playstore_name} - APK(s) release generated
• Private Repository Tested (Passed Build App bundle(s) and APK generated successfully)
• Local Run With .run configuration in Local Machine
• Full Code For Github Action Workflows Click Here

Version Release

This Is Latest Release

$version_release = 2.2.5

What's New??

* Update Target SDK 35 *
* Update Action Script *
* Update Android Studio Latest Version *
* Update Gradle Latest Version *
* Update Kotlin Latest Version *
* Update Java Version From 11 to 17 *
* Update Java Action version to 3 *
* Update Android SDK Tools *
* Add Bundletool.jar for workflow github action *
* Add .run configuration *
* Update To Libs.Version.Toml

Article Sources

• How To Securely Build and Sign Your Android App With GitHub Actions
• How to Use GitHub Actions to Automate Android App Development
• Update Java Checkout Version CI

Guide Sources (Github Action)

• Download Artifact From Github Action
• Upload Artifact From Github Action
• Remove Artifact

Run Using Github Action

How To Use Workflows

Step 1. Upload Your Project on Github

• Project must be android studio project using gradle

Step 2. Create files github workflows

• Create Files with name generate-apk-aab-debug-release.yml inside folder .github/workflows/
• .github/workflows/generate-apk-aab-debug-release.yml this is position files

Step 3. Create Code

name: Generated APK AAB (Upload - Create Artifact To Github Action)

env:
  # The name of the main module repository
  main_project_module: app

  # The name of the Play Store
  playstore_name: Frogobox ID

on:

  push:
    branches:
      - 'release/**'

  # Allows you to run this workflow manually from the Actions tab
  workflow_dispatch:

jobs:
  build:

    runs-on: ubuntu-latest

    steps:
      - uses: actions/checkout@v4

      # Set Current Date As Env Variable
      - name: Set current date as env variable
        run: echo "date_today=$(date +'%Y-%m-%d')" >> $GITHUB_ENV

      # Set Repository Name As Env Variable
      - name: Set repository name as env variable
        run: echo "repository_name=$(echo '${{ github.repository }}' | awk -F '/' '{print $2}')" >> $GITHUB_ENV

      - name: Set Up JDK
        uses: actions/setup-java@v4
        with:
          distribution: 'zulu' # See 'Supported distributions' for available options
          java-version: '17'
          cache: 'gradle'

      - name: Change wrapper permissions
        run: chmod +x ./gradlew

      # Run Tests Build
      - name: Run gradle tests
        run: ./gradlew test

      # Run Build Project
      - name: Build gradle project
        run: ./gradlew build

      # Create APK Debug
      - name: Build apk debug project (APK) - ${{ env.main_project_module }} module
        run: ./gradlew assembleDebug

      # Create APK Release
      - name: Build apk release project (APK) - ${{ env.main_project_module }} module
        run: ./gradlew assemble

      # Create Bundle AAB Release
      # Noted for main module build [main_project_module]:bundleRelease
      - name: Build app bundle release (AAB) - ${{ env.main_project_module }} module
        run: ./gradlew ${{ env.main_project_module }}:bundleRelease

      # Upload Artifact Build
      # Noted For Output [main_project_module]/build/outputs/apk/debug/
      - name: Upload APK Debug - ${{ env.repository_name }}
        uses: actions/upload-artifact@v4
        with:
          name: ${{ env.date_today }} - ${{ env.playstore_name }} - ${{ env.repository_name }} - APK(s) debug generated
          path: ${{ env.main_project_module }}/build/outputs/apk/debug/

      # Noted For Output [main_project_module]/build/outputs/apk/release/
      - name: Upload APK Release - ${{ env.repository_name }}
        uses: actions/upload-artifact@v4
        with:
          name: ${{ env.date_today }} - ${{ env.playstore_name }} - ${{ env.repository_name }} - APK(s) release generated
          path: ${{ env.main_project_module }}/build/outputs/apk/release/

      # Noted For Output [main_project_module]/build/outputs/bundle/release/
      - name: Upload AAB (App Bundle) Release - ${{ env.repository_name }}
        uses: actions/upload-artifact@v4
        with:
          name: ${{ env.date_today }} - ${{ env.playstore_name }} - ${{ env.repository_name }} - App bundle(s) AAB release generated
          path: ${{ env.main_project_module }}/build/outputs/bundle/release/

Step 4. Automated Build on Actions tab on your github repository

Step 5. Download Artifact

Extras (Private Repository Succesfully Build Proven)

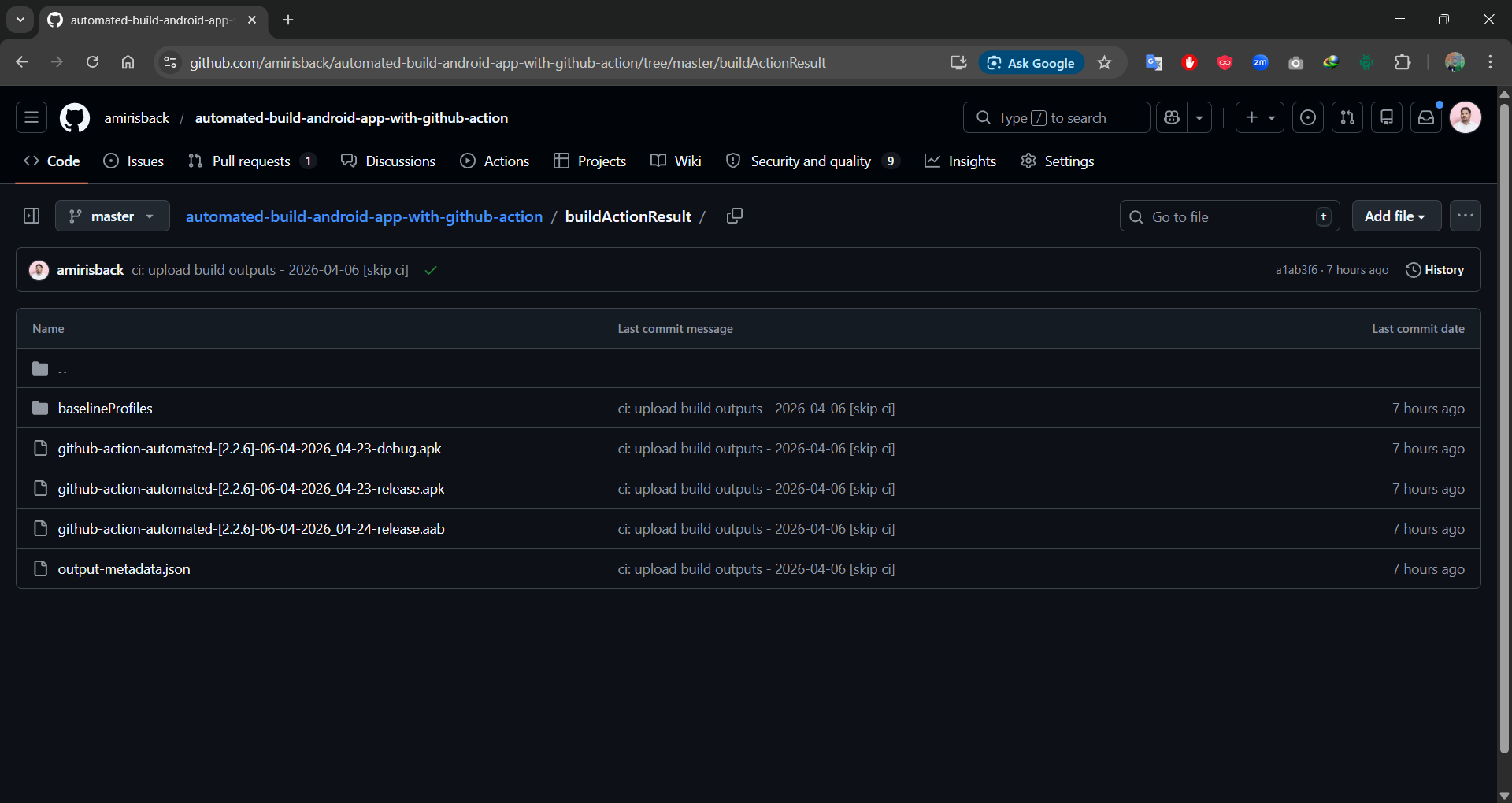

Result Generated from Github Action

APK(s) debug generated

APK(s) release generated

App bundle(s) release generated

Clean Up Artifact

name: Generated APK AAB (Clean)

on:
  # Allows you to run this workflow manually from the Actions tab
  workflow_dispatch:

  schedule:
    # Every day at 1am
    - cron: '0 1 * * *'

jobs:
  remove-old-artifacts:
    runs-on: ubuntu-latest
    timeout-minutes: 10

    steps:
      - name: Clean all artifacts
        uses: c-hive/gha-remove-artifacts@v4
        with:
          age: '60 seconds' # '<number> <unit>', e.g. 5 days, 2 years, 90 seconds, parsed by Moment.js
          # Optional inputs
          # skip-tags: true
          # skip-recent: 5

Using Bundle Tool

Step 1. Prepare Bundle Tool

• Check Bundletool on (.github/lib/bundletool.jar) Download Latest

Step 2. Code Action in file android-ci-generate-apk-aab-upload-3.yml

name: Generated APK AAB 2 Bundle Tool (Upload - Create Artifact To Github Action)

env:
  # The name of the main module repository
  main_project_module: app

  # The name of the Play Store
  playstore_name: Frogobox ID

  # Keystore Path
  ks_path: frogoboxdev.jks

  # Keystore Password
  ks_store_pass: cronoclez

  # Keystore Alias
  ks_alias: frogobox

  # Keystore Alias Password
  ks_alias_pass: xeonranger

on:

  push:
    branches:
      - 'release/**'

  # Allows you to run this workflow manually from the Actions tab
  workflow_dispatch:

jobs:
  build:

    runs-on: ubuntu-latest

    steps:
      - uses: actions/checkout@v4

      # Set Current Date As Env Variable
      - name: Set current date as env variable
        run: echo "date_today=$(date +'%Y-%m-%d')" >> $GITHUB_ENV

      # Set Repository Name As Env Variable
      - name: Set repository name as env variable
        run: echo "repository_name=$(echo '${{ github.repository }}' | awk -F '/' '{print $2}')" >> $GITHUB_ENV

      - name: Set Up JDK
        uses: actions/setup-java@v4
        with:
          distribution: 'zulu' # See 'Supported distributions' for available options
          java-version: '17'
          cache: 'gradle'

      - name: Change wrapper permissions
        run: chmod +x ./gradlew

      # Run Tests Build
      - name: Run gradle tests
        run: ./gradlew test

      # Run Build Project
      - name: Build gradle project
        run: ./gradlew build

      # Create APK Debug
      - name: Build apk debug project (APK) - ${{ env.main_project_module }} module
        run: ./gradlew assembleDebug

      # Create APK Release
      - name: Build apk release project (APK) - ${{ env.main_project_module }} module
        run: ./gradlew assemble

      # Create Bundle AAB Release
      # Noted for main module build [main_project_module]:bundleRelease
      - name: Build app bundle release (AAB) - ${{ env.main_project_module }} module
        run: ./gradlew ${{ env.main_project_module }}:bundleRelease

      # - name: Build APK(s) Debug from bundle using bundletool
      #   run: java -jar ".github/lib/bundletool.jar" build-apks --bundle=${{ env.main_project_module }}/build/outputs/bundle/debug/${{ env.artifact_name }}-debug.aab --output=${{ env.main_project_module }}/build/outputs/bundle/debug/${{ env.artifact_name }}-debug.apks --mode=universal

      - name: Set Env Artifact name from generated aab
        run: |
          cd ${{ env.main_project_module }}/build/outputs/bundle/release/
          files=(*)
          echo "generated_name_aab=${files[0]%.*}" >> $GITHUB_ENV

      # Build APK From Bundle Using Bundletool
      # Noted For Output [main_project_module]/build/outputs/bundle/release/
      - name: Build APK(s) Release from bundle using bundletool (Path same with bundle output)
        run: java -jar ".github/lib/bundletool.jar" build-apks --bundle=${{ env.main_project_module }}/build/outputs/bundle/release/${{ env.generated_name_aab }}.aab --output=${{ env.main_project_module }}/build/outputs/bundle/release/${{ env.generated_name_aab }}.apks --mode=universal --ks="app/${{ env.ks_path }}" --ks-pass=pass:${{ env.ks_store_pass }} --ks-key-alias=${{ env.ks_alias }} --key-pass=pass:${{ env.ks_alias_pass }}

      # Duplicate APK(s) Release to zip file and extract
      - name: Duplicate APK(s) Release to zip file and extract
        run: |
          cd ${{ env.main_project_module }}/build/outputs/bundle/release/
          unzip -p ${{ env.generated_name_aab }}.apks universal.apk > ${{ env.generated_name_aab }}.apk

      # Upload Artifact Build
      # Noted For Output [main_project_module]/build/outputs/apk/debug/
      - name: Upload APK Debug - ${{ env.repository_name }}
        uses: actions/upload-artifact@v4
        with:
          name: ${{ env.date_today }} - ${{ env.playstore_name }} - ${{ env.repository_name }} - APK(s) debug generated
          path: ${{ env.main_project_module }}/build/outputs/apk/debug/

      # Noted For Output [main_project_module]/build/outputs/apk/release/
      - name: Upload APK Release - ${{ env.repository_name }}
        uses: actions/upload-artifact@v4
        with:
          name: ${{ env.date_today }} - ${{ env.playstore_name }} - ${{ env.repository_name }} - APK(s) release generated
          path: ${{ env.main_project_module }}/build/outputs/apk/release/

      # Noted For Output [main_project_module]/build/outputs/bundle/release/
      - name: Upload AAB (App Bundle) Release - ${{ env.repository_name }}
        uses: actions/upload-artifact@v4
        with:
          name: ${{ env.date_today }} - ${{ env.playstore_name }} - ${{ env.repository_name }} - App bundle(s) AAB release generated
          path: ${{ env.main_project_module }}/build/outputs/bundle/release/

Step 3. Running Action

Step 4. Waiting Running Action

Waiting for running action

Check periodically, afraid there is an error

Step 5. Download Artifact and Extract it

Download Artifact (AAB Artifact)

Extract it !!! Done

Run Using Gradle Configuration

.run Configuration (Alternative if you don't have github action)

• Run on your local machine

Step 1: Create Folder .run on Root Project Directory

Step 2: Create File [name-config].run.xml

<component name="ProjectRunConfigurationManager">
  <!-- Add Name Configuration Here -->
  <configuration default="false" name="${your-config-name}" type="GradleRunConfiguration" factoryName="Gradle">
    <ExternalSystemSettings>
      <option name="executionName" />
      <option name="externalProjectPath" value="$PROJECT_DIR$" />
      <option name="externalSystemIdString" value="GRADLE" />
      <option name="scriptParameters" value="" />
      <option name="taskDescriptions">
        <list />
      </option>
      <option name="taskNames">
        <list>
          <!-- TODO : add your task here -->
          <option value=":app:assembleDebug" />
        </list>
      </option>
      <option name="vmOptions" />
    </ExternalSystemSettings>
    <ExternalSystemDebugServerProcess>true</ExternalSystemDebugServerProcess>
    <ExternalSystemReattachDebugProcess>true</ExternalSystemReattachDebugProcess>
    <DebugAllEnabled>false</DebugAllEnabled>
    <RunAsTest>false</RunAsTest>
    <method v="2" />
  </configuration>
</component>

• Note : if you confuse you can use this feature

Step 3: Your Configuration Will Appears on this Menu

Step 4: Result run multiple task

Sample Configuration (signingreport)

<component name="ProjectRunConfigurationManager">
  <configuration default="false" name="signingreport" type="GradleRunConfiguration" factoryName="Gradle">
    <ExternalSystemSettings>
      <option name="executionName" />
      <option name="externalProjectPath" value="$PROJECT_DIR$" />
      <option name="externalSystemIdString" value="GRADLE" />
      <option name="scriptParameters" value="" />
      <option name="taskDescriptions">
        <list />
      </option>
      <option name="taskNames">
        <list>
          <option value="signingreport" />
        </list>
      </option>
      <option name="vmOptions" />
    </ExternalSystemSettings>
    <ExternalSystemDebugServerProcess>true</ExternalSystemDebugServerProcess>
    <ExternalSystemReattachDebugProcess>true</ExternalSystemReattachDebugProcess>
    <DebugAllEnabled>false</DebugAllEnabled>
    <RunAsTest>false</RunAsTest>
    <method v="2" />
  </configuration>
</component>

Colaborator

Very open to anyone, I'll write your name under this, please contribute by sending an email to me

• Mail To faisalamircs@gmail.com
• Subject : Github _ [Github-Username-Account] _ [Language] _ [Repository-Name]
• Example : Github_amirisback_kotlin_admob-helper-implementation

Name Of Contribute

• Muhammad Faisal Amir
• Waiting List
• Waiting List

Waiting for your contribute

Attention !!!

• Please enjoy and don't forget fork and give a star
• Don't Forget Follow My Github Account
